Heat Sinks
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

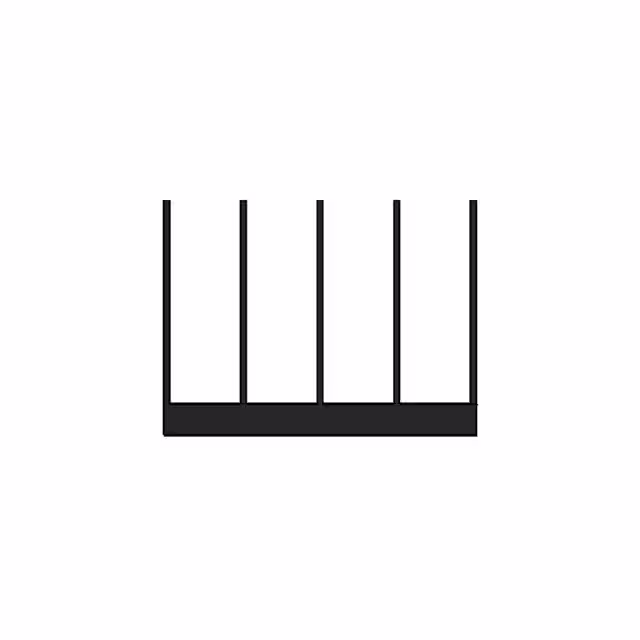

ATS-EXL113-300-R0PCIE EXTRUSION PROFILE, AL6063 |
3,855 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 11.811" (300.00mm) | 1.575" (40.00mm) | - | 1.181" (30.00mm) | - | 4.50°C/W @ 200 LFM | 10.00°C/W | Aluminum | Degreased |
|
26924HEATSINK FOR TE0712 SPRINGLOADED |
1,096 |
|
- |
TE0712 | Bulk | Active | Top Mount | TE0712 | Push Pin | Rectangular, Fins | - | - | - | - | - | - | - | - | - |
|
26923HEATSINK FOR TE0715 SPRINGLOADED |
3,590 |
|
- |
TE0715 | Bulk | Active | Top Mount | TE0715 | Push Pin | Rectangular, Fins | - | - | - | - | - | - | - | - | - |
|
1277533.65" WIDE X 36" FLATBACK HEATSI |
4,810 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 3.650" (92.71mm) | - | 0.399" (10.14mm) | - | - | 0.90°C/W | Aluminum | - |
|

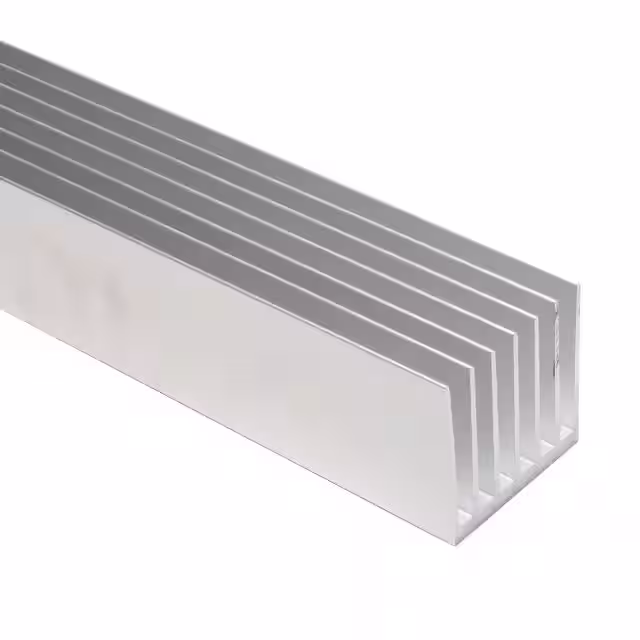

1277512.24" WIDE X 36" FLATBACK HEATSI |
1,803 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 2.240" (56.90mm) | - | 2.220" (56.39mm) | - | - | 0.60°C/W | Aluminum | - |
|
1277348.5" WIDE X 12" MULTI CHANNEL XX |
1,029 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 8.500" (215.90mm) | - | 1.500" (38.10mm) | - | - | 0.22°C/W | Aluminum | - |
|
ATS-EXL73-1220-R0HEATSINK AL6063 1220X45X10MM |
3,130 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 1.772" (45.00mm) | - | 0.394" (10.00mm) | - | 6.80°C/W @ 200 LFM | 18.60°C/W | Aluminum | Degreased |
|

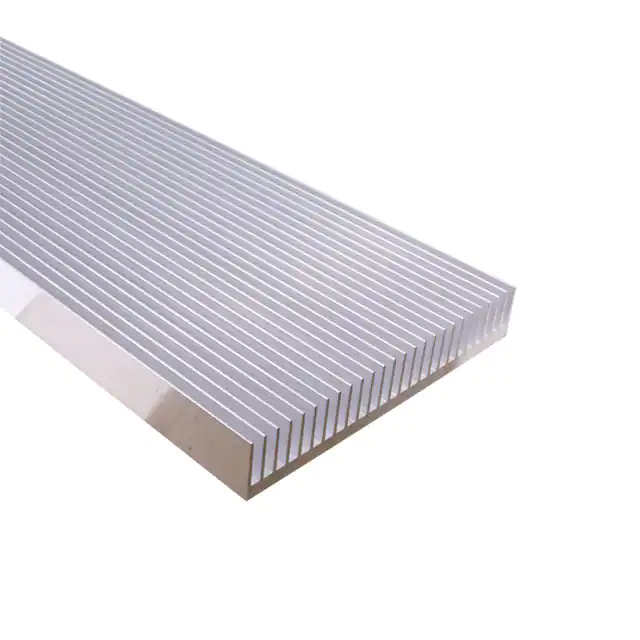

1277767.875" WIDE X 36" FLATBACK HEATS |
3,083 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 7.875" (200.02mm) | - | 1.312" (33.32mm) | - | - | 0.30°C/W | Aluminum | - |
|
12777810.08" WIDE X 36" FLATBACK HEATS |
1,025 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 10.080" (256.03mm) | - | 2.905" (73.79mm) | - | - | 0.13°C/W | Aluminum | - |
|

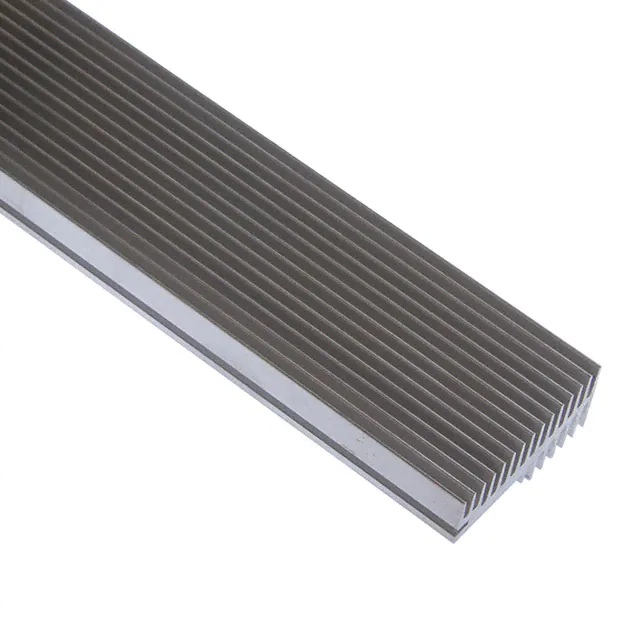

780802F00000G78080 EXTRUSION 2.36X1.06"X4.1' |
2,876 |
|
Datasheet |
- | Box | Active | Board Level, Vertical, Extrusion | - | PC Pin | Rectangular, Pin Fins | 49.500" (1257.30mm) | 1.063" (27.00mm) | - | 2.362" (60.00mm) | - | - | - | Aluminum | - |
|
|
605202F00000G60520 EXTRUSION 1.295X9.875"X4' |
2,306 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Pin Fins | 48.000" (1219.20mm) | 9.880" (250.95mm) | - | 1.310" (33.27mm) | 15.0W @ 20°C | 0.25°C/W @ 700 LFM | 0.90°C/W | Aluminum | - |
|

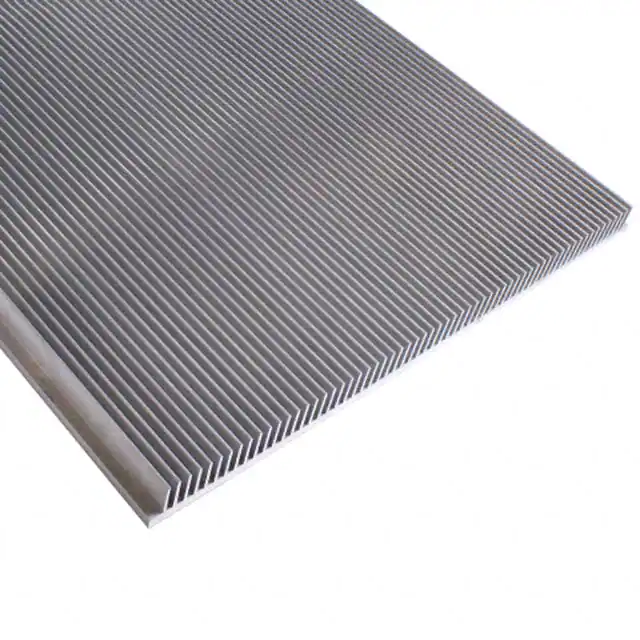

623352F00000G62335 EXTRUSION 1.312X19"X3' |
1,902 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 19.000" (482.60mm) | - | 1.312" (33.32mm) | - | - | - | Aluminum | - |
|

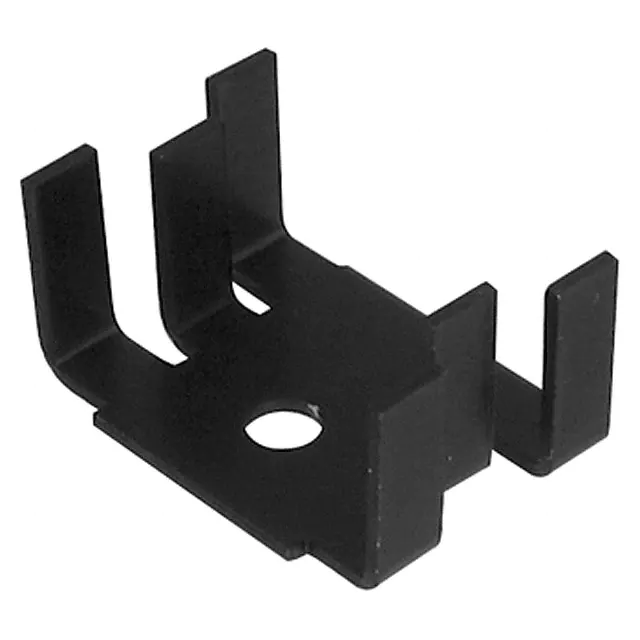

V5234B-THEATSINK ALUM ANOD |
1,378 |
|
Datasheet |
- | Bulk | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.712" (18.08mm) | 1.000" (25.40mm) | - | 0.311" (7.90mm) | - | - | 25.00°C/W | Aluminum | Black Anodized |
|

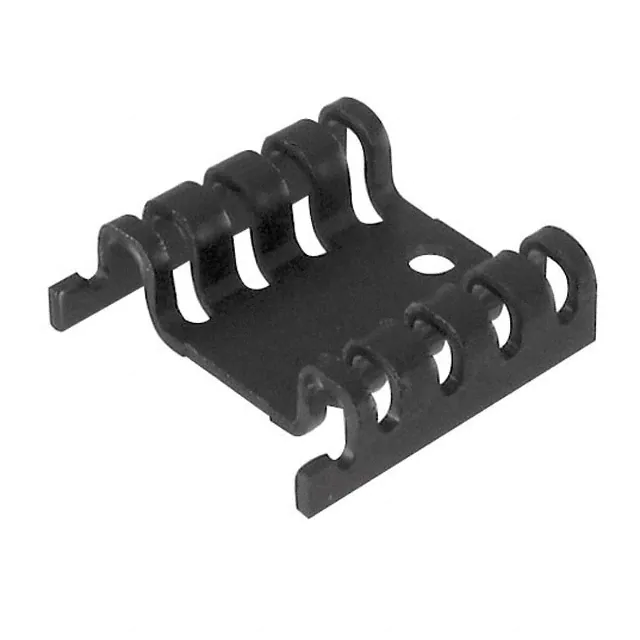

V7573A-THEATSINK ALUM ANOD |
1,594 |
|
Datasheet |
- | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Bolt On and Board Mounts | Square, Fins | 1.457" (37.00mm) | 1.457" (37.00mm) | - | 0.272" (6.90mm) | - | - | 21.00°C/W | Aluminum | Black Anodized |
|

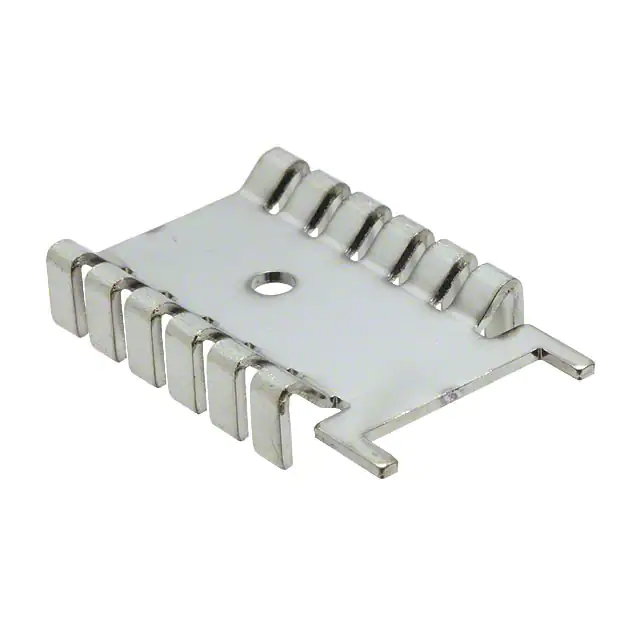

V5641B-THEATSINK ALUM ANOD |
1,264 |
|
Datasheet |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and Board Mounts | Rectangular, Fins | 1.410" (35.81mm) | 0.878" (22.30mm) | - | 0.252" (6.40mm) | - | - | 21.00°C/W | Aluminum | Tin |
|

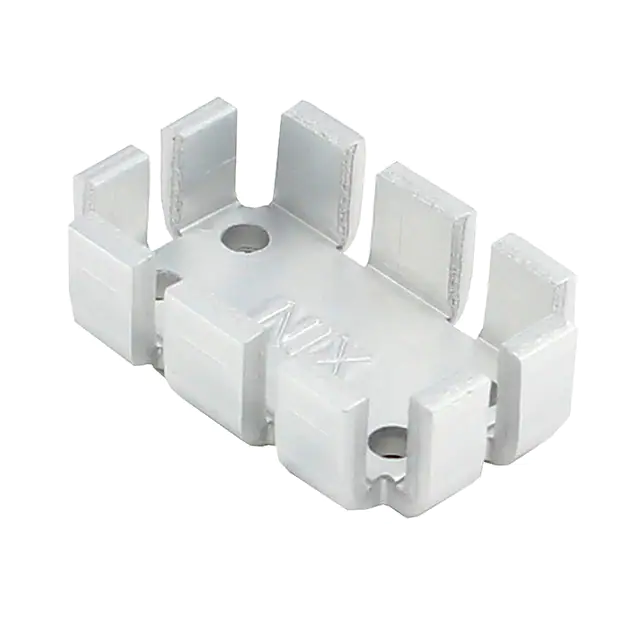

V2199N1HEATSINK CPU STAMPED |
4,821 |
|
Datasheet |
- | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Not Included) | Rectangular, Fins | 1.378" (35.00mm) | 0.866" (22.00mm) | - | 0.394" (10.00mm) | - | - | - | Aluminum Alloy | Natural Anodized |
|

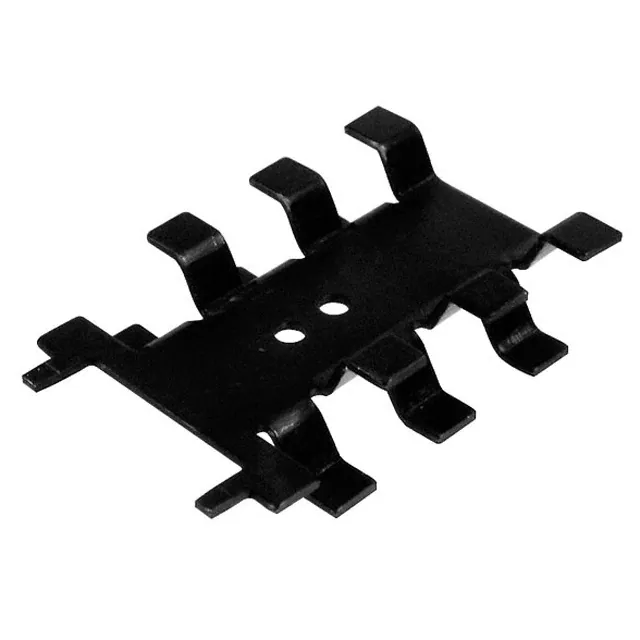

V5642A-THEATSINK ALUM ANOD |
4,539 |
|
Datasheet |
- | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Bolt On and Board Mounts | Square, Fins | 0.669" (17.00mm) | 0.669" (17.00mm) | - | 0.500" (12.70mm) | - | - | 14.00°C/W | Aluminum | Black Anodized |
|
V2003WHEAT SINK BLK ANOD ALUM TO-220 |
1,903 |
|
Datasheet |
- | Bulk | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.748" (19.00mm) | 0.866" (22.00mm) | - | 0.433" (11.00mm) | - | - | 30.00°C/W | Aluminum | Black Anodized |
|
V5629W32HEATSINK ALUM ANOD |
2,896 |
|
Datasheet |
- | Bulk | Active | Top Mount | SOT-32 | Bolt On and PC Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.260" (6.60mm) | - | - | 36.00°C/W | Aluminum | Black Anodized |
|

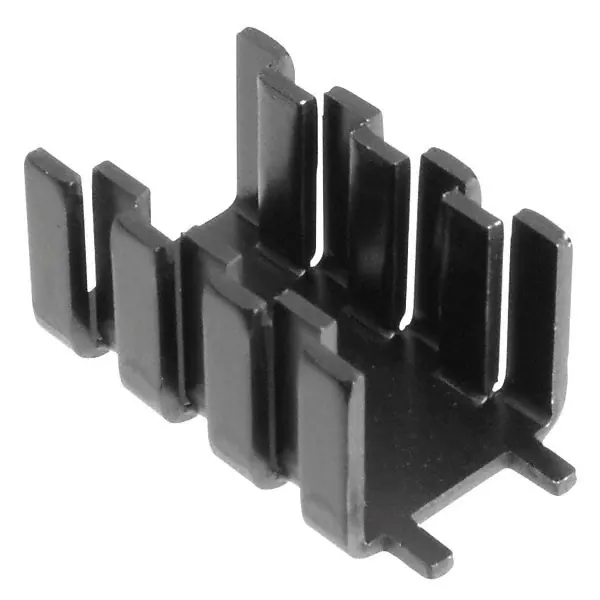

V7238E1HEATSINK ALUM ANOD |
1,859 |
|
Datasheet |
- | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Bolt On and Board Mounts | Square, Fins | 1.457" (37.00mm) | 0.728" (18.50mm) | - | 0.590" (15.00mm) | - | - | 16.00°C/W | Aluminum | Black Anodized |
