Heat Sinks
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

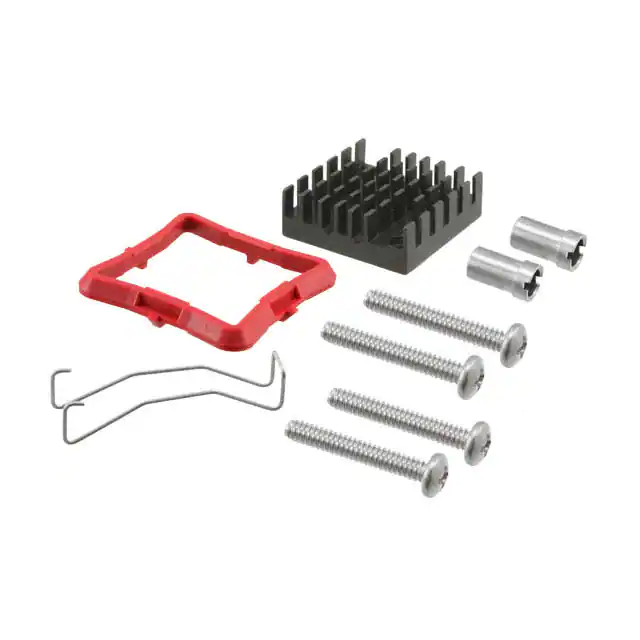

ATS-61270D-C1-R0MAXIGRIP FANSINK 27X27X9.5MM |
1,589 |
|
Datasheet |
fanSINK, maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Pin Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.374" (9.50mm) | - | 3.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

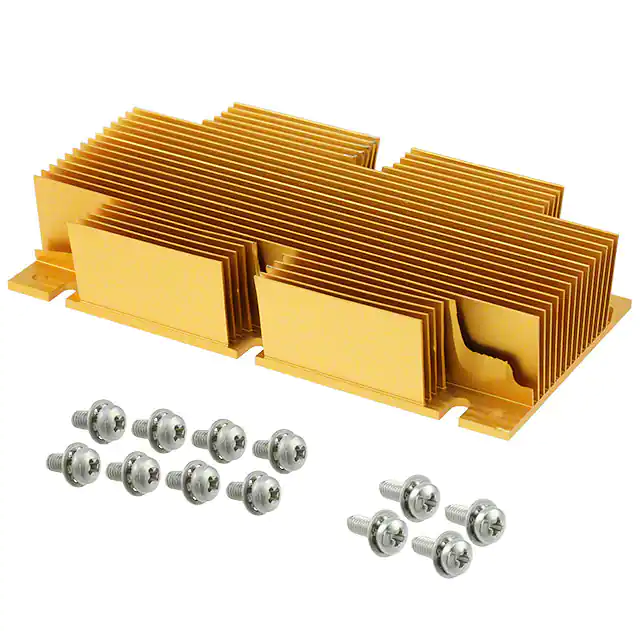

ATS-1111-C1-R0FULL BRICK HEATSINK 117X61X22.9M |
4,365 |
|
Datasheet |
maxiFLOW | Bulk | Active | Top Mount | Full Brick DC/DC Converter | Bolt On | Rectangular, Angled Fins | 4.598" (116.80mm) | 2.400" (60.96mm) | - | 0.902" (22.90mm) | - | 1.80°C/W @ 200 LFM | - | Aluminum | Gold Anodized |
|
|
ATS-NVA-3275-C1-R0ACTIVE HEATSINK 100X87X16MM NVID |
3,661 |
|
Datasheet |
- | Box | Active | Top Mount | Nvidia Jetson Xavier AGX, Orin AGX | Bolt On, Thermal Material | Rectangular, Fins | 3.937" (100.00mm) | 3.425" (87.00mm) | - | 0.630" (16.00mm) | - | - | 0.21°C/W | Aluminum | Black Anodized |
|

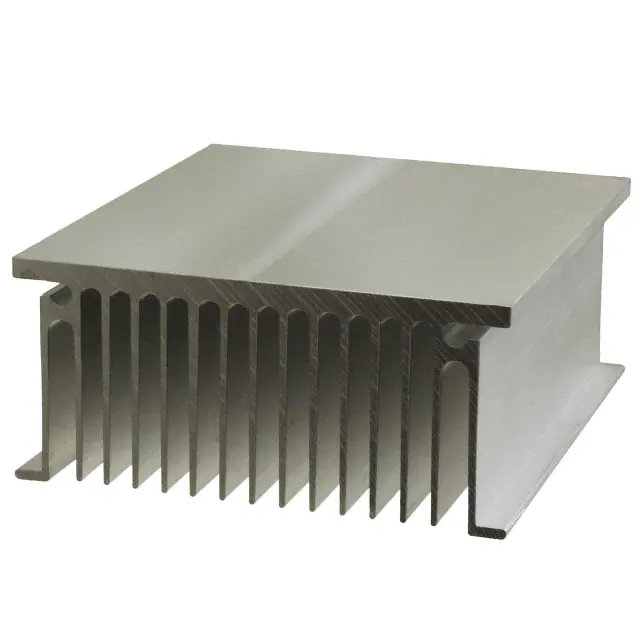

511-6MHEATSINK FOR PWR MOD/IGBT/RELAY |
1,497 |
|
Datasheet |
511 | Bulk | Active | Top Mount, Extrusion | Power Modules | Adhesive | Rectangular, Fins | 6.000" (152.40mm) | 5.210" (132.33mm) | - | 2.350" (59.69mm) | - | - | 0.65°C/W | Aluminum | - |
|

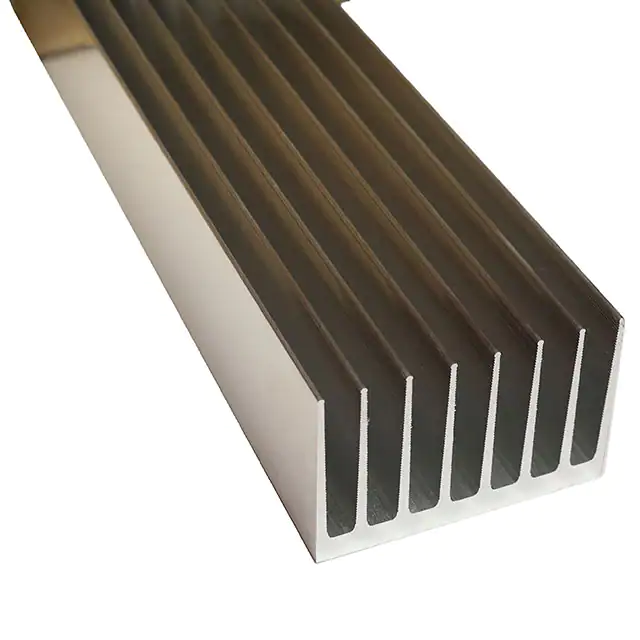

1253203WX36" EXTRUSION 9099 |
4,535 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 3.000" (76.20mm) | - | 2.000" (50.80mm) | - | - | 0.38°C/W | Aluminum | - |
|

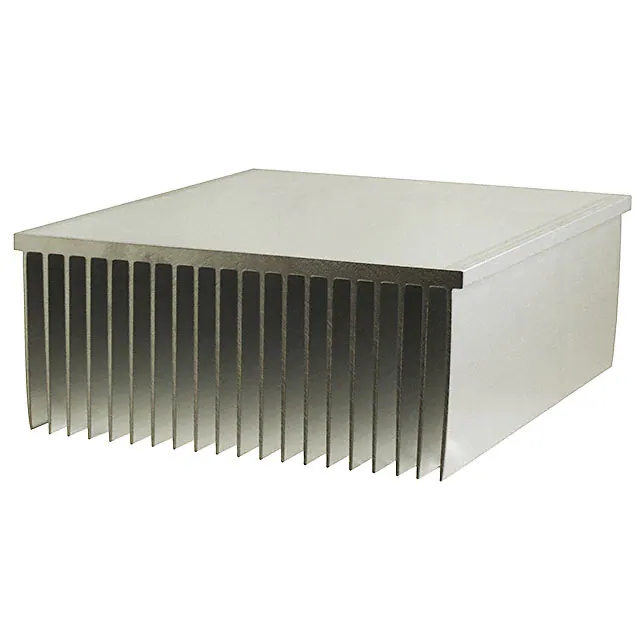

510-9UHEATSINK FOR PWR MOD/IGBT/RELAY |
2,693 |
|
Datasheet |
510 | Bulk | Active | Top Mount, Extrusion | Power Modules | Adhesive | Rectangular, Fins | 9.000" (228.60mm) | 7.380" (187.45mm) | - | 3.136" (79.65mm) | - | - | 0.29°C/W | Aluminum | - |
|

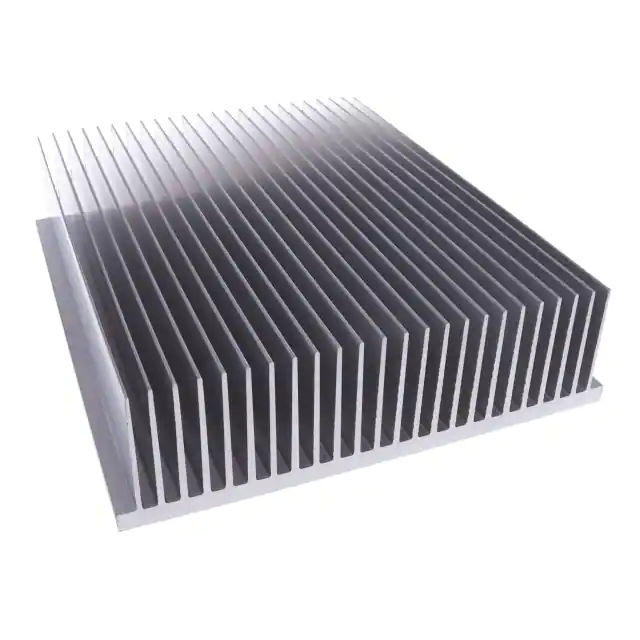

12557110.08WX12" EXTRUSION 21052 |
2,859 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 10.080" (256.03mm) | - | 2.905" (73.79mm) | - | - | 0.13°C/W | Aluminum | - |
|

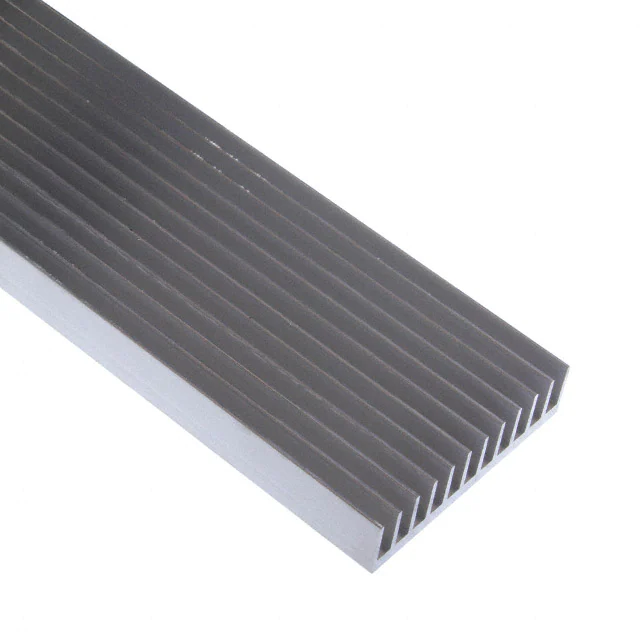

622002F00000G62200 EXTRUSION 0.85X3.5"X4' |
1,219 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Pin Fins | 48.000" (1219.20mm) | 3.500" (88.90mm) | - | 0.850" (21.60mm) | - | 1.50°C/W @ 200 LFM | - | Aluminum | - |
|

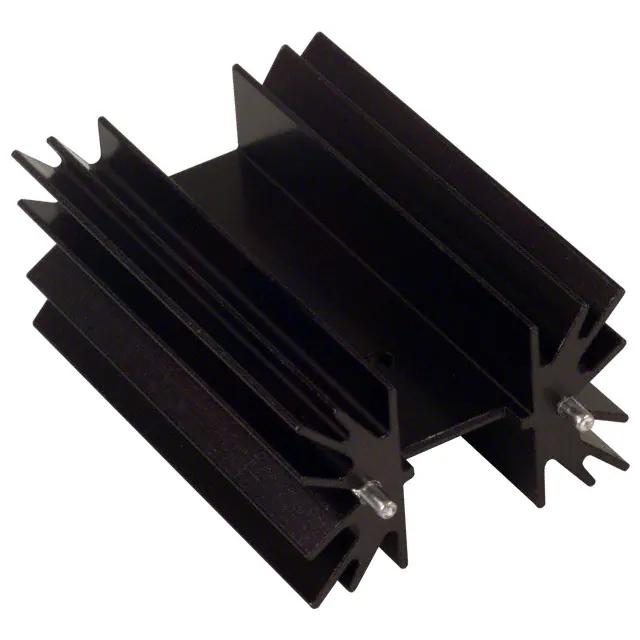

530002B02500GHEATSINK TO-220 POWER W/PINS BK |
4,518 |
|
Datasheet |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 2.500" (63.50mm) | 1.650" (41.91mm) | - | 1.000" (25.40mm) | 20.0W @ 60°C | 2.00°C/W @ 300 LFM | 2.60°C/W | Aluminum | Black Anodized |
|

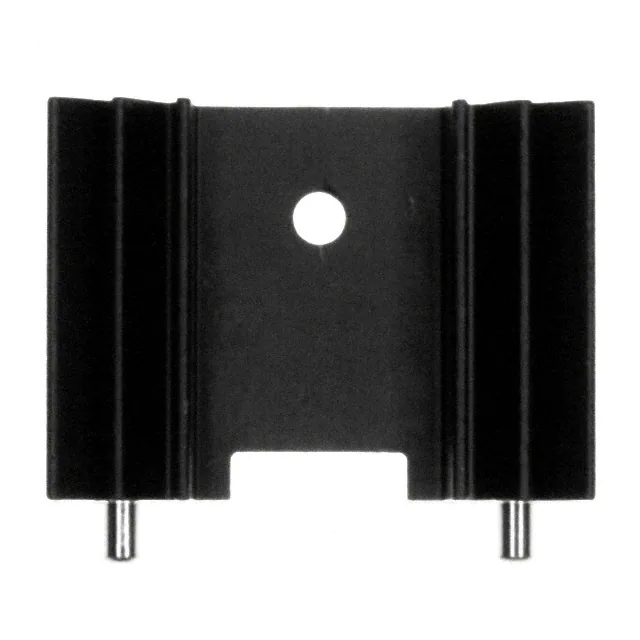

513002B02500GHEATSINK TO-220 W/PINS 1" TALL |
1,935 |
|
Datasheet |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.000" (25.40mm) | 1.375" (34.93mm) | - | 0.500" (12.70mm) | 2.0W @ 30°C | 4.00°C/W @ 400 LFM | 13.40°C/W | Aluminum | Black Anodized |
|
274-1ABHEATSINK TO-220 LOW HEIGHT BLK |
3,119 |
|
Datasheet |
274 | Bulk | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.750" (19.05mm) | 0.520" (13.21mm) | - | 0.375" (9.52mm) | 2.0W @ 56°C | 8.00°C/W @ 400 LFM | 28.00°C/W | Aluminum | Black Anodized |
|

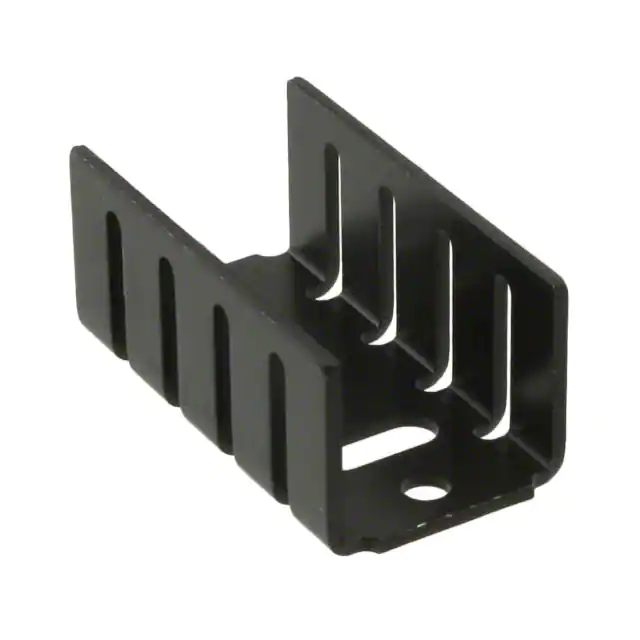

V5630-THEATSINK ALUM ANOD |
3,156 |
|
Datasheet |
- | Bulk | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 1.378" (35.00mm) | 0.728" (18.50mm) | - | 0.590" (15.00mm) | - | - | 15.00°C/W | Aluminum | Black Anodized |
|

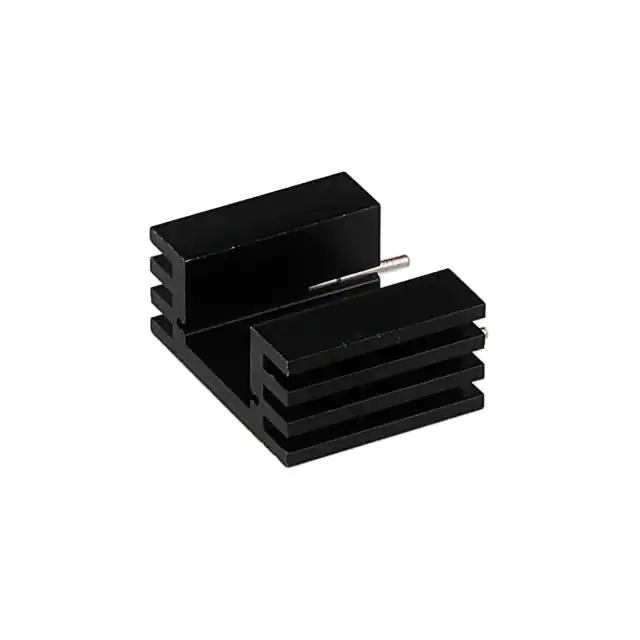

V5229WHEATSINK ALUM ANOD W/PIN TO-220 |
4,812 |
|
Datasheet |
- | Tray | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 0.984" (25.00mm) | 1.260" (32.00mm) | - | 0.551" (14.00mm) | - | - | 12.50°C/W | Aluminum | Black Anodized |
|

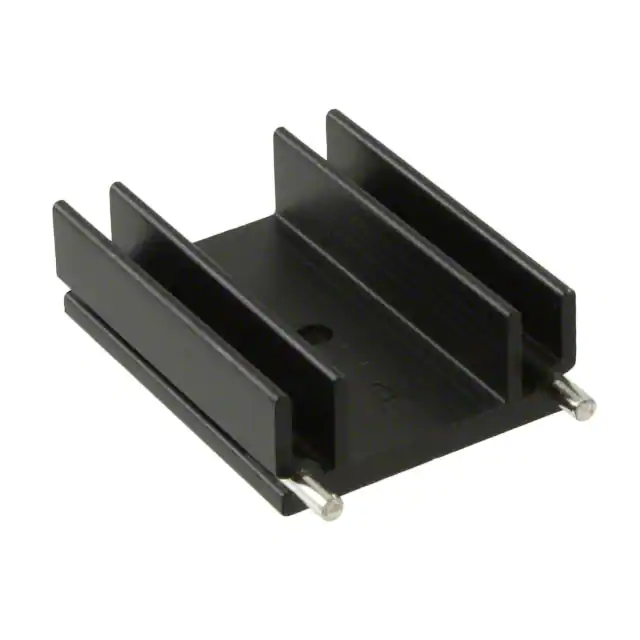

V6560XHEATSINK ALUM ANOD |
4,792 |
|
Datasheet |
- | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Bolt On and PC Pin | Square, Fins | 1.476" (37.50mm) | 1.181" (30.00mm) | - | 0.472" (12.00mm) | - | - | 8.00°C/W | Aluminum | Black Anodized |
|
V2019BHEATSINK CPU XCUT |
1,605 |
|
Datasheet |
- | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 0.472" (12.00mm) | 0.472" (12.00mm) | - | 0.709" (18.00mm) | - | - | 27.00°C/W | Aluminum Alloy | Black Anodized |
|

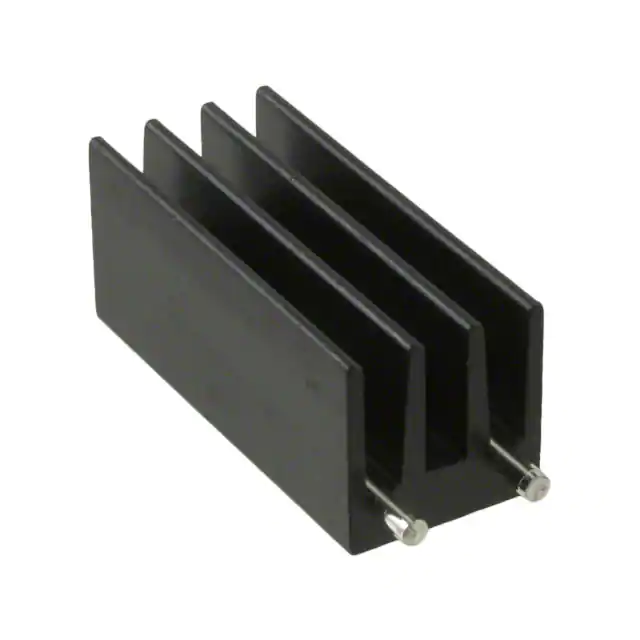

V9582X-LPHEATSINK SOT-32 TO-220 |
4,647 |
|
Datasheet |
- | Bulk | Active | Board Level | SOT-32, TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.500" (38.10mm) | 0.640" (16.26mm) | - | 0.640" (16.26mm) | - | - | 8.50°C/W | Aluminum | Black Anodized |
|

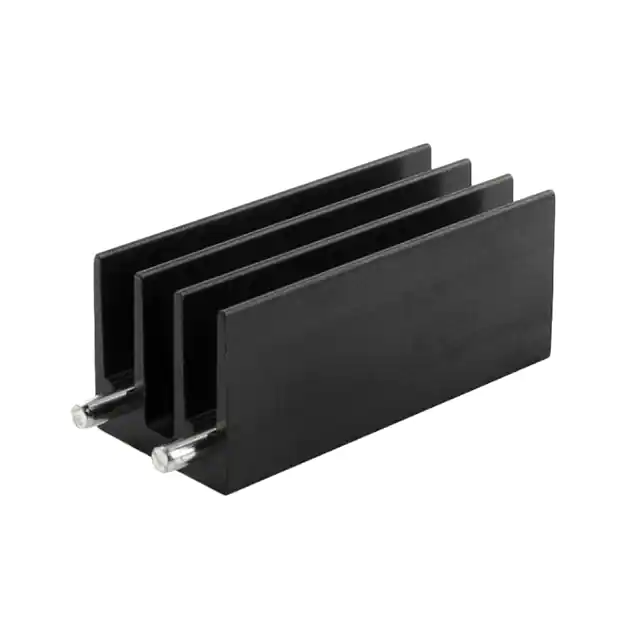

HSE-B254-04HHEAT SINK, EXTRUSION, TO-220/TO- |
1,420 |
|
Datasheet |
HSE | Box | Active | Board Level, Vertical | TO-218, TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.000" (25.40mm) | 0.650" (16.50mm) | - | 0.630" (16.00mm) | 4.7W @ 75°C | 4.93°C/W @ 200 LFM | 15.96°C/W | Aluminum Alloy | Black Anodized |
|

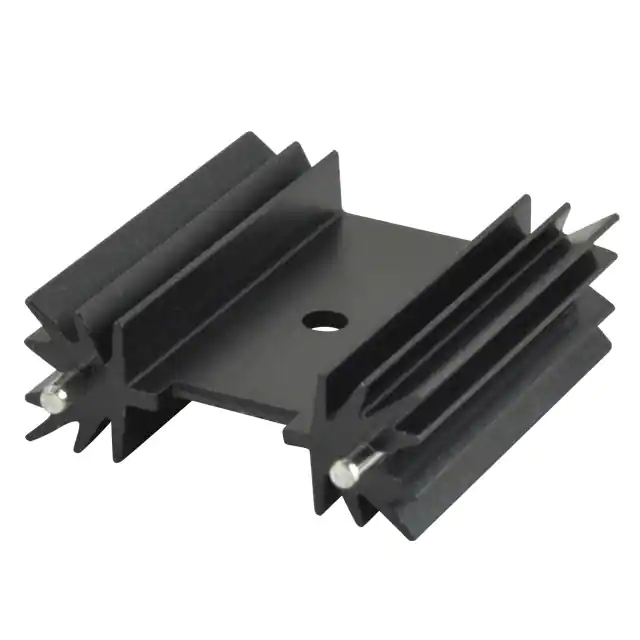

HSE-B20254-035H-01HEAT SINK, EXTRUSION, TO-220, 25 |
4,162 |
|
Datasheet |
HSE | Box | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Angled Fins | 1.000" (25.40mm) | 1.378" (35.00mm) | - | 0.500" (12.70mm) | 5.2W @ 75°C | 4.42°C/W @ 200 LFM | 14.42°C/W | Aluminum Alloy | Black Anodized |
|

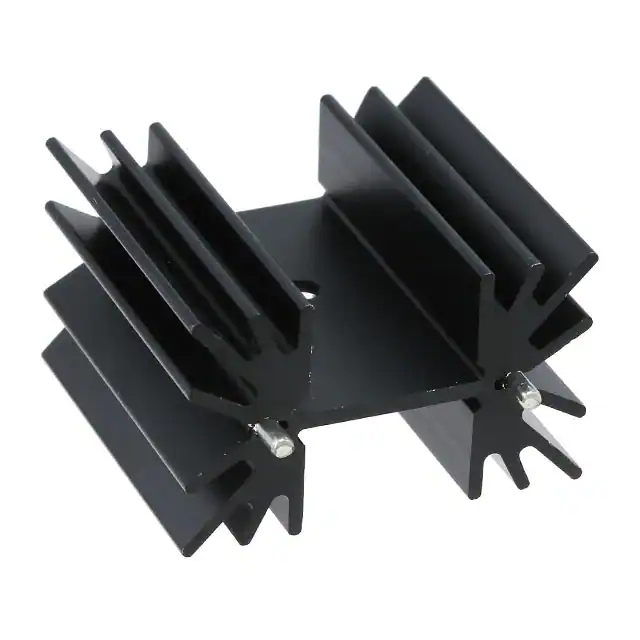

657-15ABPEHEATSINK TO-220 W/PINS BLK 1.5" |
3,551 |
|
Datasheet |
657 | Bulk | Active | Board Level, Vertical | TO-218, TO-220, TO-247 | Bolt On and PC Pin | Rectangular, Fins | 1.000" (25.40mm) | 1.650" (41.91mm) | - | 1.500" (38.10mm) | 6.0W @ 38°C | 3.30°C/W @ 200 LFM | 6.30°C/W | Aluminum | Black Anodized |
|

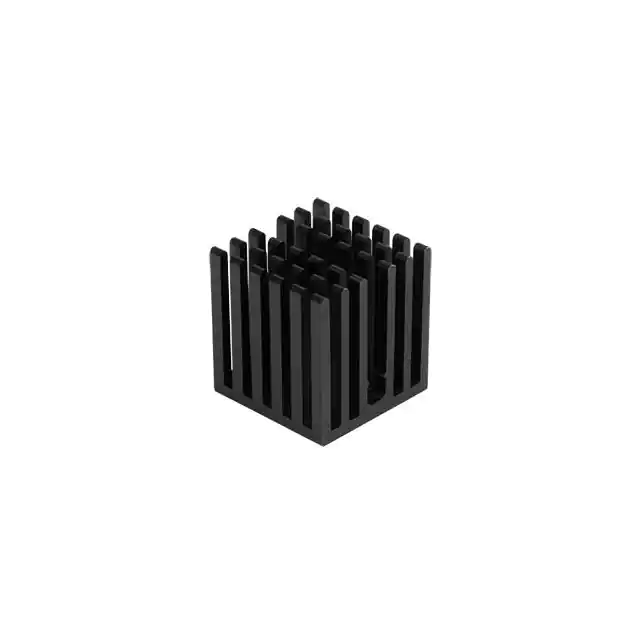

HSB23-232325HEAT SINK, BGA, 23 X 23 X 25 MM |
4,267 |
|
Datasheet |
HSB | Box | Active | Top Mount | BGA | Adhesive (Not Included) | Square, Pin Fins | 0.906" (23.00mm) | 0.906" (23.00mm) | - | 0.984" (25.00mm) | 6.13W @ 75°C | 3.80°C/W @ 200 LFM | 12.23°C/W | Aluminum Alloy | Black Anodized |
