Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H3BBS-3418GIDC CABLE - HSR34S/AE34G/HSR34S |
4,795 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | Socket to Socket | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Tin | - |
|
158210-0120-3625/10-S-3SINGLE ENDED CABLE ASSEMBLY 10 P |
4,876 |
|
Datasheet |
158 | Bulk | Obsolete | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.250' (76.20mm, 3.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
IDMS-05-S-08.00-GSLIM BODY SINGLE-ROW IDC MALE AS |
4,996 |
|
Datasheet |
IDMS | Bulk | Active | Plug to Cable | 5 | 1 | 0.100" (2.54mm) | 0.100" (2.54mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
MMSS-10-22C-F-12.00-S-KMINI-MATE CABLE ASSEMBLY, 0.100" |
1,353 |
|
Datasheet |
Mini Mate® MMSS | Bulk | Active | Socket to Individual Wire Leads | 10 | 1 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | Flash |
|
|
S1SS-03-28-GF-15.75-LMICRO MATE SINGLE ROW DISCRETE W |
2,776 |
|
Datasheet |
Micro Mate™ S1SS | Bulk | Active | Socket to Individual Wire Leads | 3 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
SFSS-05-28-H-06.00-SRSINGLE ROW DISCRETE WIRE ASSEMBL |
4,822 |
|
Datasheet |
Tiger Eye™ SFSS | Bulk | Active | Socket to Individual Wire Leads | 5 | 1 | 0.050" (1.27mm) | - | 0.500' (152.40mm, 6.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|

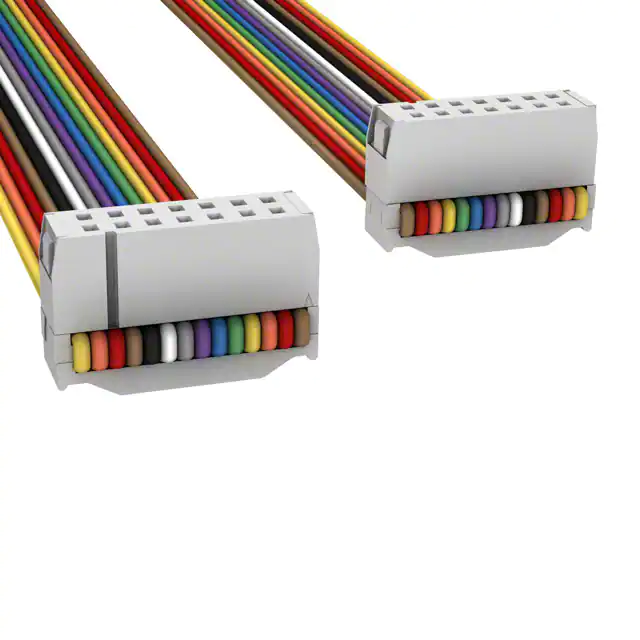

H3BBH-1436MIDC CBL - HHSR14H/AE14M/HHSR14H |
2,781 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3DDS-1636MIDC CBL - HHKR16S/AE16M/HHKR16S |
2,442 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Tin | - |
|
H3DKH-1606MIDC CBL - HHKR16H/AE16M/HHPK16H |
2,865 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief (Socket); Polarizing Key (Plug) | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3DWH-1606MIDC CBL - HHKR16H/AE16M/HHPL16H |
2,000 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief (Socket); Flange, Polarizing Key (Plug) | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
TCSD-02-S-03.00-012MM DOUBLE ROW FEMALE IDC ASSEMB |
4,405 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 4 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.250' (76.20mm, 3.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCMD-05-S-03.15-012MM DOUBLE ROW MALE IDC ASSEMBLY |
3,027 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
MMSD-03-22C-L-16.00-S-KMINI-MATE CABLE ASSEMBLY, 0.100" |
4,922 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Individual Wire Leads | 6 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
S1SS-04-28C-GF-04.25-LMICRO MATE SINGLE ROW DISCRETE W |
2,527 |
|
Datasheet |
Micro Mate™ S1SS | Bulk | Active | Socket to Individual Wire Leads | 4 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Multiple, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
MMSD-04-20C-L-24.00-S-KMINI-MATE CABLE ASSEMBLY, 0.100" |
4,870 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Individual Wire Leads | 8 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TFSS-04-28-G-03.00-S.050" TIGER EYE SINGLE ROW DISCR |
3,770 |
|
Datasheet |
Tiger Eye™ TFSS | Bulk | Active | Plug to Individual Wire Leads | 4 | 1 | 0.050" (1.27mm) | - | 0.250' (76.20mm, 3.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TFSS-04-30-G-03.00-S.050" TIGER EYE SINGLE ROW DISCR |
3,240 |
|
Datasheet |
Tiger Eye™ TFSS | Bulk | Active | Plug to Individual Wire Leads | 4 | 1 | 0.050" (1.27mm) | - | 0.250' (76.20mm, 3.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
MMSD-04-24-L-16.00-S-PMINI-MATE CABLE ASSEMBLY, 0.100" |
3,893 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Individual Wire Leads | 8 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
1502070014DITTO SG/END HARNESS 8 CKT .15M |
4,743 |
|
Datasheet |
Ditto 172578 | Bag | Obsolete | Self Mating, Non-Gendered, Hermaphroditic to Individual Wire Leads | 8 | 1 | 0.098" (2.50mm) | - | 0.492' (150.00mm, 5.91") | - | Black, White, Individual | - | - | Crimp | Tin | - |
|
0151360603MICROCLASP 6 CIRCUIT 300MM |
3,037 |
|
Datasheet |
MicroClasp 15136 | Bag | Active | Socket to Socket | 6 | 1 | 0.079" (2.00mm) | - | 0.984' (300.00mm, 11.81") | Latch Lock | Black, Individual | Unshielded | - | Crimp | Tin | 35.4µin (0.90µm) |
