Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S1SS-02-28-GF-15.00-L3MICRO MATE SINGLE ROW DISCRETE W |
2,565 |
|
Datasheet |
Micro Mate™ S1SS | Bulk | Active | Socket to Socket | 2 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
T2SD-02-24-L-03.00-S2.00 MM TIGER EYE DOUBLE ROW DIS |
1,341 |
|
Datasheet |
Tiger Eye™ T2SD | Bulk | Active | Socket to Individual Wire Leads | 4 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
SFSS-03-28-G-12.00-D-NUSSINGLE ROW DISCRETE WIRE ASSEMBL |
2,012 |
|
Datasheet |
Tiger Eye™ SFSS | Bulk | Active | Socket to Socket | 3 | 1 | 0.050" (1.27mm) | - | 1.00' (304.80mm) | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
S1SS-03-28-GF-15.00-LMICRO MATE SINGLE ROW DISCRETE W |
1,035 |
|
Datasheet |
Micro Mate™ S1SS | Bulk | Active | Socket to Individual Wire Leads | 3 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
A1CXA-1436GIDC CABLE-AKN14A/ AE14G / X |
2,142 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Cable | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
H1CXH-3036GIDC CBL - HHKC30H/AE30G/X |
2,604 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
H3CKH-1606MIDC CBL - HHKC16H/AE16M/HHPK16H |
1,597 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
H3CWH-1606MIDC CBL - HHKC16H/AE16M/HHPL16H |
3,171 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key (Socket); Flange, Polarizing Key (Plug) | Multiple, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
092316260626CKT PICOFLEX 60MM LONG |
2,066 |
|
Datasheet |
Picoflex 92316 | Bag | Active | Socket to Socket | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.197' (59.94mm, 2.36") | - | Gray, Ribbon | Unshielded | - | IDC | Tin | 80.0µin (2.03µm) |
|
H3BBH-2636GIDC CBL - HHSR26H/AE26G/HHSR26H |
3,816 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
TCSD-04-S-03.00-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,885 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.250' (76.20mm, 3.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-04-S-03.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,975 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.250' (76.20mm, 3.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
SFSD-05-30-G-03.25-S.050 SOCKET DISCRETE CABLE ASSEM |
2,219 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Individual Wire Leads | 10 | 2 | 0.050" (1.27mm) | - | 0.271' (82.55mm, 3.25") | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
L3DDH-1406NIDC CBL - LKR14H/CN218GR/LKR14H |
1,174 |
|
- |
- | Bulk | Active | Socket to Socket | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
T1SD-02-28-GF-05.01.00 MM MICRO MATE DOUBLE ROW DI |
2,211 |
|
Datasheet |
Micro Mate™ T1SD | Bulk | Active | Socket to Plug | 4 | 2 | 0.039" (1.00mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
MMSD-05-22C-F-12.00-S-KMINI-MATE CABLE ASSEMBLY, 0.100" |
2,535 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Individual Wire Leads | 10 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | Flash |
|

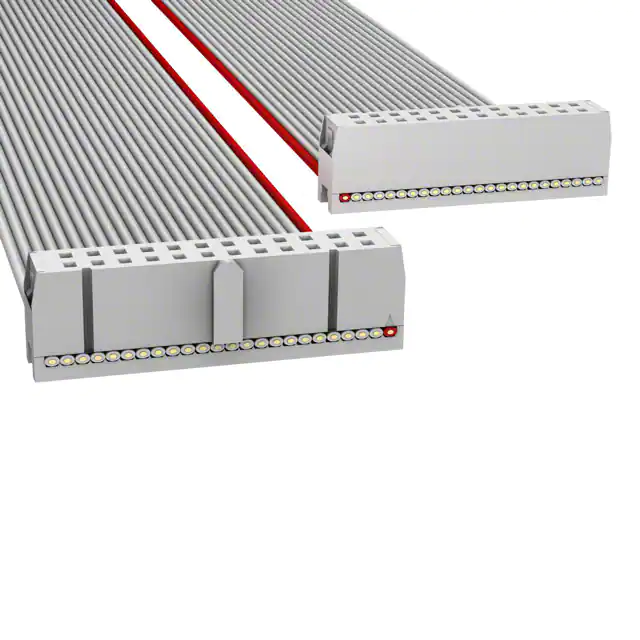

H3CCS-2436GIDC CBL - HHKC24S/AE24G/HHKC24S |
1,041 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Tin | - |
|
H3AWH-1018GIDC CBL - HHSC10H/AE10G/HHPL10H |
4,602 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Flange, Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
T1SS-06-28-GF-02.0-T3CBL ASSY 1MM 6POS M TO F |
2,887 |
|
- |
Micro Mate™ T1SS | Bulk | Active | Socket to Plug | 6 | 1 | 0.039" (1.00mm) | - | 0.167' (50.80mm, 2.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
SFSD-05-28-G-03.35-SDOUBLE ROW DISCRETE WIRE ASSEMBL |
3,632 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Individual Wire Leads | 10 | 2 | 0.050" (1.27mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
