Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCMD-04-S-04.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
3,738 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
MMSD-02-22-L-118.9-S-KMINI-MATE CABLE ASSEMBLY, 0.100" |
4,505 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Individual Wire Leads | 4 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
MMSS-03-20C-L-06.00-D-K-LDSMINI-MATE CABLE ASSEMBLY, 0.100" |
2,311 |
|
Datasheet |
Mini Mate® MMSS | Bulk | Active | Socket to Socket | 3 | 1 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
SFSD-05-28-F-39.37-SDOUBLE ROW DISCRETE WIRE ASSEMBL |
1,041 |
|
Datasheet |
Tiger Eye™ SFSD | Bag | Active | Socket to Individual Wire Leads | 10 | 2 | 0.050" (1.27mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | Flash |
|
|
353-28-22-GR-00018CABLE ASSY PLUG IDC 22POS 18" |
1,272 |
|
Datasheet |
- | Bulk | Obsolete | Plug to Plug | 22 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | - | - | - | IDC | Tin | - |
|
|
2264311084MINI-SPOX R-S 8CKT 600MM DISC SN |
2,238 |
|
- |
Mini-Spox 226431 | Bulk | Active | Socket to Individual Wire Leads | 8 | 1 | 0.098" (2.50mm) | - | 1.97' (600.00mm) | - | Black, Individual | Unshielded | - | Crimp | Tin | 35.0µin (0.89µm) |
|
|
2264211084ONEBLADE R-S 8CKT 600MM DISC SN |
2,373 |
|
- |
OneBlade 226421 | Bulk | Active | Socket to Individual Wire Leads | 8 | 1 | 0.039" (1.00mm) | - | 1.97' (600.00mm) | - | Black, Individual | Unshielded | - | Crimp | Tin | 39.4µin (1.00µm) |
|
|
2264291063MICRO-FIT3.0 R-S 6CKT 300MM DISC |
4,152 |
|
- |
Micro-Fit 3.0 226429 | Bulk | Active | Socket to Individual Wire Leads | 6 | 1 | 0.118" (3.00mm) | - | 0.984' (300.00mm, 11.81") | - | Black, Individual | Unshielded | - | Crimp | Tin | 40.0µin (1.02µm) |
|
|
A3BBG-1006MIDC CABLE- ASR10G/ AE10M / ASR10 |
4,640 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
A2MXT-2006MADM20T/AE20M/X |
1,746 |
|
Datasheet |
- | Bulk | Obsolete | DIP to Cable | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin-Lead | 100.0µin (2.54µm) |
|
H3CCH-1636MIDC CBL - HHKC16H/AE16M/HHKC16H |
1,811 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
H6MMH-4018GDIP CABLE - HDM40H/AE40G/HDM40H |
2,817 |
|
Datasheet |
- | Bulk | Active | DIP to DIP | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|
H8MMH-4018GDIP CABLE - HDM40H/AE40G/HDM40H |
3,652 |
|
Datasheet |
- | Bulk | Active | DIP to DIP, Reversed | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|
H3AWH-1006GIDC CBL - HHSC10H/AE10G/HHPL10H |
4,809 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Flange, Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3DDS-6006GIDC CBL - HHKR60S/AE60G/HHKR60S |
4,089 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 60 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Tin | - |
|
|
S1SS-05-30-GF-05.90-L1MICRO MATE SINGLE ROW DISCRETE W |
1,021 |
|
Datasheet |
Micro Mate™ S1SS | Bulk | Active | Socket to Socket | 5 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
0151360700MICROCLASP 7 CIRCUIT 50MM |
3,837 |
|
Datasheet |
MicroClasp 15136 | Bag | Active | Socket to Socket | 7 | 1 | 0.079" (2.00mm) | - | 0.164' (50.00mm, 1.97") | Latch Lock | Black, Individual | Unshielded | - | - | Tin | 35.4µin (0.90µm) |
|
|
0151360701MICROCLASP 7 CIRCUIT 100MM |
3,124 |
|
Datasheet |
MicroClasp 15136 | Bag | Active | Socket to Socket | 7 | 1 | 0.079" (2.00mm) | - | 0.328' (100.00mm, 3.94") | Latch Lock | Black, Individual | Unshielded | - | - | Tin | 35.4µin (0.90µm) |
|
|
0151360702MICROCLASP 7 CIRCUIT 150MM |
3,110 |
|
Datasheet |
MicroClasp 15136 | Bag | Active | Socket to Socket | 7 | 1 | 0.079" (2.00mm) | - | 0.492' (150.00mm, 5.91") | Latch Lock | Black, Individual | Unshielded | - | - | Tin | 35.4µin (0.90µm) |
|

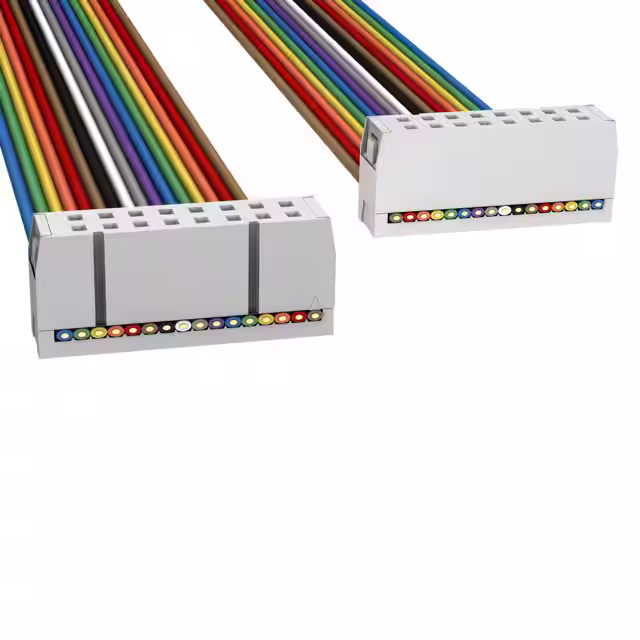

H3AAS-1636MIDC CBL - HHSC16S/AE16M/HHSC16S |
3,322 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Tin | - |
