Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCSS-04-S-04.00-01-NIDC SOCKET AND TERMINAL CABLE AS |
4,496 |
|
Datasheet |
HCS | Bulk | Active | Socket to Cable | 4 | 1 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
21715903003 CKT OVERMOLD 180MM F-P |
2,585 |
|
Datasheet |
Mini-Fit Jr 217159 | Bulk | Active | Socket to Cable | 3 | 1 | 0.165" (4.19mm) | - | 0.591' (180.00mm, 7.09") | Latch Lock | Black, Individual (Round) | Unshielded | - | Crimp | Tin | 35.0µin (0.89µm) |
|
H3CKH-2606GIDC CBL - HHKC26H/AE26G/HHPK26H |
2,440 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
H3BWH-1006GIDC CBL - HHSR10H/AE10G/HHPL10H |
3,442 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief (Socket); Flange, Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3DWH-1006GIDC CBL - HHKR10H/AE10G/HHPL10H |
4,893 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief (Socket); Flange, Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3CCS-3418MIDC CBL - HHKC34S/AE34M/HHKC34S |
1,140 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Tin | - |
|
|
TCMD-05-S-03.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
2,023 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
S1SS-02-28C-GF-40.00-LMICRO MATE SINGLE ROW DISCRETE W |
1,693 |
|
Datasheet |
Micro Mate™ S1SS | Bulk | Active | Socket to Individual Wire Leads | 2 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Multiple, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
TFSST-02-28-G-04.00-S.050" TIGER EYE SINGLE ROW DISCR |
1,396 |
|
Datasheet |
Tiger Eye™ TFSST | Bulk | Active | Plug to Individual Wire Leads | 2 | 1 | 0.050" (1.27mm) | - | 0.333' (101.60mm, 4.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
HCMD-02-S-02.08-02-S-G-ST8IDC SOCKET AND TERMINAL CABLE AS |
4,902 |
|
Datasheet |
HCM | Bulk | Active | Plug to Cable | 4 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|

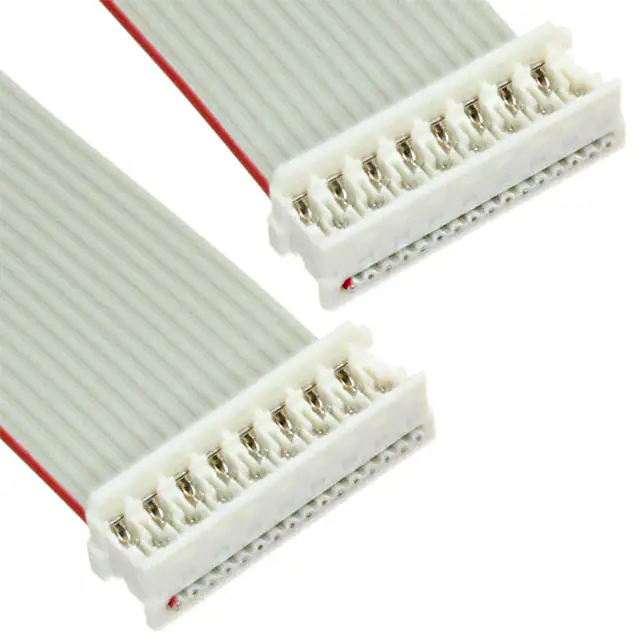

092315160116CKT PICOFLEX 1000MM LONG |
3,323 |
|
Datasheet |
Picoflex 92315 | Bag | Obsolete | Socket to Socket | 16 | 1 | 0.050" (1.27mm) | 0.050" (1.27mm) | 3.28' (1.00m) | - | Gray, Ribbon | Unshielded | - | IDC | Tin | 80.0µin (2.03µm) |
|
A1AXG-2036GIDC CABLE-ASC20G/ AE20G / X |
4,908 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Cable | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
MMSD-04-22-L-10.00-S-KMINI-MATE CABLE ASSEMBLY, 0.100" |
1,570 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Individual Wire Leads | 8 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
10121130-P0011YYLFCONN HEADER STRT |
4,130 |
|
Datasheet |
Minitek® | Bulk | Active | Socket to Socket | 12 | 2 | - | - | 0.361' (109.98mm, 4.33") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
H3BBS-3436GIDC CABLE - HSR34S/AE34G/HSR34S |
2,938 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | Socket to Socket | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Tin | - |
|
|
H6MMS-2618MDIP CABLE - HDM26S/AE26M/HDM26S |
1,303 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | DIP to DIP | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | - |
|
|
H8MMS-2618MDIP CABLE - HDM26S/AE26M/HDM26S |
4,702 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | DIP to DIP, Reversed | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | - |
|
H3BKH-1606MIDC CBL - HHSR16H/AE16M/HHPK16H |
2,601 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief (Socket); Polarizing Key (Plug) | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3BWH-1606MIDC CBL - HHSR16H/AE16M/HHPL16H |
1,901 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief (Socket); Flange, Polarizing Key (Plug) | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
M2MXH-1006JIDC CABLE - MDM10H/MC10G/X |
4,699 |
|
Datasheet |
- | Bulk | Obsolete | PCB to Cable | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | Board In | IDC | Gold | 15.0µin (0.38µm) |
