Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

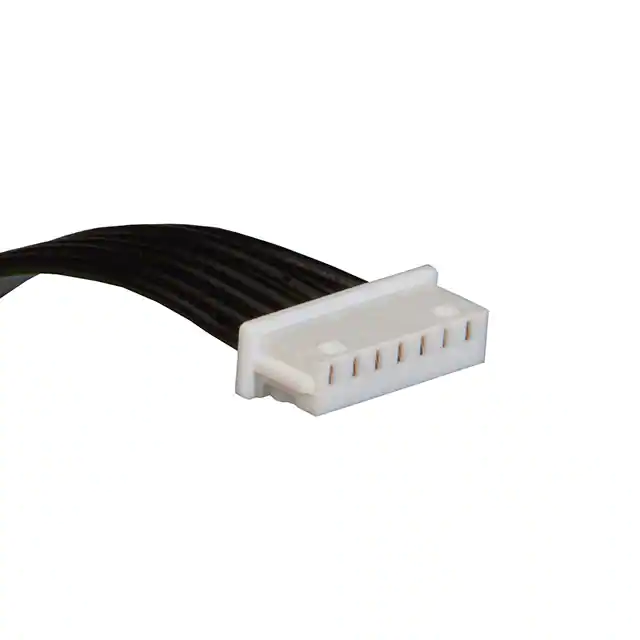

0151340706PICOBLADE 7 CIRCUIT 600MM |
3,959 |
|
Datasheet |
PicoBlade 15134 | Bag | Active | Socket to Socket | 7 | 1 | 0.049" (1.25mm) | - | 1.97' (600.00mm) | Friction Lock | Black, Individual | Unshielded | - | Crimp | Tin | 35.4µin (0.90µm) |
|
A1BXA-2036GIDC CABLE-ASS20A/ AE20G / X |
1,681 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Cable | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|

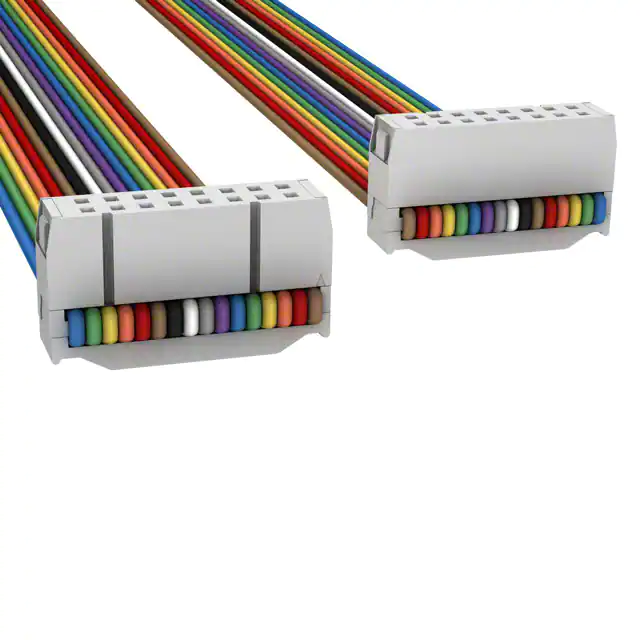

H3BBH-1636MIDC CBL - HHSR16H/AE16M/HHSR16H |
3,531 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3DDH-1436MIDC CBL - HHKR14H/AE14M/HHKR14H |
3,613 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
TCMD-07-S-02.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
2,469 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
IDSD-05-S-05.05-TSLIM BODY DOUBLE-ROW IDC SOCKET |
4,510 |
|
Datasheet |
IDSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Tin | - |
|
|
MMSDT-04-24-S-13.00-S-KMINI-MATE CABLE ASSEMBLY, FEP |
2,143 |
|
Datasheet |
Mini Mate® MMSDT | Bulk | Active | Socket to Individual Wire Leads | 8 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
T1SS-02-28-GF-10.0-D31.00 MM MICRO MATE SINGLE ROW DI |
4,184 |
|
Datasheet |
Micro Mate™ T1SS | Bulk | Active | Socket to Plug | 2 | 1 | 0.039" (1.00mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
S1SST-06-28-GF-05.90-L3MICRO MATE SINGLE ROW DISCRETE T |
1,490 |
|
Datasheet |
Micro Mate™ S1SST | Bulk | Active | Socket to Socket | 6 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Blue, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
H6PPS-1418MDIP CABLE - HDP14S/AE14M/HDP14S |
1,902 |
|
Datasheet |
- | Bulk | Active | DIP to DIP | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Tin | - |
|
|
H8PPS-1418MDIP CABLE - HDP14S/AE14M/HDP14S |
4,038 |
|
Datasheet |
- | Bulk | Active | DIP to DIP, Reversed | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Tin | - |
|
|
H0PPS-1418MDIP CABLE - HDP14S/AE14M/HDP14S |
1,483 |
|
Datasheet |
- | Bulk | Active | DIP to DIP, Reversed | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Tin | - |
|
H3CWH-1006MIDC CBL - HHKC10H/AE10M/HHPL10H |
2,304 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key (Socket); Flange, Polarizing Key (Plug) | Multiple, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
H3AAS-5006MIDC CABLE - HSC50S/AE50M/HSC50S |
2,072 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | Socket to Socket | 50 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Multiple, Ribbon | Unshielded | - | IDC | Tin | - |
|
H3CCS-5018GIDC CBL - HHKC50S/AE50G/HHKC50S |
2,448 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 50 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Tin | - |
|
D89110-0031HK-3365/10-S-3SINGLE ENDED CABLE ASSEMBLY 10 P |
1,023 |
|
Datasheet |
D89 | Bulk | Active | Socket to Cable | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.250' (76.20mm, 3.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
IDSS-06-S-11.00-T-GINSULATION DISPLACEMENT SOCKET C |
4,773 |
|
- |
IDSS | Bulk | Active | Socket to Cable | 6 | 1 | 0.100" (2.54mm) | 0.100" (2.54mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Tin | - |
|
|
L3CCH-1018NIDC CBL - LKC10H/CN217GR/LKC10H |
3,794 |
|
- |
- | Bulk | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
SMSS-06-24-F-06.00-S-K.100" MINI MATE UNIVERSAL SINGLE |
3,655 |
|
Datasheet |
Mini Mate® SMSS | Bulk | Active | Socket to Socket | 6 | 1 | 0.100" (2.54mm) | - | - | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | - |
|
|
SMSS-06-24-F-06.00-S.100" MINI MATE UNIVERSAL SINGLE |
1,891 |
|
Datasheet |
Mini Mate® SMSS | Bulk | Active | Socket to Individual Wire Leads | 6 | 1 | 0.100" (2.54mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | - |
