Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MMSS-08-22-L-14.00-S-KMINI-MATE CABLE ASSEMBLY, 0.100" |
1,493 |
|
Datasheet |
Mini Mate® MMSS | Bulk | Active | Socket to Individual Wire Leads | 8 | 1 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
A22KRW22KRW26E152DJUMPER ASSEMBLY SKT-SKT 22POS 6" |
4,791 |
|
Datasheet |
KRW | Bulk | Obsolete | Socket to Socket | 22 | 2 | 0.079" (2.00mm) | - | 0.500' (152.40mm, 6.00") | - | Blue, Individual | Unshielded | Adapter, Extension | IDC | - | - |
|
|
A22KRW22KRW26E152CJUMPER ASSEMBLY SKT-SKT 22POS 6" |
2,475 |
|
Datasheet |
KRW | Bulk | Obsolete | Socket to Socket | 22 | 2 | 0.079" (2.00mm) | - | 0.500' (152.40mm, 6.00") | - | Blue, Individual | Unshielded | Adapter, Extension | IDC | - | - |
|

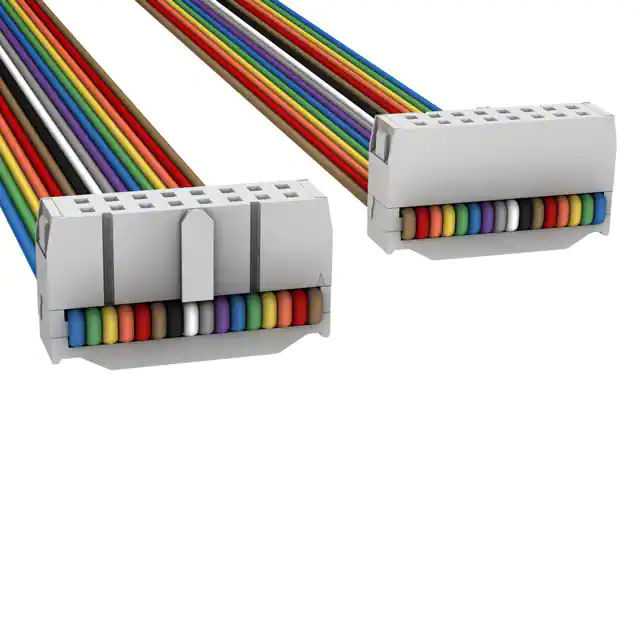

H3DDH-1636MIDC CBL - HHKR16H/AE16M/HHKR16H |
1,003 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H6MMH-1436MDIP CABLE - HDM14H/AE14M/HDM14H |
4,593 |
|
Datasheet |
- | Bulk | Active | DIP to DIP | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|
H8MMH-1436MDIP CABLE - HDM14H/AE14M/HDM14H |
2,953 |
|
Datasheet |
- | Bulk | Active | DIP to DIP, Reversed | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|
H2PXS-2418MDIP CABLE - HDP24S/AE24M/X |
3,989 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Socket (0.6"), Board In | IDC | Tin | - |
|
|
H4PXS-2418MDIP CABLE - HDP24S/AE24M/X |
2,086 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Socket (0.6"), Board In | IDC | Tin | - |
|
H3AWH-1006MIDC CBL - HHSC10H/AE10M/HHPL10H |
1,462 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Flange, Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
TCSD-05-S-02.00-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,053 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.167' (50.80mm, 2.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-05-S-02.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,881 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.167' (50.80mm, 2.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
S1SST-06-28-GF-02.50-L1MICRO MATE SINGLE ROW DISCRETE T |
1,247 |
|
Datasheet |
Micro Mate™ S1SST | Bulk | Active | Socket to Socket | 6 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Blue, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
S1SS-03-30C-GF-09.90-LMICRO MATE SINGLE ROW DISCRETE W |
4,594 |
|
Datasheet |
Micro Mate™ S1SS | Bulk | Active | Socket to Individual Wire Leads | 3 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Multiple, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
MMSDT-04-24-L-07.00-S-KMINI-MATE CABLE ASSEMBLY, FEP |
2,226 |
|
Datasheet |
Mini Mate® MMSDT | Bulk | Active | Socket to Individual Wire Leads | 8 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
S1SS-04-28-GF-12.00-L1MICRO MATE SINGLE ROW DISCRETE W |
4,349 |
|
Datasheet |
Micro Mate™ S1SS | Bulk | Active | Socket to Socket | 4 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
SFSS-04-30-F-03.25-D-NUSSINGLE ROW DISCRETE WIRE ASSEMBL |
2,069 |
|
Datasheet |
Tiger Eye™ SFSS | Bulk | Active | Socket to Socket | 4 | 1 | 0.050" (1.27mm) | - | 0.271' (82.55mm, 3.25") | - | Black, Individual | Unshielded | - | Crimp | Gold | Flash |
|
|
S1SS-04-28-GF-01.80-D-NDSMICRO MATE SINGLE ROW DISCRETE W |
4,300 |
|
Datasheet |
Micro Mate™ S1SS | Bulk | Active | Socket to Socket | 4 | 1 | 0.039" (1.00mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
353-28-24-GR-00018CABLE ASSY PLUG IDC 24POS 18" |
2,292 |
|
Datasheet |
- | Bulk | Obsolete | Plug to Plug | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | - | - | - | IDC | Tin | - |
|

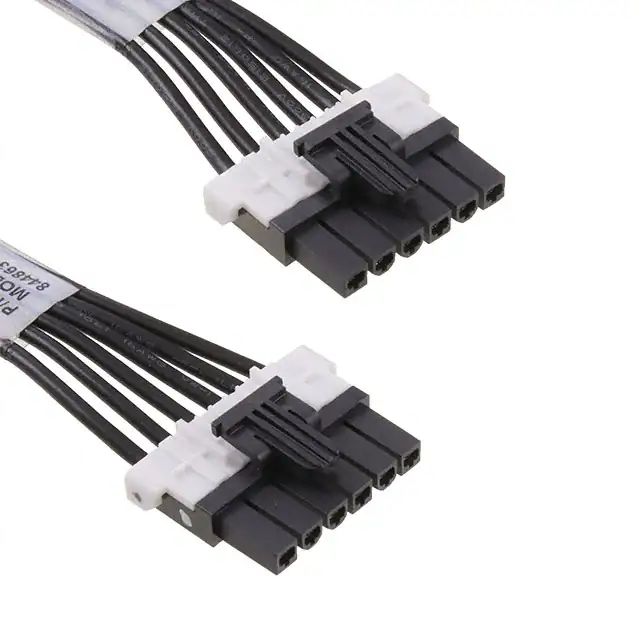

1451350601MINI-FIT 6 CIRCUIT 150MM |
1,559 |
|
Datasheet |
Mini-Fit Jr 145135 | Bag | Active | Socket to Socket | 6 | 1 | 0.165" (4.19mm) | - | 0.492' (150.00mm, 5.91") | Latch Lock | Black, Individual | Unshielded | - | Crimp | Tin | 98.4µin (2.50µm) |
|

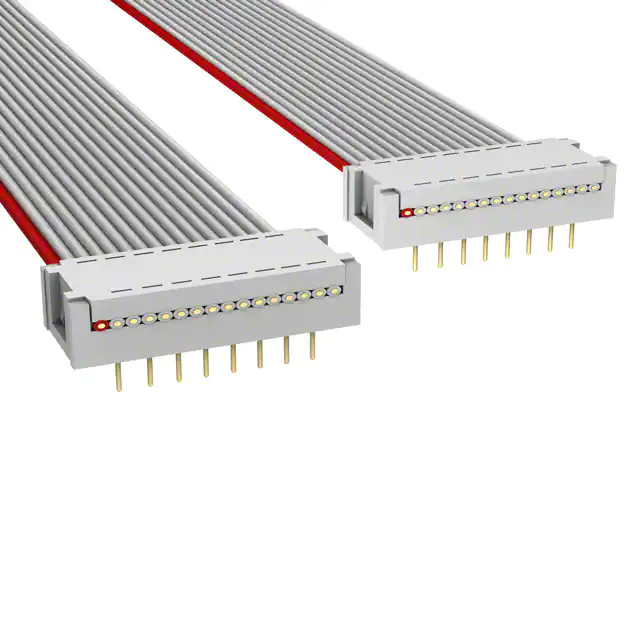

H6PPS-1636GDIP CABLE - HDP16S/AE16G/HDP16S |
3,921 |
|
Datasheet |
- | Bulk | Active | DIP to DIP | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Tin | - |
