Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IDSS-04-S-07.00-TINSULATION DISPLACEMENT SOCKET C |
2,576 |
|
- |
IDSS | Bulk | Active | Socket to Cable | 4 | 1 | 0.100" (2.54mm) | 0.100" (2.54mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Tin | - |
|
|
IDMS-04-D-02.00-GSLIM BODY SINGLE-ROW IDC MALE AS |
1,906 |
|
Datasheet |
IDMS | Bulk | Active | Plug to Plug | 4 | 1 | 0.100" (2.54mm) | 0.100" (2.54mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
MMSS-08-20-L-05.90-S-KMINI-MATE CABLE ASSEMBLY, 0.100" |
4,800 |
|
Datasheet |
Mini Mate® MMSS | Bulk | Active | Socket to Individual Wire Leads | 8 | 1 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
IDMS-06-D-03.50-TSLIM BODY SINGLE-ROW IDC MALE AS |
1,281 |
|
Datasheet |
IDMS | Bulk | Active | Plug to Plug | 6 | 1 | 0.100" (2.54mm) | 0.100" (2.54mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
321070025XX |
3,008 |
|
- |
- | Bulk | Active | Socket to Socket | 4 | 1 | 0.079" (2.00mm), 0.100" (2.54mm) | - | - | - | Black, Red, Yellow | Unshielded | - | Crimp | - | - |
|
|
FFSD-07-S-01.00-01-N.050 X .050 C.L. FEMALE IDC ASSE |
2,198 |
|
Datasheet |
Tiger Eye™ FFSD | Bulk | Active | Socket to Cable | 14 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 0.083' (25.40mm, 1.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
H3CCS-1636MIDC CBL - HHKC16S/AE16M/HHKC16S |
4,967 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Tin | - |
|

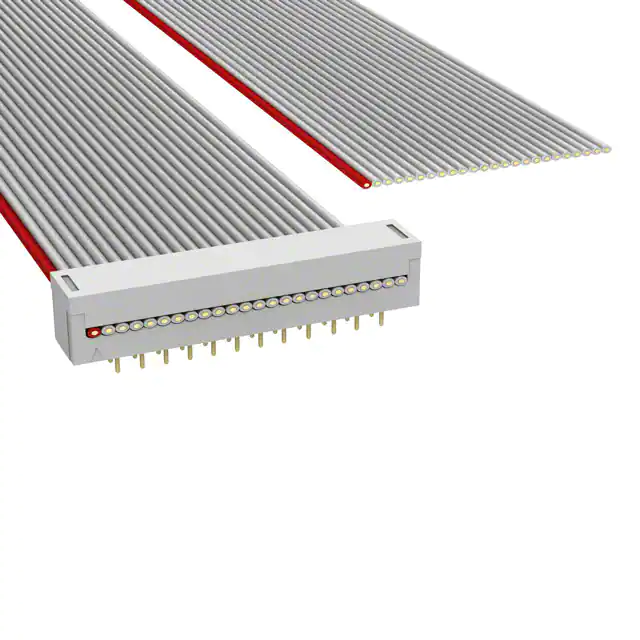

H2MXH-2436GDIP CABLE - HDM24H/AE24G/X |
1,242 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCMD-05-S-02.50-012MM DOUBLE ROW MALE IDC ASSEMBLY |
2,309 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-06-S-02.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
2,821 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
IDSS-02-S-09.00-G-ST8INSULATION DISPLACEMENT SOCKET C |
2,176 |
|
- |
IDSS | Bulk | Active | Socket to Cable | 2 | 1 | 0.100" (2.54mm) | 0.100" (2.54mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
T1SST-03-28-GF-02.0-T3CBL ASSY 1MM 3POS M TO F |
1,417 |
|
Datasheet |
Micro Mate™ T1SST | Bulk | Active | Socket to Plug, Reversed | 3 | 1 | 0.039" (1.00mm) | - | 0.167' (50.80mm, 2.00") | - | Blue, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
TCMD-06-S-02.00-01-RW2.00 MM IDC RIBBON CABLE ASSEMBL |
3,560 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
T2SD-02-28-L-03.00-S2.00 MM TIGER EYE DOUBLE ROW DIS |
4,547 |
|
Datasheet |
Tiger Eye™ T2SD | Bulk | Active | Socket to Individual Wire Leads | 4 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
MMSS-04-24-L-05.71-D-K-LDSMINI-MATE CABLE ASSEMBLY, 0.100" |
3,059 |
|
Datasheet |
Mini Mate® MMSS | Bulk | Active | Socket to Socket | 4 | 1 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|

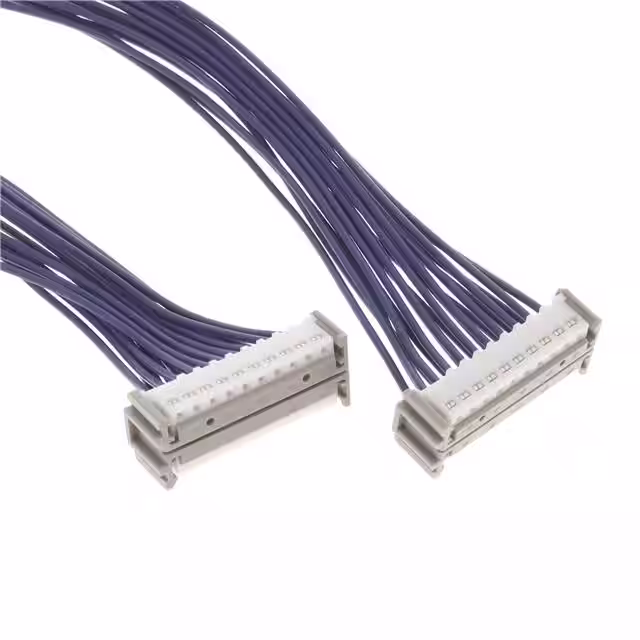

A20KRW20KRW26E203DJUMPER ASSEMBLY SKT-SKT 20POS 8" |
4,651 |
|
Datasheet |
KRW | Bulk | Obsolete | Socket to Socket | 20 | 2 | 0.079" (2.00mm) | - | 0.667' (203.20mm, 8.00") | - | Blue, Individual | Unshielded | Adapter, Extension | IDC | - | - |
|
|
A20KRW20KRW26E203CJUMPER ASSEMBLY SKT-SKT 20POS 8" |
1,079 |
|
Datasheet |
KRW | Bulk | Obsolete | Socket to Socket | 20 | 2 | 0.079" (2.00mm) | - | 0.667' (203.20mm, 8.00") | - | Blue, Individual | Unshielded | Adapter, Extension | IDC | - | - |
|
H1AXH-3036GIDC CBL - HHSC30H/AE30G/X |
2,442 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3AAH-1636MIDC CBL - HHSC16H/AE16M/HHSC16H |
3,972 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
SFSD-05-28C-G-07.87-S.050 SOCKET DISCRETE CABLE ASSEM |
3,537 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Individual Wire Leads | 10 | 2 | 0.050" (1.27mm) | - | 0.656' (200.00mm, 7.87") | Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
