Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
55A1131-22-3/6/9-9F871CABLE 3COND 22AWG WHITE SHLD |
3,395 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 | 22 AWG | 19/0.0063" | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.126" (3.20mm) | Braid | - | White | - | - | 600 V | -65°C ~ 150°C | - | 0.0080" (0.203mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
2170489/500ETHERLINE FD P CAT5E 4X2XAWG26 |
2,202 |
|
- |
ETHERLINE® | Bulk | Active | Multi-Pair, Cat5e | 8 (4 Pair Twisted) | 26 AWG | - | Copper, Bare | Polyurethane (PU) | 0.248" (6.30mm) | Braid | 25.00' (7.62m) | Teal | - | - | 1000 V | -30°C ~ 80°C | - | - | Polyolefin (PO) | - |
|
|
09805.38.01CABLE 5COND 18AWG BLACK |
3,824 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 5 | 18 AWG | 16/30 | Copper, Bare | Super Vu-Tron® | 0.465" (11.81mm) | - | 500.0' (152.4m) | Black | - | - | 600 V | -40°C ~ 90°C | - | 0.0300" (0.762mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
|
55A0831-22-3/6/9CABLE 3COND 22AWG |
3,513 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 (1 Triad Twisted) | 22 AWG | 19/34 | Copper, Tinned | - | 0.108" (2.74mm) | - | - | - | - | - | 600 V | 150°C | - | - | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
M3208 SL199CABLE 4COND 20AWG SHLD 3000' |
1,096 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 4 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.234" (5.94mm) | Braid | 3000' (914.4m) | Slate | UL Style 2095 | - | 300 V | -20°C ~ 80°C | - | 0.0200" (0.508mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M4607 SL199CABLE 8COND 24AWG SHLD 3000' |
1,940 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 8 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.217" (5.51mm) | Foil | 3000' (914.4m) | Slate | UL Style 2464 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M5390 NC199CABLE 2COND 18AWG SHLD 1000' |
1,415 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.251" (6.38mm) | Foil | 1000.0' (304.8m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M5392 SL199CABLE 2COND 18AWG SHLD 1000' |
4,252 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.251" (6.38mm) | Foil | 1000.0' (304.8m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
55A1821-24-0/9-3CABLE 2COND 24AWG ORANGE SHLD |
4,018 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 (1 Pair Twisted) | 24 AWG | - | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.123'' (3.12mm) | Braid | 2000.0' (609.6m) | Orange | - | - | 600 V | -65°C ~ 150°C | - | 0.0080" (0.203mm) | - | - |
|
|
55A1821-24-2/6-9CABLE 2COND 24AWG WHITE SHLD |
2,334 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 | 24 AWG | 19/36 | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.123'' (3.12mm) | Braid | - | White | - | - | 600 V | 150°C | - | 0.0080" (0.203mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
M2490 SL001MULTI-PAIR 10COND 28AWG |
2,615 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 10 (5 Pair Twisted) | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.292" (7.42mm) | Foil, Braid | 1000.0' (304.8m) | Slate | UL Style 2919 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0350" (0.889mm) | Foam Polypropylene (FPP) | - |
|
|
87761 0025000CABLE 2COND 22AWG RED SHLD |
1,073 |
|
Datasheet |
Classics | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Polyvinylidene Fluoride (PVDF), Plenum | 0.116" (2.95mm) | Foil | 5000' (1524.0m) | Red | UL Style CMP | Drain Wire | 300 V | -70°C ~ 150°C | Audio, Control, Instrumentation | 0.0140" (0.356mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|
|
89073.XX.01CABLE 3COND 14AWG BLACK |
4,521 |
|
- |
Ultra Flex® | Spool | Active | Multi-Conductor | 3 | 14 AWG | 41/30 | Copper, Annealed Bare | Thermoplastic Elastomer (TPE) | 0.541" (13.74mm) | - | - | Black | - | Oil Resistant | 600 V | -50°C ~ 105°C | - | 0.0450" (1.143mm) | Thermoplastic Elastomer (TPE) | - |
|
|
02768.38T.01CABLE 4COND 14AWG BLACK |
2,385 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 4 | 14 AWG | 41/30 | Copper, Bare | Carolprene | 0.575" (14.61mm) | - | 500.0' (152.4m) | Black | - | - | 600 V | -40°C ~ 90°C | - | 0.0450" (1.143mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
|
55PC0124-24-6/9CABLE 2COND 24AWG |
1,365 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 (1 Pair Twisted) | 24 AWG | 19/36 | Copper Alloy, Silver Coated | - | 0.071" (1.80mm) | - | - | - | - | - | 600 V | 200°C | - | - | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
1814R 01050002 #22 FS PR PVC FS PVC |
2,669 |
|
Datasheet |
- | Bulk | Active | Multi-Pair | 4 (2 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.330" (8.38mm) | Foil | 5000' (1524.0m) | Black | - | - | 300 V | -20°C ~ 60°C | - | 0.0300" (0.762mm) | Polypropylene (PP) | - |
|
6053C SL002MULTI-PAIR 6COND 22AWG SLATE |
4,250 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 6 (3 Pair Twisted) | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.334" (8.48mm) | Foil | 500.0' (152.4m) | Slate | UL Style 2464 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0430" (1.092mm) | Poly-Vinyl Chloride (PVC) | - |
|

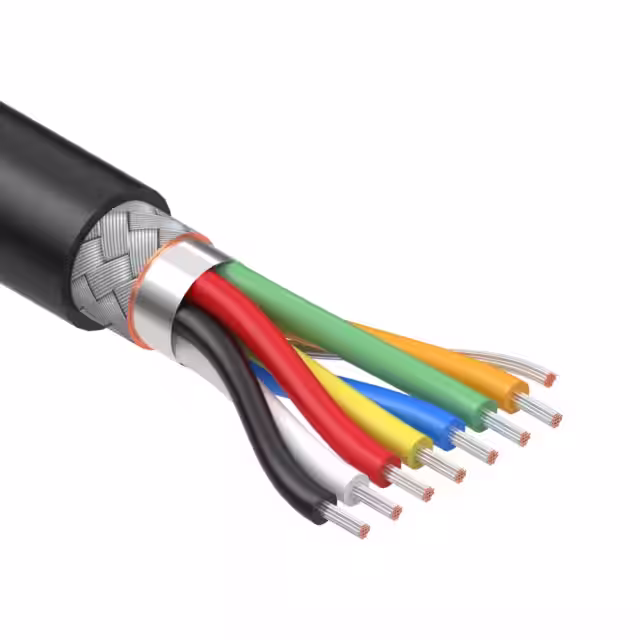

30-01606CABLE 7COND 30AWG BLACK SHLD |
4,243 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 7 | 30 AWG | 7/0.0039" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.217" (5.51mm) | Foil, Braid | - | Black | UL Style 20387 | Drain Wire, Oil Resistant, UV Resistant | 300 V | -40°C ~ 105°C | - | 0.0335" (0.851mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
C0440A.41.10CABLE 3COND 14AWG GRAY |
3,467 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 14 AWG | 19/0.0147" | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.290" (7.37mm) | - | 1000.0' (304.8m) | Gray | ASTM B-33 | - | 300 V | -20°C ~ 105°C | Communication, Control | 0.0420" (1.067mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
8772MN 006100CABLE 3COND 20AWG BLUE SHLD |
3,608 |
|
Datasheet |
SpaceMaker™ | Spool | Active | Multi-Conductor | 3 | 20 AWG | 26/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.159" (4.04mm) | Foil | 100.0' (30.5m) | Blue | UL Style 2937 | Drain Wire | 300 V | -20°C ~ 80°C | Audio, Control, Instrumentation | 0.0160" (0.406mm) | Polypropylene (PP) | - |
