Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

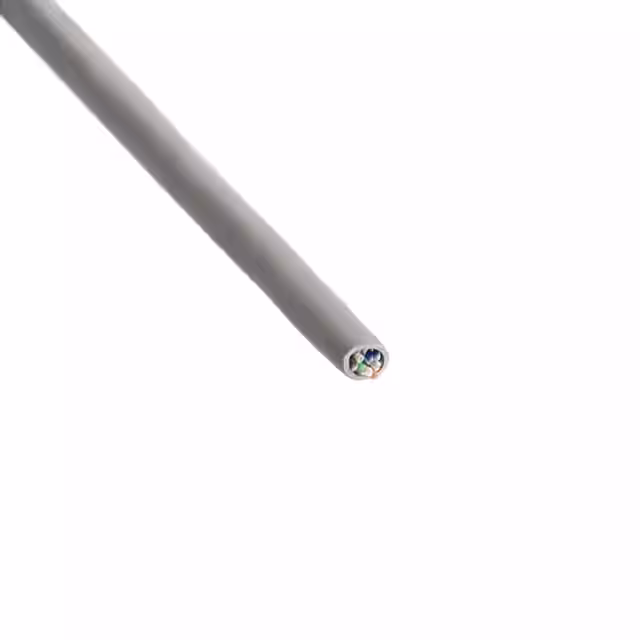

M3423 SL002MULTI-PAIR 10COND 24AWG |
3,009 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 10 (5 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.314" (7.98mm) | Foil, Braid | 500.0' (152.4m) | Slate | UL Style 2919 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0350" (0.889mm) | Polypropylene (PP) | - |
|
M3212 SL199CABLE 2COND 18AWG SHLD 3000' |
2,009 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.223" (5.66mm) | Braid | 3000' (914.4m) | Slate | UL Style 2095 | - | 300 V | -20°C ~ 80°C | - | 0.0200" (0.508mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
SPM1804 GR199CABLE 4COND 18AWG GREEN 1000' |
4,019 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 4 | 18 AWG | 19/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.326" (8.28mm) | - | 1000.0' (304.8m) | Green | - | - | 1 kV | - | - | 0.0500" (1.270mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M9748020 BK199MULTI-PAIR 4COND 18AWG BLK SHLD |
1,069 |
|
Datasheet |
- | Bulk | Active | Multi-Pair | 4 (2 Pair Twisted) | 18 AWG | 7/0.0152" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.413" (10.49mm) | Foil | - | Black | - | - | 300 V | -20°C ~ 105°C | - | 0.0530" (1.346mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
8728 06010002 #22 SHPR PP PVC |
4,288 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 4 (2 Pair) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.215" (5.46mm) | Foil | 1000.0' (304.8m) | Chrome | - | - | 300 V | -20°C ~ 80°C | Audio, Control, Instrumentation | 0.0280" (0.711mm) | Polypropylene (PP) | - |
|
|
8728 060U10002 #22 SHPR PP PVC |
1,235 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 4 (2 Pair) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.215" (5.46mm) | Foil | 1000.0' (304.8m) | Chrome | - | - | 300 V | -20°C ~ 80°C | Audio, Control, Instrumentation | 0.0280" (0.711mm) | Polypropylene (PP) | - |
|
|
M13315 SL002CABLE 15COND 22AWG SLATE |
4,309 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 15 | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.310" (7.87mm) | - | 500.0' (152.4m) | Slate | UL Style 2576 | - | 300 V | -20°C ~ 80°C | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
58412 SL001MULTI-PAIR 4COND 22AWG |
4,842 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 4 (2 Pair Twisted) | 22 AWG | 7/28 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.185" (4.70mm) | Foil | 1000.0' (304.8m) | Slate | - | Drain Wire | 300 V | -5°C ~ 75°C | - | 0.0154" (0.390mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
2221 G7VU10001 PR #26 FHDPE BRD PVC |
2,282 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 (1 Pair) | 26 AWG | 30/40 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.170" (4.32mm) | Braid | 1000.0' (304.8m) | Red | - | - | 300 V | -20°C ~ 60°C | Audio | 0.0245" (0.622mm) | Foam Polyethylene (FPE) | - |
|
|
2221 G7WU10001 PR #26 FHDPE BRD PVC |
3,884 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 (1 Pair) | 26 AWG | 30/40 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.170" (4.32mm) | Braid | 1000.0' (304.8m) | Green | - | - | 300 V | -20°C ~ 60°C | Audio | 0.0245" (0.622mm) | Foam Polyethylene (FPE) | - |
|
|
2221 G7XU10001 PR #26 FHDPE BRD PVC |
3,574 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 (1 Pair) | 26 AWG | 30/40 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.170" (4.32mm) | Braid | 1000.0' (304.8m) | Blue | - | - | 300 V | -20°C ~ 60°C | Audio | 0.0245" (0.622mm) | Foam Polyethylene (FPE) | - |
|
|
55A1821-22-6/9-9CABLE 2COND 22AWG WHITE SHLD |
1,218 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 (1 Pair Twisted) | 22 AWG | - | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.135" (3.43mm) | Braid | - | White | - | - | 600 V | -65°C ~ 150°C | - | 0.0080" (0.203mm) | - | - |
|
|
02425.35.05CABLE 3COND 12AWG YELLOW |
2,368 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 12 AWG | 65/30 | Copper, Bare | Carolprene | 0.595" (15.11mm) | - | 250.0' (76.2m) | Yellow | - | - | 600 V | -40°C ~ 90°C | - | 0.0450" (1.143mm) | - | - |
|
|
55A7225-20-6/9-9CS2628CABLE 2COND 20AWG WHITE |
3,186 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 | 20 AWG | 19/32 | Copper, Nickel Coated | Ethylene Tetrafluoroethylene (ETFE) | 0.122" (3.10mm) | - | - | White | - | - | 600 V | 200°C | - | 0.0080" (0.203mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
M4691 NC002CABLE 3COND 18AWG SLATE SHLD |
3,827 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.241" (6.12mm) | Foil | 500.0' (152.4m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M4693 SL002CABLE 3COND 18AWG SLATE SHLD |
4,576 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.241" (6.12mm) | Foil | 500.0' (152.4m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
65264CY SL002CABLE 4COND 26AWG SLATE SHLD |
2,401 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 4 | 26 AWG | 7/34 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.317" (8.05mm) | Braid | 500.0' (152.4m) | Slate | UL Style 2587 | Oil Resistant | 600 V | - | - | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
1552200057CABLE 3COND 22AWG GRAY 1500M |
1,277 |
|
Datasheet |
Flamar 155220 | Bulk | Active | Multi-Conductor | 3 | 22 AWG | 42/0.0039" | Copper, Bare | Weld-Slag Oil Resistant (WSOR) | 0.189" (4.80mm) | - | 4921' (1500.0m) | Gray | UL Style 21215 | - | 600 V | -25°C ~ 80°C | Industrial, Signal, Control | 0.0098" (0.250mm) | Thermoplastic Elastomer (TPE) | - |
|
|
1552200063CABLE 3COND 22AWG ORANGE 1500M |
2,184 |
|
Datasheet |
Flamar 155220 | Bulk | Active | Multi-Conductor | 3 | 22 AWG | 42/0.0039" | Copper, Bare | Weld-Slag Oil Resistant (WSOR) | 0.189" (4.80mm) | - | 4921' (1500.0m) | Orange | UL Style 21215 | - | 600 V | -25°C ~ 80°C | Industrial, Signal, Control | 0.0098" (0.250mm) | Thermoplastic Elastomer (TPE) | - |
|
|
7409W 0601000CABLE 2COND 18AWG CHROME |
2,088 |
|
Datasheet |
MachFlex™ | Spool | Active | Multi-Conductor | 2 | 18 AWG | 16/30 | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.276" (7.01mm) | - | 1000.0' (304.8m) | Chrome | UL Style 20328 | Oil Resistant, UV Resistant | - | - | Industrial, Signal, Control | 0.0470" (1.194mm) | Poly-Vinyl Chloride (PVC), Polyamide (PA), Nylon | - |
