Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1552200058CABLE 3COND 22AWG YELLOW 600M |
4,270 |
|
Datasheet |
Flamar 155220 | Bulk | Active | Multi-Conductor | 3 | 22 AWG | 42/0.0039" | Copper, Bare | Weld-Slag Oil Resistant (WSOR) | 0.189" (4.80mm) | - | 1968.5' (600.0m) | Yellow | UL Style 21215 | - | 600 V | -25°C ~ 80°C | Industrial, Signal, Control | 0.0098" (0.250mm) | Thermoplastic Elastomer (TPE) | - |
|

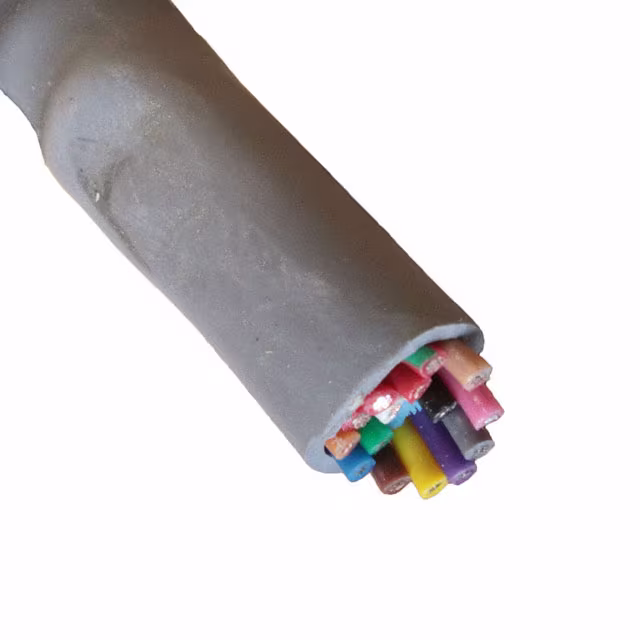

M33315 SL002CABLE 15COND 22AWG SLATE |
2,319 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 15 | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.297" (7.54mm) | - | 500.0' (152.4m) | Slate | UL Style 2576 | - | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
86302CY SL002CABLE 2COND 22AWG SLATE SHLD |
1,787 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 2 | 22 AWG | 19/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.208" (5.28mm) | Foil, Braid | 500.0' (152.4m) | Slate | ISO 10993, UL Style 2661 | Biological Compatibility, Drain Wire | 300 V | - | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-02346CBL 3CON 24AWG BLK TPU |
4,977 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 24 AWG | 26/0.0039" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.157" (3.99mm) | - | 502.0' (153.0m) | Black | UL Style 20280 | - | 300 V | -40°C ~ 80°C | - | 0.0299" (0.759mm) | Thermoplastic Elastomer (TPE) | - |
|
|
M39121 SL001CABLE 2COND 14AWG SHLD |
2,525 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 14 AWG | 41/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.329" (8.36mm) | Foil | 1000.0' (304.8m) | Slate | - | Drain Wire | 300 V | -20°C ~ 105°C | - | 0.0430" (1.092mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
C0978A.41.10CABLE 10COND 22AWG GRAY SHLD |
4,695 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 10 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.291" (7.39mm) | Foil, Braid | 1000.0' (304.8m) | Gray | - | - | 300 V | -20°C ~ 80°C | Computer | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
44AM1131-24-MST3-9CS2275CABLE 3CON 24AWG WHT SHLD FEET |
2,898 |
|
Datasheet |
- | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 3 | 24 AWG | 19/36 | Copper, Tinned | Polyvinylidene Fluoride (PVDF) | 0.119" (3.02mm) | Braid | Enter Number of Feet in Order Quantity | White | - | - | 600 V | 150°C | - | 0.0050" (0.127mm) | Polyvinylidene Fluoride (PVDF) | - |
|
1243/4 SL005CABLE 4COND 22AWG SLATE SHLD |
3,409 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 4 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | - | Braid | 100.0' (30.5m) | Slate | - | - | 300 V | -20°C ~ 75°C | Communication, Control | 0.0200" (0.508mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
55A1124-24-6/9-9CS2275CABLE 2COND 24AWG WHITE SHLD |
3,349 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 (1 Pair Twisted) | 24 AWG | 19/36 | Copper, Silver Coated | Ethylene Tetrafluoroethylene (ETFE) | 0.107" (2.72mm) | Braid | - | White | - | - | 600 V | -65°C ~ 150°C | - | 0.0080" (0.203mm) | - | - |
|
|
55A4122-22-9/96-9CS2275CABLE 2COND 22AWG WHITE |
1,520 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 | 22 AWG | 19/34 | Copper, Silver Coated | Ethylene Tetrafluoroethylene (ETFE) | 0.102" (2.59mm) | - | - | White | - | - | 600 V | 200°C | - | 0.0080" (0.203mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
9503 0605000MULTI-PAIR 6COND 24AWG |
4,554 |
|
Datasheet |
Classics | Spool | Active | Multi-Pair | 6 (3 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.232" (5.89mm) | Foil | 5000' (1524.0m) | Chrome | UL Style 2464 | Drain Wire | 300 V | -30°C ~ 80°C | Computer | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
55A0122-20-92/926CS2768CABLE 2COND 20AWG |
1,211 |
|
Datasheet |
55A0122 | Bulk | Active | Multi-Conductor | 2 (1 Pair Twisted) | 20 AWG | 19/0.008" | Copper, Silver Coated | - | 0.100" (2.54mm) | - | - | - | - | - | 600 V | -65°C ~ 200°C | - | - | - | - |
|
30-00457CABLE 3COND 26AWG GRAY SHLD |
3,393 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 26 AWG | 26/40 | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.126" (3.20mm) | Spiral | 502.0' (153.0m) | Gray | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - |
|

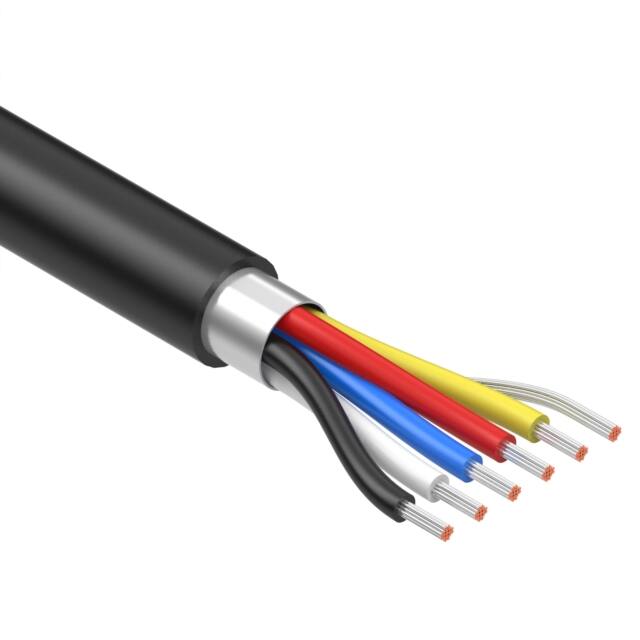

30-01462CBL 5COND 30AWG SHLD MPPE |
4,330 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 5 | 30 AWG | 7/0.0039" | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.154" (3.91mm) | Foil | 502.0' (153.0m) | Black | UL Style 21509 | Drain Wire | 600 V | -40°C ~ 105°C | - | 0.0323" (0.820mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
|
30-01709CABLE 10COND 28AWG BLACK |
2,475 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 10 | 28 AWG | 7/0.0050" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.256" (6.50mm) | - | 502.0' (153.0m) | Black | - | - | 300 V | -40°C ~ 105°C | - | 0.0315" (0.800mm) | Poly-Vinyl Chloride (PVC) | - |
|
M13512 SL001CABLE 12COND 18AWG SLATE |
2,384 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 12 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.437" (11.10mm) | - | 1000.0' (304.8m) | Slate | UL Style 2598 | - | 300 V | -20°C ~ 80°C | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
44A1121-16-2/9-9CABLE 2COND 16AWG WHITE SHLD |
3,495 |
|
Datasheet |
- | Bag | Active | Multi-Conductor | 2 | 16 AWG | 19/29 | Copper, Tinned | Polyvinylidene Fluoride (PVDF) | 0.184" (4.67mm) | Braid | - | White | - | - | 600 V | 150°C | - | 0.0090" (0.229mm) | Polyvinylidene Fluoride (PVDF) | - |
|
M33510 SL001CABLE 10COND 18AWG SLATE |
1,323 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 10 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.366" (9.30mm) | - | 1000.0' (304.8m) | Slate | UL Style 2509 | - | 300 V | -20°C ~ 80°C | - | 0.0250" (0.635mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
1119A 01010000CABLE 3 COND 16AWG BLACK |
3,129 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 (1 Triad Twisted) | 16 AWG | 7/24 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.315" (8.00mm) | Foil | 10000' (3048.0m) | Black | - | Drain Wire, Rip Cord | - | - | - | 0.0470" (1.194mm) | Poly-Vinyl Chloride (PVC), Polyamide (PA), Nylon | - |
|
|
M3831 BK199CABLE 6COND 16AWG BLACK 3000' |
2,679 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 6 | 16 AWG | 7/0.0192" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.398" (10.11mm) | - | 3000' (914.4m) | Black | - | - | 600 V | -25°C ~ 90°C | - | 0.0470" (1.194mm) | Poly-Vinyl Chloride (PVC) | - |
