Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6541PA 00850002 FSPR #22 FEP SLF |
3,601 |
|
Datasheet |
- | Bulk | Active | Multi-Pair | 4 (2 Pair Twisted) | 22 AWG | 7/30 | Copper, Bare | Polyvinylidene Fluoride (PVDF), Plenum | 0.214" (5.44mm) | Foil | 5000' (1524.0m) | Gray | - | - | 300 V | -20°C ~ 150°C | - | 0.0150" (0.381mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|
|
658AMS 0001000MULTI-PAIR 16COND 18/22AWG |
4,596 |
|
- |
- | Spool | Active | Multi-Pair | 16 (3 Pair + 10) | 18 AWG, 22 AWG | - | - | - | - | - | 1000.0' (304.8m) | - | UL Style CMP | Rip Cord | - | - | Access Control | - | - | - |
|
6010L SL001MULTI-PAIR 6COND 22AWG |
3,175 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 6 (3 Pair Twisted) | 22 AWG | 7/28 | Copper, Tinned | Low Smoke Zero Halogen (LSZH) | 0.299" (7.60mm) | Foil | 1000.0' (304.8m) | Slate | - | Drain Wire | 300 V | -20°C ~ 75°C | - | 0.0250" (0.635mm) | Low Smoke Zero Halogen (LSZH) | - |
|
|
8724 06050002#22 FS PP,2#22 PP PVC |
1,089 |
|
- |
- | Spool | Active | Multi-Pair | 4 (2 Pair) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.165" (4.19mm) | - | 5000' (1524.0m) | Chrome | - | Drain Wire | 300 V | -20°C ~ 80°C | Audio, Control, Instrumentation | 0.0190" (0.483mm) | Polypropylene (PP) | - |
|
|
2142A 0101000CAT6A 4PR F/UTP CMR/CMX REEL |
2,922 |
|
Datasheet |
- | Bulk | Active | Multi-Pair | 8 (4 Pair Twisted) | 23 AWG | Solid | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.300" (7.62mm) | Foil | 1000.0' (304.8m) | Black | - | - | 300 V | -40°C ~ 75°C | - | - | Polyolefin (PO) | - |
|
|
652207 SL001CABLE 7COND 22AWG SLATE |
2,342 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 7 | 22 AWG | 7/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.306" (7.77mm) | - | 1000.0' (304.8m) | Slate | UL Style 2587 | Oil Resistant | 600 V | - | - | 0.0380" (0.965mm) | Poly-Vinyl Chloride (PVC) | - |
|

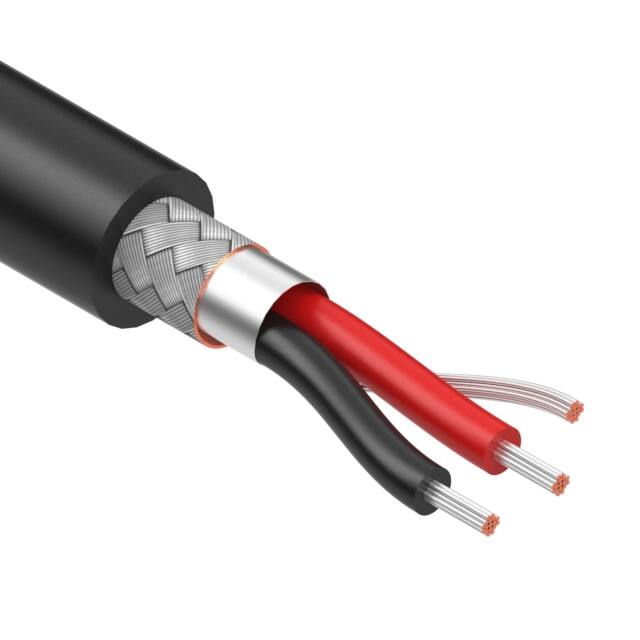

30-01567CABLE 2COND 32AWG BLACK SHLD |
1,945 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 32 AWG | 7/0.0031" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.165" (4.19mm) | Foil, Braid | 502.0' (153.0m) | Black | UL Style 20387 | Drain Wire, Oil Resistant, UV Resistant | 300 V | -40°C ~ 105°C | - | 0.0315" (0.800mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
10GXW53010Z1000CAT6A 4 PR #23 F/UTP CMP |
1,699 |
|
Datasheet |
10GXW | Bulk | Active | Multi-Pair | 8 (4 Pair Twisted) | 23 AWG | Solid | Copper, Bare | Low Smoke Poly-Vinyl Chloride (LSPVC) | 0.265" (6.73mm) | Foil | 1000.0' (304.8m) | Black | - | - | 300 V | -20°C ~ 75°C | - | - | Fluorinated Ethylene-Propylene (FEP) | - |
|
|
10GXW53D15Z1000CAT6A 4 PR #23 F/UTP CMP |
1,659 |
|
Datasheet |
10GXW | Bulk | Active | Multi-Pair | 8 (4 Pair Twisted) | 23 AWG | Solid | Copper, Bare | Low Smoke Poly-Vinyl Chloride (LSPVC) | 0.265" (6.73mm) | Foil | 1000.0' (304.8m) | Blue | - | - | 300 V | -20°C ~ 75°C | - | - | Fluorinated Ethylene-Propylene (FEP) | - |
|
|
10GXW53009Z1000CAT6A 4 PR #23 F/UTP CMP |
2,200 |
|
Datasheet |
10GXW | Bulk | Active | Multi-Pair | 8 (4 Pair Twisted) | 23 AWG | Solid | Copper, Bare | Low Smoke Poly-Vinyl Chloride (LSPVC) | 0.265" (6.73mm) | Foil | 1000.0' (304.8m) | White | - | - | 300 V | -20°C ~ 75°C | - | - | Fluorinated Ethylene-Propylene (FEP) | - |
|
|
55A0831-22-9/93/96CS2275CABLE 3COND 22AWG |
1,021 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 (1 Triad Twisted) | 22 AWG | 19/34 | Copper, Tinned | - | 0.108" (2.74mm) | - | - | - | - | - | 600 V | 150°C | - | - | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
1502R G7510002 #18PVC+2 FS#22 FHDPEFR |
1,508 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 4 (1 Pair + 2) | 18 AWG, 22 AWG | 16/30; 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.250" (6.35mm) | Foil | 1000.0' (304.8m) | Aqua | UL Style CMG | Drain Wire, Rip Cord | 300 V | -20°C ~ 75°C | Control | 0.0390" (0.991mm) | Foam Polyethylene (FPE) | - |
|
|
1502R 00910002 #18PVC+2 FS#22 FHDPEFR |
3,479 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 4 (1 Pair + 2) | 18 AWG, 22 AWG | 16/30; 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC), Riser | 0.250" (6.35mm) | Foil | 1000.0' (304.8m) | White | UL Style CMG | Drain Wire, Rip Cord | 300 V | -20°C ~ 75°C | Control | 0.0390" (0.991mm) | Foam Polyethylene (FPE) | - |
|
|
1502R 01010002 #18PVC+2 FS#22 FHDPEFR |
3,869 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 4 (1 Pair + 2) | 18 AWG, 22 AWG | 16/30; 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.250" (6.35mm) | Foil | 1000.0' (304.8m) | Black | UL Style CMG | Drain Wire, Rip Cord | 300 V | -20°C ~ 75°C | Control | 0.0390" (0.991mm) | Foam Polyethylene (FPE) | - |
|
|
M39117 SL002CABLE 2COND 18AWG SLATE SHLD |
3,908 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 18 AWG | 19/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.247" (6.27mm) | Foil | 500.0' (152.4m) | Slate | - | Drain Wire | 300 V | -20°C ~ 105°C | - | 0.0380" (0.965mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
55PC0131-22-9/93/96CABLE 3COND 22AWG |
2,935 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 (1 Triad Twisted) | 22 AWG | 19/34 | Copper, Tinned | - | 0.089" (2.26mm) | - | - | - | - | - | 600 V | 150°C | - | - | Ethylene Tetrafluoroethylene (ETFE) | - |
|
3090A 0105000CABLE 2COND 16AWG BLK SHLD |
1,950 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 16 AWG | 7/24 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.300" (7.62mm) | Foil | 5000' (1524.0m) | Black | UL Style 20233 | Drain Wire | - | - | - | 0.0470" (1.194mm) | Poly-Vinyl Chloride (PVC), Polyamide (PA), Nylon | - |
|
|
1213F 010Z250CAT5E+ 4PR F/UTP CMP |
3,946 |
|
Datasheet |
- | Bulk | Active | Multi-Pair, Cat5e | 8 (4 Pair Twisted) | 24 AWG | Solid | Copper, Bare | Low Smoke Poly-Vinyl Chloride (LSPVC) | 0.235" (5.97mm) | Foil | 250.0' (76.2m) | Black | - | - | 300 V | -20°C ~ 75°C | - | - | Fluorinated Ethylene-Propylene (FEP) | - |
|
8761 06015000CABLE 2COND 22AWG CHROME |
4,882 |
|
Datasheet |
Classics | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.175" (4.45mm) | Foil | 15000' (4572.0m) | Chrome | UL Style 2092 | Drain Wire | 300 V | -20°C ~ 60°C | Audio, Control, Instrumentation | 0.0250" (0.635mm) | Polyethylene (PE) | - |
|
2241C SL021CABLE 2COND 18AWG SHLD |
3,571 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.226" (5.74mm) | Foil | 1000.0' (304.8m) | Slate | - | Drain Wire | 300 V | -20°C ~ 80°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
