Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9443MN 0041000CABLE 3COND 20AWG YELLOW |
4,308 |
|
Datasheet |
SpaceMaker™ | Spool | Active | Multi-Conductor | 3 | 20 AWG | 26/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.155" (3.94mm) | - | 1000.0' (304.8m) | Yellow | UL Style 2937 | - | 300 V | -20°C ~ 80°C | Audio, Control, Instrumentation | 0.0160" (0.406mm) | Polypropylene (PP) | - |
|
|
9443MN 0061000CABLE 3COND 20AWG BLUE |
1,469 |
|
Datasheet |
SpaceMaker™ | Spool | Active | Multi-Conductor | 3 | 20 AWG | 26/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.155" (3.94mm) | - | 1000.0' (304.8m) | Blue | UL Style 2937 | - | 300 V | -20°C ~ 80°C | Audio, Control, Instrumentation | 0.0160" (0.406mm) | Polypropylene (PP) | - |
|
|
09606.46.01CABLE 6COND 16AWG BLACK |
1,419 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 6 | 16 AWG | 26/30 | Copper, Bare | Super Vu-Tron® | 0.520" (13.21mm) | - | 5000' (1524.0m) | Black | - | - | 600 V | -40°C ~ 90°C | - | 0.0300" (0.762mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
|
02762.85.01CABLE 3COND 14AWG BLACK |
1,690 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 14 AWG | 41/30 | Copper, Bare | Carolprene | 0.535" (13.59mm) | - | 250.0' (76.2m) | Black | - | - | 600 V | -40°C ~ 90°C | Cord and Cordset | 0.0450" (1.143mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
|
OSP6AU 0101000CAT6A 4PR U/UTP OSP REEL |
3,193 |
|
Datasheet |
- | Spool | Active | Multi-Pair, Cat6a | 8 (4 Pair) | 23 AWG | Solid | Copper, Bare | Polyolefin (PO) | 0.355" (9.02mm) | - | - | Black | - | Rip Cord, Water-Blocked | 300 V | -40°C ~ 75°C | Ethernet | - | Polyolefin (PO) | - |
|
|
1392P 010Z2502C22FS + 2C18 CMP |
1,895 |
|
Datasheet |
- | Bulk | Active | Multi-Pair | 4 (2 Pair) | 18 AWG, 22 AWG | 7/30; 19/30 | Copper, Bare | Poly-Vinyl Chloride (PVC), Plenum | 0.205" (5.21mm) | Foil | 250.0' (76.2m) | Black | - | - | 300 V | 0°C ~ 75°C | - | 0.0150" (0.381mm) | Foam Fluorinated Ethylene-Propylene (FFEP), Poly-Vinyl Chloride (PVC) | - |
|
|
55A4141-22-MST4-9CS227555A4141-22-MST4-9CS2275 |
2,898 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5526-2-B.4126 AWG 2C 30/40 OFC BC .015"," |
3,803 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
02723.41T.01CABLE 2COND 14AWG BLACK |
1,323 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 14 AWG | 41/30 | Copper, Bare | Carolprene | 0.510" (12.95mm) | - | 1000.0' (304.8m) | Black | - | - | 600 V | -40°C ~ 90°C | - | 0.0450" (1.143mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
|
M3805 BK001CABLE 7COND 18AWG BLACK |
2,206 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 7 | 18 AWG | 7/0.0152" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.362" (9.20mm) | - | 1000.0' (304.8m) | Black | - | - | 600 V | -25°C ~ 90°C | - | 0.0470" (1.194mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
92827A.44.0118/5 SJEOOW 105C BLACK |
2,063 |
|
- |
- | Spool | Active | - | - | - | - | - | - | - | - | 2500' (762.0m) | - | - | - | - | - | - | - | - | - |
|
|
558AFS 0001000MULTI-PAIR 16COND 18/22AWG |
2,695 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 16 (3 Twisted Pairs + 10) | 18 AWG, 22 AWG | 7/26; 7/30 | Copper, Bare | - | 0.448" (11.38mm) | Foil | 1000.0' (304.8m) | - | - | Drain Wire, Rip Cord | 300 V | 0°C ~ 75°C | - | - | Polypropylene (PP) | - |
|
|
M2441 SL001CABLE 6COND 24AWG SHLD |
2,286 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 6 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.223" (5.66mm) | Foil, Braid | 1000.0' (304.8m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
55A1121-18-6/9-9CABLE 2COND 18AWG WHITE SHLD |
2,346 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 (1 Pair Twisted) | 18 AWG | - | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.155" (3.94mm) | Braid | - | White | - | - | 600 V | -65°C ~ 150°C | - | 0.0080" (0.203mm) | - | - |
|
|
89004.XX.01CABLE 4COND 18AWG BLACK |
3,872 |
|
- |
Ultra Flex® | Spool | Active | Multi-Conductor | 4 | 18 AWG | 16/30 | Copper, Annealed Bare | Thermoplastic Elastomer (TPE) | 0.340" (8.64mm) | - | - | Black | - | Oil Resistant | 300 V | -50°C ~ 105°C | - | 0.0300" (0.762mm) | Thermoplastic Elastomer (TPE) | - |
|
|
M1412 SL199CABLE 2COND 28AWG SHLD 3000' |
3,321 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.116" (2.95mm) | Braid | 3000' (914.4m) | Slate | - | - | 600 V | -55°C ~ 105°C | - | 0.0118" (0.300mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M39074 SL199CABLE 3COND 20AWG SLATE 3000' |
3,993 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 20 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.234" (5.94mm) | - | 3000' (914.4m) | Slate | - | - | 300 V | -20°C ~ 105°C | - | 0.0380" (0.965mm) | Poly-Vinyl Chloride (PVC) | - |
|
44A0121-22-9/96CS2275CABLE 2COND 22AWG BLU/WH 1' |
1,001 |
|
Datasheet |
- | Spool | Discontinued at Digi-Key | Multi-Conductor | 2 (1 Pair Twisted) | 22 AWG | 19/34 | Copper, Tinned | - | 0.094" (2.38mm) | - | 1.00' (0.30m) | Blue, White | - | - | 600 V | -65°C ~ 150°C | - | - | - | - |
.JPG)
|
1178L SL002CABLE 8COND 22AWG SLATE |
4,028 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 8 | 22 AWG | 7/30 | Copper, Tinned | Low Smoke Zero Halogen (LSZH) | 0.220" (5.59mm) | - | 500.0' (152.4m) | Slate | - | - | 300 V | -20°C ~ 75°C | Communication, Control | 0.0250" (0.635mm) | Low Smoke Zero Halogen (LSZH) | - |
|

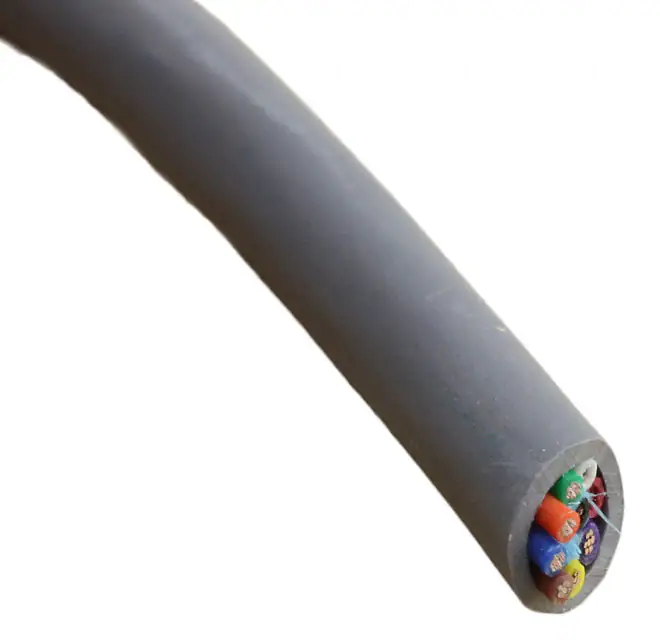

1179L SL002CABLE 9COND 22AWG SLATE |
4,137 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 9 | 22 AWG | 7/30 | Copper, Tinned | Low Smoke Zero Halogen (LSZH) | 0.249" (6.32mm) | - | 500.0' (152.4m) | Slate | - | - | 300 V | -20°C ~ 75°C | Communication, Control | 0.0250" (0.635mm) | Low Smoke Zero Halogen (LSZH) | - |
