Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
02462.XX.0514/3 SOOW 600V-YEL SHORTS |
3,427 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 | 14 AWG | 41/30 | Copper, Annealed Bare | - | 0.535" (13.59mm) | - | - | Yellow | - | - | 600 V | -40°C ~ 90°C | - | - | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
|
89064.46.02CABLE 4COND 16AWG WHITE |
1,054 |
|
- |
Ultra Flex® | Spool | Active | Multi-Conductor | 4 | 16 AWG | 26/30 | Copper, Annealed Bare | Thermoplastic Elastomer (TPE) | 0.434" (11.02mm) | - | 5000' (1524.0m) | White | - | Oil Resistant | 600 V | -50°C ~ 105°C | - | 0.0300" (0.762mm) | Thermoplastic Elastomer (TPE) | - |
|
|
02766.41T.01CABLE 4COND 16AWG BLACK |
1,989 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 4 | 16 AWG | 26/30 | Copper, Bare | Carolprene | 0.420" (10.67mm) | - | 1000.0' (304.8m) | Black | - | - | 600 V | -40°C ~ 90°C | - | 0.0300" (0.762mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
|
M3206 SL002CABLE 2COND 20AWG SLATE SHLD |
1,786 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.205" (5.21mm) | Braid | 500.0' (152.4m) | Slate | UL Style 2095 | - | 300 V | -20°C ~ 80°C | - | 0.0200" (0.508mm) | Poly-Vinyl Chloride (PVC) | - |
|
M3865 BK002CABLE 2COND 12AWG BLACK |
1,962 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 12 AWG | 7/0.0305" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.365" (9.27mm) | - | 500.0' (152.4m) | Black | - | - | 600 V | -25°C ~ 90°C | - | 0.0470" (1.194mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
05581.15.08CABLE 10COND 18AWG BROWN 250' |
3,454 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 10 | 18 AWG | Solid | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.264" (6.71mm) | - | 250.0' (76.2m) | Brown | - | - | 150 V | -20°C ~ 60°C | - | 0.0080" (0.203mm) | - | - |
|
|
02605.35T.05CABLE 3COND 16AWG YELLOW 250' |
2,383 |
|
- |
- | Spool | Active | Multi-Conductor | 3 | 16 AWG | 65/34 | Copper, Annealed Tinned | Super Vu-Tron® Supreme | 0.335" (8.51mm) | - | 250.0' (76.2m) | Yellow | - | - | 300 V | -50°C ~ 105°C | - | 0.0300" (0.762mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|

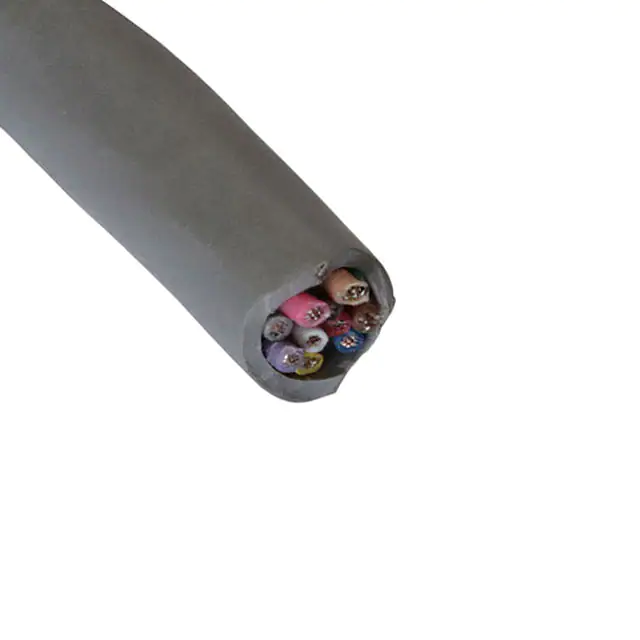

M13312 SL002CABLE 12COND 22AWG SLATE |
4,554 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 12 | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.272" (6.91mm) | - | 500.0' (152.4m) | Slate | UL Style 2576 | - | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
55PC1821-20-6/9-9CABLE 2COND 20AWG WHITE SHLD |
2,620 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 | 20 AWG | 19/32 | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.147" (3.73mm) | Braid | - | White | - | - | 600 V | 150°C | - | 0.0070" (0.178mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|

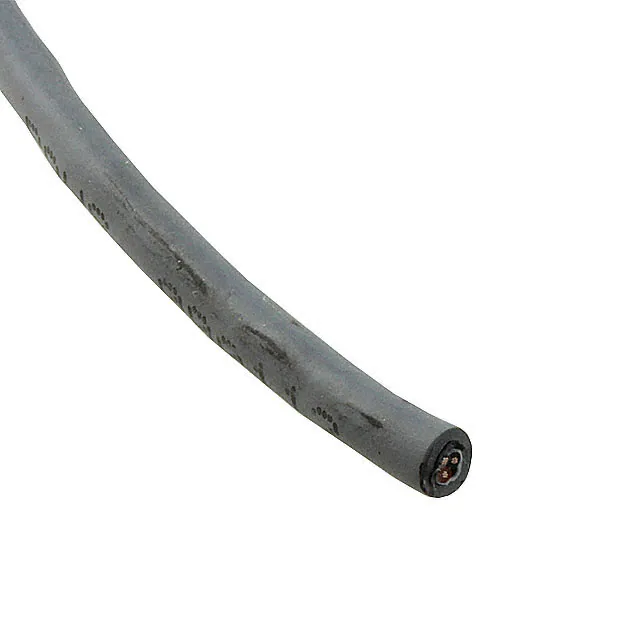

77152 SL001CABLE 2COND 28AWG SHLD |
2,438 |
|
Datasheet |
EcoCable® | Spool | Active | Multi-Conductor | 2 | 28 AWG | 7/36 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.142" (3.61mm) | Foil | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 21915 | Biological Compatibility, Drain Wire, Rip Cord | 600 V | -50°C ~ 105°C | - | 0.0320" (0.813mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
77147 SL001CABLE 2COND 26AWG SHLD |
3,332 |
|
Datasheet |
EcoCable® | Spool | Active | Multi-Conductor | 2 | 26 AWG | 7/34 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.150" (3.81mm) | Foil | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 21915 | Biological Compatibility, Drain Wire, Rip Cord | 600 V | -50°C ~ 105°C | - | 0.0320" (0.813mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
|
55PC0121-26-6/9CABLE 2COND 26AWG |
4,345 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 (1 Pair Twisted) | 26 AWG | 19/38 | Copper, Tinned | - | 0.061" (1.55mm) | - | - | - | - | - | 600 V | 150°C | - | - | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
1309A 008U5002 #14 PE FRPVC |
2,729 |
|
Datasheet |
- | Spool | Obsolete | Speaker | 2 | 14 AWG | 105/34 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.264" (6.71mm) | - | 500.0' (152.4m) | Gray | - | Direct Burial | 300 V | -20°C ~ 75°C | Audio-Video, Home | 0.0270" (0.686mm) | Polyethylene (PE) | - |
|
|
1309A 1SLU5002 #14 PE FRPVC |
3,613 |
|
Datasheet |
- | Spool | Obsolete | Speaker | 2 | 14 AWG | 105/34 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.264" (6.71mm) | - | 500.0' (152.4m) | White | - | Direct Burial | 300 V | -20°C ~ 75°C | Audio-Video, Home | 0.0270" (0.686mm) | Polyethylene (PE) | - |
|
|
1309A N3UU5002 #14 PE FRPVC |
4,879 |
|
Datasheet |
- | Spool | Obsolete | Speaker | 2 | 14 AWG | 105/34 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.264" (6.71mm) | - | 500.0' (152.4m) | Green | - | Direct Burial | 300 V | -20°C ~ 75°C | Audio-Video, Home | 0.0270" (0.686mm) | Polyethylene (PE) | - |
|
|
7988P N3UU10004 PR #24 FEP PVC |
4,553 |
|
Datasheet |
- | Spool | Active | Multi-Pair, Cat5e | 8 (4 Pair) | 24 AWG | Solid | Copper, Bare | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | 0.193" (4.90mm) | - | 1000.0' (304.8m) | Green | UL Style CMP | Rip Cord | 300 V | -20°C ~ 75°C | Video | - | Fluorinated Ethylene-Propylene (FEP) | - |
|
C3029.41.86MULTI-PAIR 6COND 24AWG NATURAL |
3,132 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 6 (3 Pair Twisted) | 24 AWG | 7/32 | Copper, Annealed Tinned | Fluoropolymer | 0.183" (4.65mm) | Foil | 1000.0' (304.8m) | Natural | ASTM B-33 | Low Capacitance | 300 V | -40°C ~ 150°C | Communication, Control | 0.0098" (0.250mm) | Fluoropolymer | - |
|
|
C8109.41.10CABLE 2COND 22AWG GRAY SHLD |
1,000 |
|
- |
- | Spool | Active | Multi-Conductor | 2 | 22 AWG | 7/30 | Copper, Annealed Tinned | Fluorinated Ethylene-Propylene (FEP), Plenum | 0.122" (3.10mm) | Foil | 1000.0' (304.8m) | Gray | - | Drain Wire | 300 V | -100°C ~ 200°C | - | 0.0160" (0.406mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|
|
44AM1121-20-0/9-9CS262CABLE 2COND 20AWG WHITE SHLD |
2,605 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 | 20 AWG | 19/32 | Copper, Tinned | Polyvinylidene Fluoride (PVDF) | 0.143" (3.63mm) | Braid | - | White | - | - | 600 V | 150°C | - | 0.0050" (0.127mm) | Polyvinylidene Fluoride (PVDF) | - |
|
|
6102FL 0021000CBL 4COND 14AWG FLRST SHLD |
1,024 |
|
- |
- | Spool | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
