Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

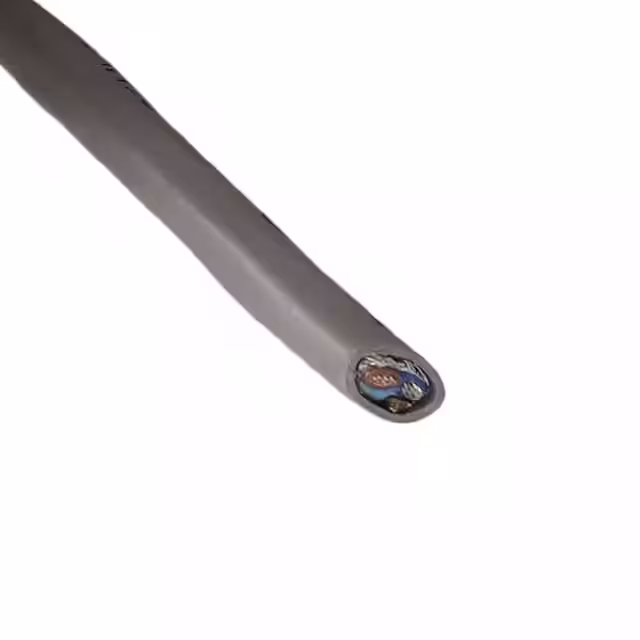

M5392 SL005CABLE 2CON 18AWG SLATE SHLD 100' |
2,192 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.251" (6.38mm) | Foil | 100.0' (30.5m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
5473L SL005MULTI-PAIR 6CON 24AWG SLATE 100' |
3,467 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 6 (3 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Low Smoke Zero Halogen (LSZH) | 0.228" (5.79mm) | Foil | 100.0' (30.5m) | Slate | - | Drain Wire | 300 V | -20°C ~ 75°C | - | 0.0300" (0.762mm) | Low Smoke Zero Halogen (LSZH) | - |
|
901803 SL005CABLE 3COND 18AWG SLATE 100' |
1,758 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 3 | 18 AWG | 19/30 | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.313" (7.95mm) | - | 100.0' (30.5m) | Slate | - | - | 600 V | -30°C ~ 90°C | Industrial | 0.0500" (1.270mm) | Poly-Vinyl Chloride (PVC), Polyamide (PA), Nylon | - |
|
M3804 BK005CABLE 6COND 18AWG BLACK 100' |
2,316 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 6 | 18 AWG | 7/0.0152" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.362" (9.20mm) | - | 100.0' (30.5m) | Black | - | - | 600 V | -25°C ~ 90°C | - | 0.0470" (1.194mm) | Poly-Vinyl Chloride (PVC) | - |
|
M2459 SL005CABLE 6CON 24AWG SLATE SHLD 100' |
1,390 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 6 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.265" (6.73mm) | Foil, Braid | 100.0' (30.5m) | Slate | UL Style 2919 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
E1032S.30.02CABLE 2COND 18AWG WHITE |
2,602 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 | 18 AWG | 7/26 | Copper, Annealed Bare | Poly-Vinyl Chloride (PVC), Riser | 0.156" (3.96mm) | - | 1000.0' (304.8m) | White | ASTM B-3 | Rip Cord | 300 V | -20°C ~ 75°C | Alarm, Security, Sound | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - |
|
902005 SL005CABLE 5COND 20AWG SLATE 100' |
4,676 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 5 | 20 AWG | 10/30 | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.319" (8.10mm) | - | 100.0' (30.5m) | Slate | - | - | 600 V | -30°C ~ 90°C | Industrial | 0.0450" (1.143mm) | Poly-Vinyl Chloride (PVC), Polyamide (PA), Nylon | - |
|
1179L SL005CABLE 9COND 22AWG SLATE 100' |
2,209 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 9 | 22 AWG | 7/30 | Copper, Tinned | Low Smoke Zero Halogen (LSZH) | 0.249" (6.32mm) | - | 100.0' (30.5m) | Slate | - | - | 300 V | -20°C ~ 75°C | Communication, Control | 0.0250" (0.635mm) | Low Smoke Zero Halogen (LSZH) | - |
|
M2461 SL005CABLE 8CON 24AWG SLATE SHLD 100' |
4,017 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 8 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.282" (7.16mm) | Foil, Braid | 100.0' (30.5m) | Slate | UL Style 2919 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
902003CY SL005CABLE 3CON 20AWG SLATE SHLD 100' |
4,459 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 3 | 20 AWG | 10/30 | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.297" (7.54mm) | Braid | 100.0' (30.5m) | Slate | - | - | 600 V | -30°C ~ 90°C | Industrial | 0.0450" (1.143mm) | Poly-Vinyl Chloride (PVC), Polyamide (PA), Nylon | - |
|
M1122 SL005CABLE 2CON 20AWG SLATE SHLD 100' |
1,062 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 20 AWG | 26/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.229" (5.82mm) | Braid | 100.0' (30.5m) | Slate | UL Style 2092 | - | 300 V | -20°C ~ 75°C | - | 0.0320" (0.813mm) | Polyethylene (PE) | - |
|
|
901603 SL005CABLE 3COND 16AWG SLATE 100' |
1,246 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 3 | 16 AWG | 26/30 | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.335" (8.51mm) | - | 100.0' (30.5m) | Slate | - | - | 600 V | -30°C ~ 90°C | Industrial | 0.0500" (1.270mm) | Poly-Vinyl Chloride (PVC), Polyamide (PA), Nylon | - |
|
6351 SL005CABLE 3CON 24AWG SLATE SHLD 100' |
3,853 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.217" (5.51mm) | Foil, Braid | 100.0' (30.5m) | Slate | UL Style 2919 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0350" (0.889mm) | Foam Polyethylene (FPE) | - |
|
M3422 SL005MULTI-PAIR 8CON 24AWG SLATE 100' |
4,506 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 8 (4 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.290" (7.37mm) | Foil, Braid | 100.0' (30.5m) | Slate | UL Style 2919 | - | 300 V | -20°C ~ 80°C | - | 0.0350" (0.889mm) | Polypropylene (PP) | - |
|
470027YY GE033CABLE 2COND 19AWG GRAY 100M |
2,528 |
|
Datasheet |
Pro-Met® | Spool | Active | Multi-Conductor | 2 | 19 AWG | 30/0.0070" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.206" (5.23mm) | - | 328.1' (100.0m) | Gray | - | Chemical Resistant, Oil Resistant, UV Resistant | 300 V | -40°C ~ 80°C | Industrial | 0.0260" (0.660mm) | Poly-Vinyl Chloride (PVC) | - |
|
M13173 SL005MULTI-PAIR 6CON 18AWG SLATE 100' |
4,080 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 6 (3 Pair Twisted) | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.380" (9.65mm) | Foil | 100.0' (30.5m) | Slate | UL Style 2919 | - | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Polyethylene (PE) | - |
|
M13303 SL002CABLE 3COND 22AWG SLATE 500' |
2,344 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.172" (4.37mm) | - | 500.0' (152.4m) | Slate | UL Style 2576 | - | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
902007 SL005CABLE 7COND 20AWG SLATE 100' |
3,818 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 7 | 20 AWG | 10/30 | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.343" (8.71mm) | - | 100.0' (30.5m) | Slate | - | - | 600 V | -30°C ~ 90°C | Industrial | 0.0450" (1.143mm) | Poly-Vinyl Chloride (PVC), Polyamide (PA), Nylon | - |
|
|
901403 SL005CABLE 3COND 14AWG SLATE 100' |
1,850 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 3 | 14 AWG | 41/30 | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.365" (9.27mm) | - | 100.0' (30.5m) | Slate | - | - | 600 V | -30°C ~ 90°C | Industrial | 0.0500" (1.270mm) | Poly-Vinyl Chloride (PVC), Polyamide (PA), Nylon | - |
|
7133806CABLE CAT6 8COND 23AWG GREEN |
1,201 |
|
Datasheet |
GenSPEED® 6 | Bulk | Active | Multi-Pair, Cat6 | 8 (4 Pair Twisted) | 23 AWG | Solid | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.205" (5.21mm) | - | 1000.0' (304.8m) | Green | - | Rip Cord | - | -20°C ~ 75°C | - | - | Polyolefin (PO) | - |
