Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E3602S.41.07CABLE 2CON 18AWG BLUE SHLD 1000' |
3,331 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 | 18 AWG | Solid | Copper, Annealed Bare | Poly-Vinyl Chloride (PVC), Plenum | 0.158" (4.01mm) | Foil | 1000.0' (304.8m) | Blue | ASTM B-3 | Drain Wire, Rip Cord | 300 V | 0°C ~ 75°C | Alarm, Safety | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - |
|
902005CY SL005CABLE 5CON 20AWG SLATE SHLD 100' |
4,629 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 5 | 20 AWG | 10/30 | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.341" (8.66mm) | Braid | 100.0' (30.5m) | Slate | - | - | 600 V | -30°C ~ 90°C | Industrial | 0.0450" (1.143mm) | Poly-Vinyl Chloride (PVC), Polyamide (PA), Nylon | - |
|

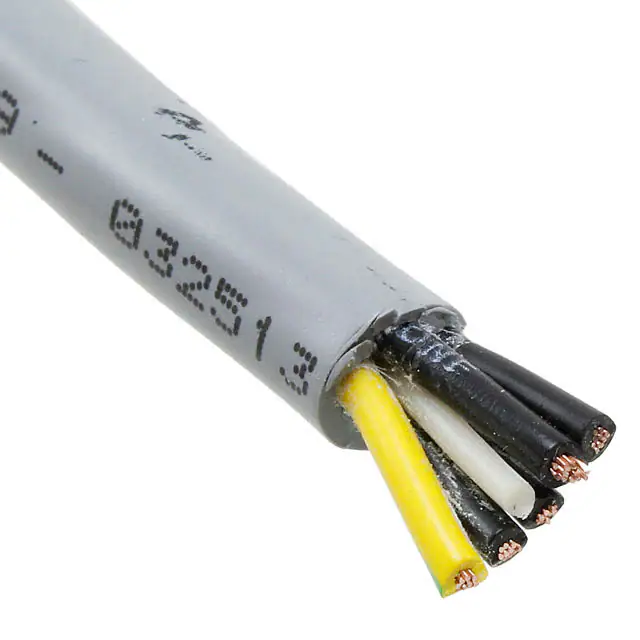

65005 SL005CABLE 5COND 20AWG SLATE 100' |
4,152 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 5 | 20 AWG | 10/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.305" (7.75mm) | - | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2587 | Biological Compatibility | 600 V | - | - | 0.0380" (0.965mm) | Poly-Vinyl Chloride (PVC) | - |
|
2412C SL022CABLE 2CON 20AWG SLATE SHLD 500' |
1,875 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.184" (4.67mm) | Foil | 500.0' (152.4m) | Slate | - | Drain Wire | 300 V | -20°C ~ 75°C | Communication, Control | 0.0200" (0.508mm) | Polyethylene (PE) | - |
|

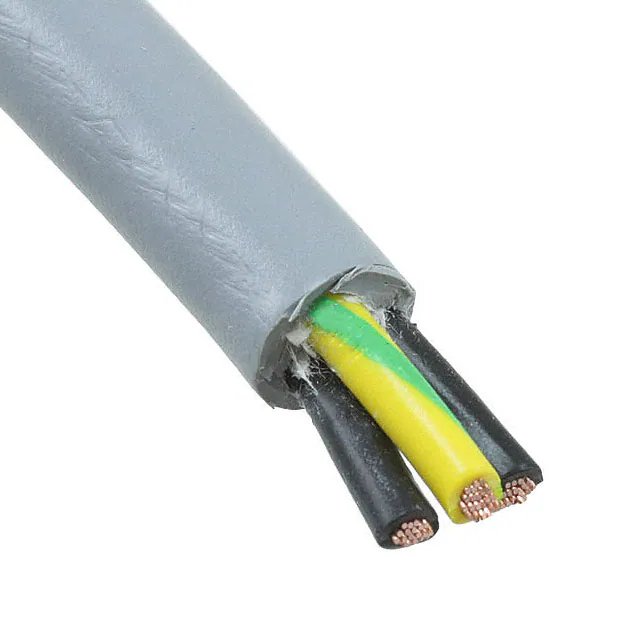

80015 SL005CABLE 3COND 22AWG SLATE 100' |
3,917 |
|
Datasheet |
EcoFlex® PUR | Spool | Active | Multi-Conductor | 3 | 22 AWG | 19/34 | Copper, Tinned | Polyurethane (PU) | 0.180" (4.57mm) | - | 100.0' (30.5m) | Slate | - | - | 600 V | -50°C ~ 90°C | - | 0.0319" (0.810mm) | Polyphenylene Ether (PPE) | - |
|
|
E2532S.41.03CABLE 2COND 14AWG RED SHLD |
3,033 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 14 AWG | Solid | Copper, Annealed Bare | Poly-Vinyl Chloride (PVC) | 0.218" (5.54mm) | Foil | 1000.0' (304.8m) | Red | ASTM B-3 | Drain Wire, Rip Cord | 300 V | -20°C ~ 75°C | Alarm, Safety | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - |
|
86402CY SL005CABLE 4CON 28AWG SLATE SHLD 100' |
4,961 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 4 | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.231" (5.87mm) | Foil, Braid | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2661 | Biological Compatibility, Drain Wire | 300 V | - | - | 0.0450" (1.143mm) | Poly-Vinyl Chloride (PVC) | - |
|

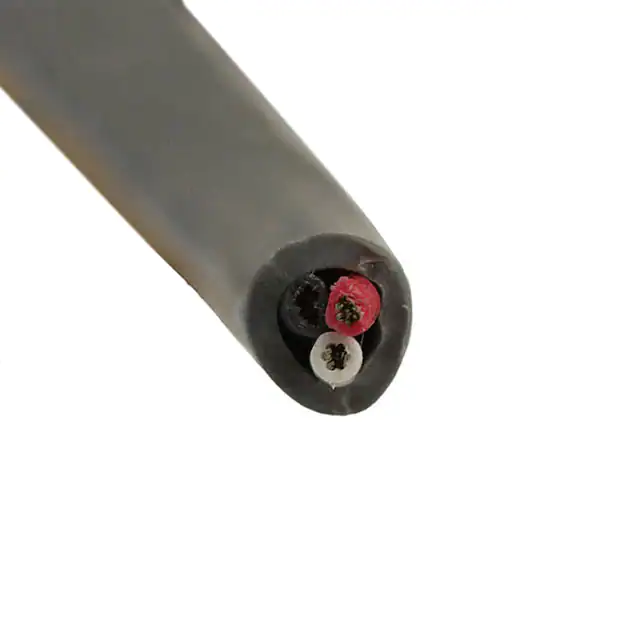

M33303 SL001CABLE 3COND 22AWG SLATE 1000' |
4,712 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.175" (4.45mm) | - | 1000.0' (304.8m) | Slate | UL Style 2576 | - | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
3463 SL005CABLE 3CON 28AWG SLATE SHLD 100' |
1,459 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.171" (4.34mm) | Foil, Braid | 100.0' (30.5m) | Slate | - | Drain Wire | 300 V | -20°C ~ 80°C | Communication, Control | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|

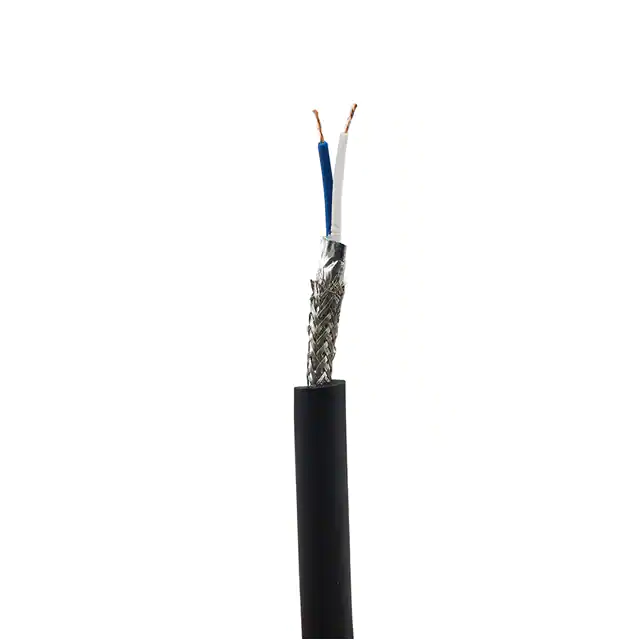

IO-A12626-500SPCABLE 2COND 26AWG BLK SHLD 500' |
4,055 |
|
Datasheet |
B1000 | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 26 AWG | 25/0.003" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.236" (5.99mm) | Foil, Braid | 500.0' (152.4m) | Black | - | - | - | -20°C ~ 60°C | - | - | Polyethylene (XLPE), Irradiated | - |
|

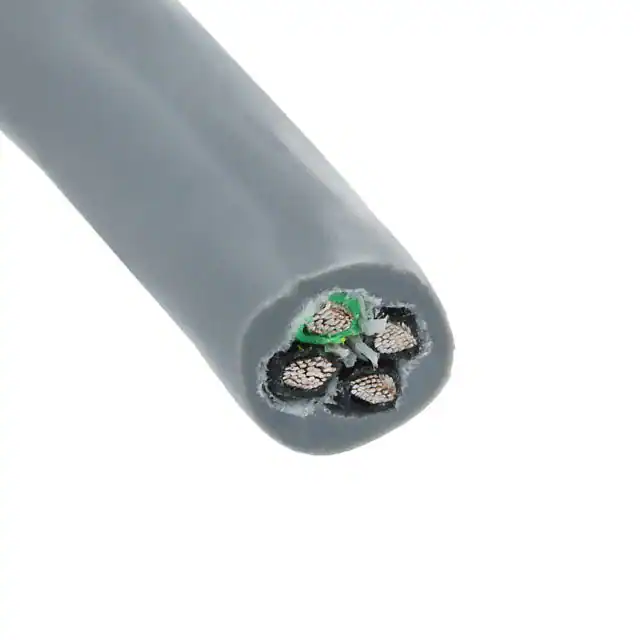

80016 SL005CABLE 4COND 22AWG SLATE 100' |
4,394 |
|
Datasheet |
EcoFlex® PUR | Spool | Active | Multi-Conductor | 4 | 22 AWG | 19/34 | Copper, Tinned | Polyurethane (PU) | 0.195" (4.95mm) | - | 100.0' (30.5m) | Slate | - | - | 600 V | -50°C ~ 90°C | - | 0.0319" (0.810mm) | Polyphenylene Ether (PPE) | - |
|

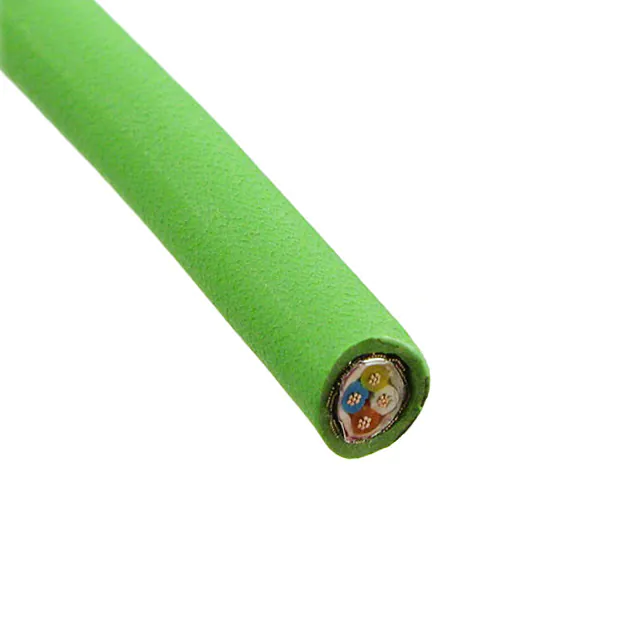

09456000102CABLE 4CON 22AWG GREEN SHLD 100M |
4,806 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 4 | 22 AWG | 7/22 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.256" (6.50mm) | Foil, Braid | 328.1' (100.0m) | Green | - | Flame Retardant | 600 V | -40°C ~ 70°C | - | - | Poly-Vinyl Chloride (PVC) | - |
|
5477L SL005MULTI-PAIR 14COND 24AWG 100' |
1,846 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 14 (7 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Low Smoke Zero Halogen (LSZH) | 0.299" (7.60mm) | Foil | 100.0' (30.5m) | Slate | - | Drain Wire | 300 V | -20°C ~ 75°C | - | 0.0250" (0.635mm) | Low Smoke Zero Halogen (LSZH) | - |
|

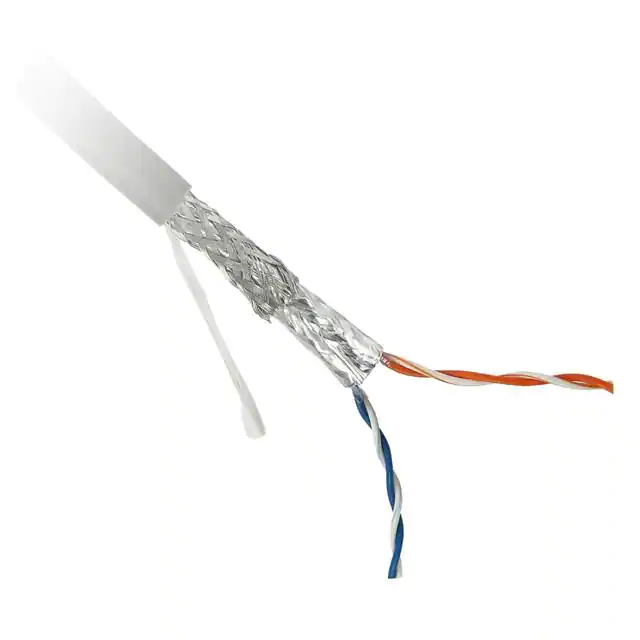

TSXSCMCN050MULTI-PAIR 8COND 24AWG GRAY 50M |
1,812 |
|
Datasheet |
- | Box | Active | Multi-Pair | 8 (4 Pair Twisted) | 24 AWG | - | - | Polyethylene (PE) | - | - | 164.0' (50.0m) | Gray | - | - | 300 V | -20°C ~ 80°C | - | - | - | - |
|
2711/2CABLE 2COND 32AWG BLK SHLD 100' |
4,162 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 32 AWG | 65/50 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.069" (1.75mm) | Braid | 100.0' (30.5m) | Black | - | - | 200 V | -40°C ~ 105°C | - | 0.0100" (0.254mm) | Poly-Vinyl Chloride (PVC) | - |
|
M13233 SL002CABLE 3CON 20AWG SLATE SHLD 500' |
2,526 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.221" (5.61mm) | Foil | 500.0' (152.4m) | Slate | UL Style 2093 | - | 300 V | -20°C ~ 75°C | - | 0.0330" (0.838mm) | Polyethylene (PE) | - |
|
901809 SL005CABLE 9COND 18AWG SLATE 100' |
2,191 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 9 | 18 AWG | 19/30 | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.450" (11.43mm) | - | 100.0' (30.5m) | Slate | - | - | 600 V | -30°C ~ 90°C | Industrial | 0.0500" (1.270mm) | Poly-Vinyl Chloride (PVC), Polyamide (PA), Nylon | - |
|
M13303 SL001CABLE 3COND 22AWG SLATE 1000' |
2,380 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.172" (4.37mm) | - | 1000.0' (304.8m) | Slate | UL Style 2576 | - | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
2413C SL022CABLE 3CON 20AWG SLATE SHLD 500' |
3,432 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.195" (4.95mm) | Foil | 500.0' (152.4m) | Slate | - | Drain Wire | 300 V | -20°C ~ 75°C | Communication, Control | 0.0200" (0.508mm) | Polyethylene (PE) | - |
|

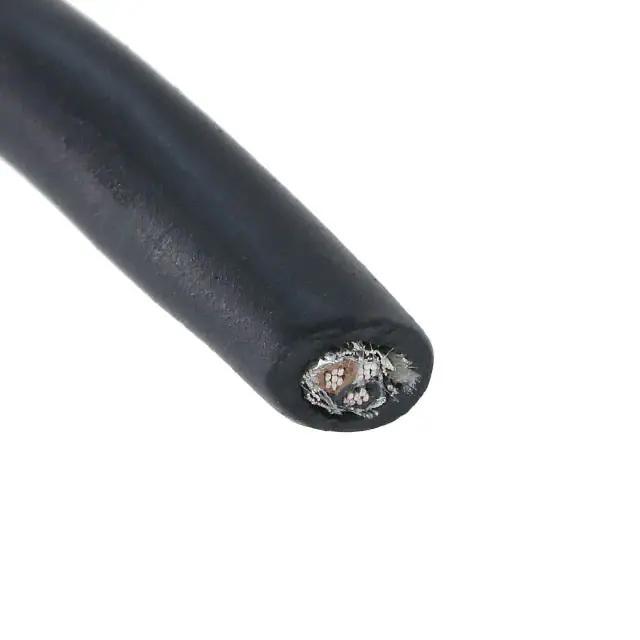

25102 BK005CABLE 2COND 22AWG BLK SHLD 100' |
3,676 |
|
Datasheet |
Xtra-Guard® 2 | Spool | Active | Multi-Conductor | 2 | 22 AWG | 7/30 | Copper, Tinned | Polyurethane (PU) | 0.196" (4.98mm) | Foil, Braid | 100.0' (30.5m) | Black | ISO 10993, UL Style 20668 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -30°C ~ 90°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
