Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E2504S.18.03CABLE 4COND 18AWG RED SHLD |
3,626 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 4 | 18 AWG | Solid | Copper, Annealed Bare | Poly-Vinyl Chloride (PVC) | 0.183" (4.65mm) | Foil | 500.0' (152.4m) | Red | ASTM B-3 | Drain Wire, Rip Cord | 300 V | -20°C ~ 75°C | Alarm, Safety | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - |
|
E2202S.30.86CABLE 2COND 18AWG NATURAL |
4,988 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 | 18 AWG | 7/26 | Copper, Bare | Poly-Vinyl Chloride (PVC), Plenum | 0.164" (4.17mm) | Foil | 1000.0' (304.8m) | Natural | - | Drain Wire | 300 V | 0°C ~ 75°C | Alarm, Security, Sound | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
E3512S.41.05CABLE 2COND 16AWG YELLOW |
1,066 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 16 AWG | Solid | Copper, Annealed Bare | Poly-Vinyl Chloride (PVC), Plenum | 0.172" (4.37mm) | - | 1000.0' (304.8m) | Yellow | ASTM B-3 | Rip Cord | 300 V | 0°C ~ 75°C | Alarm, Safety | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - |
|
ATUP-V305T-RCABLE CAT5E 8CON 24AWG GRY |
1,363 |
|
Datasheet |
- | Bulk | Active | Multi-Pair, Cat5e | 8 (4 Pair Twisted) | 24 AWG | Solid | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.217" (5.51mm) | - | 1000.0' (304.8m) | Gray | - | - | 30 V | - | Network | 0.0217" (0.550mm) | High Density Polyethylene (HDPE) | - |
|
E1033S.30.10CABLE 3COND 18AWG GRAY |
2,618 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 | 18 AWG | 7/26 | Copper, Annealed Bare | Poly-Vinyl Chloride (PVC), Riser | 0.166" (4.22mm) | - | 1000.0' (304.8m) | Gray | ASTM B-3 | Rip Cord | 300 V | -20°C ~ 75°C | Alarm, Security, Sound | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - |
|
E1042S.18.10CABLE 2COND 16AWG GRAY |
4,001 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 16 AWG | 19/0.0117" | Copper, Annealed Bare | Poly-Vinyl Chloride (PVC), Riser | 0.178" (4.52mm) | - | 500.0' (152.4m) | Gray | ASTM B-3 | Rip Cord | 300 V | -20°C ~ 75°C | Alarm, Security, Sound | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
PRT-18382CABLE 2COND 22AWG CLEAR |
3,152 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 | 22 AWG | 7/30 | - | Poly-Vinyl Chloride (PVC) | - | - | 25.00' (7.62m) | Clear | - | - | 300 V | 105°C | - | 0.0170" (0.432mm) | - | - |
|
E2033S.41.10CABLE 3CON 18AWG GRAY SHLD |
2,757 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 | 18 AWG | 7/26 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.168" (4.27mm) | Foil | 1000.0' (304.8m) | Gray | - | Drain Wire, Rip Cord | 300 V | -20°C ~ 75°C | Alarm, Security, Sound | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - |
|

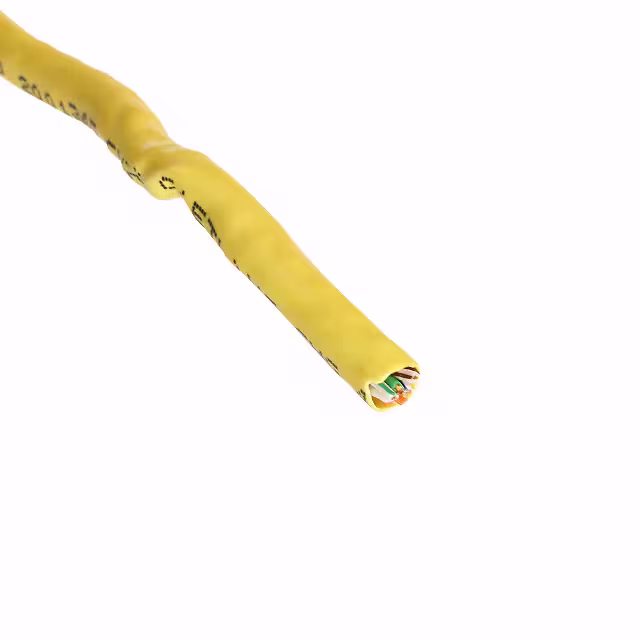

7133802CABLE CAT6 8COND 23AWG YELLOW |
3,330 |
|
Datasheet |
GenSPEED® 6 | Bulk | Active | Multi-Pair, Cat6 | 8 (4 Pair Twisted) | 23 AWG | Solid | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.205" (5.21mm) | - | 1000.0' (304.8m) | Yellow | - | Rip Cord | - | -20°C ~ 75°C | - | - | Polyolefin (PO) | - |
|
E2042S.30.10CABLE 2COND 16AWG GRAY SHLD |
3,381 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 | 16 AWG | 19/0.0117" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.183" (4.65mm) | Foil | 1000.0' (304.8m) | Gray | - | Drain Wire, Rip Cord | 300 V | -20°C ~ 75°C | Alarm, Security, Sound | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - |
|
E2106S.41.02CABLE 6COND 22AWG WHT SHLD |
1,916 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 6 | 22 AWG | 7/30 | Copper, Bare | Poly-Vinyl Chloride (PVC), Plenum | 0.176" (4.47mm) | Foil | 1000.0' (304.8m) | White | - | Drain Wire | 300 V | 0°C ~ 75°C | Alarm, Security, Sound | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
E1522S.41.05CABLE 2COND 14AWG YELLOW |
2,437 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 14 AWG | Solid | Copper, Annealed Bare | Poly-Vinyl Chloride (PVC) | 0.210" (5.33mm) | - | 1000.0' (304.8m) | Yellow | ASTM B-3 | Rip Cord | 300 V | -20°C ~ 75°C | Alarm, Safety | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - |
|
2753-100CABLE SPKR 2COND 22AWG CLEAR |
1,439 |
|
Datasheet |
- | Bulk | Active | Speaker | 2 | 22 AWG | 7/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.140" (3.56mm) | - | 100.0' (30.5m) | Clear | - | - | 300 V | -20°C ~ 60°C | Audio-Video, Home | 0.0200" (0.508mm) | - | - |
|
|
E1514S.41.03CABLE 4COND 16AWG RED |
2,882 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 4 | 16 AWG | Solid | Copper, Annealed Bare | Poly-Vinyl Chloride (PVC) | 0.202" (5.13mm) | - | 1000.0' (304.8m) | Red | ASTM B-3 | Rip Cord | 300 V | -20°C ~ 75°C | Alarm, Safety | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - |
|
7131800CABLE CAT6 8COND 24AWG BLUE |
3,789 |
|
Datasheet |
GenSPEED® 6 | Bulk | Active | Multi-Pair, Cat6 | 8 (4 Pair Twisted) | 24 AWG | Solid | Copper, Bare | Poly-Vinyl Chloride (PVC), Plenum | 0.200" (5.08mm) | - | 1000.0' (304.8m) | Blue | - | Rip Cord | - | -20°C ~ 75°C | - | - | Fluoropolymer | - |
|
C2524A.18.10CABLE 2COND 20AWG GRAY SHLD |
1,095 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 20 AWG | 7/28 | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.183" (4.65mm) | Foil | 500.0' (152.4m) | Gray | ASTM B-33 | Drain Wire | 300 V | -20°C ~ 75°C | Communication, Control | 0.0200" (0.508mm) | Polyethylene (PE) | - |
|
|
6120UL 002500CABLE 2COND 14AWG RED |
3,831 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 14 AWG | Solid | Copper, Bare | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | 0.201" (5.11mm) | - | 500.0' (152.4m) | Red | UL Style FPLP | Rip Cord | 300 V | 0°C ~ 75°C | Alarm, Safety | 0.0150" (0.381mm) | Low Smoke Poly-Vinyl Chloride (LSPVC) | - |
|

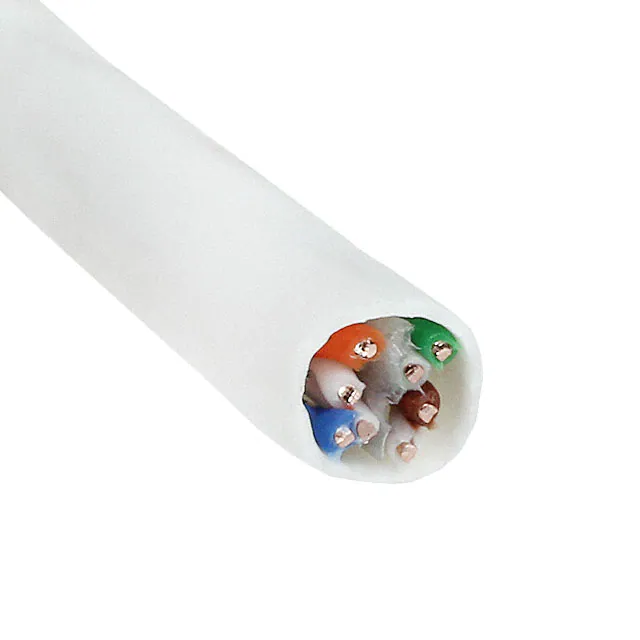

7131801CABLE CAT6 8COND 24AWG WHITE |
1,100 |
|
Datasheet |
GenSPEED® 6 | Bulk | Active | Multi-Pair, Cat6 | 8 (4 Pair Twisted) | 24 AWG | Solid | Copper, Bare | Poly-Vinyl Chloride (PVC), Plenum | 0.200" (5.08mm) | - | 1000.0' (304.8m) | White | - | Rip Cord | - | -20°C ~ 75°C | - | - | Fluoropolymer | - |
|
C0451A.41.10CABLE 3COND 22AWG GRAY SHLD |
2,867 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 22 AWG | 7/30 | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.199" (5.06mm) | Foil | 1000.0' (304.8m) | Gray | ASTM B-33 | Drain Wire | 300 V | -20°C ~ 105°C | Communication, Control | 0.0370" (0.940mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
C0453A.41.10CABLE 3CON 20AWG GRAY SHLD |
1,844 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 20 AWG | 7/28 | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.217" (5.51mm) | Foil | 1000.0' (304.8m) | Gray | ASTM B-33 | Drain Wire | 300 V | -20°C ~ 105°C | Communication, Control | 0.0370" (0.940mm) | Poly-Vinyl Chloride (PVC) | - |
