Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1552100280CABLE 3COND 14AWG GRAY 200M |
2,970 |
|
Datasheet |
Flamar 155210 | Spool | Active | Multi-Conductor | 3 | 14 AWG | 133/0.0059" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.366" (9.30mm) | - | 656.2' (200.0m) | Gray | UL Style 2464 | - | 300 V | 5°C ~ 80°C | Industrial, Signal, Control | 0.0197" (0.500mm) | Thermoplastic Elastomer (TPE) | - |
|
1554216006CABLE CAT5E 8CON 26AWG 1000M |
1,635 |
|
Datasheet |
Flamar 155421 | Bulk | Active | Multi-Pair, Cat5e | 8 (4 Pair Twisted) | 26 AWG | 19/0.0039" | Copper, Bare | Weld-Slag Oil Resistant (WSOR) | 0.283" (7.19mm) | Foil, Braid | 3281' (1000.0m) | Teal | UL Style 21215 | - | 600 V | -10°C ~ 60°C | Industrial, Network | 0.0098" (0.250mm) | Polyethylene (PE) | - |
|
1301280139CABLE 3COND 16AWG YELLOW |
2,267 |
|
Datasheet |
Super-Safeway 130128 | Bulk | Obsolete | Multi-Conductor | 3 | 16 AWG | 65/34 | Copper, Bare | Rubber | 0.410" (10.41mm) | - | 250.0' (76.2m) | Yellow | - | Oil Resistant | 600 V | - | - | 0.0600" (1.524mm) | Rubber | - |
|
|
M3840 BK002CABLE 24COND 16AWG BLACK |
1,430 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 24 | 16 AWG | 7/0.0192" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.717" (18.21mm) | - | 500.0' (152.4m) | Black | - | - | 600 V | -25°C ~ 90°C | - | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
35162/1 BK199CABLE 2COND 18AWG BLK SHLD 1000' |
3,351 |
|
Datasheet |
Xtra-Guard® 3 | Spool | Active | Multi-Conductor | 2 | 18 AWG | 16/30 | Copper, Tinned | Polyethylene (PE) | 0.253" (6.43mm) | Foil, Braid | 1000.0' (304.8m) | Black | - | Drain Wire, Rip Cord | 300 V | -30°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-00493CABLE 4COND 24AWG BLACK SHLD 1M |
3,463 |
|
Datasheet |
- | Spool | Discontinued at Digi-Key | Multi-Conductor | 4 | 24 AWG | 41/40 | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.150" (3.81mm) | Spiral | 3.28' (1.00m) | Black | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - |
|
|
82A1121-22-0/9-9CABLE 2COND 22AWG WHITE SHLD |
2,262 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 | 22 AWG | - | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.123'' (3.12mm) | Braid | - | White | - | - | 600 V | 150°C | - | 0.0100" (0.254mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
1512C B5950008 PR #24 PO FS PVC FS PVC |
3,923 |
|
Datasheet |
- | Bulk | Active | Multi-Pair | 16 (8 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.452" (11.48mm) | Foil | 5000' (1524.0m) | Black | - | - | 300 V | -35°C ~ 75°C | - | 0.0330" (0.838mm) | Polypropylene (PP) | - |
|
|
M39151 SL001MULTI-PAIR 18COND 22AWG |
3,829 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 18 (9 Pair Twisted) | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.529" (13.43mm) | Foil | 1000.0' (304.8m) | Slate | - | Drain Wire | 300 V | -20°C ~ 105°C | - | 0.0530" (1.346mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
77804WS 010100CABLE 4COND 18AWG BLK SHLD |
2,377 |
|
- |
MachFlex™ | Spool | Active | Multi-Conductor | 4 | 18 AWG | 105/38 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.414" (10.52mm) | Braid | 100.0' (30.5m) | Black | UL Style 2587 | Oil Resistant | 600 V | -5°C ~ 90°C | Industrial, Signal, Control | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
6396 SL001MULTI-PAIR 24COND 28AWG |
3,398 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 24 (12 Pair Twisted) | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.335" (8.51mm) | Foil, Braid | 1000.0' (304.8m) | Slate | UL Style 2960 | Drain Wire | 300 V | -20°C ~ 75°C | - | 0.0350" (0.889mm) | Polyethylene (PE) | - |
|
|
M1233 WH199CABLE 3COND 20AWG WHT SHLD 3000' |
4,860 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 20 AWG | 19/32 | Copper, Tinned | Polytetrafluoroethylene (PTFE) | 0.171" (4.34mm) | Braid | 3000' (914.4m) | White | - | - | 600 V | -55°C ~ 200°C | - | 0.0098" (0.250mm) | Polytetrafluoroethylene (PTFE) | - |
|
|
M3839 BK199CABLE 19COND 16AWG BLACK 3000' |
1,106 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 19 | 16 AWG | 7/0.0192" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.630" (16.00mm) | - | 3000' (914.4m) | Black | - | - | 600 V | -25°C ~ 90°C | - | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
1747C SL001CABLE 4COND 18AWG SHLD |
1,950 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 4 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.235" (5.97mm) | Braid | 1000.0' (304.8m) | Slate | - | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0200" (0.508mm) | Poly-Vinyl Chloride (PVC) | - |
|

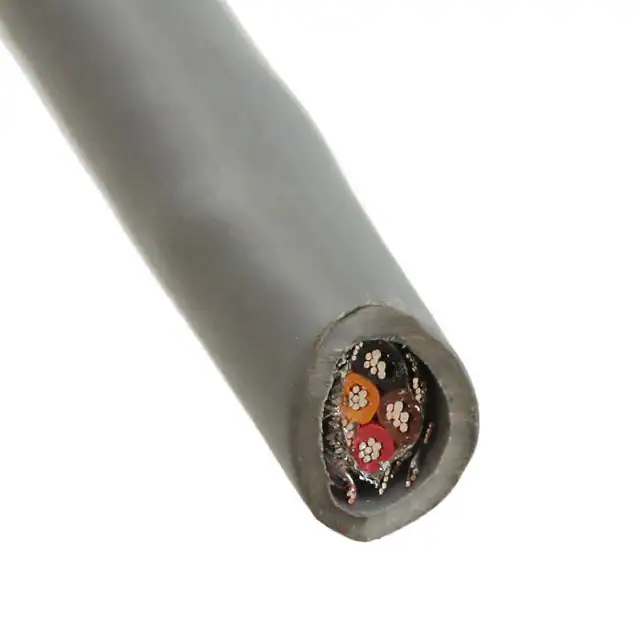

77215 SL001CABLE 4COND 18AWG SHLD |
1,432 |
|
Datasheet |
EcoCable® | Spool | Active | Multi-Conductor | 4 | 18 AWG | 16/30 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.258" (6.55mm) | Foil, Braid | 1000.0' (304.8m) | Slate | ISO 10993 | Biological Compatibility | 600 V | -50°C ~ 105°C | - | 0.0320" (0.813mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
|
F18017KW BK199CABLE 17COND 18AWG BLACK 1000' |
4,310 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 17 | 18 AWG | 41/34 | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.597" (15.16mm) | - | 1000.0' (304.8m) | Black | - | - | 600 V | -25°C ~ 90°C | - | 0.0650" (1.651mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
F18017LW BK199CABLE 17COND 18AWG BLACK 1000' |
4,256 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 17 | 18 AWG | 41/34 | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.597" (15.16mm) | - | 1000.0' (304.8m) | Black | - | - | 600 V | -25°C ~ 90°C | - | 0.0650" (1.651mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
F18017RW BK199CABLE 17COND 18AWG BLACK 1000' |
3,350 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 17 | 18 AWG | 41/34 | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.597" (15.16mm) | - | 1000.0' (304.8m) | Black | - | - | 600 V | -25°C ~ 90°C | - | 0.0650" (1.651mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
45116 BK199CABLE 6COND 24AWG BLK SHLD 1000' |
2,981 |
|
Datasheet |
Xtra-Guard® 4 | Spool | Active | Multi-Conductor | 6 | 24 AWG | 7/32 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.285" (7.24mm) | Foil, Braid | 1000.0' (304.8m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0420" (1.067mm) | Thermoplastic Elastomer (TPE) | - |
|
|
45116 SL199CABLE 6COND 24AWG SHLD 1000' |
3,856 |
|
Datasheet |
Xtra-Guard® 4 | Spool | Active | Multi-Conductor | 6 | 24 AWG | 7/32 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.285" (7.24mm) | Foil, Braid | 1000.0' (304.8m) | Slate | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0420" (1.067mm) | Thermoplastic Elastomer (TPE) | - |
