Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1552200274CABLE 2COND 14AWG GRAY 200M |
3,803 |
|
Datasheet |
Flamar 155220 | Bulk | Active | Multi-Conductor | 2 | 14 AWG | 133/0.0059" | Copper, Bare | Weld-Slag Oil Resistant (WSOR) | 0.346" (8.79mm) | - | 656.2' (200.0m) | Gray | UL Style 21215 | - | 600 V | -25°C ~ 80°C | Industrial, Signal, Control | 0.0197" (0.500mm) | Thermoplastic Elastomer (TPE) | - |
|
1554315002CABLE 4CON 22AWG GREEN SHLD 500M |
3,702 |
|
Datasheet |
Flamar 155431 | Bulk | Active | Multi-Conductor | 4 | 22 AWG | 19/0.0059" | Copper, Tinned | Polyurethane (PU) | 0.268" (6.81mm) | Braid | 1640.4' (500.0m) | Green | UL Style 20233 | - | 300 V | -20°C ~ 70°C | Industrial, Network | 0.0150" (0.381mm) | Polyethylene (PE) | - |
|
|
09410.35.01CABLE 10COND 14AWG BLACK |
2,101 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 10 | 14 AWG | 41/30 | Copper, Bare | Super Vu-Tron® | 0.820" (20.83mm) | - | 250.0' (76.2m) | Black | - | - | 600 V | -40°C ~ 90°C | - | 0.0450" (1.143mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
|
55PCL6009-26-MST3-9CS3109CABLE 3COND 26AWG WHITE SHLD |
2,401 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 | 26 AWG | 19/38 | Copper Alloy, Silver Coated | Ethylene Tetrafluoroethylene (ETFE) | 0.085" (2.16mm) | Braid | - | White | - | - | 600 V | 200°C | - | 0.0050" (0.127mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
6644 WH002CABLE 4COND 20AWG WHITE |
4,702 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 4 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (XLPVC), Irradiated | 0.207" (5.26mm) | - | 500.0' (152.4m) | White | UL Style 2576 | - | 300 V | -55°C ~ 105°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
6423 SL002MULTI-PAIR 30COND 22AWG |
3,306 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 30 (15 Pair Twisted) | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.545" (13.84mm) | Foil | 500.0' (152.4m) | Slate | - | Drain Wire | 300 V | -20°C ~ 105°C | - | 0.0530" (1.346mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
6230/12C SL001MULTI-PAIR 25COND 24AWG |
1,424 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 25 (12.5 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.477" (12.12mm) | Foil, Braid | 1000.0' (304.8m) | Slate | UL Style 2919 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0350" (0.889mm) | Foam Polypropylene (FPP) | - |
|
|
8466 0605000CABLE 12COND 18AWG CHROME |
4,203 |
|
Datasheet |
Classics | Spool | Active | Multi-Conductor | 12 | 18 AWG | 19/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.412" (10.46mm) | - | 5000' (1524.0m) | Chrome | UL Style 2598 | - | 300 V | -20°C ~ 60°C | Audio, Control, Instrumentation | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
58120/25 SL001CABLE 25COND 22AWG SHLD |
3,742 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 25 | 22 AWG | 7/28 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.314" (7.98mm) | Foil | 1000.0' (304.8m) | Slate | - | Drain Wire | 300 V | -5°C ~ 75°C | - | 0.0170" (0.432mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
82A1121-22-9/96-9CABLE 2COND 22AWG WHITE SHLD |
1,101 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 | 22 AWG | - | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.123'' (3.12mm) | Braid | - | White | - | - | 600 V | 150°C | - | 0.0100" (0.254mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|

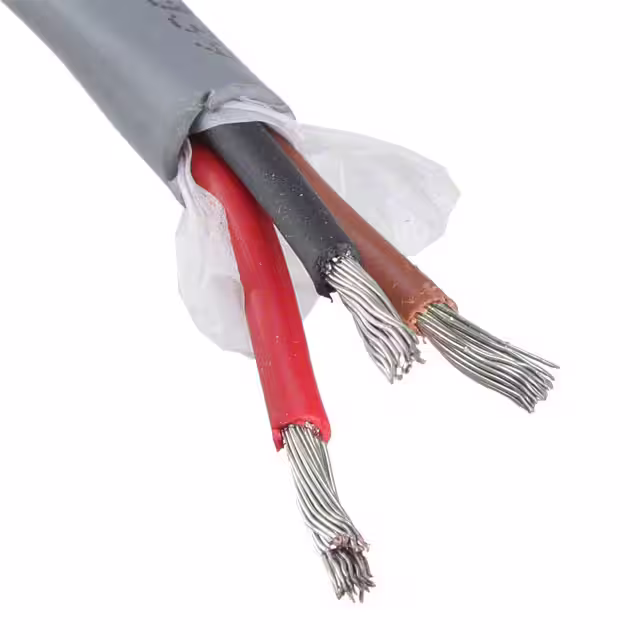

77039 SL001CABLE 3COND 14AWG SLATE |
1,280 |
|
Datasheet |
EcoCable® | Spool | Active | Multi-Conductor | 3 | 14 AWG | 41/30 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.275" (6.99mm) | - | 1000.0' (304.8m) | Slate | ISO 10993 | Biological Compatibility | 600 V | -50°C ~ 105°C | - | 0.0320" (0.813mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
5078C SL001CABLE 8COND 16AWG SLATE |
2,099 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 8 | 16 AWG | 19/0.0117" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.372" (9.45mm) | - | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 2464 | Biological Compatibility, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-01156CABLE 7COND 28AWG BLACK SHLD 1M |
2,865 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | Multi-Conductor | 7 | 28 AWG | 40/0.002" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.138" (3.50mm) | Spiral | 3.28' (1.00m) | Black | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - |
|
32301407CABLE 7COND 14 AWG ORANGE 1=1FT |
2,694 |
|
Datasheet |
TR 600 HD | Spool | Active | Multi-Conductor | 7 | 14 AWG | 41/30 | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.472" (11.99mm) | - | Enter Number of Feet in Order Quantity | Orange | UL Style TC-ER | Oil Resistant | 600 V | -40°C ~ 105°C | Industrial, Control | - | Poly-Vinyl Chloride (PVC), Nylon | - |
|
|
M9700240 BK005MULTI-PAIR 48COND 20AWG BLACK |
1,654 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 48 (24 Pair Twisted) | 20 AWG | 7/0.0121" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.824" (20.93mm) | Foil | 100.0' (30.5m) | Black | - | - | 300 V | -20°C ~ 105°C | - | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
8105 0605000MULTI-PAIR 10COND 24AWG |
4,974 |
|
Datasheet |
Classics | Spool | Active | Multi-Pair | 10 (5 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.303" (7.70mm) | Foil, Braid | 5000' (1524.0m) | Chrome | UL Style 2919 | Drain Wire | - | -30°C ~ 80°C | Computer | 0.0350" (0.889mm) | Foam Polyethylene (FPE) | - |
|
|
5690 SL199MULT-PAIR 4COND 26AWG 1000=1000' |
2,911 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Pair | 4 (2 Pair Twisted) | 26 AWG | 7/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.200" (5.08mm) | Foil | - | Slate | ISO 10993, UL Style 2464 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
9991 0601000MULTI-PAIR 12COND 24AWG |
2,630 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 12 (6 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.330" (8.38mm) | Foil | 1000.0' (304.8m) | Chrome | UL Style 2919 | Drain Wire | - | -20°C ~ 80°C | Audio, Control, Instrumentation | 0.0350" (0.889mm) | Polyethylene (PE) | - |
|
|
9884MN 004100MULTI-PAIR 10COND 20AWG |
3,420 |
|
Datasheet |
SpaceMaker™ | Spool | Discontinued at Digi-Key | Multi-Pair | 10 (5 Pair Twisted) | 20 AWG | 26/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.324" (8.23mm) | Foil | 100.0' (30.5m) | Yellow | UL Style 2937 | Drain Wire | 300 V | -20°C ~ 80°C | Audio, Control, Instrumentation | 0.0160" (0.406mm) | Polypropylene (PP) | - |
|
85805CY BK001CABLE 5COND 18AWG BLACK SHLD |
4,208 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 5 | 18 AWG | 105/38 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.453" (11.51mm) | Braid | 1000.0' (304.8m) | Black | UL Style 2587 | - | 600 V | - | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
