Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

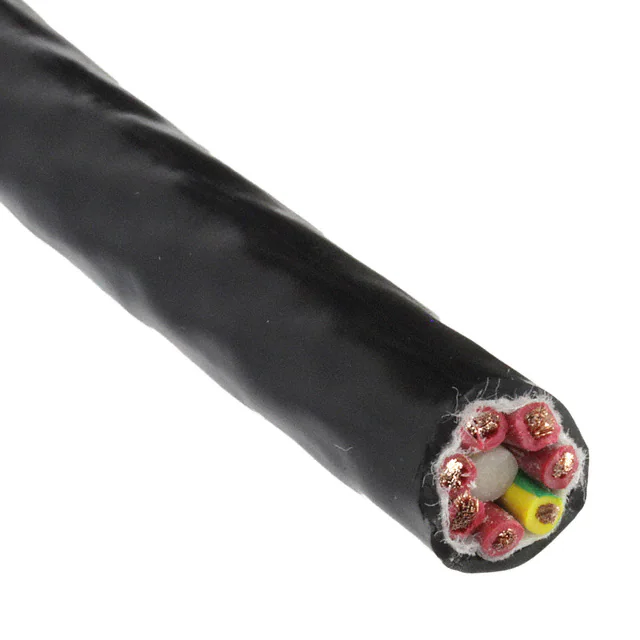

85807 BK002CABLE 7COND 18AWG BLACK |
3,110 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 7 | 18 AWG | 105/38 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.438" (11.13mm) | - | 500.0' (152.4m) | Black | UL Style 2587 | - | 600 V | - | - | 0.0450" (1.143mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-01994CABLE 4COND 26AWG BLACK 1M |
3,303 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | Multi-Conductor | 4 | 26 AWG | 26/0.0031" | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.161" (4.09mm) | - | 3.28' (1.00m) | Black | UL Style 21509 | Biological Compatibility | 600 V | -40°C ~ 105°C | - | 0.0098" (0.250mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
30-00914CABLE 3COND 26AWG BLACK SHLD 1M |
4,540 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | Multi-Conductor | 3 | 26 AWG | 19/0.0039" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.169" (4.29mm) | Braid | 3.28' (1.00m) | Black | UL Style 20280 | Drain Wire | 300 V | -40°C ~ 80°C | - | 0.0315" (0.800mm) | Thermoplastic Elastomer (TPE) | - |
|
55PC6077-26-9/93/96CS3109CABLE 3COND 26AWG |
4,698 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 (1 Triad Twisted) | 26 AWG | 19/38 | Copper Alloy, Silver Coated | - | 0.068" (1.73mm) | - | - | - | - | - | 600 V | 200°C | - | - | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
86125 SL001CABLE 25COND 26AWG SLATE |
1,163 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 25 | 26 AWG | 7/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.335" (8.51mm) | - | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 2661 | Biological Compatibility | 300 V | - | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
M1243 WH001CABLE 3COND 18AWG WHITE SHLD |
2,722 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 18 AWG | 19/30 | Copper, Tinned | Polytetrafluoroethylene (PTFE) | 0.197" (5.00mm) | Braid | 1000.0' (304.8m) | White | - | - | 600 V | -55°C ~ 200°C | - | 0.0118" (0.300mm) | Polytetrafluoroethylene (PTFE) | - |
|
|
86167CY SL002CABLE 7COND 16AWG SLATE SHLD |
1,122 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 7 | 16 AWG | 65/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.366" (9.30mm) | Foil, Braid | 500.0' (152.4m) | Slate | UL Style 2661 | Drain Wire, Oil Resistant | 300 V | - | - | 0.0430" (1.092mm) | Poly-Vinyl Chloride (PVC) | - |
|

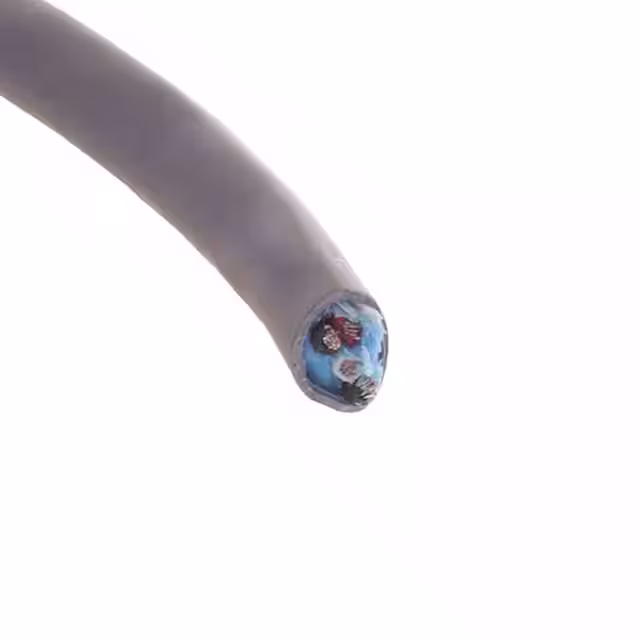

5032C SL002MULT-PAIR 4COND 18AWG SLATE |
4,442 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Pair | 4 (2 Pair Twisted) | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.327" (8.31mm) | - | 500.0' (152.4m) | Slate | ISO 10993 | Biological Compatibility, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
9157 0601000MULTI-PAIR 8CON 18AWG CHRM |
1,846 |
|
Datasheet |
Classics | Spool | Active | Multi-Pair | 8 (4 Pair Twisted) | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.381" (9.68mm) | - | 1000.0' (304.8m) | Chrome | UL Style 2464 | - | 300 V | -20°C ~ 80°C | Audio, Control, Instrumentation | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
M5402 SL001CABLE 20COND 18AWG SHLD |
2,905 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 20 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.507" (12.88mm) | Foil, Braid | 1000.0' (304.8m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
76012WS 008100CABLE 12COND 28AWG CHRM SHD |
3,988 |
|
- |
MachFlex™ | Spool | Active | Multi-Conductor | 12 | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.283" (7.19mm) | Foil, Spiral | 100.0' (30.5m) | Chrome | - | Oil Resistant | 300 V | - | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
35104 BK199CABLE 4COND 22AWG BLK SHLD 1000' |
2,223 |
|
Datasheet |
Xtra-Guard® 3 | Spool | Active | Multi-Conductor | 4 | 22 AWG | 7/30 | Copper, Tinned | Polyethylene (PE) | 0.216" (5.49mm) | Foil, Braid | 1000.0' (304.8m) | Black | - | Drain Wire, Rip Cord | 300 V | -30°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
M13201 SL001MULTI-PAIR 50COND 24AWG |
2,151 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 50 (25 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.510" (12.95mm) | Foil | 1000.0' (304.8m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M3876 BK002CABLE 12COND 12AWG BLACK |
3,089 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 12 | 12 AWG | 7/0.0305" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.686" (17.42mm) | - | 500.0' (152.4m) | Black | - | - | 600 V | -25°C ~ 90°C | - | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
55/0324-24-6/9CS3342CABLE 2COND 24AWG |
3,991 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 (1 Pair Twisted) | 24 AWG | 19/36 | Copper Alloy, Silver Coated | - | 0.064" (1.63mm) | - | - | - | - | - | 600 V | 200°C | - | - | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
55/0324-24-6/9CS2795CABLE 2COND 24AWG |
1,687 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 (1 Pair Twisted) | 24 AWG | 19/36 | Copper Alloy, Silver Coated | - | 0.064" (1.63mm) | - | - | - | - | - | 600 V | 200°C | - | - | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
25162 BE199CABLE 2COND 18AWG BEI SHLD 1000' |
3,465 |
|
Datasheet |
Xtra-Guard® 2 | Spool | Active | Multi-Conductor | 2 | 18 AWG | 16/30 | Copper, Tinned | Polyurethane (PU) | 0.254" (6.45mm) | Foil, Braid | 1000.0' (304.8m) | Beige | ISO 10993, UL Style 20668 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -30°C ~ 90°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M64827 SL001CABLE 4COND 18AWG SHLD |
3,266 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 4 | 18 AWG | 7/28 | Copper, Tinned | Fluorinated Ethylene-Propylene (FEP) | 0.188" (4.78mm) | Foil | 1000.0' (304.8m) | Slate | - | - | 300 V | -20°C ~ 150°C | - | 0.0118" (0.300mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|
|
78084 SL199MULTI-PAIR 8COND 22AWG SLATE 1' |
4,932 |
|
Datasheet |
EcoCable® Mini | Spool | Active | Multi-Pair | 8 (4 Pair Twisted) | 22 AWG | 19/34 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.217" (5.51mm) | - | 1.00' (0.30m) | Slate | ISO 10993, UL Style 21460 | Biological Compatibility, Rip Cord | 300 V | -40°C ~ 80°C | - | 0.0150" (0.381mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
|
44AM1161-26-MST6-9CS2275CABLE 6COND 26AWG WHITE SHLD |
1,865 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 6 | 26 AWG | 19/38 | Copper, Tinned | Polyvinylidene Fluoride (PVDF) | 0.135" (3.43mm) | Braid | - | White | - | - | 600 V | 150°C | - | 0.0050" (0.127mm) | Polyvinylidene Fluoride (PVDF) | - |
