Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

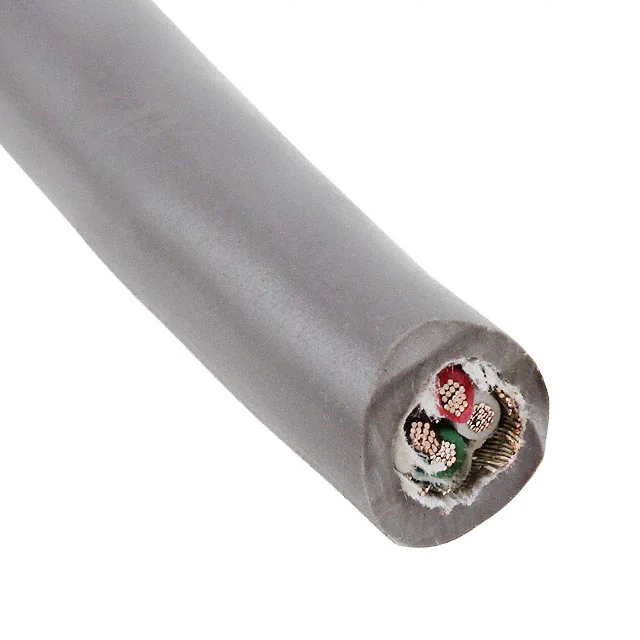

79103 SL001CABLE 4COND 20AWG SHLD |
2,527 |
|
Datasheet |
EcoFlex® | Spool | Active | Multi-Conductor | 4 | 20 AWG | 10/30 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.233" (5.92mm) | Braid | 1000.0' (304.8m) | Slate | ISO 10993 | Biological Compatibility | 600 V | -40°C ~ 105°C | - | 0.0350" (0.889mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
1552209007CABLE 9COND 19AWG/22AWG BLK 200M |
3,726 |
|
Datasheet |
Flamar 155220 | Bulk | Active | Multi-Conductor | 9 | 19 AWG, 22 AWG | 42/0.0039"; 42/0.0059" | Copper, Bare | Weld-Slag Oil Resistant (WSOR) | 0.335" (8.51mm) | - | 656.2' (200.0m) | Black | UL Style 21215 | - | 600 V | -25°C ~ 80°C | Industrial, Signal, Control | - | Thermoplastic Elastomer (TPE) | - |
|
|
1552209010CABLE 9CON 19AWG/22AWG GRAY 200M |
2,051 |
|
Datasheet |
Flamar 155220 | Bulk | Active | Multi-Conductor | 9 | 19 AWG, 22 AWG | 42/0.0039"; 42/0.0059" | Copper, Bare | Weld-Slag Oil Resistant (WSOR) | 0.335" (8.51mm) | - | 656.2' (200.0m) | Gray | UL Style 21215 | - | 600 V | -25°C ~ 80°C | Industrial, Signal, Control | - | Thermoplastic Elastomer (TPE) | - |
|
1552300145CABLE 4COND 19AWG BLACK 300M |
2,076 |
|
Datasheet |
Flamar 155230 | Bulk | Active | Multi-Conductor | 4 | 19 AWG | 42/0.0059" | Copper, Bare | Polyurethane (PU) | 0.276" (7.01mm) | - | 984.3' (300.0m) | Black | UL Style 21223 | - | 1 kV | -40°C ~ 80°C | Industrial, Signal, Control | 0.0118" (0.300mm) | Thermoplastic Elastomer (TPE) | - |
|
|
1552300148CABLE 4COND 19AWG GRAY 300M |
3,227 |
|
Datasheet |
Flamar 155230 | Bulk | Active | Multi-Conductor | 4 | 19 AWG | 42/0.0059" | Copper, Bare | Polyurethane (PU) | 0.276" (7.01mm) | - | 984.3' (300.0m) | Gray | UL Style 21223 | - | 1 kV | -40°C ~ 80°C | Industrial, Signal, Control | 0.0118" (0.300mm) | Thermoplastic Elastomer (TPE) | - |
|
|
1554212002CABLE 3COND 20AWG RED SHLD 500M |
4,907 |
|
- |
Flamar 155421 | Bulk | Active | Multi-Conductor | 3 | 20 AWG | 19/0.0079" | Copper, Bare | Weld-Slag Oil Resistant (WSOR) | 0.303" (7.70mm) | Foil, Braid | 1640.4' (500.0m) | Red | UL Style 21215 | Drain Wire | 600 V | -10°C ~ 60°C | Industrial, Network | 0.0236" (0.600mm) | Foam Polyethylene (FPE) | - |
|
|
55PC6004-20-2/4/6-9CS2502CABLE 3COND 20AWG WHITE SHLD |
1,856 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 | 20 AWG | 19/32 | Copper Alloy, Nickel Coated | Ethylene Tetrafluoroethylene (ETFE) | 0.158" (4.01mm) | Braid | - | White | - | - | 600 V | 150°C | - | 0.0070" (0.178mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
55PC6004-20-2/4/6-9CS2970CABLE 3COND 20AWG WHITE SHLD |
1,557 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 | 20 AWG | 19/32 | Copper Alloy, Nickel Coated | Ethylene Tetrafluoroethylene (ETFE) | 0.158" (4.01mm) | Braid | - | White | - | - | 600 V | 150°C | - | 0.0070" (0.178mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|

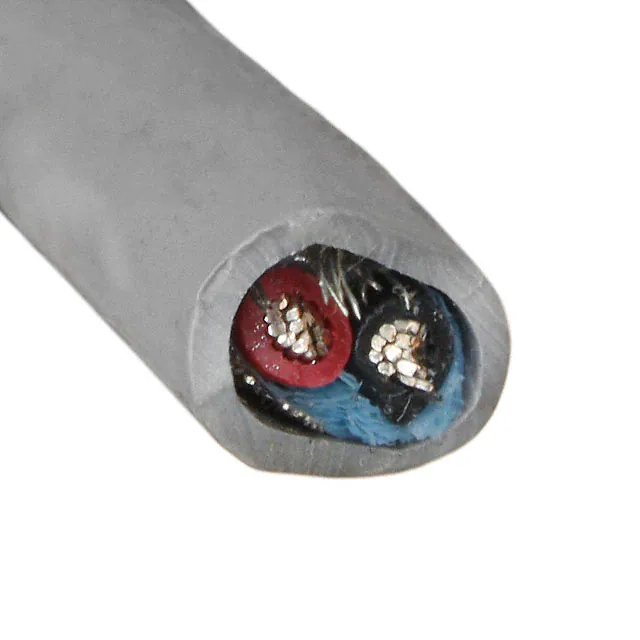

79250 SL005CABLE 2COND 24AWG SLATE SHLD |
1,219 |
|
Datasheet |
EcoFlex® | Spool | Active | Multi-Conductor | 2 | 24 AWG | 19/36 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.194" (4.93mm) | Foil, Braid | 100.0' (30.5m) | Slate | ISO 10993 | Biological Compatibility | 600 V | -40°C ~ 105°C | - | 0.0350" (0.889mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
|
81622.XX.01CABLE 2COND 6AWG BLACK |
4,424 |
|
- |
- | Spool | Active | Multi-Conductor | 2 | 6 AWG | - | Copper, Annealed Bare | Super Vu-Tron® | 0.910" (23.11mm) | - | - | Black | - | - | 2 kV | -40°C ~ 90°C | - | 0.0600" (1.524mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
|
M1708 SL001CABLE 8COND 18AWG SHLD |
1,462 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 8 | 18 AWG | 19/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.362" (9.20mm) | Braid | 1000.0' (304.8m) | Slate | - | - | 600 V | -55°C ~ 105°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
55A1822-20-9/96-9CABLE 2COND 20AWG WHITE SHLD |
1,039 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 (1 Pair Twisted) | 20 AWG | - | Copper, Silver Coated | Ethylene Tetrafluoroethylene (ETFE) | 0.151" (3.84mm) | Braid | - | White | - | - | 600 V | -65°C ~ 200°C | - | 0.0080" (0.203mm) | - | - |
|
09456000521CABLE CAT6A 8COND 26AWG BLK 500M |
3,812 |
|
Datasheet |
- | Bulk | Active | Multi-Pair, Cat6a | 8 (4 Pair Twisted) | 26 AWG | 7/26 | - | Poly-Vinyl Chloride (PVC) | 0.272" (6.91mm) | Foil, Braid | 1640.4' (500.0m) | Black | UL Style 20276 | - | - | -20°C ~ 80°C | Industrial Environments - IP65 | - | Polyethylene (PE) | - |
|

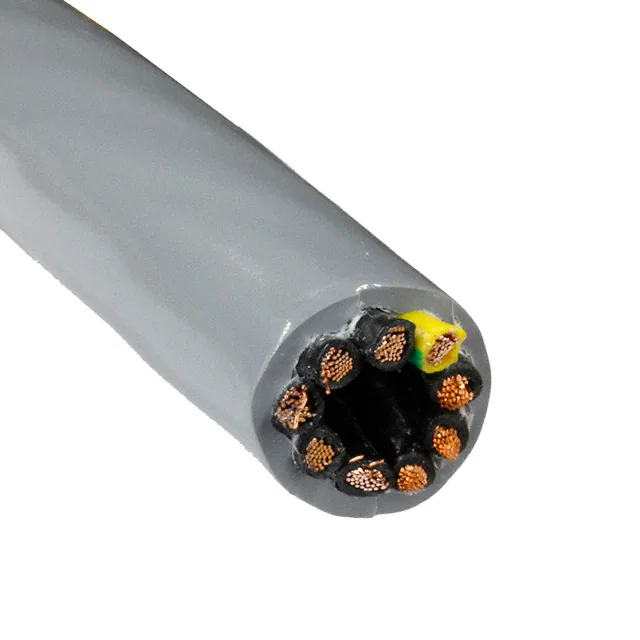

65409 SL002CABLE 9COND 14AWG SLATE |
2,942 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 9 | 14 AWG | 41/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.609" (15.47mm) | - | 500.0' (152.4m) | Slate | ISO 10993, UL Style 2587 | Biological Compatibility | 600 V | - | - | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
55PC6017-24-MST3-9CS2573CABLE 3COND 24AWG WHITE SHLD |
2,275 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 | 24 AWG | 19/36 | Copper Alloy, Silver Coated | Ethylene Tetrafluoroethylene (ETFE) | 0.110" (2.79mm) | Braid | - | White | - | - | 600 V | 200°C | - | 0.0080" (0.203mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
30-02470CABLE 9COND 26AWG BLACK SHLD |
1,549 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 9 | 26 AWG | 19/38 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.181" (4.60mm) | Spiral | 502.0' (153.0m) | Black | UL Style 21296 | - | 300 V | -40°C ~ 105°C | - | 0.0236" (0.600mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|
|
1552200171CABLE 4COND 18AWG BLACK 1000M |
3,922 |
|
Datasheet |
Flamar 155220 | Bulk | Active | Multi-Conductor | 4 | 18 AWG | 52/0.0059" | Copper, Bare | Weld-Slag Oil Resistant (WSOR) | 0.299" (7.60mm) | - | 3281' (1000.0m) | Black | UL Style 21215 | - | 600 V | -25°C ~ 80°C | Industrial, Signal, Control | 0.0150" (0.381mm) | Thermoplastic Elastomer (TPE) | - |
|
|
1552200174CABLE 4COND 18AWG GRAY 1000M |
1,964 |
|
Datasheet |
Flamar 155220 | Bulk | Active | Multi-Conductor | 4 | 18 AWG | 52/0.0059" | Copper, Bare | Weld-Slag Oil Resistant (WSOR) | 0.299" (7.60mm) | - | 3281' (1000.0m) | Gray | UL Style 21215 | - | 600 V | -25°C ~ 80°C | Industrial, Signal, Control | 0.0150" (0.381mm) | Thermoplastic Elastomer (TPE) | - |
|
|
DIW25 732CUTCAT3 25PR U/UTP CMR CUT |
1,055 |
|
Datasheet |
- | Spool | Active | Multi-Pair, Cat3 | 50 (25 Pair) | 24 AWG | Solid | Copper, Bare | Poly-Vinyl Chloride (PVC), Riser | 0.380" (9.65mm) | - | - | Olive | UL Style CMR | Rip Cord | - | -30°C ~ 60°C | Network | - | Poly-Vinyl Chloride (PVC) | - |
|
|
C6049A.41.10MULTI-PAIR 18COND 18AWG GRAY |
2,383 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 18 (9 Pair Twisted) | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.649" (16.49mm) | Foil | 1000.0' (304.8m) | Gray | - | Drain Wire | 30 V | -20°C ~ 80°C | Computer | 0.0480" (1.219mm) | Polyethylene (PE) | - |
