Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CU5523-000CABLE 2COND 14AWG WHITE SHLD |
3,080 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 | 14 AWG | 19/27 | Copper, Nickel Coated | Ethylene Tetrafluoroethylene (ETFE) | 0.204" (5.18mm) | Braid | - | White | - | - | 600 V | 200°C | - | 0.0075" (0.191mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
30-01005CABLE 2COND 22AWG BLACK SHLD 1M |
3,997 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | Multi-Conductor | 2 | 22 AWG | 17/0.0063" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.197" (5.00mm) | Foil, Braid | 3.28' (1.00m) | Black | UL Style 2464 | Drain Wire | 300 V | -25°C ~ 80°C | - | 0.0315" (0.800mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
6422 SL002MULTI-PAIR 22COND 22AWG |
1,744 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 22 (11 Pair Twisted) | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.480" (12.19mm) | Foil | 500.0' (152.4m) | Slate | - | Drain Wire | 300 V | -20°C ~ 105°C | - | 0.0530" (1.346mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
1801BD 87710002#24 NFFEP FS FLMRST - SIAMESE |
3,732 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 4 (2 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.345" (8.76mm) | Foil | 1000.0' (304.8m) | Natural | UL Style CMP | Drain Wire | 300 V | -20°C ~ 60°C | Audio | - | Foam Fluorinated Ethylene-Propylene (FFEP) | - |
|
|
1801BD Z4B10002#24 NFFEP FS FLMRST - SIAMESE |
4,425 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 4 (2 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.345" (8.76mm) | Foil | 1000.0' (304.8m) | Violet | UL Style CMP | Drain Wire | 300 V | -20°C ~ 60°C | Audio | - | Foam Fluorinated Ethylene-Propylene (FFEP) | - |
|
|
82841 8775000CABLE 2COND 24AWG NATURAL |
1,932 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | 0.204" (5.18mm) | Foil, Braid | 5000' (1524.0m) | Natural | - | Drain Wire | 300 V | 0°C ~ 75°C | Computer | 0.0150" (0.381mm) | Foam Fluorinated Ethylene-Propylene (FFEP) | - |
|
|
30-01689CABLE 8COND 20AWG BLACK |
3,384 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 8 | 20 AWG | 26/0.0063" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.315" (8.00mm) | - | 502.0' (153.0m) | Black | - | - | 300 V | -40°C ~ 105°C | - | 0.0315" (0.800mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
09456000119CABLE CAT5 4COND 22AWG GRN 500M |
2,126 |
|
Datasheet |
- | Bulk | Active | Multi-Pair, Cat5 | 4 (2 Pair Twisted) | 22 AWG | 7/22 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.256" (6.50mm) | Foil, Braid | 1640.4' (500.0m) | Green | - | - | - | -40°C ~ 70°C | - | - | Polyethylene (PE) | - |
|
|
861807 SL002CABLE 7COND 18AWG SLATE |
3,478 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 7 | 18 AWG | 41/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.303" (7.70mm) | - | 500.0' (152.4m) | Slate | UL Style 2661 | Oil Resistant | 300 V | - | - | 0.0430" (1.092mm) | Poly-Vinyl Chloride (PVC) | - |
|
79019 SL001CABLE 2COND 16AWG SLATE |
2,012 |
|
Datasheet |
EcoFlex® | Spool | Active | Multi-Conductor | 2 | 16 AWG | 26/30 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.236" (5.99mm) | - | 1000.0' (304.8m) | Slate | ISO 10993 | Biological Compatibility | 600 V | -40°C ~ 105°C | - | 0.0350" (0.889mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
|
9612 060500CABLE 7CON 24AWG CHROM SHLD |
2,627 |
|
Datasheet |
Classics | Spool | Active | Multi-Conductor | 7 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.225" (5.72mm) | Foil, Braid | 500.0' (152.4m) | Chrome | UL Style 2464 | - | 300 V | -30°C ~ 80°C | Computer | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|

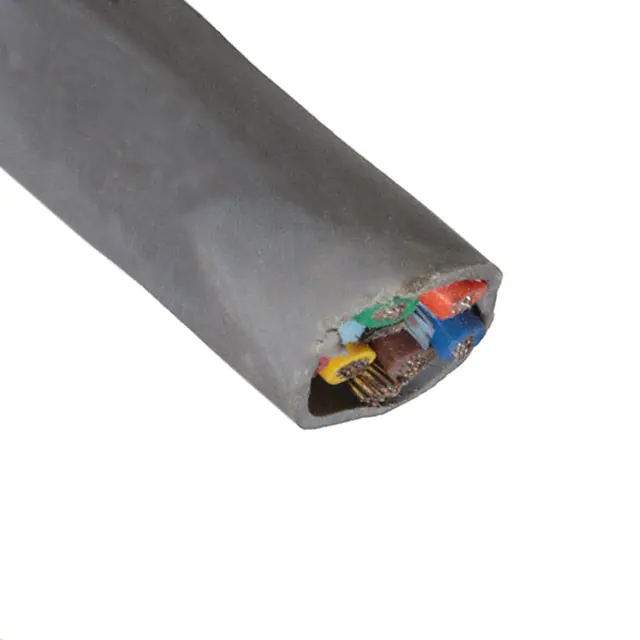

M4728 SL002CABLE 8COND 16AWG SLATE SHLD |
2,098 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 8 | 16 AWG | 19/0.0117" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.374" (9.50mm) | Foil | 500.0' (152.4m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
1554215002CABLE 4COND 22AWG GREEN SHLD 1M |
1,612 |
|
Datasheet |
Flamar 155421 | Bulk | Discontinued at Digi-Key | Multi-Conductor | 4 | 22 AWG | 19/0.0059" | Copper, Tinned | Weld-Slag Oil Resistant (WSOR) | 0.268" (6.81mm) | Braid | 3.28' (1.00m) | Green | UL Style 21215 | - | 600 V | -10°C ~ 70°C | Industrial, Network | 0.0150" (0.381mm) | Polyethylene (PE) | - |
|
|
02642.XX.01CABLE 3COND 12AWG BLACK |
4,766 |
|
- |
- | Spool | Active | Multi-Conductor | 3 | 12 AWG | 168/34 | Copper, Tinned | Super Vu-Tron® Supreme | 0.600" (15.24mm) | - | - | Black | - | - | 600 V | -50°C ~ 105°C | - | 0.0450" (1.143mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
|
5937 SL001CABLE 8COND 28AWG SHLD |
1,994 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 8 | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.213" (5.41mm) | Foil, Braid | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 2464 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M3874 BK002CABLE 10COND 12AWG BLACK |
2,675 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 10 | 12 AWG | 7/0.0305" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.665" (16.89mm) | - | 500.0' (152.4m) | Black | - | - | 600 V | -25°C ~ 90°C | - | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
86703CY SL199MULTI-PAIR 6COND 22AWG 1000' |
2,390 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Pair | 6 (3 Pair Twisted) | 22 AWG | 19/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.301" (7.65mm) | Foil, Braid | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 2661 | Biological Compatibility, Drain Wire | 300 V | - | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
77020 SL199CBL 2COND 18AWG SLATE 100=100' |
2,926 |
|
Datasheet |
EcoCable® | Spool | Active | Multi-Conductor | 2 | 18 AWG | 16/30 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.202" (5.13mm) | - | - | Slate | ISO 10993 | Biological Compatibility | 600 V | -50°C ~ 105°C | - | 0.0320" (0.813mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
|
8424 0105004 #20 EPDM BRD EPDM |
2,459 |
|
Datasheet |
- | Spool | Active | Microphone | 4 | 20 AWG | 26/34 | Copper, Tinned | Ethylene Propylene Terpolymer Rubber (EPDM) | 0.294" (7.47mm) | Double Braid | 500.0' (152.4m) | Black | - | - | 600 V | -50°C ~ 90°C | Audio | 0.0360" (0.914mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
|
8424 010U5004 #20 EPDM SHLD EPDM |
2,519 |
|
Datasheet |
- | Spool | Active | Microphone | 4 | 20 AWG | 26/34 | Copper, Tinned | Ethylene Propylene Terpolymer Rubber (EPDM) | 0.294" (7.47mm) | Double Braid | 500.0' (152.4m) | Black | - | - | 600 V | -50°C ~ 90°C | Audio | 0.0360" (0.914mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
