Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
55PC1131-16-3/6/9-9CS2608CABLE 3COND 16AWG WHITE SHLD |
3,411 |
|
Datasheet |
55PC1131 | Bulk | Active | Multi-Conductor | 3 | 16 AWG | 19/0.0113" | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.177" (4.50mm) | Braid | - | White | - | - | 600 V | 150°C | - | 0.0080" (0.203mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
3202 SL002CABLE 3COND 26AWG SLATE SHLD |
2,534 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 26 AWG | 7/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.150" (3.81mm) | Braid | 500.0' (152.4m) | Slate | - | - | 600 V | -55°C ~ 105°C | Communication, Control | 0.0142" (0.360mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
73204W 008500CABLE 4COND 12AWG GRAY |
1,437 |
|
Datasheet |
MachFlex™ | Spool | Active | Multi-Conductor | 4 | 12 AWG | 65/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.500" (12.70mm) | - | 500.0' (152.4m) | Gray | UL Style 2587 | Oil Resistant | 600 V | - | Industrial, Signal, Control | 0.0800" (2.032mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
78205 SL001MULTI-PAIR 10COND 28AWG |
2,584 |
|
Datasheet |
EcoCable® Mini | Spool | Active | Multi-Pair | 10 (5 Pair Twisted) | 28 AWG | 19/40 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.194" (4.93mm) | Foil | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 21460 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -40°C ~ 80°C | - | 0.0150" (0.381mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
|
7401WS 060250CABLE 3CON 20AWG CHROM SHLD |
3,610 |
|
Datasheet |
MachFlex™ | Spool | Active | Multi-Conductor | 3 | 20 AWG | 19/32 | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.303" (7.70mm) | Braid | 250.0' (76.2m) | Chrome | UL Style 20327 | Oil Resistant, UV Resistant | 300 V | -40°C ~ 90°C | Industrial, Signal, Control | 0.0420" (1.067mm) | Poly-Vinyl Chloride (PVC) | - |
|
M33515 SL005CABLE 15COND 18AWG SLATE |
1,296 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 15 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.423" (10.74mm) | - | 100.0' (30.5m) | Slate | UL Style 2509 | - | 300 V | -20°C ~ 80°C | - | 0.0300" (0.762mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
86007 SL199CABLE 7COND 28AWG SLATE 100' |
2,653 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 7 | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.203" (5.16mm) | - | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2661 | Biological Compatibility | 300 V | - | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
87004 BK199CABLE 4COND 24AWG BLACK 1000' |
4,375 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 4 | 24 AWG | 7/32 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.242" (6.15mm) | - | 1000.0' (304.8m) | Black | UL Style 20234 | - | 600 V | - | - | 0.0500" (1.270mm) | Thermoplastic Elastomer (TPE) | - |
|
|
77803WS 010500CABLE 3COND 18AWG BLK SHLD |
4,917 |
|
- |
MachFlex™ | Spool | Active | Multi-Conductor | 3 | 18 AWG | 105/38 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.376" (9.55mm) | Braid | 500.0' (152.4m) | Black | UL Style 2587 | Oil Resistant | 600 V | -5°C ~ 90°C | Industrial, Signal, Control | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|

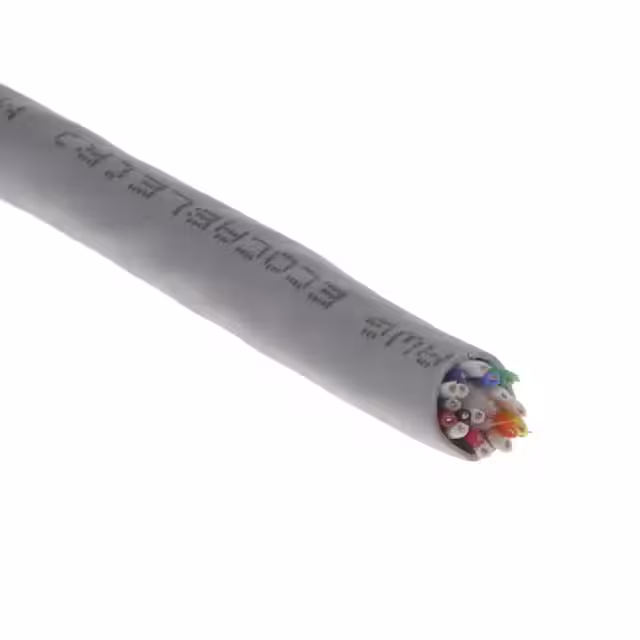

78109 SL001MULTI-PAIR 18COND 28AWG |
2,463 |
|
Datasheet |
EcoCable® Mini | Spool | Active | Multi-Pair | 18 (9 Pair Twisted) | 28 AWG | 19/40 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.217" (5.51mm) | Foil | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 21460 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -40°C ~ 80°C | - | 0.0150" (0.381mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
|
8870MN 0041000CABLE 5COND 18AWG YLW SHLD |
4,561 |
|
Datasheet |
SpaceMaker™ | Spool | Active | Multi-Conductor | 5 | 18 AWG | 41/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.217" (5.51mm) | Foil | 1000.0' (304.8m) | Yellow | UL Style 2937 | Drain Wire | 300 V | -20°C ~ 80°C | Audio, Control, Instrumentation | 0.0160" (0.406mm) | Polypropylene (PP) | - |
|
|
8870MN 0081000CABLE 5CON 18AWG GRAY SHLD |
2,418 |
|
Datasheet |
SpaceMaker™ | Spool | Active | Multi-Conductor | 5 | 18 AWG | 41/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.217" (5.51mm) | Foil | 1000.0' (304.8m) | Gray | UL Style 2937 | Drain Wire | 300 V | -20°C ~ 80°C | Audio, Control, Instrumentation | 0.0160" (0.406mm) | Polypropylene (PP) | - |
|
78224 SL001MULTI-PAIR 8COND 24AWG |
1,410 |
|
Datasheet |
EcoCable® Mini | Spool | Active | Multi-Pair | 8 (4 Pair Twisted) | 24 AWG | 19/36 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.215" (5.46mm) | Foil | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 21460 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -40°C ~ 80°C | - | 0.0150" (0.381mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
44A1121-14-2/6-9-MXCABLE 2COND 14AWG WHITE SHLD 1' |
2,793 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | Multi-Conductor | 2 | 14 AWG | 19/27 | Copper, Tinned | Polyvinylidene Fluoride (PVDF) | 0.218" (5.54mm) | Braid | 1.00' (0.30m) | White | - | - | 600 V | 150°C | - | 0.0090" (0.229mm) | Polyvinylidene Fluoride (PVDF) | - |
|
|
03708.35.10CABLE 3COND 8AWG GRAY |
4,736 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 8 AWG | - | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.625" (15.88mm) | - | 250.0' (76.2m) | Gray | - | - | 600 V | -20°C ~ 60°C | - | 0.0450" (1.143mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
55PC0841-20-2/4/5/6CS2502CABLE 4COND 20AWG |
2,301 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 4 (1 Twisted Quad) | 20 AWG | 19/32 | Copper, Tinned | - | 0.149" (3.78mm) | - | - | - | - | - | 600 V | 150°C | - | - | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
85243CY BK002CABLE 3COND 24AWG BLACK SHLD |
4,300 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 3 | 24 AWG | 19/36 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.318" (8.08mm) | Braid | 500.0' (152.4m) | Black | UL Style 2587 | Oil Resistant | 600 V | - | - | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
5670 SL001CABLE 7COND 26AWG SLATE |
1,596 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 7 | 26 AWG | 7/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.186" (4.72mm) | - | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 2464 | Biological Compatibility, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
78094 SL001MULTI-PAIR 8COND 20AWG |
2,081 |
|
Datasheet |
EcoCable® Mini | Spool | Active | Multi-Pair | 8 (4 Pair Twisted) | 20 AWG | 19/32 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.248" (6.30mm) | - | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 21460 | Biological Compatibility, Rip Cord | 300 V | -40°C ~ 80°C | - | 0.0150" (0.381mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
|
55A1131-16-3/6/9-9CABLE 3COND 16AWG WHITE SHLD |
4,619 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 | 16 AWG | - | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.182" (4.62mm) | Braid | - | White | - | - | 600 V | -65°C ~ 150°C | - | 0.0080" (0.203mm) | - | - |
