Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1031A 0105000CABLE 3COND 16AWG BLK SHLD FOOT |
4,623 |
|
- |
- | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 3 (1 Triad Twisted) | 16 AWG | 7/24 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.299" (7.60mm) | Foil | Enter Number of Feet in Order Quantity | Black | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -30°C ~ 105°C | - | 0.0370" (0.940mm) | Poly-Vinyl Chloride (PVC) | - |
|

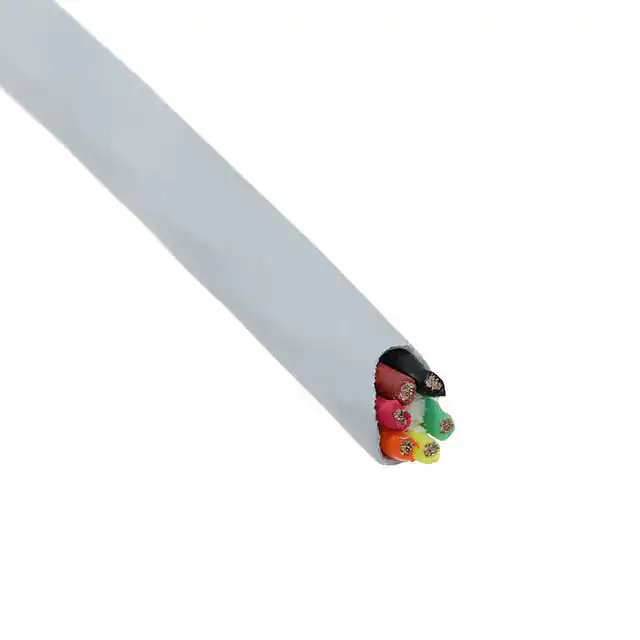

5016C SL002CABLE 6COND 24AWG SLATE |
4,143 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 6 | 24 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.201" (5.11mm) | - | 500.0' (152.4m) | Slate | ISO 10993, UL Style 2464 | Biological Compatibility, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M8748080 BK001MULTI-PAIR 16COND 18AWG |
1,843 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 16 (8 Pair Twisted) | 18 AWG | 7/0.0152" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.700" (17.78mm) | Foil | 1000.0' (304.8m) | Black | - | - | 600 V | -25°C ~ 90°C | - | 0.0650" (1.651mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
9933 0601000CABLE 8COND 24AWG CHRM SHD |
3,788 |
|
Datasheet |
Classics | Spool | Active | Multi-Conductor | 8 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.280" (7.11mm) | Foil, Braid | 1000.0' (304.8m) | Chrome | UL Style 2919 | Drain Wire | - | -30°C ~ 80°C | Computer | 0.0350" (0.889mm) | Foam Polyethylene (FPE) | - |
|
|
86165CY SL002CABLE 5COND 16AWG SLATE SHLD |
4,412 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 5 | 16 AWG | 65/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.318" (8.08mm) | Foil, Braid | 500.0' (152.4m) | Slate | UL Style 2661 | Drain Wire, Oil Resistant | 300 V | - | - | 0.0430" (1.092mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M1202 WH199CABLE 2COND 26AWG WHT SHLD 3000' |
1,697 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 26 AWG | 7/34 | Copper, Tinned | Polytetrafluoroethylene (PTFE) | 0.124" (3.15mm) | Braid | 3000' (914.4m) | White | - | - | 600 V | -55°C ~ 200°C | - | 0.0118" (0.300mm) | Polytetrafluoroethylene (PTFE) | - |
|
|
M9748060 BK199MULTI-PAIR 12COND 18AWG BLK SHLD |
2,250 |
|
Datasheet |
- | Bulk | Active | Multi-Pair | 12 (6 Pair Twisted) | 18 AWG | 7/0.0152" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.562" (14.27mm) | Foil | - | Black | - | - | 300 V | -20°C ~ 105°C | - | 0.0530" (1.346mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
5660 BK199CABLE 4COND 16AWG BLK SHLD 1000' |
1,160 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 4 | 16 AWG | 26/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.381" (9.68mm) | Foil, Braid | 1000.0' (304.8m) | Black | - | - | 600 V | -25°C ~ 90°C | - | 0.0500" (1.270mm) | Poly-Vinyl Chloride (PVC) | - |
|
1121 CL002CABLE 3COND 28AWG CLEAR |
2,048 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.120" (3.05mm) | - | 500.0' (152.4m) | Clear | - | - | 200 V | -20°C ~ 80°C | Communication, Control | - | Poly-Vinyl Chloride (PVC) | - |
|
|
6415 SL002MULTI-PAIR 8COND 24AWG SLATE |
1,763 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 8 (4 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.318" (8.08mm) | Foil, Braid | 500.0' (152.4m) | Slate | UL Style 2919 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0350" (0.889mm) | Polyethylene (PE) | - |
|
|
55A1131-18-MST3-9CS2275CABLE 3COND 18AWG WHITE SHLD |
1,669 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 | 18 AWG | - | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.165" (4.19mm) | Braid | - | White | - | - | 600 V | -65°C ~ 150°C | - | 0.0080" (0.203mm) | - | - |
|
|
44A1121-26-2/6-9-USCABLE 2COND 26AWG WHITE SHLD |
2,057 |
|
Datasheet |
- | Bag | Active | Multi-Conductor | 2 | 26 AWG | 19/38 | Copper, Tinned | Polyvinylidene Fluoride (PVDF) | 0.102" (2.59mm) | Braid | - | White | - | - | 600 V | 150°C | - | 0.0080" (0.203mm) | Polyvinylidene Fluoride (PVDF) | - |
|
M5368 SL001CABLE 15COND 20AWG SHLD |
4,280 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 15 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.415" (10.54mm) | Foil, Braid | 1000.0' (304.8m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
55PC0234-24-9/93/96CS2573CABLE 3COND 24AWG |
2,231 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 (1 Triad Twisted) | 24 AWG | 19/36 | Copper Alloy, Silver Coated | - | 0.085" (2.16mm) | - | - | - | - | - | 600 V | 200°C | - | - | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
65007 SL199CABLE 7COND 20AWG SLATE 100' |
1,312 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 7 | 20 AWG | 10/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.327" (8.31mm) | - | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2587 | Biological Compatibility | 600 V | - | - | 0.0380" (0.965mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
5053C BK199CABLE 3COND 20AWG BLACK 1000' |
2,869 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 3 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.219" (5.56mm) | - | 1000.0' (304.8m) | Black | ISO 10993, UL Style 2464 | Biological Compatibility, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
5053C SL199CBL 3COND 20AWG SLATE 1000=1000' |
1,410 |
|
Datasheet |
Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 3 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.219" (5.56mm) | - | - | Slate | ISO 10993, UL Style 2464 | Biological Compatibility, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
65003CY SL199CABLE 3CON 20AWG SLATE SHLD 100' |
1,444 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 3 | 20 AWG | 10/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.339" (8.61mm) | Braid | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2587 | Biological Compatibility | 600 V | - | - | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
86105 SL199CABLE 5COND 26AWG SLATE 100' |
1,991 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 5 | 26 AWG | 7/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.191" (4.85mm) | - | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2661 | Biological Compatibility | 300 V | - | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
55A4124-20-9/96-9CS2275CABLE 2COND 20AWG WHITE |
4,623 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 | 20 AWG | 19/32 | Copper Alloy, Silver Coated | Ethylene Tetrafluoroethylene (ETFE) | 0.116" (2.95mm) | - | - | White | - | - | 600 V | 200°C | - | 0.0080" (0.203mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
