Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
30-01137CABLE 6COND 24AWG GRAY SHLD |
3,732 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 6 | 24 AWG | 41/0.0031" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.197" (5.00mm) | Spiral | 502.0' (153.0m) | Gray | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - |
|
8781MN 0041000MULTI-PAIR 10COND 22AWG |
1,754 |
|
Datasheet |
SpaceMaker™ | Spool | Active | Multi-Pair | 10 (5 Pair Twisted) | 22 AWG | 19/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.289" (7.34mm) | Foil | 1000.0' (304.8m) | Yellow | UL Style 2937 | Drain Wire | 300 V | -20°C ~ 80°C | Audio, Control, Instrumentation | 0.0160" (0.406mm) | Polypropylene (PP) | - |
|
|
8781MN 0061000MULTI-PAIR 10CON 22AWG BLU |
4,572 |
|
Datasheet |
SpaceMaker™ | Spool | Active | Multi-Pair | 10 (5 Pair Twisted) | 22 AWG | 19/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.289" (7.34mm) | Foil | 1000.0' (304.8m) | Blue | UL Style 2937 | Drain Wire | 300 V | -20°C ~ 80°C | Audio, Control, Instrumentation | 0.0160" (0.406mm) | Polypropylene (PP) | - |
|
65818 SL001CABLE 18COND 18AWG SLATE |
4,601 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 18 | 18 AWG | 16/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.567" (14.40mm) | - | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 2587 | Biological Compatibility | 600 V | - | - | 0.0500" (1.270mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
9455MN 006100CABLE 9COND 20AWG BLUE |
4,287 |
|
Datasheet |
SpaceMaker™ | Spool | Active | Multi-Conductor | 9 | 20 AWG | 26/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.238" (6.05mm) | - | 100.0' (30.5m) | Blue | UL Style 2937 | - | 300 V | -20°C ~ 80°C | Audio, Control, Instrumentation | 0.0160" (0.406mm) | Polypropylene (PP) | - |
|
|
M3872 BK001CABLE 8COND 12AWG BLACK |
2,635 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 8 | 12 AWG | 7/0.0305" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.575" (14.61mm) | - | 1000.0' (304.8m) | Black | - | - | 600 V | -25°C ~ 90°C | - | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|

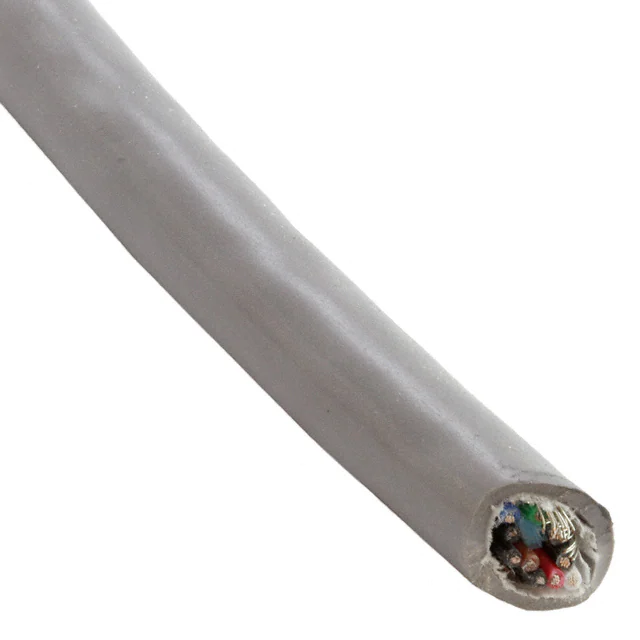

86605CY SL002MULTI-PAIR 10COND 24AWG |
3,313 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Pair | 10 (5 Pair Twisted) | 24 AWG | 10/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.314" (7.98mm) | Foil, Braid | 500.0' (152.4m) | Slate | ISO 10993, UL Style 2661 | Biological Compatibility, Drain Wire | 300 V | - | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
55PC2141-22-3/5/6/9-95CABLE 4COND 22AWG WHITE SHLD |
3,661 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 4 | 22 AWG | 19/34 | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.131" (3.33mm) | Braid | - | White | - | - | 600 V | 150°C | - | 0.0090" (0.229mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
55A1132-22-MST3-9CS2275CABLE 3COND 22AWG WHITE SHLD |
3,368 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 | 22 AWG | - | Copper, Silver Coated | Ethylene Tetrafluoroethylene (ETFE) | 0.126" (3.20mm) | Braid | - | White | - | - | 600 V | -65°C ~ 200°C | - | 0.0080" (0.203mm) | - | - |
|
|
55PC2156-24-CML5-9CS2970CABLE 5COND 24AWG WHITE SHLD |
4,856 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 5 | 24 AWG | 19/36 | Copper Alloy, Nickel Coated | Ethylene Tetrafluoroethylene (ETFE) | 0.123'' (3.12mm) | Braid | - | White | - | - | 600 V | 150°C | - | 0.0090" (0.229mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
55K9083-24-2/6/4CABLE 3COND 24AWG |
1,175 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 (1 Triad Twisted) | 24 AWG | 19/0.0047" | Copper Alloy, Nickel Coated | - | 0.087" (2.21mm) | - | - | - | - | - | 600 V | 180°C | - | - | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
8673 060500CABLE 2COND 12AWG CHROME |
2,308 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 12 AWG | 19/25 | Copper, Bare | Poly-Vinyl Chloride (PVC) | - | - | 500.0' (152.4m) | Chrome | - | - | - | -20°C ~ 75°C | Alarm, Security, Sound | 0.0220" (0.559mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
30-02394CBL 9CON 24AWG BLK TPU |
3,017 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 9 | 24 AWG | 26/0.0039" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.224" (5.69mm) | - | 502.0' (153.0m) | Black | UL Style 20280 | - | 300 V | -40°C ~ 80°C | - | 0.0299" (0.759mm) | Thermoplastic Elastomer (TPE) | - |
|
|
55/2322-24-6/9-9CS2798CABLE 2COND 24AWG WHITE SHLD |
3,162 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 | 24 AWG | 19/36 | Copper, Silver Coated | Ethylene Tetrafluoroethylene (ETFE) | 0.079" (2.01mm) | Braid | - | White | - | - | 600 V | 200°C | - | 0.0050" (0.127mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
16063.41.01CABLE 3COND 8AWG BLACK 1000' |
1,757 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 | 8 AWG | 133/29 | Copper, Bare | Carolprene | 0.845" (21.46mm) | - | 1000.0' (304.8m) | Black | - | - | 600 V | -40°C ~ 90°C | - | 0.0600" (1.524mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
|
M8746040 BK005MULTI-PAIR 8COND 16AWG BLACK |
2,303 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 8 (4 Pair Twisted) | 16 AWG | 7/0.0192" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.601" (15.27mm) | Foil | 100.0' (30.5m) | Black | - | - | 600 V | -25°C ~ 90°C | - | 0.0650" (1.651mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
55A6262-20-9/96-9CS2275CABLE 2COND 20AWG WHITE SHLD |
1,242 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 | 20 AWG | 19/0.008" | Copper Alloy, Silver Coated | Ethylene Tetrafluoroethylene (ETFE) | 0.133" (3.38mm) | Braid | - | White | - | - | 600 V | -55°C ~ 200°C | - | 0.0100" (0.254mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
M12104RW SL199CABLE 4COND 12AWG SLATE 1000' |
2,301 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 4 | 12 AWG | 65/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.440" (11.18mm) | - | 1000.0' (304.8m) | Slate | - | - | 600 V | -25°C ~ 90°C | - | 0.0550" (1.397mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
77148 SL199CABLE 3COND 26AWG SHLD 100=100' |
2,779 |
|
Datasheet |
EcoCable® | Spool | Active | Multi-Conductor | 3 | 26 AWG | 7/34 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.156" (3.96mm) | Foil | - | Slate | ISO 10993, UL Style 21915 | Biological Compatibility, Drain Wire, Rip Cord | 600 V | -50°C ~ 105°C | - | 0.0320" (0.813mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
55A1821-22-9/96-9CS2275CABLE 2COND 22AWG WHITE SHLD 1' |
1,992 |
|
Datasheet |
- | Spool | Discontinued at Digi-Key | Multi-Conductor | 2 | 22 AWG | 19/34 | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.135" (3.43mm) | Braid | 1.00' (0.30m) | White | - | - | 600 V | -65°C ~ 150°C | - | 0.0080" (0.203mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
