Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
55PC212A-26-9/96-9CABLE 2COND 26AWG WHITE SHLD |
2,636 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 | 26 AWG | 19/38 | Copper, Silver Coated | Ethylene Tetrafluoroethylene (ETFE) | 0.085" (2.16mm) | Braid | - | White | - | - | 600 V | 150°C | - | 0.0075" (0.191mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
8672002CY SL002MULTI-PAIR 4COND 20AWG SLATE |
3,853 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Pair | 4 (2 Pair Twisted) | 20 AWG | 19/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.319" (8.10mm) | Foil, Braid | 500.0' (152.4m) | Slate | UL Style 20234 | Drain Wire, Oil Resistant | 300 V | - | - | 0.0430" (1.092mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
55PC1223-20-6/9-4CS2711CABLE 2COND 20AWG YELLOW SHLD |
2,357 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 | 20 AWG | 19/32 | Copper, Nickel Coated | Ethylene Tetrafluoroethylene (ETFE) | 0.139" (3.53mm) | Braid | - | Yellow | - | - | 600 V | 200°C | - | 0.0070" (0.178mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
1422030CABLE 3COND 24AWG BLK SHLD 100M |
3,226 |
|
- |
- | Bulk | Active | Multi-Conductor | 3 | 24 AWG | - | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.185" (4.70mm) | Braid | 328.1' (100.0m) | Black | UL Style 2517 | Flame Retardant, UV Resistant | 300 V | -30°C ~ 105°C | - | - | Poly-Vinyl Chloride (PVC) | - |
|
|
1422006CABLE 3COND 24AWG YLW SHLD 100M |
4,058 |
|
- |
- | Bulk | Active | Multi-Conductor | 3 | 24 AWG | - | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.185" (4.70mm) | Braid | 328.1' (100.0m) | Yellow | UL Style 2517 | Flame Retardant, UV Resistant | 300 V | -30°C ~ 105°C | - | - | Poly-Vinyl Chloride (PVC) | - |
|
|
1422028CABLE 8COND 24AWG BLACK 100M |
1,614 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 8 | 24 AWG | - | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.224" (5.69mm) | - | 328.1' (100.0m) | Black | UL Style 2517 | Flame Retardant, UV Resistant | 300 V | -30°C ~ 105°C | - | - | Poly-Vinyl Chloride (PVC) | - |
|
|
1422004CABLE 8COND 24AWG YELLOW 100M |
2,897 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 8 | 24 AWG | - | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.224" (5.69mm) | - | 328.1' (100.0m) | Yellow | UL Style 2517 | Flame Retardant, UV Resistant | 300 V | -30°C ~ 105°C | - | - | Poly-Vinyl Chloride (PVC) | - |
|
|
1318403CABLE 8COND 24AWG YELLOW |
4,642 |
|
Datasheet |
SAC | Bulk | Active | Multi-Conductor | 8 | 24 AWG | - | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.224" (5.69mm) | - | 328.1' (100.0m) | Yellow | - | - | 300 V | -30°C ~ 105°C | - | - | Poly-Vinyl Chloride (PVC) | - |
|
|
1317479CABLE 3COND 24AWG GRAY |
1,521 |
|
Datasheet |
SAC | Bulk | Active | Multi-Conductor | 3 | 24 AWG | 32/0.0433" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.185" (4.70mm) | - | 328.1' (100.0m) | Gray | - | - | 300 V | -30°C ~ 105°C | - | - | Poly-Vinyl Chloride (PVC) | - |
|
|
01812.38.01CABLE 3COND 8AWG BLACK |
4,677 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 8 AWG | 65/26 | Copper, Bare | Carolprene | 0.695" (17.65mm) | - | 500.0' (152.4m) | Black | - | - | 600 V | -40°C ~ 90°C | - | 0.0500" (1.270mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
|
44AM1121-26-9/96-9CS2275CABLE 2COND 26AWG WHITE SHLD |
1,825 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 | 26 AWG | 19/38 | Copper, Tinned | Polyvinylidene Fluoride (PVDF) | 0.101" (2.57mm) | Braid | - | White | - | - | 600 V | 150°C | - | 0.0050" (0.127mm) | Polyvinylidene Fluoride (PVDF) | - |
|
|
7623 WH001CABLE 3COND 24AWG WHITE SHLD |
2,095 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.170" (4.32mm) | Braid | 1000.0' (304.8m) | White | - | - | 600 V | -55°C ~ 105°C | - | 0.0250" (0.635mm) | Poly-Vinyl Chloride (PVC) | - |
|

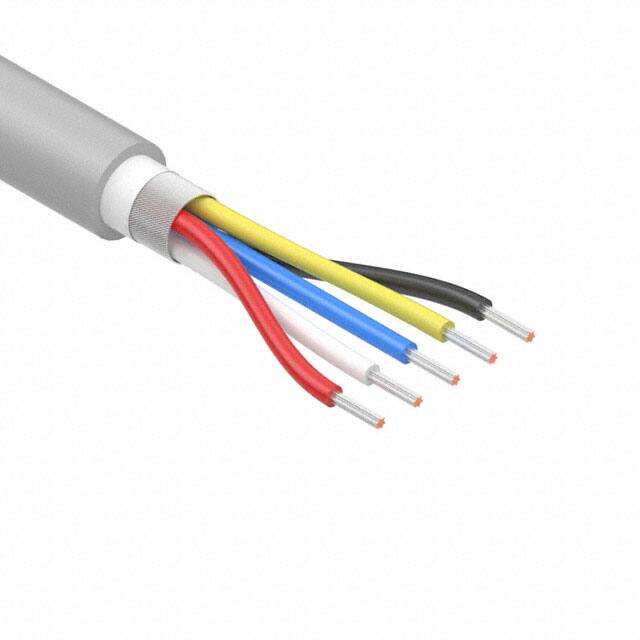

30-01122CABLE 5COND 24AWG GRAY SHLD |
4,000 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 5 | 24 AWG | 41/0.0031" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.181" (4.60mm) | Spiral | 502.0' (153.0m) | Gray | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - |
|

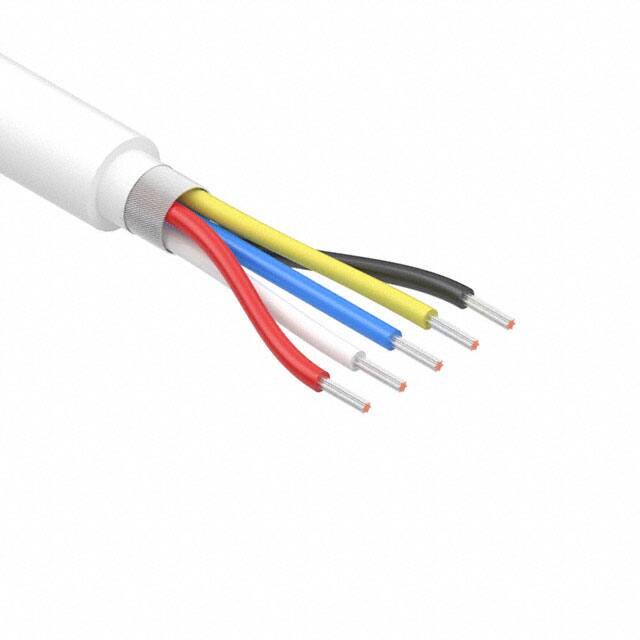

30-01121CABLE 5COND 24AWG WHITE SHLD |
4,713 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 5 | 24 AWG | 41/0.0031" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.181" (4.60mm) | Spiral | 502.0' (153.0m) | White | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - |
|
|
8719ZH 060500CABLE 2CON 16AWG CHROM SHLD |
2,569 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 16 AWG | 19/29 | Copper, Tinned | Low Smoke Zero Halogen (LSZH) | 0.300" (7.62mm) | Foil | 500.0' (152.4m) | Chrome | - | Drain Wire | - | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Polyethylene (PE) | - |
|
|
65227CY SL002CABLE 7CON 22AWG SLATE SHLD |
1,705 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 7 | 22 AWG | 7/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.388" (9.86mm) | Braid | 500.0' (152.4m) | Slate | UL Style 2587 | Oil Resistant | 600 V | - | - | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
55PC0231-14-3/6/9CS2602CABLE 3COND 14AWG |
3,817 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 (1 Triad Twisted) | 14 AWG | 19/27 | Copper, Tinned | - | 0.185" (4.70mm) | - | - | - | - | - | 600 V | 150°C | - | - | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
78312 SL199CABLE 2COND 26AWG SLATE SHLD 1' |
4,973 |
|
Datasheet |
EcoCable® Mini | Spool | Active | Multi-Conductor | 2 | 26 AWG | 19/38 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.133" (3.38mm) | Foil, Braid | 1.00' (0.30m) | Slate | ISO 10993, UL Style 21460 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -40°C ~ 80°C | - | 0.0150" (0.381mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
|
80021 SL199CABLE 3COND 20AWG SLATE |
4,416 |
|
Datasheet |
EcoFlex® PUR | Bulk | Active | Multi-Conductor | 3 | 20 AWG | 26/34 | Copper, Tinned | Polyurethane (PU) | 0.187" (4.75mm) | - | - | Slate | - | - | 600 V | -50°C ~ 90°C | - | 0.0320" (0.813mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
|
8302 0605000MULTI-PAIR 4COND 22AWG |
2,158 |
|
Datasheet |
Classics | Spool | Active | Multi-Pair | 4 (2 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.280" (7.11mm) | Foil, Braid | 5000' (1524.0m) | Chrome | UL Style 2464 | - | 300 V | -30°C ~ 80°C | Computer | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
