Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6073C BK005MULTI-PAIR 6COND 24AWG BLACK |
1,897 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 6 (3 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.374" (9.50mm) | Foil | 100.0' (30.5m) | Black | UL Style 2493 | Drain Wire | 300 V | -20°C ~ 75°C | - | 0.0480" (1.219mm) | Foam Polypropylene (FPP) | - |
|

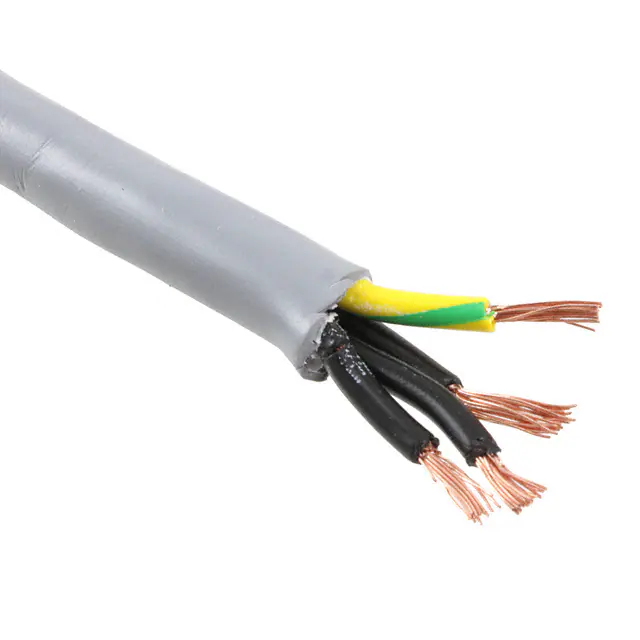

65604CY SL002CABLE 4COND 16AWG SLATE SHLD |
2,486 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 4 | 16 AWG | 26/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.416" (10.57mm) | Braid | 500.0' (152.4m) | Slate | ISO 10993, UL Style 2587 | Biological Compatibility | 600 V | - | - | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
25094 SL199CABLE 4COND 24AWG SHLD 1000' |
1,742 |
|
Datasheet |
Xtra-Guard® 2 | Spool | Active | Multi-Conductor | 4 | 24 AWG | 7/32 | Copper, Tinned | Polyurethane (PU) | 0.179" (4.55mm) | Foil | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 20668 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -30°C ~ 90°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
30-02615CABLE 2COND 14AWG WHITE |
4,253 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 14 AWG | 41/0.0100" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.236" (5.99mm) | - | 502.0' (153.0m) | White | UL Style 2651 | - | 300 V | -10°C ~ 105°C | - | 0.0209" (0.530mm) | - | - |
|
|
55PC1234-24-0/2/9-9CS2781CABLE 3COND 24AWG WHITE SHLD |
3,038 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 | 24 AWG | 19/36 | Copper Alloy, Silver Coated | Ethylene Tetrafluoroethylene (ETFE) | 0.118" (3.00mm) | Braid | - | White | - | - | 600 V | 150°C | - | 0.0070" (0.178mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
55PC1234-24-3/6/9-9CS3071CABLE 3COND 24AWG WHITE SHLD |
1,432 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 | 24 AWG | 19/36 | Copper Alloy, Silver Coated | Ethylene Tetrafluoroethylene (ETFE) | 0.118" (3.00mm) | Braid | - | White | - | - | 600 V | 150°C | - | 0.0070" (0.178mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
55PC1234-24-3/6/9-9CS342455PC1234-24-3/6/9-9CS3424 |
1,045 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
76604TS 0081000MULTI-PAIR 8CON 24AWG GRAY |
3,931 |
|
- |
MachFlex™ | Spool | Active | Multi-Pair | 8 (4 Pair) | 24 AWG | 10/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.292" (7.42mm) | Foil, Braid | 1000.0' (304.8m) | Gray | UL Style 20006 | Drain Wire, Oil Resistant | 300 V | - | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
55/1322-26-9/96-9CABLE 2COND 26AWG WHITE SHLD |
3,521 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 | 26 AWG | 19/38 | Copper, Silver Coated | Ethylene Tetrafluoroethylene (ETFE) | 0.085" (2.16mm) | Braid | - | White | - | - | 600 V | 200°C | - | 0.0050" (0.127mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
55A0832-20-9/93/96CS2275CABLE 3COND 20AWG |
4,810 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 (1 Triad Twisted) | 20 AWG | 19/32 | Copper, Silver Coated | - | 0.125" (3.18mm) | - | - | - | - | - | 600 V | 200°C | - | - | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
09406.35.01CABLE 6COND 14AWG BLACK |
4,491 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 6 | 14 AWG | 41/30 | Copper, Bare | Super Vu-Tron® | 0.710" (18.03mm) | - | 250.0' (76.2m) | Black | - | - | 600 V | -40°C ~ 90°C | - | 0.0450" (1.143mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
|
7921A 0021000CABLE CAT5E 8COND 24AWG RED |
3,022 |
|
Datasheet |
DataTuff® | Spool | Active | Multi-Pair, Cat5e | 8 (4 Pair Twisted) | 24 AWG | Solid | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.330" (8.38mm) | Foil, Braid | 1000.0' (304.8m) | Red | UL Style CMR | Drain Wire, Oil Resistant, UV Resistant | 300 V | -40°C ~ 75°C | Industrial, Network | 0.0300" (0.762mm) | Polyolefin (PO) | - |
|
|
7921A 0061000CABLE CAT5E 8CON 24AWG BLU |
4,640 |
|
Datasheet |
DataTuff® | Spool | Active | Multi-Pair, Cat5e | 8 (4 Pair Twisted) | 24 AWG | Solid | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.330" (8.38mm) | Foil, Braid | 1000.0' (304.8m) | Blue | UL Style CMR | Drain Wire, Oil Resistant, UV Resistant | 300 V | -40°C ~ 75°C | Industrial, Network | 0.0300" (0.762mm) | Polyolefin (PO) | - |
|
|
7921A 1NH1000CABLE CAT5E 8COND 24AWG |
1,133 |
|
Datasheet |
DataTuff® | Spool | Active | Multi-Pair, Cat5e | 8 (4 Pair Twisted) | 24 AWG | Solid | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.330" (8.38mm) | Foil, Braid | 1000.0' (304.8m) | Teal | UL Style CMR | Drain Wire, Oil Resistant, UV Resistant | 300 V | -40°C ~ 75°C | Industrial, Network | 0.0300" (0.762mm) | Polyolefin (PO) | - |
|
|
1422048CABLE 4COND 22AWG YELLOW 100M |
2,748 |
|
Datasheet |
- | Bulk | Obsolete | Multi-Conductor | 4 | 22 AWG | - | Copper, Bare | Polyurethane (PU) | 0.185" (4.70mm) | - | 328.1' (100.0m) | Yellow | - | Flame Retardant, Oil Resistant | 300 V | -40°C ~ 80°C | - | 0.0315" (0.800mm) | Polypropylene (PP) | - |
|
|
55PC1136-24-3/6/9-4CS3260CABLE 3COND 24AWG YELLOW SHLD |
1,339 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 | 24 AWG | 19/36 | Copper Alloy, Nickel Coated | Ethylene Tetrafluoroethylene (ETFE) | 0.108" (2.74mm) | Braid | - | Yellow | - | - | 600 V | 200°C | - | 0.0070" (0.178mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
89084.46.01CABLE 4COND 12AWG BLACK |
1,454 |
|
- |
Ultra Flex® | Spool | Active | Multi-Conductor | 4 | 12 AWG | 65/30 | Copper, Annealed Bare | Thermoplastic Elastomer (TPE) | 0.665" (16.89mm) | - | 5000' (1524.0m) | Black | - | Oil Resistant | 600 V | -50°C ~ 105°C | - | 0.0450" (1.143mm) | Thermoplastic Elastomer (TPE) | - |
|
|
92844A.50.0112/4 SEOOW 105C BLACK 3280' RL |
2,253 |
|
- |
- | Spool | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
44AM1141-22-MST4-9CS2275CABLE 4COND 22AWG WHITE SHLD 1' |
1,902 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | Multi-Conductor | 4 | 22 AWG | 19/34 | Copper, Tinned | Polyvinylidene Fluoride (PVDF) | 0.147" (3.73mm) | Braid | 1.00' (0.30m) | White | - | - | 600 V | 150°C | - | 0.0100" (0.254mm) | Polyvinylidene Fluoride (PVDF) | - |
|

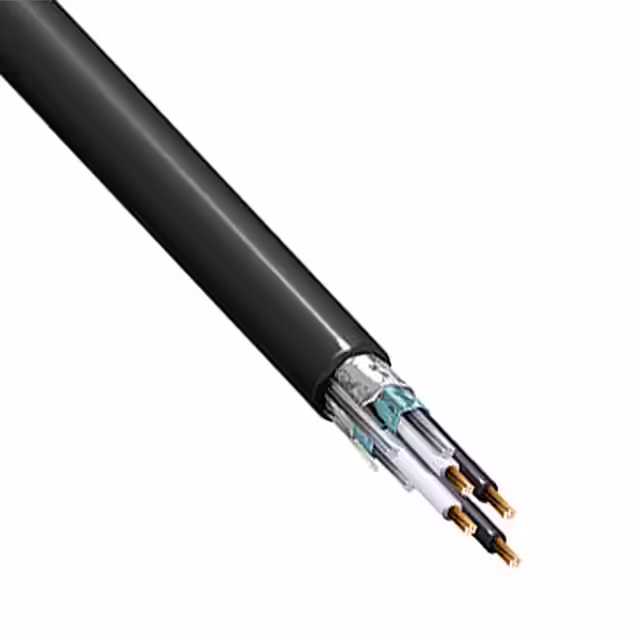

1055A 0107500MULTI-PAIR 4COND 16AWG BLK |
1,752 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 4 (2 Pair Twisted) | 16 AWG | 7/24 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.414" (10.52mm) | Foil | 7500' (2286.0m) | Black | - | Drain Wire, Rip Cord | - | - | - | 0.0470" (1.194mm) | Poly-Vinyl Chloride (PVC), Polyamide (PA), Nylon | - |
