Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8467MN 004100CABLE 7COND 18AWG YELLOW |
3,638 |
|
Datasheet |
SpaceMaker™ | Spool | Active | Multi-Conductor | 7 | 18 AWG | 41/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.233" (5.92mm) | - | 100.0' (30.5m) | Yellow | UL Style 2937 | - | 300 V | -20°C ~ 80°C | Audio, Control, Instrumentation | 0.0160" (0.406mm) | Polypropylene (PP) | - |
|
|
CF7846-000CABLE 2COND 22AWG WHITE SHLD |
3,253 |
|
Datasheet |
- | Bulk | Obsolete | Multi-Conductor | 2 | 22 AWG | 19/34 | Copper Alloy, Silver Coated | Ethylene Tetrafluoroethylene (ETFE) | 0.109" (2.77mm) | Braid | - | White | - | - | 600 V | 150°C | - | 0.0080" (0.203mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
9576 010U1000CABLE 6COND 22AWG BLACK |
4,351 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 6 | 22 AWG | Solid | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.234" (5.94mm) | - | 1000.0' (304.8m) | Black | UL Style 2464 | - | 300 V | -40°C ~ 105°C | Alarm, Safety | 0.0390" (0.991mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
55A7468-22-3/6/9-9CABLE 3COND 22AWG WHITE |
2,996 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 | 22 AWG | 19/34 | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.124" (3.15mm) | - | - | White | - | - | 600 V | 150°C | - | 0.0080" (0.203mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
9439 060500CABLE 7COND 20AWG CHROME |
4,930 |
|
Datasheet |
Classics | Spool | Active | Multi-Conductor | 7 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.260" (6.60mm) | - | 500.0' (152.4m) | Chrome | UL Style 2464 | - | 300 V | -20°C ~ 80°C | Audio, Control, Instrumentation | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M33851 BK002CABLE 7COND 14AWG BLACK SHLD |
2,660 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 7 | 14 AWG | 7/0.0242" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.448" (11.38mm) | Foil | 500.0' (152.4m) | Black | - | Drain Wire | 600 V | -25°C ~ 90°C | - | 0.0470" (1.194mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
1492A 0107500MULTI-PAIR 5COND 16/22AWG |
1,510 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 5 (2.5 Pair) | 16 AWG, 22 AWG | 7/24; 7/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.452" (11.48mm) | Foil | 7500' (2286.0m) | Black | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -30°C ~ 105°C | Instrumentation | 0.0530" (1.346mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
55PC4233-16-MST3-9CS2861CABLE 3COND 16AWG WHITE |
2,573 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 | 16 AWG | 19/29 | Copper, Nickel Coated | Ethylene Tetrafluoroethylene (ETFE) | 0.170" (4.32mm) | - | - | White | - | - | 600 V | 200°C | - | 0.0080" (0.203mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
6225C SL001MULTI-PAIR 10COND 24AWG |
3,336 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 10 (5 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.345" (8.76mm) | Foil, Braid | 1000.0' (304.8m) | Slate | UL Style 2919 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0350" (0.889mm) | Foam Polypropylene (FPP) | - |
|

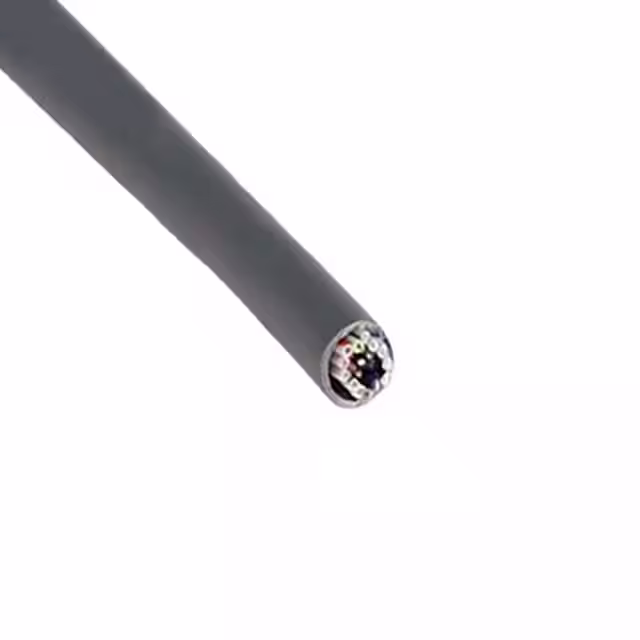

M4612 SL002CABLE 20COND 24AWG SHLD |
3,959 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 20 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.301" (7.65mm) | Foil | 500.0' (152.4m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
55PC0222-16-6/9CABLE 2COND 16AWG |
4,790 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 (1 Pair Twisted) | 16 AWG | 19/29 | Copper, Silver Coated | - | 0.142" (3.61mm) | - | - | - | - | - | 600 V | 200°C | - | - | Ethylene Tetrafluoroethylene (ETFE) | - |
|

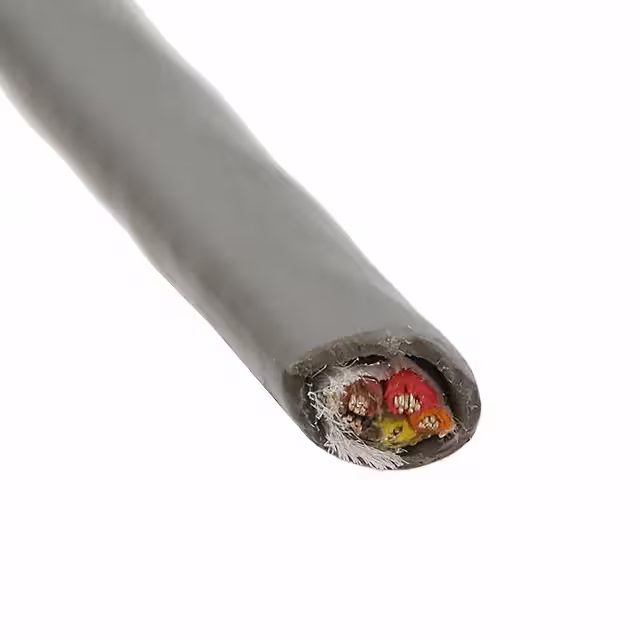

77118 SL001CABLE 5COND 20AWG SHLD |
3,074 |
|
Datasheet |
EcoCable® | Spool | Active | Multi-Conductor | 5 | 20 AWG | 7/28 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.230" (5.84mm) | Foil | 1000.0' (304.8m) | Slate | ISO 10993 | Biological Compatibility | 600 V | -50°C ~ 105°C | - | 0.0320" (0.813mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
|
55/0124-26-4/5CABLE 2COND 26AWG |
4,001 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 (1 Pair Twisted) | 26 AWG | 19/38 | Copper Alloy, Silver Coated | - | 0.064" (1.63mm) | - | - | - | - | - | 600 V | 200°C | - | - | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
55/0124-26-2/6CABLE 2COND 26AWG |
1,783 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 (1 Pair Twisted) | 26 AWG | 19/38 | Copper Alloy, Silver Coated | - | 0.064" (1.63mm) | - | - | - | - | - | 600 V | 200°C | - | - | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
55/0124-26-0/2CABLE 2COND 26AWG |
3,911 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 (1 Pair Twisted) | 26 AWG | 19/38 | Copper Alloy, Silver Coated | - | 0.064" (1.63mm) | - | - | - | - | - | 600 V | 200°C | - | - | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
55/0124-26-6/9CABLE 2COND 26AWG |
1,207 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 (1 Pair Twisted) | 26 AWG | 19/38 | Copper Alloy, Silver Coated | - | 0.064" (1.63mm) | - | - | - | - | - | 600 V | 200°C | - | - | Ethylene Tetrafluoroethylene (ETFE) | - |
|
M1222 WH001CABLE 2COND 22AWG WHITE SHLD |
1,302 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 22 AWG | 19/34 | Copper, Tinned | Polytetrafluoroethylene (PTFE) | 0.146" (3.71mm) | Braid | 1000.0' (304.8m) | White | - | - | 600 V | -55°C ~ 200°C | - | 0.0118" (0.300mm) | Polytetrafluoroethylene (PTFE) | - |
|
|
09612.99.01CABLE 12COND 16AWG BLACK 1=1FT |
1,890 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 12 | 16 AWG | 26/30 | Copper, Bare | Super Vu-Tron® | 0.660" (16.76mm) | - | - | Black | - | - | 600 V | -40°C ~ 90°C | - | 0.0300" (0.762mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
|
M5397 SL002CABLE 8COND 18AWG SLATE SHLD |
4,544 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 8 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.356" (9.04mm) | Foil, Braid | 500.0' (152.4m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
1321SB 00210001 FS PR #16 SIL FRNHPO |
4,052 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 (1 Pair) | 16 AWG | Solid | Copper, Bare | Low Smoke Zero Halogen (LSZH) | 0.337" (8.56mm) | Foil | 1000.0' (304.8m) | Red | UL Style CMG | Drain Wire, Flame Retardant, UV Resistant | 300 V | -20°C ~ 105°C | Alarm, Marine | 0.0450" (1.143mm) | Rubber | - |
