Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M4772 SL005MULTI-PAIR 8COND 22AWG SLATE |
3,415 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 8 (4 Pair Twisted) | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.269" (6.83mm) | Foil | 100.0' (30.5m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M4642 SL001CABLE 15COND 22AWG SHLD |
3,628 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 15 | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.301" (7.65mm) | Foil | 1000.0' (304.8m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
35052 BK199CABLE 2COND 20AWG BLACK 1000' |
2,899 |
|
Datasheet |
Xtra-Guard® 3 | Spool | Active | Multi-Conductor | 2 | 20 AWG | 7/28 | Copper, Tinned | Polyethylene (PE) | 0.207" (5.26mm) | - | 1000.0' (304.8m) | Black | - | Drain Wire, Rip Cord | 300 V | -30°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M3869 BK001CABLE 5COND 12AWG BLACK |
2,608 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 5 | 12 AWG | 7/0.0305" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.460" (11.68mm) | - | 1000.0' (304.8m) | Black | - | - | 600 V | -25°C ~ 90°C | - | 0.0470" (1.194mm) | Poly-Vinyl Chloride (PVC) | - |
|

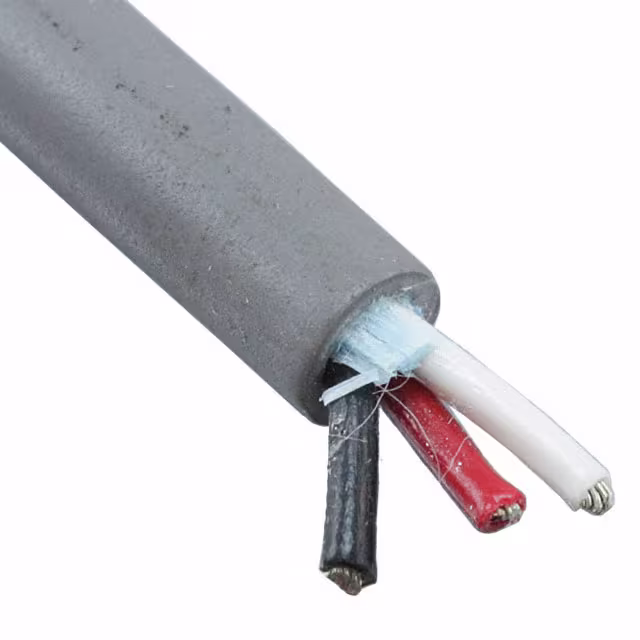

86303 SL002CABLE 3COND 22AWG SLATE |
3,347 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 3 | 22 AWG | 19/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.197" (5.00mm) | - | 500.0' (152.4m) | Slate | ISO 10993, UL Style 2661 | Biological Compatibility | 300 V | - | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
44AM1121-16-0/9-9CS356CABLE 2COND 16AWG WHITE SHLD |
3,908 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 | 16 AWG | 19/29 | Copper, Tinned | Polyvinylidene Fluoride (PVDF) | 0.179" (4.55mm) | Braid | - | White | - | - | 600 V | 150°C | - | 0.0060" (0.152mm) | Polyvinylidene Fluoride (PVDF) | - |
|
|
44AM1121-16-6/9-9CS2275CABLE 2COND 16AWG WHITE SHLD |
4,501 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 | 16 AWG | 19/29 | Copper, Tinned | Polyvinylidene Fluoride (PVDF) | 0.179" (4.55mm) | Braid | - | White | - | - | 600 V | 105°C | - | 0.0060" (0.152mm) | Polyvinylidene Fluoride (PVDF) | - |
|
|
1552110003CABLE 3X0.34 PVC BK SH DCS D5.4 |
1,782 |
|
- |
Flamar 155211 | Bulk | Active | Multi-Conductor | 3 | 22 AWG | - | - | Poly-Vinyl Chloride (PVC) | 0.213" (5.41mm) | Braid | 4921' (1500.0m) | Black | UL Style 2464 | - | 300 V | 5°C ~ 80°C | Industrial, Signal, Control | - | Thermoplastic Elastomer (TPE) | - |
|
|
1552110006CABLE 3X0.34 PVC GY SH DCS D5.4 |
2,407 |
|
- |
Flamar 155211 | Bulk | Active | Multi-Conductor | 3 | 22 AWG | - | - | Poly-Vinyl Chloride (PVC) | 0.213" (5.41mm) | Braid | 4921' (1500.0m) | Gray | UL Style 2464 | - | 300 V | 5°C ~ 80°C | Industrial, Signal, Control | - | Thermoplastic Elastomer (TPE) | - |
|
|
55PC0121-18-6/9CABLE 2COND 18AWG |
1,691 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 (1 Pair Twisted) | 18 AWG | 19/30 | Copper, Tinned | - | 0.118" (3.00mm) | - | - | - | - | - | 600 V | 150°C | - | - | Ethylene Tetrafluoroethylene (ETFE) | - |
|
78092 SL001MULTI-PAIR 4COND 20AWG |
4,233 |
|
Datasheet |
EcoCable® Mini | Spool | Active | Multi-Pair | 4 (2 Pair Twisted) | 20 AWG | 19/32 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.211" (5.36mm) | - | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 21460 | Biological Compatibility, Rip Cord | 300 V | -40°C ~ 80°C | - | 0.0150" (0.381mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
M5364 SL001CABLE 6COND 20AWG SHLD |
3,095 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 6 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.304" (7.72mm) | Foil, Braid | 1000.0' (304.8m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
55A0821-16-6/9CS2275CABLE 2COND 16AWG |
1,774 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 (1 Pair Twisted) | 16 AWG | 19/29 | Copper, Tinned | - | 0.154" (3.91mm) | - | - | - | - | - | 600 V | 150°C | - | - | Ethylene Tetrafluoroethylene (ETFE) | - |
|

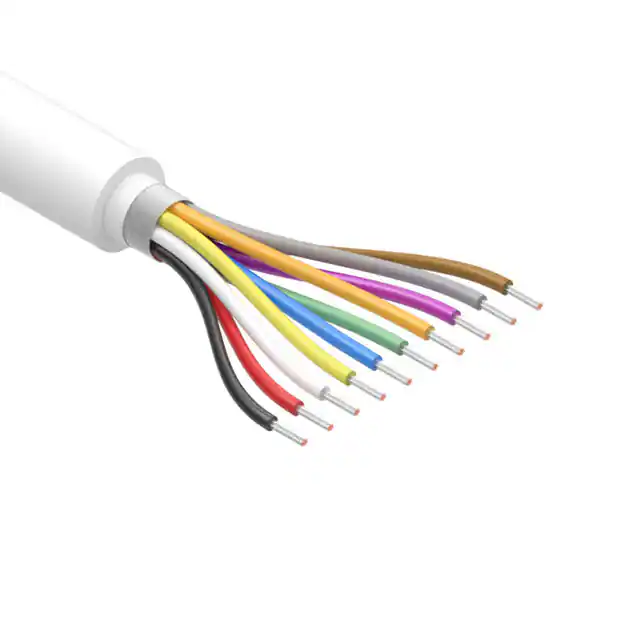

30-01208CABLE 10COND 32AWG WHITE SHLD |
2,588 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 10 | 32 AWG | 19/0.002" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.142" (3.61mm) | Spiral | 502.0' (153.0m) | White | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - |
|

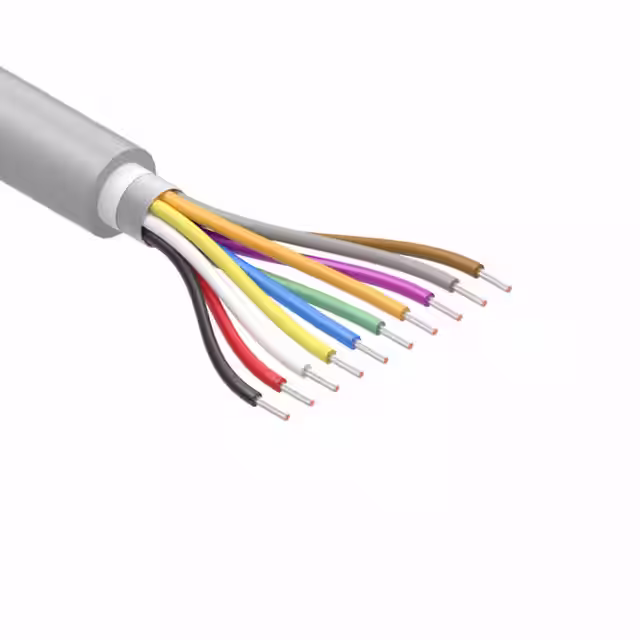

30-01209CABLE 10COND 32AWG GRAY SHLD |
2,618 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 10 | 32 AWG | 19/0.002" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.142" (3.61mm) | Spiral | 502.0' (153.0m) | Gray | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - |
|
30-01622CABLE 9COND 30AWG BLACK SHLD |
4,326 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 9 | 30 AWG | 7/0.0039" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.240" (6.10mm) | Foil, Braid | - | Black | UL Style 20387 | Drain Wire, Oil Resistant, UV Resistant | 300 V | -40°C ~ 105°C | - | 0.0315" (0.800mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-02012CABLE 6COND 30AWG BLACK |
4,775 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 6 | 30 AWG | 7/0.0039" | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.161" (4.09mm) | - | 502.0' (153.0m) | Black | UL Style 21509 | Biological Compatibility | 600 V | -40°C ~ 105°C | - | 0.0090" (0.229mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
|
86974.XX.05CABLE 4COND 14AWG YELLOW |
1,898 |
|
- |
- | Spool | Active | Multi-Conductor | 4 | 14 AWG | 41/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.585" (14.86mm) | - | - | Yellow | - | - | 600 V | -40°C ~ 90°C | - | 0.0450" (1.143mm) | - | - |
|
02727.44.01CABLE 4COND 10AWG BLACK |
2,166 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 4 | 10 AWG | 104/30 | Copper, Bare | Carolprene | 0.715" (18.16mm) | - | 2500' (762.0m) | Black | - | - | 600 V | -40°C ~ 90°C | - | 0.0450" (1.143mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
|
1552100134CABLE 2COND 19AWG BLACK 500M |
4,137 |
|
Datasheet |
Flamar 155210 | Spool | Active | Multi-Conductor | 2 | 19 AWG | 42/0.0059" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.236" (5.99mm) | - | 1640.4' (500.0m) | Black | UL Style 2464 | - | 300 V | 5°C ~ 80°C | Industrial, Signal, Control | 0.0118" (0.300mm) | Thermoplastic Elastomer (TPE) | - |
