Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
86984.35.10CABLE 4COND 12AWG GRAY |
2,793 |
|
- |
- | Spool | Active | Multi-Conductor | 4 | 12 AWG | 65/30 | Copper, Annealed Bare | Poly-Vinyl Chloride (PVC) | 0.665" (16.89mm) | - | 250.0' (76.2m) | Gray | - | - | 600 V | -40°C ~ 90°C | - | 0.0450" (1.143mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
01383.XX.01CABLE 3COND 10AWG BLACK |
1,307 |
|
- |
- | Spool | Active | Multi-Conductor | 3 | 10 AWG | 104/30 | Copper, Bare | Carolprene | 0.580" (14.73mm) | - | - | Black | - | - | 300 V | -40°C ~ 90°C | - | 0.0450" (1.143mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
|
9414 T35500CABLE 2CON 22AWG BEIGE SHLD |
1,159 |
|
Datasheet |
Classics | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.180" (4.57mm) | Foil | 500.0' (152.4m) | Beige | - | Drain Wire | 300 V | -20°C ~ 80°C | Audio, Control, Instrumentation | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
5002UP 0091000CABLE 4COND 12AWG WHITE |
4,872 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 4 | 12 AWG | 65/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.365" (9.27mm) | - | 1000.0' (304.8m) | White | UL Style CL3 | Rip Cord | 300 V | -20°C ~ 75°C | Commercial Audio | 0.0220" (0.559mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
30-02722CBL 4CON 26AWG GRY BIO |
3,886 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 4 | 26 AWG | 26/0.0031" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.134" (3.40mm) | - | 502.0' (153.0m) | Gray | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - |
|
|
30-02650CBL 4CON 26AWG BLK BIO |
3,811 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 4 | 26 AWG | 26/0.0031" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.134" (3.40mm) | - | 502.0' (153.0m) | Black | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - |
|
|
30-02692CBL 9CON 30AWG BLK BIO |
2,401 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 9 | 30 AWG | 25/0.002" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.138" (3.50mm) | - | 502.0' (153.0m) | Black | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - |
|
|
30-02794CBL 4CON 26AWG WHT BIO |
3,570 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 4 | 26 AWG | 26/0.0031" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.134" (3.40mm) | - | 502.0' (153.0m) | White | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - |
|
|
30-02764CBL 9CON 30AWG GRY BIO |
1,649 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 9 | 30 AWG | 25/0.002" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.138" (3.50mm) | - | 502.0' (153.0m) | Gray | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - |
|
|
30-02836CBL 9CON 30AWG WHT BIO |
4,534 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 9 | 30 AWG | 25/0.002" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.138" (3.50mm) | - | 502.0' (153.0m) | White | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - |
|
M2410 SL001CABLE 10COND 28AWG SHLD |
4,723 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 10 | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.230" (5.84mm) | Foil, Braid | 1000.0' (304.8m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M8746020 BK005MULTI-PAIR 4COND 16AWG BLACK |
1,015 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 4 (2 Pair Twisted) | 16 AWG | 7/0.0192" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.491" (12.47mm) | Foil | 100.0' (30.5m) | Black | - | - | 600 V | -25°C ~ 90°C | - | 0.0500" (1.270mm) | Poly-Vinyl Chloride (PVC) | - |
|

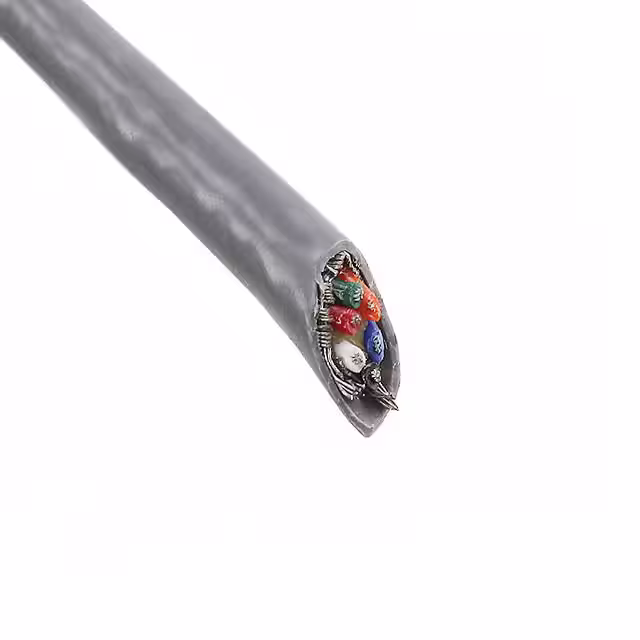

M13209 SL002CABLE 6COND 20AWG SLATE SHLD |
1,907 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 6 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.300" (7.62mm) | Braid | 500.0' (152.4m) | Slate | UL Style 2464 | - | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
86104 SL002CABLE 4COND 26AWG SLATE |
1,488 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 4 | 26 AWG | 7/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.179" (4.55mm) | - | 500.0' (152.4m) | Slate | ISO 10993, UL Style 2661 | Biological Compatibility | 300 V | - | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M18107KW SL199CABLE 7COND 18AWG SLATE 1000' |
4,723 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 7 | 18 AWG | 19/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.381" (9.68mm) | - | 1000.0' (304.8m) | Slate | - | - | 600 V | -25°C ~ 90°C | - | 0.0500" (1.270mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
55A0122-16-9/96CS2275CABLE 2COND 16AWG |
2,149 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 (1 Pair Twisted) | 16 AWG | 19/0.0113" | Copper, Silver Coated | - | 0.136" (3.45mm) | - | - | - | - | - | 600 V | -65°C ~ 200°C | - | - | - | - |
|
882215 SL001CABLE 15COND 22AWG SLATE |
3,579 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 15 | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.294" (7.47mm) | - | 1000.0' (304.8m) | Slate | UL Style 2464 | - | 300 V | -20°C ~ 105°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
9451DP 0095002 FSPR #22 FEP PLENUM PVC |
2,447 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 4 (2 Pair) | 22 AWG | 7/30 | Copper, Tinned | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | 0.269" (6.83mm) | Foil | 500.0' (152.4m) | White | UL Style CMP | Drain Wire | 300 V | -20°C ~ 75°C | Audio, Control, Signal | 0.0170" (0.432mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|
|
1552100108CABLE 3COND 21AWG BLACK 1000M |
4,498 |
|
Datasheet |
Flamar 155210 | Spool | Active | Multi-Conductor | 3 | 21 AWG | 28/0.0059" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.220" (5.59mm) | - | 3281' (1000.0m) | Black | UL Style 2464 | - | 300 V | 5°C ~ 80°C | Industrial, Signal, Control | 0.0114" (0.290mm) | Thermoplastic Elastomer (TPE) | - |
|
|
1552100111CABLE 3COND 21AWG GRAY 1000M |
2,149 |
|
Datasheet |
Flamar 155210 | Spool | Active | Multi-Conductor | 3 | 21 AWG | 28/0.0059" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.220" (5.59mm) | - | 3281' (1000.0m) | Gray | UL Style 2464 | - | 300 V | 5°C ~ 80°C | Industrial, Signal, Control | 0.0114" (0.290mm) | Thermoplastic Elastomer (TPE) | - |
