Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9745 0601000CABLE 44COND 22AWG CHROME |
1,020 |
|
Datasheet |
Classics | Spool | Active | Multi-Conductor | 44 (22 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.245" (6.22mm) | - | 1000.0' (304.8m) | Chrome | UL Style 2576 | - | - | -20°C ~ 80°C | Audio, Control, Instrumentation | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
RL1121-0.75-9/9-0CABLE 2COND BLACK SHLD METER |
2,668 |
|
Datasheet |
100RL | Digi-Spool®, Continuous Spool | Obsolete | Multi-Conductor | 2 | 0.75mm² | 37/0.0063" | Copper, Tinned | Polymer | 0.185" (4.70mm) | Braid | Enter Number of Meters in Order Quantity | Black | - | - | 600 V | -40°C ~ 120°C | - | 0.0080" (0.203mm) | - | - |
|
|
RL1121-0.75-0/0-0CABLE 2COND BLACK SHLD METER |
1,282 |
|
Datasheet |
100RL | Digi-Spool®, Continuous Spool | Obsolete | Multi-Conductor | 2 | 0.75mm² | 37/0.0063" | Copper, Tinned | Polymer | 0.185" (4.70mm) | Braid | Enter Number of Meters in Order Quantity | Black | - | - | 600 V | -40°C ~ 120°C | - | 0.0080" (0.203mm) | - | - |
|
|
M33849 BK001CABLE 5COND 14AWG BLACK SHLD |
1,408 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 5 | 14 AWG | 7/0.0242" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.413" (10.49mm) | Foil | 1000.0' (304.8m) | Black | - | Drain Wire | 600 V | -25°C ~ 90°C | - | 0.0470" (1.194mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
55A1123-24-0/2-9CABLE 2COND 24AWG WHITE SHLD |
2,193 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 (1 Pair Twisted) | 24 AWG | - | Copper, Nickel Coated | Ethylene Tetrafluoroethylene (ETFE) | 0.107" (2.72mm) | Braid | - | White | - | - | 600 V | -65°C ~ 200°C | - | 0.0080" (0.203mm) | - | - |
|
|
55A1124-24-6/9-9CABLE 2COND 24AWG SHLD |
1,740 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 (1 Pair Twisted) | 24 AWG | 19/36 | Copper, Silver Coated | Ethylene Tetrafluoroethylene (ETFE) | 0.107" (2.72mm) | Braid | - | - | - | - | 600 V | -65°C ~ 150°C | - | 0.0080" (0.203mm) | - | - |
|
|
01381.35T.01CABLE 4COND 12AWG BLACK |
1,125 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 4 | 12 AWG | 65/30 | Copper, Bare | Carolprene | 0.475" (12.07mm) | - | 250.0' (76.2m) | Black | - | - | 300 V | -40°C ~ 90°C | - | 0.0300" (0.762mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
|
01381.85.01CABLE 4COND 12AWG BLACK |
3,402 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 4 | 12 AWG | 65/30 | Copper, Bare | Carolprene | 0.475" (12.07mm) | - | 250.0' (76.2m) | Black | - | - | 300 V | -40°C ~ 90°C | - | 0.0300" (0.762mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|

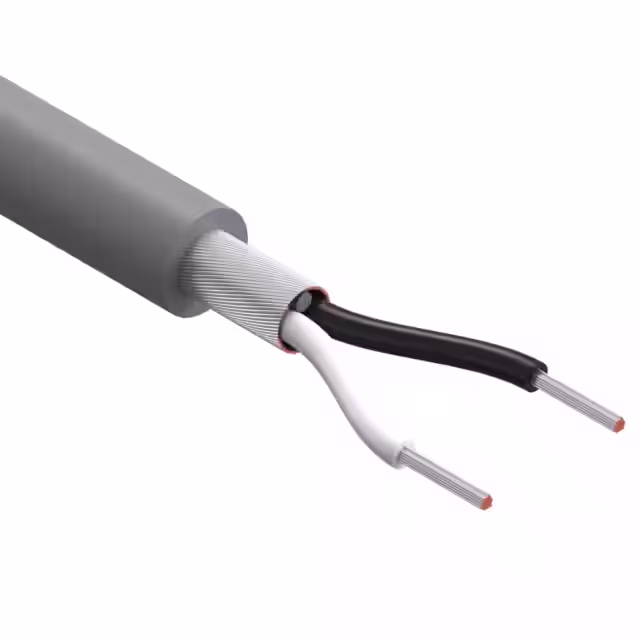

30-00661CABLE 2COND 24AWG GRAY SHLD |
4,638 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 24 AWG | 41/40 | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.118" (3.00mm) | Spiral | 502.0' (153.0m) | Gray | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - |
|

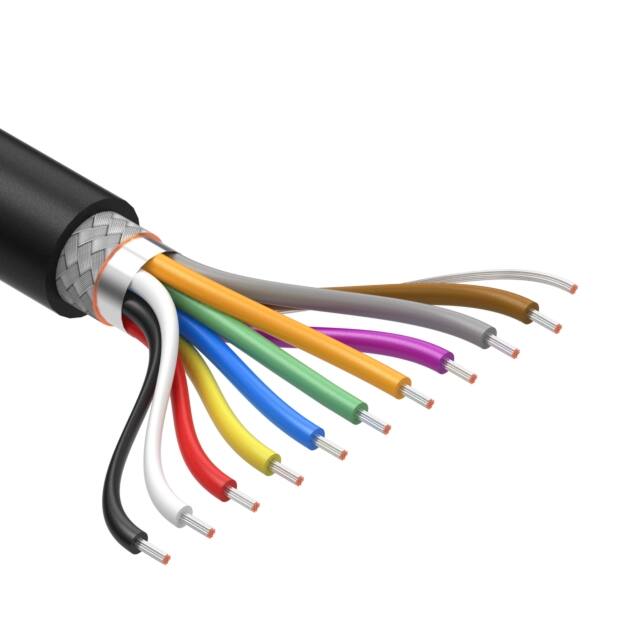

30-01631CABLE 10COND 32AWG BLACK SHLD |
3,982 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 10 | 32 AWG | 7/0.0031" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.248" (6.30mm) | Foil, Braid | - | Black | UL Style 20387 | Drain Wire, Oil Resistant, UV Resistant | 300 V | -40°C ~ 105°C | - | 0.0315" (0.800mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
2170464/500ETHERLINE CAT. 6A Y |
4,998 |
|
- |
ETHERLINE® | Bulk | Active | Multi-Pair, Cat6a | 8 (4 Pair Twisted) | 22 AWG | Solid | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.343" (8.71mm) | Foil, Braid | 50.00' (15.24m) | Green | - | - | 100 V | -40°C ~ 80°C | - | - | Polyethylene (PE) | - |
|
|
55PC1224-24-2/6-9-F940CABLE 2COND 24AWG WHITE SHLD |
4,044 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 | 24 AWG | 19/36 | Copper Alloy, Silver Coated | Ethylene Tetrafluoroethylene (ETFE) | 0.109" (2.77mm) | Braid | - | White | - | - | 600 V | 150°C | - | 0.0065" (0.165mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
76403TS 008500MULTI-PAIR 6COND 28AWG GRAY |
4,228 |
|
- |
MachFlex™ | Spool | Active | Multi-Pair | 6 (3 Pair) | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.240" (6.10mm) | Foil, Braid | 500.0' (152.4m) | Gray | UL Style 20006 | Drain Wire, Oil Resistant | 300 V | - | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
638AMJ 0041000MULTI-PAIR 16COND 16/18AWG |
4,007 |
|
- |
- | Spool | Active | Multi-Pair | 16 (3 Pair + 10) | 16 AWG, 18 AWG | - | - | Polyvinylidene Fluoride (PVDF), Plenum | - | - | 1000.0' (304.8m) | Yellow | UL Style CMP | Rip Cord | - | - | Access Control | - | - | - |
|
|
55PC0821-16-2/6CS2502CABLE 2COND 16AWG |
2,353 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 (1 Pair Twisted) | 16 AWG | 19/29 | Copper, Tinned | - | 0.152" (3.86mm) | - | - | - | - | - | 600 V | 150°C | - | - | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
8463MN 006100CABLE 3COND 18AWG BLUE |
2,744 |
|
Datasheet |
SpaceMaker™ | Spool | Active | Multi-Conductor | 3 | 18 AWG | 41/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.176" (4.47mm) | - | 100.0' (30.5m) | Blue | UL Style 2937 | - | 300 V | -20°C ~ 80°C | Audio, Control, Instrumentation | 0.0160" (0.406mm) | Polypropylene (PP) | - |
|
|
8463MN 008100CABLE 3COND 18AWG GRAY |
1,662 |
|
Datasheet |
SpaceMaker™ | Spool | Active | Multi-Conductor | 3 | 18 AWG | 41/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.176" (4.47mm) | - | 100.0' (30.5m) | Gray | UL Style 2937 | - | 300 V | -20°C ~ 80°C | Audio, Control, Instrumentation | 0.0160" (0.406mm) | Polypropylene (PP) | - |
|
|
85263CY BK001CABLE 3COND 26AWG BLACK SHLD |
3,077 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 3 | 26 AWG | 19/38 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.307" (7.80mm) | Braid | 1000.0' (304.8m) | Black | UL Style 2587 | Oil Resistant | 600 V | - | - | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
9445 060U1000CABLE 5COND 20AWG CHROME |
1,401 |
|
Datasheet |
Classics | Spool | Active | Multi-Conductor | 5 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.239" (6.07mm) | - | 1000.0' (304.8m) | Chrome | UL Style 2464 | - | 300 V | -20°C ~ 80°C | Audio, Control, Instrumentation | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
9445 0601000CABLE 5COND 20AWG CHROME |
4,773 |
|
Datasheet |
Classics | Spool | Active | Multi-Conductor | 5 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.239" (6.07mm) | - | 1000.0' (304.8m) | Chrome | UL Style 2464 | - | 300 V | -20°C ~ 80°C | Audio, Control, Instrumentation | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
