Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FMCA2601/GR-12COAX CBL BNC TO BNC |
2,982 |
|
- |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Belden 4694R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | Green | - | -30°C ~ 75°C | - | - |
|
|
9202383R0608COAX CBL BNC TO BNC |
2,758 |
|
Datasheet |
COAX-CBL-PMN | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-58C | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | Shielded | - | - | - | |
|
|
9202401R0626COAX CBL SMA TO SMA |
3,846 |
|
Datasheet |
COAX-CBL-PMN | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | Shielded | -65°C ~ 165°C | - | - | |
|
095-850-201M075COAX CBL 1.0/2.3 TO BNC |
1,956 |
|
Datasheet |
- | Bag | Active | 1.0/2.3 to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 29.53" (750.00mm) | RG-179 | 75 Ohms | - | 75 Ohms | 4 GHz | Copper | - | - | - | - |
|
415-0063-048COAX CBL N-TYPE TO N-TYPE |
1,241 |
|
Datasheet |
- | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-213 | 50 Ohms | 50 Ohms | 50 Ohms | 11 GHz | Black | Shielded | - | - | - |
|
|
CBL-52-33FT-N1-T1COAX CBL N-TYPE TO TNC |
3,338 |
|
Datasheet |
CBL | Bulk | Active | N-Type to TNC | N-Type Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 396.0" (10.1m) 33.0' | RG-58A | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
CBL-52-33FT-N1-N1COAX CBL N-TYPE TO N-TYPE |
3,966 |
|
Datasheet |
CBL | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 396.0" (10.1m) 33.0' | RG-58A | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
095-850-303-048COAX CBL BNC TO MCX |
4,818 |
|
Datasheet |
- | Bag | Active | BNC to MCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | - | - | - | - |
|
095-725-119-005COAX CBL SMP TO SMP |
3,190 |
|
Datasheet |
- | Bag | Active | SMP to SMP | SMP Plug | Male | Free Hanging (In-Line) | - | SMP Plug | Male | Free Hanging (In-Line) | - | 5.000" (127.00mm) | Hand Formable .047 | - | - | 50 Ohms | 20 GHz | Gray | - | - | - | - |
|
|
0732307226CASMA P STR TO SMA P STR.08624IN |
4,500 |
|
- |
73230 | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | 0.086" Flexible Cable | - | - | 50 Ohms | 6 GHz | - | - | - | - | - |
|
415-0078-012COAX CBL SMA TO SMA |
3,928 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 DS | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | White | Shielded | - | - | - |
|

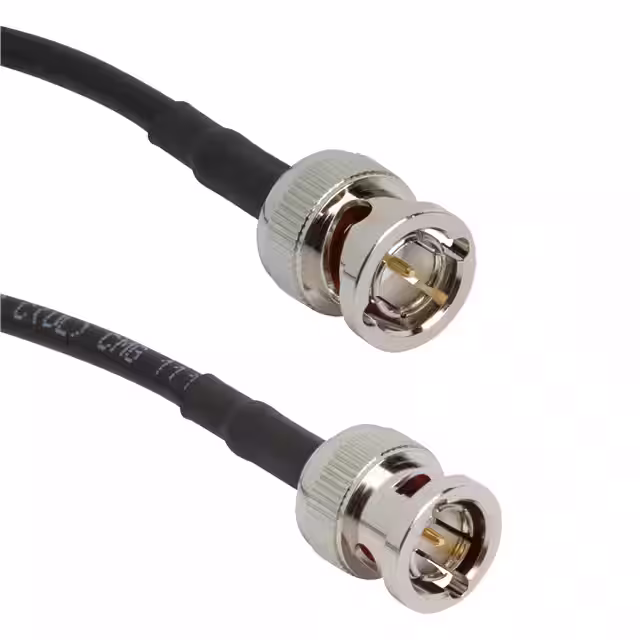

095-850-187-048COAX CBL BNC TO BNC |
1,142 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | Belden 4855R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - | - | - |
|
|
095-902-527-084COAX CBL SMA TO N-TYPE |
4,927 |
|
Datasheet |
- | Bag | Active | SMA to N-Type | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 84.0" (2.1m) 7.0' | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | - | - | - | - | - |
|
|
9202500R0725COAX CBL SMB TO SMB |
4,209 |
|
Datasheet |
COAX-CBL-PMN | Active | SMB to SMB | SMB Jack | Male | Free Hanging (In-Line) | - | SMB Jack | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | -65°C ~ 165°C | - | - | |
|
|
9202471R0696COAX CBL SMB TO SMB |
1,264 |
|
Datasheet |
COAX-CBL-PMN | Active | SMB to SMB | SMB Jack, Right Angle | Male | Free Hanging (In-Line) | - | SMB Jack, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | -65°C ~ 165°C | - | - | |
|
|
9202516R0741COAX CBL SMA TO MMCX |
4,692 |
|
Datasheet |
COAX-CBL-PMN | Active | SMA to MMCX | SMA Jack | Female | Free Hanging (In-Line) | - | MMCX Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-178B | 50 Ohms | - | 50 Ohms | 2 GHz | Copper | Shielded | -55°C ~ 155°C | - | - | |
|
|
135108-R1-07.00COAX CBL SMA TO SMA |
2,668 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 7.000" (177.80mm) | Hand Formable .085 | - | - | 50 Ohms | - | - | - | - | - | - |
|
|
CBL-241-5FT-N1-N1COAX CBL N-TYPE TO N-TYPE |
2,268 |
|
Datasheet |
CBL | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | PFP 240 | - | - | - | - | Black | - | - | - | - |
|
095-850-237-036COAX CBL BNC TO SMB |
2,334 |
|
Datasheet |
- | Bag | Active | BNC to SMB | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMB Plug | Female | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
|
095-850-162-018COAX CBL BNC TO HD-BNC |
3,868 |
|
Datasheet |
- | Bulk | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | Belden 1505A | - | - | 75 Ohms | 3 GHz | Black | Shielded | - | - | - |
