Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-850-234-009COAX CBL BNC TO CABLE |
1,533 |
|
Datasheet |
- | Bag | Active | BNC to Cable | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Cable (Round) | - | - | - | 9.000" (228.60mm) | Hand Formable .085 | - | - | 50 Ohms | 4 GHz | Silver | - | - | - | - |
|

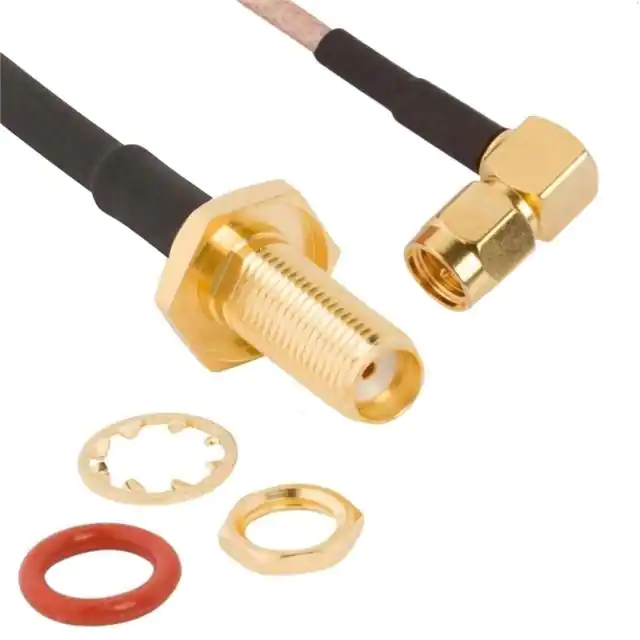

095-902-570-048COAX CBL SMA TO SMA |
3,858 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Copper | - | -65°C ~ 165°C | - | - |
|
9202431R0656COAX CBL BNC TO BNC |
1,693 |
|
Datasheet |
COAX-CBL-PMN | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | RG-58C | - | - | 50 Ohms | - | Black | Shielded | - | - | - | |
|
|
CBL-12-60-M1-N1COAX CBL N-TYPE TO UHF MINI |
3,890 |
|
Datasheet |
CBL | Bulk | Active | N-Type to UHF, Mini | N-Type Plug | Male | Free Hanging (In-Line) | - | UHF, Mini Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-240-17FT-N1-S4COAX CBL SMA TO N-TYPE |
1,372 |
|
Datasheet |
CBL | Bulk | Active | SMA to N-Type | SMA Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 204.0" (5.2m) 17.0' | PFP 240 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-195FR-10FT-N1-N1COAX CBL N-TYPE TO N-TYPE |
2,192 |
|
Datasheet |
CBL | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
095-850-237M075COAX CBL BNC TO SMB |
1,842 |
|
Datasheet |
- | Bag | Active | BNC to SMB | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMB Plug | Female | Free Hanging (In-Line) | - | 29.53" (750.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
|
CC59B-100COAX CBL BNC TO BNC |
1,635 |
|
- |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 1200.0" (30.5m) 100.0' | RG-59B | 75 Ohms | 75 Ohms | 75 Ohms | - | Black | - | - | - | - |
|
|
CBL-100FR-23FT-S1-S4COAX CBL SMA TO SMA |
1,649 |
|
Datasheet |
CBL | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 275.6" (7.0m) 23.0' | PFP 100 | - | - | - | - | Black | - | - | - | - |
|
095-900-551M050COAX CBL MCX TO MCX |
2,339 |
|
Datasheet |
MCX | Bag | Active | MCX to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | Belden 4855R | - | - | 75 Ohms | 12 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
095-850-301-048COAX CBL BNC TO MMCX |
1,751 |
|
Datasheet |
- | Bag | Active | BNC to MMCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | - | - | - | - |
|
|
095-850-162M050COAX CBL BNC TO HD-BNC |
4,739 |
|
Datasheet |
- | Bulk | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | Belden 1505A | - | - | 75 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
BNC-C-96COAX CBL BNC TO BNC |
1,440 |
|
- |
- | Bulk | Obsolete | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 96.0" (2.4m) 8.0' | RG-58C | 50 Ohms | - | 50 Ohms | - | Black | Shielded | 80°C | - | - |
|
73083-BB-24COAX CBL SMA TO SMA |
3,983 |
|
Datasheet |
- | Bag | Obsolete | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | Shielded | -65°C ~ 165°C | - | - |
|
415-0007-024COAX CBL SMB TO SMB |
2,595 |
|
Datasheet |
- | Bulk | Active | SMB to SMB | SMB Plug | Female | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | White | Shielded | - | - | - |
|
|
CT4098-120COAX CBL BNC TO BNC |
4,028 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 47.2" (1.2m) 3.9' | RG-223 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | 0°C ~ 80°C | - | - |
|
135111-07-06.00COAX CBL SMA TO SMA |
3,355 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-142 | 50 Ohms | - | 50 Ohms | 1 GHz | Copper | Shielded | - | - | - |
|
|
2249-C-72#COAX CBL BNC TO BNC |
3,691 |
|
- |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-58C | 50 Ohms | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
|
2249-C-48#COAX CBL BNC TO BNC |
3,389 |
|
- |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-58C | 50 Ohms | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
|
2249-C-60#COAX CBL BNC TO BNC |
4,876 |
|
- |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-58C | 50 Ohms | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
