Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCCA30705-FT2COAX CBL N-TYPE TO TNC |
1,839 |
|
- |
- | Bag | Active | N-Type to TNC | N-Type Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | TNC Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | -20°C ~ 80°C | - | - |
|
|
LCCA30694-FT1.5COAX CBL N-TYPE TO TNC |
4,372 |
|
- |
- | Bag | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 18.00" (457.20mm) | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | -20°C ~ 80°C | - | - |
|
|
CC174SB-7.5COAX CBL BNC TO SMA |
3,346 |
|
- |
- | Bag | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 90.0" (2.3m) 7.5' | RG-174 | - | - | 50 Ohms | - | Black | - | - | - | - |
|
|
LCCA30685-FT1COAX CBL SMA TO N-TYPE |
2,614 |
|
- |
- | Bag | Active | SMA to N-Type | SMA Jack | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.00" (304.80mm) | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | -20°C ~ 80°C | - | - |
|
|
LCCA30686-FT2COAX CBL SMA TO N-TYPE |
2,031 |
|
- |
- | Bag | Active | SMA to N-Type | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 24.00" (609.60mm) | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | -20°C ~ 80°C | - | - |
|
|
LCCA30686-FT1COAX CBL SMA TO N-TYPE |
1,314 |
|
- |
- | Bag | Active | SMA to N-Type | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.00" (304.80mm) | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | -20°C ~ 80°C | - | - |
|
|
LCCA30074-FT1.5COAX CBL SMA TO SMA |
3,479 |
|
- |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 18.00" (457.20mm) | LC141TB | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | - | - | -55°C ~ 125°C | - | - |
|
|
LCCA30670-FT4COAX CBL N-TYPE TO N-TYPE |
4,455 |
|
- |
- | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 48.0" (1.2m) 4.0' | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | -20°C ~ 80°C | - | - |
|
|
IJ5C-02-0500-S-S-2COAX CBL IJ5C TO CABLE |
2,835 |
|
Datasheet |
ISORATE® IJ5C | Bulk | Active | IJ5C to Cable | IJ5C Jack | Female | Free Hanging (In-Line) | - | Cable (Round), Stripped & Tinned | - | - | - | - | RG-316 | 50 Ohms | - | 50 Ohms | 9.9 GHz | Amber | - | -40°C ~ 90°C | - | - |
|
415-0046-012COAX CBL SMA TO SMA |
3,812 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-142 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | White | Shielded | - | - | - |
|
095-850-238M025COAX CBL BNC TO SMB |
1,557 |
|
Datasheet |
- | Bag | Active | BNC to SMB | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
4964-SS-96COAX CBL BNC TO BNC |
3,348 |
|
- |
- | - | Obsolete | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 96.0" (2.4m) 8.0' | 4.95mm OD Coaxial Cable | - | - | 50 Ohms | 10 kHz | Black | Shielded | 50°C | - | - |
|

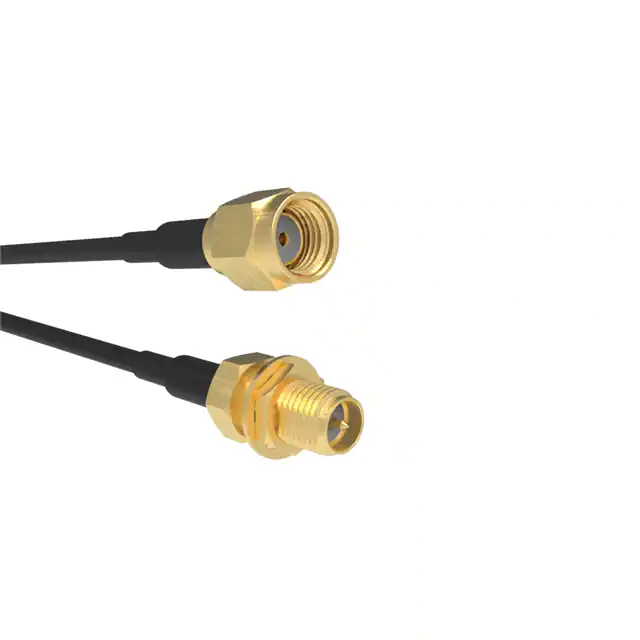

095-902-535-048COAX CBL RP-SMA TO RP-SMA |
3,070 |
|
Datasheet |
- | Bag | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | RP-SMA Plug | Female | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -65°C ~ 165°C | - | - |
|
|
LCCA30672-FT6COAX CBL N-TYPE TO N-TYPE |
4,305 |
|
- |
- | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 72.0" (1.8m) 6.0' | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | -20°C ~ 80°C | - | - |
|
175101-19-M0.75COAX CBL N-TYPE TO N-TYPE |
3,318 |
|
Datasheet |
- | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 29.53" (750.00mm) | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - | - | - |
|
|
265101-08-96.00COAX CBL MMCX TO MMCX |
2,675 |
|
Datasheet |
- | Bag | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug | Male | Free Hanging (In-Line) | - | 96.0" (2.4m) 8.0' | RG-178 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|
|
CBL-30-3FT-N4-T1COAX CBL N-TYPE TO TNC |
2,420 |
|
Datasheet |
CBL | Bulk | Active | N-Type to TNC | N-Type Jack | Female | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | LMR 400 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
CBL-30-3FT-B4-S4COAX CBL BNC TO SMA |
3,076 |
|
Datasheet |
CBL | Bulk | Active | BNC to SMA | BNC Jack | Female | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 36.00" (914.40mm) | LMR 400 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
CBL-30-3FT-B1-S4COAX CBL BNC TO SMA |
3,122 |
|
Datasheet |
CBL | Bulk | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 36.00" (914.40mm) | LMR 400 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
CBL-30-3FT-N1-S4COAX CBL SMA TO N-TYPE |
1,380 |
|
Datasheet |
CBL | Bulk | Active | SMA to N-Type | SMA Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | LMR 400 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
