Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CBL-12-2FT-S1-T5COAX CBL RP-TNC TO SMA |
4,092 |
|
Datasheet |
CBL | Bulk | Active | RP-TNC to SMA | RP-TNC Jack | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
095-850-273M075COAX CBL TNC TO TNC |
3,840 |
|
Datasheet |
TNC | Bag | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 29.53" (750.00mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | -40°C ~ 85°C | - | - |
|
|
CBL-52-4FT-S1-S4COAX CBL SMA TO SMA |
1,923 |
|
Datasheet |
CBL | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-58A | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
CBL-60-4FT-B1-N9COAX CBL BNC TO N-TYPE |
1,097 |
|
Datasheet |
CBL | Bulk | Active | BNC to N-Type | BNC Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 48.0" (1.2m) 4.0' | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
0732307050CA TYPE N J STR TO SMA P STRRG58 |
2,716 |
|
- |
73230 | Bulk | Active | SMA to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-58 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | - | - | - |
|
336503-12-0150COAX CBL U.FL AMC TO MCX |
1,288 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC), AMC to MCX | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | MCX Socket | Female | Panel Mount | Bulkhead - Front Side Nut | 5.906" (150.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Copper | - | - | - | - |
|
095-902-546-250COAX CBL U.FL AMC TO RP-SMA |
1,295 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Rear Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|

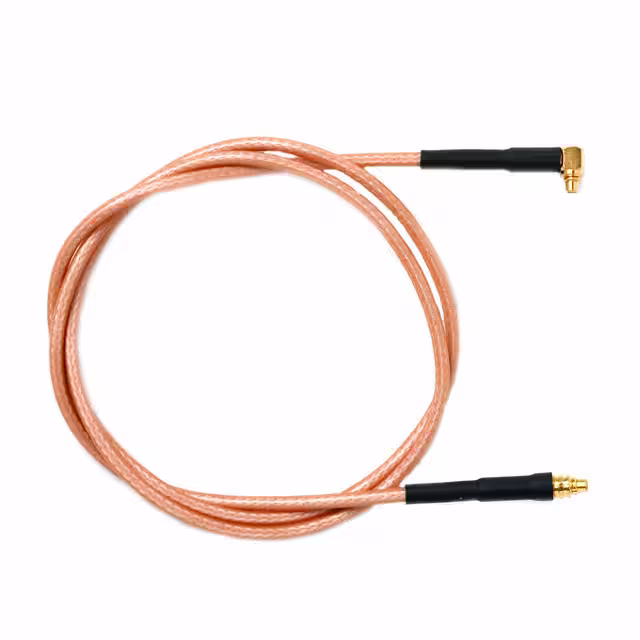

73064-BB-6COAX CBL MMCX TO MMCX |
3,729 |
|
Datasheet |
- | Bag | Obsolete | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | -55°C ~ 155°C | - | - |
|
|
0734194930COAX CBL MCX TO N-TYPE |
1,610 |
|
- |
73419 | Bulk | Active | MCX to N-Type | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Rear Side Nut | 7.250" (184.15mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
CBL-195-3M-Q1-T13 M PFP 195, QMA MALE & TNC MALE |
3,165 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
095-900-545-048COAX CBL MCX TO MCX |
1,995 |
|
Datasheet |
MCX | Bag | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
095-902-582-050COAX CBL MHF1 LK TO SMA |
3,483 |
|
Datasheet |
- | Bag | Active | I-PEX MHF1 LK to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHFI LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
095FPZFPZSHM100COAX CBL FAKRA TO FAKRA |
2,430 |
|
Datasheet |
- | Bag | Active | Fakra to Fakra | Fakra II (Gen 2.0) Plug | Male | Free Hanging (In-Line) | - | Fakra II (Gen 2.0) Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-174 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | Shielded, Z Code | -40°C ~ 85°C | - | - |
|
095-850-261-012COAX CBL BNC TO BNC |
4,702 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Jack | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-174 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
0732307013CAMMCX P R/A TO SMA J R/A BHRG31 |
3,220 |
|
- |
73230 | Bulk | Active | SMA to MMCX | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | - | - | - |
|
|
IJ5C-01-0400-S-S-1COAX CBL IJ5C TO CABLE |
4,994 |
|
Datasheet |
ISORATE® IJ5C | Bulk | Active | IJ5C to Cable | IJ5C Jack | Female | Free Hanging (In-Line) | - | Cable (Round), Stripped & Tinned | - | - | - | - | RG-316 | 50 Ohms | - | 50 Ohms | 9.9 GHz | Amber | - | -40°C ~ 90°C | - | - |
|
|
CBL-13-2FT-N1-S1COAX CBL SMA TO N-TYPE |
2,312 |
|
Datasheet |
CBL | Bulk | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
KSM-7193-08-SMAJ-RPCOAX CBL U.FL TO RP-SMA |
3,576 |
|
- |
- | Bulk | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 8.000" (203.20mm) | 1.27mm OD Coaxial Cable | - | - | - | - | Gray | Shielded | - | - | - |
|
|
RF179-72SP1-72SP1-0100COAX CBL MCX TO MCX |
1,946 |
|
Datasheet |
RF179 | Bag | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 3.937" (100.00mm) | RG-179 | 75 Ohms | 75 Ohms | 75 Ohms | 4 GHz | Amber | Shielded | -50°C ~ 165°C | - | - |
|
095-850-269-018COAX CBL BNC TO BNC |
2,004 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-58 | 50 Ohms | - | 50 Ohms | 4 GHz | Black | Shielded | -40°C ~ 80°C | - | - |
