Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

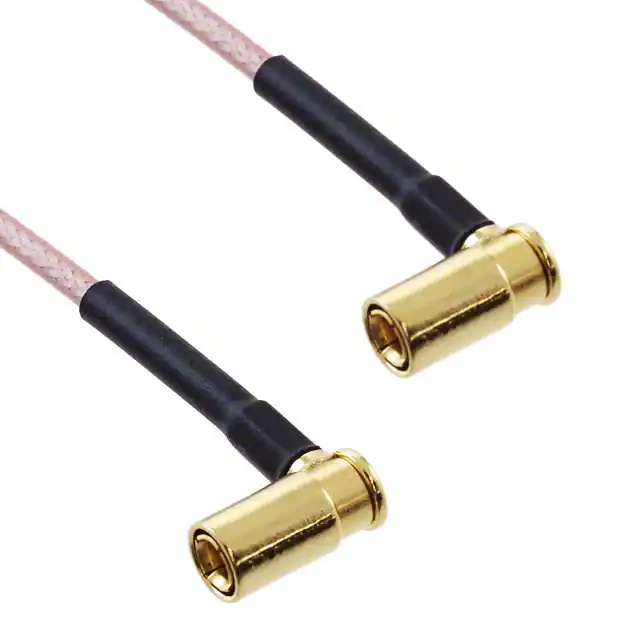

415-0004-MM150COAX CBL SMB TO SMB |
2,243 |
|
Datasheet |
- | Bulk | Active | SMB to SMB | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|
CBL-54-2FT-N1-S1COAX CBL SMA TO N-TYPE |
3,429 |
|
Datasheet |
CBL | Bulk | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
CBL-54-2FT-N1-T1COAX CBL N-TYPE TO TNC |
1,417 |
|
Datasheet |
CBL | Bulk | Active | N-Type to TNC | N-Type Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
115101-22-12.00COAX CBL BNC TO BNC |
3,797 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | LMR 240 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - | - | - |
|

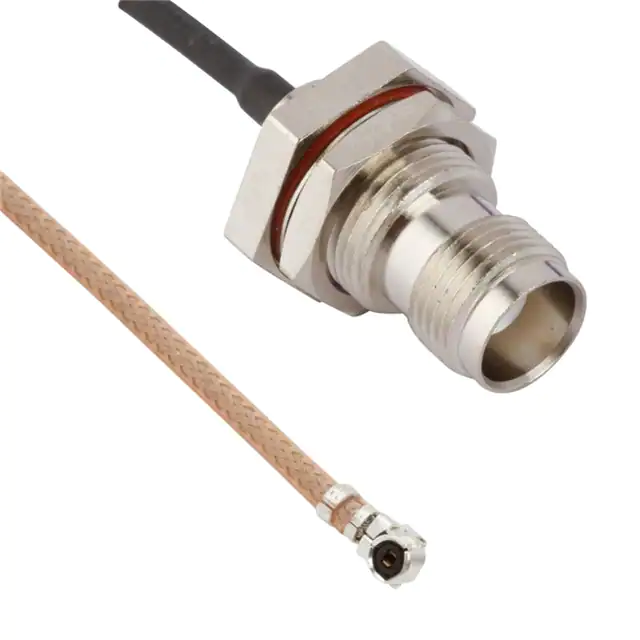

095-850-284-250COAX CBL U.FL AMC TO TNC |
1,737 |
|
- |
- | Bag | Active | U.FL (UMCC), AMC to TNC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 9.843" (250.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|

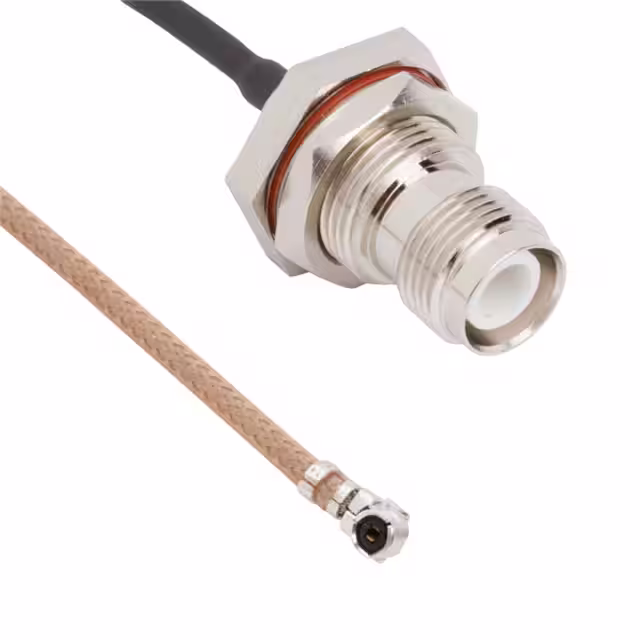

095-850-285-250COAX CBL U.FL AMC TO RP-TNC |
4,293 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to RP-TNC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | RP-TNC Jack | Male | Panel Mount | Bulkhead - Front Side Nut | 9.843" (250.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
095-902-546-150COAX CBL U.FL AMC TO RP-SMA |
3,256 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Rear Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
CAB453RF-0150-A-1-SCABLE ASSEMBLY MMCX RIGHT ANGLED |
2,399 |
|
- |
Nautilus | Bag | Active | MMCX to TNC | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 5.906" (150.00mm) | RG-174 | - | - | 50 Ohms | 3 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
FMCA1007-3COAX CBL SMA TO HMCX |
1,230 |
|
- |
- | Bag | Active | SMA to HMCX | HMCX Plug | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 3.000" (76.20mm) | 0.81mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Black | - | -55°C ~ 125°C | - | - |
|
|
FMCA1022-12COAX CBL RP-SMA TO HMCX |
1,952 |
|
- |
- | Bag | Active | RP-SMA to HMCX | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | HMCX Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 0.81mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Black | - | -55°C ~ 125°C | - | - |
|
|
FMCA1030-3COAX CBL SMA TO HMCX |
1,071 |
|
- |
- | Bag | Active | SMA to HMCX | SMA Plug | Male | Free Hanging (In-Line) | - | HMCX Plug | Male | Free Hanging (In-Line) | - | 3.000" (76.20mm) | 0.81mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Black | - | -55°C ~ 125°C | - | - |
|
|
FMCA1027-3COAX CBL SMA TO UMCX |
2,499 |
|
- |
- | Bag | Active | SMA to UMCX | SMA Plug | Male | Free Hanging (In-Line) | - | UMCX Plug | Male | Free Hanging (In-Line) | - | 3.000" (76.20mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Tan | - | -55°C ~ 125°C | - | - |
|
|
FMCA1033-3COAX CBL RP-SMA TO UMCX |
4,282 |
|
- |
- | Bag | Active | RP-SMA to UMCX | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | UMCX Plug | Male | Free Hanging (In-Line) | - | 3.000" (76.20mm) | 0.81mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -55°C ~ 125°C | - | - |
|
|
FMCA1022-6COAX CBL RP-SMA TO HMCX |
4,914 |
|
- |
- | Bag | Active | RP-SMA to HMCX | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | HMCX Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.81mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Black | - | -55°C ~ 125°C | - | - |
|
|
CBL-195-2M-N9-S1COAX CBL SMA TO N-TYPE |
2,723 |
|
Datasheet |
CBL | Bulk | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 78.7" (2.0m) 6.6' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-195-2M-S1-T3COAX CBL SMA TO TNC |
1,873 |
|
Datasheet |
CBL | Bulk | Active | SMA to TNC | SMA Plug | Male | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-195-2M-B1-B1COAX CBL BNC TO BNC |
4,196 |
|
Datasheet |
CBL | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-195-2M-N1-S1COAX CBL SMA TO N-TYPE |
2,362 |
|
Datasheet |
CBL | Bulk | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-60-3FT-N1-N1COAX CBL N-TYPE TO N-TYPE |
2,223 |
|
Datasheet |
CBL | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
CBL-60-3FT-N1-S1COAX CBL SMA TO N-TYPE |
3,029 |
|
Datasheet |
CBL | Bulk | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
