Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CBL-60-3FT-F4-N1COAX CBL N-TYPE TO FME |
3,476 |
|
Datasheet |
CBL | Bulk | Active | N-Type to FME | N-Type Plug | Male | Free Hanging (In-Line) | - | FME Jack | Female | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
095Z820-159-036COAX CBL SMA TO FAKRA III |
3,295 |
|
Datasheet |
- | Bag | Active | SMA to Fakra III | SMA Jack | Female | Free Hanging (In-Line) | - | Fakra III (Gen 3.0) Jack | Female | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | - | - | - |
|
415-0007-018COAX CBL SMB TO SMB |
1,048 |
|
Datasheet |
- | Bulk | Obsolete | SMB to SMB | SMB Plug | Female | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | White | Shielded | - | - | - |
|

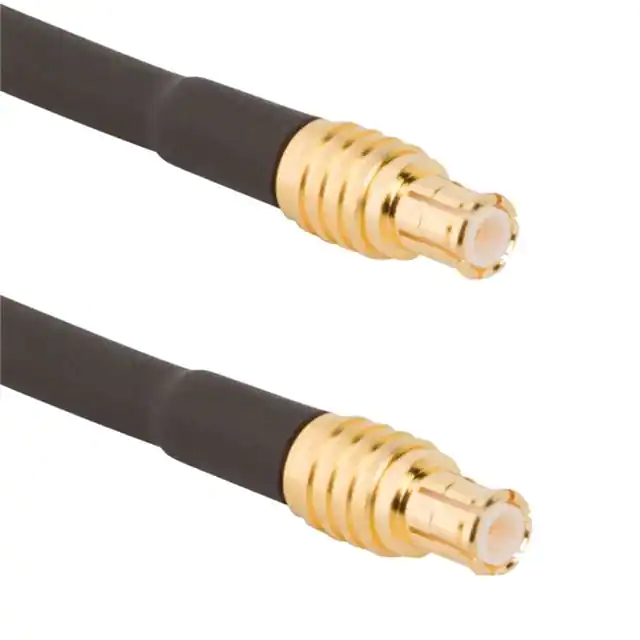

095-900-545-036COAX CBL MCX TO MCX |
2,355 |
|
Datasheet |
MCX | Bag | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | - | -40°C ~ 85°C | - | - |
|
095-902-574-250COAX CBL U.FL AMC TO RP-SMA |
3,630 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to RP-SMA | RP-SMA Jack | Male | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 9 GHz | Black | - | - | - | - |
|
|
CBL-12-16IN-N1-S1COAX CBL SMA TO N-TYPE |
2,086 |
|
Datasheet |
CBL | Bulk | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 16.00" (406.40mm) | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
ASMY008F174S11FME FEMALE TO FME MALE BULKHEAD. |
2,543 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CBL-195-18IN-N9-T2COAX CBL RP-TNC TO N-TYPE |
1,454 |
|
Datasheet |
CBL | Bulk | Active | RP-TNC to N-Type | RP-TNC Plug | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 18.00" (457.20mm) | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-195-1.5M-S1-S4COAX CBL SMA TO SMA |
2,644 |
|
Datasheet |
CBL | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
095-850-276-018COAX CBL TNC TO TNC |
3,860 |
|
Datasheet |
TNC | Bag | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | LMR 195 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | -40°C ~ 85°C | - | - |
|
135110-01-18.00COAX CBL SMA TO SMA |
2,366 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-316 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|
095Z820-160-036COAX CBL SMA TO FAKRA II |
3,252 |
|
Datasheet |
- | Bag | Active | SMA to Fakra II | SMA Jack | Female | Free Hanging (In-Line) | - | Fakra II (Gen 2.0) Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | - | - | - |
|
|
CBL-52-1M-S1-S1COAX CBL SMA TO SMA |
4,161 |
|
Datasheet |
CBL | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-58A | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
CO-058SMABNC0-001COAX CBL BNC TO SMA |
2,051 |
|
- |
- | Bulk | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-58C | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
415-0049-012COAX CBL BNC TO BNC |
4,770 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-59 | 75 Ohms | 75 Ohms | 75 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
255104-01-06.00COAX CBL MCX TO MCX |
4,698 |
|
Datasheet |
- | Bag | Active | MCX to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|
|
245107-02-18.00COAX CBL SMA TO MMCX |
4,182 |
|
Datasheet |
- | Bag | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - | - | - |
|
|
CBL-12-18IN-S1-S4COAX CBL SMA TO SMA |
1,814 |
|
Datasheet |
CBL | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 18.00" (457.20mm) | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-12-18IN-S3-S4COAX CBL SMA TO SMA |
3,526 |
|
Datasheet |
CBL | Bulk | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 18.00" (457.20mm) | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
62-048-1MCOAX CBL BNC TO BNC |
3,190 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-62 | 92 Ohms | - | 93 Ohms | - | Black | Shielded | 80°C | - | - |
