Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-902-567-250COAX CBL U.FL AMC TO SMA |
1,686 |
|
- |
- | Bag | Active | U.FL (UMCC), AMC to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | - | - | - |
|
095-900-549M025COAX CBL MMCX TO MMCX |
2,172 |
|
Datasheet |
MMCX | Bag | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | - | -40°C ~ 85°C | - | - |
|
415-0018-024COAX CBL MCX TO MCX |
4,804 |
|
Datasheet |
- | Bulk | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Gray | Shielded | - | - | - |
|
095-850-272-006COAX CBL TNC TO TNC |
4,503 |
|
Datasheet |
TNC | Bag | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | -40°C ~ 85°C | - | - |
|
CO-058SMARPTN-003COAX CBL RP-SMA TO N-TYPE |
3,104 |
|
- |
- | Bulk | Active | RP-SMA to N-Type | RP-SMA Plug | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-58C | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
CAB570RF-0300-A-1-ECOAX CBL U.FL TO SMA |
1,011 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | - | -40°C ~ 85°C | - | - |
|
|
0732307002BNC P STR TO SMA P STR ON RG3161 |
2,745 |
|
- |
73230 | Bulk | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | - | - | - |
|

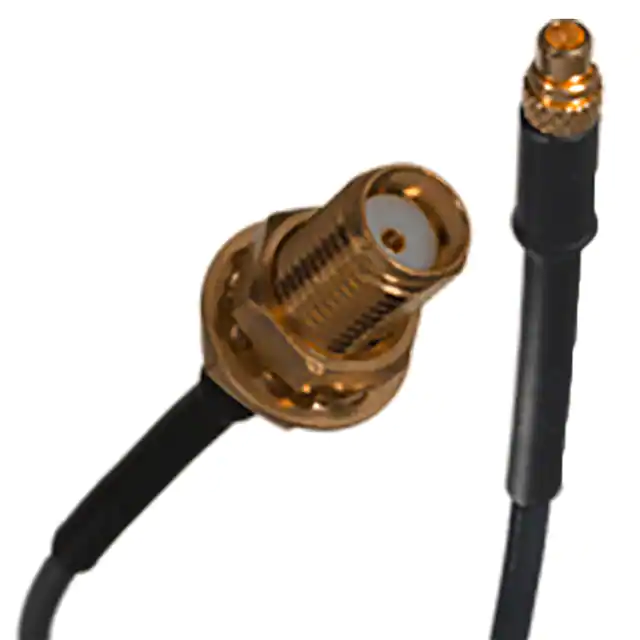

415-0203-024COAX CBL SMA TO MMCX |
1,691 |
|
Datasheet |
- | Bag | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | - | - | - |
|
|
0734194780COAX CBL N-TYPE TO MMCX |
3,222 |
|
- |
73419 | Bulk | Active | N-Type to MMCX | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 7.000" (177.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
0734193342COAX CBL BNC TO MCX |
2,036 |
|
- |
73419 | Bulk | Active | BNC to MCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 10.858" (275.80mm) | RG-179 | 75 Ohms | - | 75 Ohms | - | - | - | - | - | - |
|
095-900-548-036COAX CBL MMCX TO MMCX |
3,514 |
|
Datasheet |
MMCX | Bag | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
CO-058SMAMMRP-006COAX CBL RP-SMA TO RP-SMA |
2,464 |
|
- |
- | Bulk | Active | RP-SMA to RP-SMA | RP-SMA Plug | Female | Free Hanging (In-Line) | - | RP-SMA Plug | Female | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-58C | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
CO-059FTYPEMM-010COAX CBL F-TYPE TO F-TYPE |
4,779 |
|
- |
- | Bulk | Active | F-Type to F-Type | F-Type Plug | Male | Free Hanging (In-Line) | - | F-Type Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | RG-59 | 75 Ohms | 75 Ohms | 75 Ohms | - | Black | - | - | - | - |
|
|
0732307083CASMA J STR BH TO SMA P STRRG316 |
3,504 |
|
- |
73230 | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | - | - | - |
|
095-850-283-050COAX CBL U.FL AMC TO TNC |
2,184 |
|
- |
- | Bag | Active | U.FL (UMCC), AMC to TNC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 1.969" (50.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
|
IJ5C-02-0100-S-S-1COAX CBL IJ5C TO CABLE |
3,407 |
|
Datasheet |
ISORATE® IJ5C | Bulk | Active | IJ5C to Cable | IJ5C Jack | Female | Free Hanging (In-Line) | - | Cable (Round), Stripped & Tinned | - | - | - | - | RG-316 | 50 Ohms | - | 50 Ohms | 9.9 GHz | Amber | - | -40°C ~ 90°C | - | - |
|
|
CO-058SMAMFRP-006COAX CBL RP-SMA TO RP-SMA |
1,483 |
|
- |
- | Bulk | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | RP-SMA Plug | Female | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-58C | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
415-0018-012COAX CBL MCX TO MCX |
4,196 |
|
Datasheet |
- | Bulk | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Gray | Shielded | - | - | - |
|
|
CO-174SMARSMA-000.6COAX CBL SMA TO SMA |
3,532 |
|
- |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 7.200" (182.88mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
095-900-559-250COAX CBL U.FL AMC TO MCX |
4,071 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to MCX | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
