Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
415-0048-036COAX CBL BNC TO BNC |
1,250 |
|
Datasheet |
- | - | Obsolete | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-59 | 75 Ohms | 75 Ohms | 75 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
415-0015-018COAX CBL MCX TO MCX |
1,369 |
|
Datasheet |
- | Bulk | Obsolete | MCX to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | White | Shielded | - | - | - |
|
095-902-588-300COAX CBL MHF1 LK TO RP-SMA |
2,098 |
|
Datasheet |
- | Bag | Active | I-PEX MHF1 LK to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHFI LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
IJ5C-01-0200-S-S-1COAX CBL IJ5C TO CABLE |
1,383 |
|
Datasheet |
ISORATE® IJ5C | Bulk | Active | IJ5C to Cable | IJ5C Jack | Female | Free Hanging (In-Line) | - | Cable (Round), Stripped & Tinned | - | - | - | - | RG-316 | 50 Ohms | - | 50 Ohms | 9.9 GHz | Amber | - | -40°C ~ 90°C | - | - |
|
095-900-555-150COAX CBL AMC4 TO MMCX |
3,622 |
|
Datasheet |
- | Bag | Active | AMC4 to MMCX | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
|
0732300662COAX CBL MCX TO FAKRA |
4,959 |
|
- |
73230 | Bulk | Active | MCX to Fakra | MCX Plug | Male | Free Hanging (In-Line) | - | Fakra Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 11.024" (280.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|

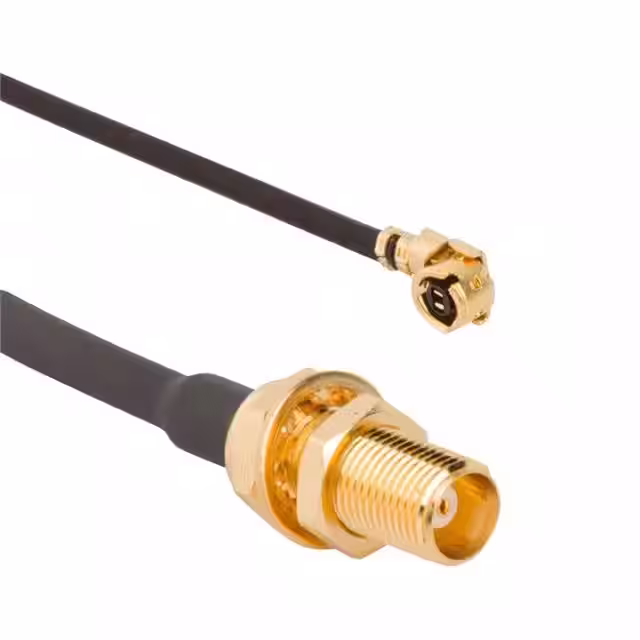

095-900-557-250COAX CBL U.FL AMC TO MMCX |
4,932 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to MMCX | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | MMCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 9.843" (250.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|

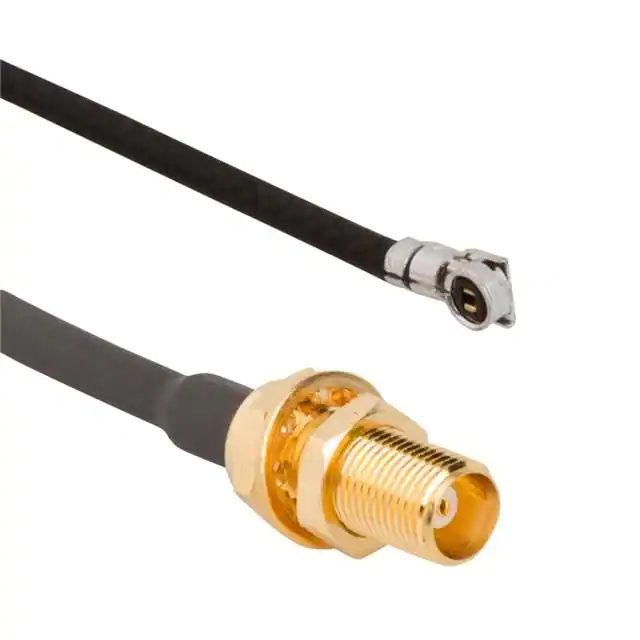

095-900-558-250COAX CBL AMC4 TO MMCX |
4,781 |
|
Datasheet |
- | Bag | Active | AMC4 to MMCX | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | MMCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 9.843" (250.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|

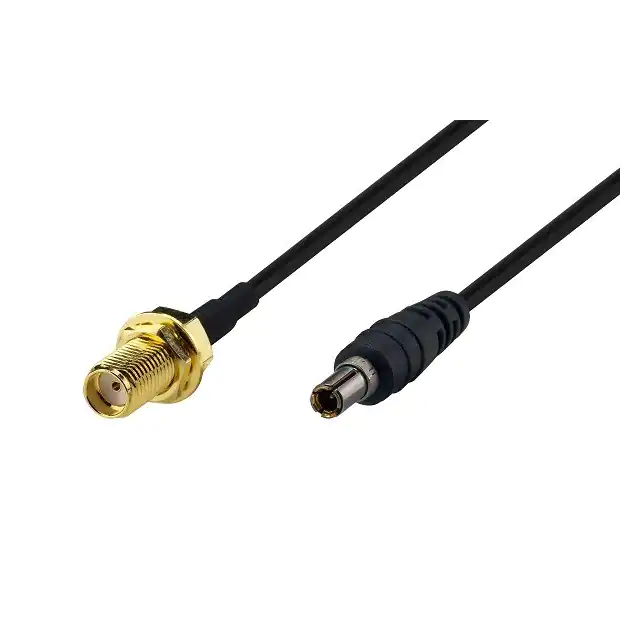

CAB.T01COAX CBL SMA TO TS9 |
4,110 |
|
Datasheet |
- | Bag | Obsolete | SMA to TS9 | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TS9 Plug | Male | Free Hanging (In-Line) | - | 3.937" (100.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | Shielded | 80°C | - | - |
|
|
CO-058TNCMFRP-006COAX CBL RP-TNC TO RP-TNC |
1,208 |
|
- |
- | Bulk | Active | RP-TNC to RP-TNC | RP-TNC Jack | Male | Free Hanging (In-Line) | - | RP-TNC Plug | Female | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-58C | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
CC59PB-1COAX CBL BNC TO BNC |
4,708 |
|
- |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-59 | 50 Ohms | - | 50 Ohms | - | White | - | - | - | - |
|
|
0732307143CASMA J STR TO SMA P STRRG5848IN |
2,920 |
|
- |
73230 | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-58 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | - | - | - |
|
|
0732307101CASMA J STR BH TO SMA P RARG3169 |
3,476 |
|
- |
73230 | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | - | - | - |
|
|
095-902-588-400COAX CBL MHF1 LK TO RP-SMA |
3,622 |
|
Datasheet |
- | Bag | Active | I-PEX MHF1 LK to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHFI LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 15.75" (400.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
0732307011CAMMCX P R/A TO SMA J R/A BH RG3 |
2,680 |
|
- |
73230 | Bulk | Active | SMA to MMCX | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | 9.000" (228.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | - | - | - |
|
F6-12BCOAX CBL F-TYPE TO F-TYPE |
1,537 |
|
Datasheet |
F | Bulk | Active | F-Type to F-Type | F-Type Plug | Male | Free Hanging (In-Line) | - | F-Type Plug | Male | Free Hanging (In-Line) | - | 144.0" (3.7m) 12.0' | RG-6 | 75 Ohms | - | 73 Ohms | - | Black | Shielded | - | - | - |
|
095-900-548M025COAX CBL MMCX TO MMCX |
2,646 |
|
Datasheet |
MMCX | Bag | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
0732306980CA BNC J STR TO SMA P STR ON RG5 |
3,617 |
|
- |
73230 | Bulk | Active | BNC to SMA | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-58 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | - | - | - |
|

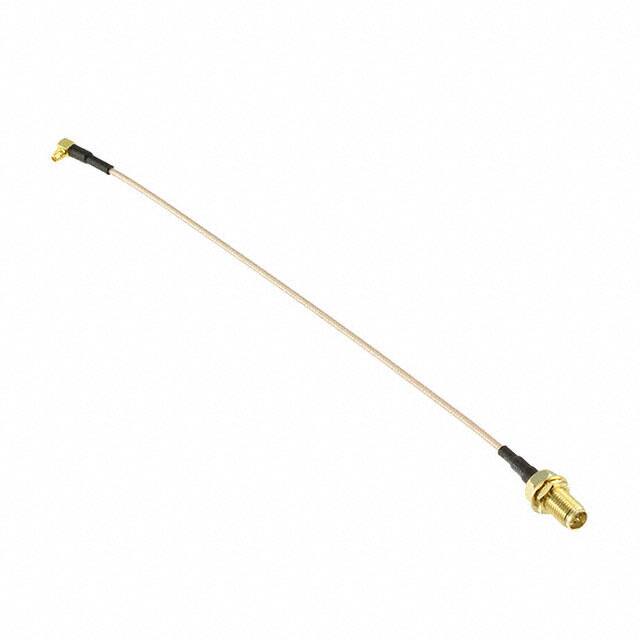

JM2R6-CR3-7ICOAX CBL RP-SMA TO MMCX |
1,147 |
|
Datasheet |
- | Bulk | Obsolete | RP-SMA to MMCX | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 7.000" (177.80mm) | RG-178 | 50 Ohms | - | 50 Ohms | - | Copper | - | - | - | - |
|
|
0732307204CASMA P STR TO SMA P STR RG316DS |
1,885 |
|
- |
73230 | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-58 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | - | - | - |
