Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

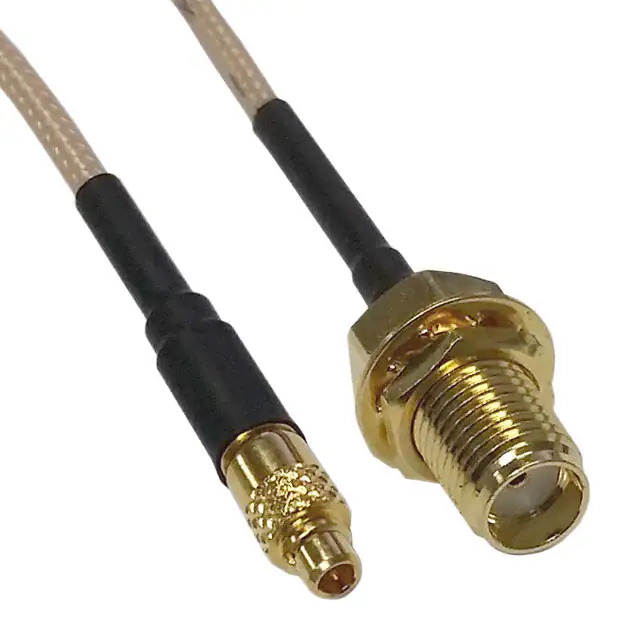

CCSMX-FBM-RG316-18COAX CBL SMA TO MMCX |
3,008 |
|
Datasheet |
CCSMX | Bag | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -40°C ~ 85°C | - | - |
|
0732306994BNC P STR TO SMA STRRG17439IN |
2,487 |
|
- |
73230 | Bulk | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-174 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | - | - | - |
|
|
CBL-195-20IN-S1-T1COAX CBL SMA TO TNC |
2,414 |
|
Datasheet |
CBL | Bulk | Active | SMA to TNC | SMA Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 20.00" (508.00mm) | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-195-20IN-N1-S1COAX CBL SMA TO N-TYPE |
3,607 |
|
Datasheet |
CBL | Bulk | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 20.00" (508.00mm) | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
095-900-548-048COAX CBL MMCX TO MMCX |
1,793 |
|
Datasheet |
MMCX | Bag | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | - | -40°C ~ 85°C | - | - |
|
095-900-562-150COAX CBL AMC4 TO MCX |
1,147 |
|
Datasheet |
- | Bag | Active | AMC4 to MCX | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
|
CBL-12-180-N1-N4COAX CBL N-TYPE TO N-TYPE |
3,356 |
|
Datasheet |
CBL | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 180.0" (4.6m) 15.0' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
095-850-272-018COAX CBL TNC TO TNC |
4,338 |
|
Datasheet |
TNC | Bag | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-174 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | -40°C ~ 85°C | - | - |
|
|
0897619077COAX CBL U.FL TO N-TYPE |
2,625 |
|
- |
89761 | Bulk | Active | U.FL (UMCC) to N-Type | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 6.299" (160.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
CA-FMFM-ZZ00103WPCOAX CBL FAKRA TO FAKRA |
3,109 |
|
Datasheet |
- | Bag | Active | Fakra to Fakra | Fakra Plug | Male | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 11.811" (300.00mm) | RG-316 | 50 Ohms | - | - | - | Brown | - | - | - | - |
|
|
CO-059FTYPEMM-006COAX CBL F-TYPE TO F-TYPE |
2,671 |
|
- |
- | Bulk | Active | F-Type to F-Type | F-Type Plug | Male | Free Hanging (In-Line) | - | F-Type Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-59 | 75 Ohms | 75 Ohms | 75 Ohms | - | Black | - | - | - | - |
|
095-850-164-006COAX CBL BNC TO BNC |
3,029 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | Belden 1855A | - | - | 75 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
415-0017-018COAX CBL MCX TO MCX |
2,134 |
|
Datasheet |
- | Bulk | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Copper | Shielded | - | - | - |
|
095Z820-162-018COAX CBL SMA TO FAKRA II |
4,581 |
|
Datasheet |
- | Bag | Active | SMA to Fakra II | SMA Plug | Male | Free Hanging (In-Line) | - | Fakra II (Gen 2.0) Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-174 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | - | - | - |
|
|
CAB453RF-0050-A-1-SCABLE ASSEMBLY MMCX RIGHT ANGLED |
3,506 |
|
- |
Nautilus | Bag | Active | MMCX to TNC | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 1.969" (50.00mm) | RG-174 | - | - | 50 Ohms | 3 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
CC187B-5COAX CBL BNC TO BNC |
2,785 |
|
- |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-187 | 75 Ohms | 75 Ohms | 75 Ohms | - | White | - | - | - | - |
|
|
0732307082CASMA J STR BH TO SMA P STRRG316 |
2,408 |
|
- |
73230 | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | - | - | - |
|
|
CO-059BNCX200-001COAX CBL BNC TO BNC |
2,687 |
|
- |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-59 | 75 Ohms | 75 Ohms | 75 Ohms | - | Black | - | - | - | - |
|
095-900-549M075COAX CBL MMCX TO MMCX |
1,209 |
|
Datasheet |
MMCX | Bag | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 29.53" (750.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
CBL-100-6IN-N1-S1COAX CBL SMA TO N-TYPE |
4,988 |
|
Datasheet |
CBL | Bulk | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | PFP 100 | - | - | - | - | Black | - | - | - | - |
