Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CAB526RF-0300-A-1-SCABLE ASSEMBLY I-PEX MHF I LK PL |
1,956 |
|
- |
Nautilus | Bag | Active | I-PEX MHF1 LK to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
415-0015-MM500COAX CBL MCX TO MCX |
1,826 |
|
Datasheet |
- | Bulk | Active | MCX to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | White | Shielded | - | - | - |
|

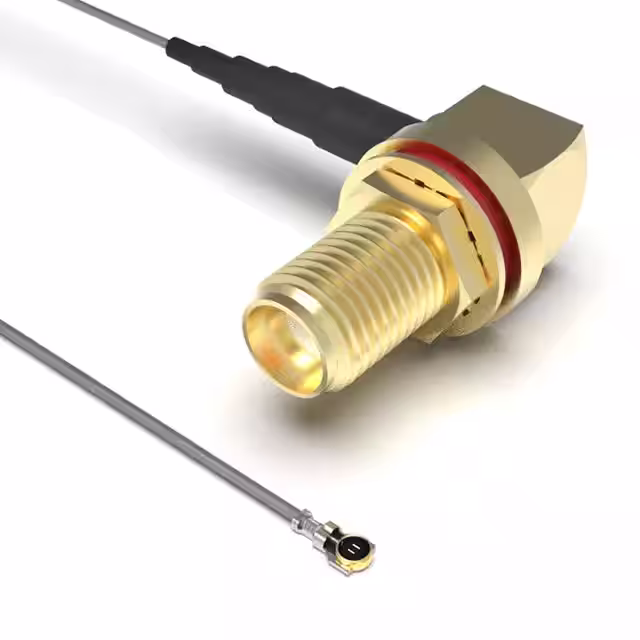

CAB433RF-0200-A-1COAX CBL RP-SMA TO MHF5L |
2,265 |
|
Datasheet |
Nautilus | Bag | Active | RP-SMA to I-PEX MHF5L | RP-SMA Plug, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF5L Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 6 GHz | Gray | IP Rated Unmated | -40°C ~ 85°C | - | - |
|
|
0897615210COAX CBL RP-SMA TO MMCX |
4,844 |
|
- |
89761 | Bulk | Active | RP-SMA to MMCX | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 3.583" (91.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | - | - | - | - | - | - |
|
|
0732305981CASMB PLUG TO BNC PLUGRG174LLL=1 |
4,428 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
0732307180CASMA P R/A TO SMA P STR ON RG31 |
2,608 |
|
- |
73230 | Bulk | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 3.000" (76.20mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | - | - | - |
|
R285001021COAX CBL MMS TO CABLE |
2,758 |
|
Datasheet |
- | Bulk | Active | MMS to Cable | MMS Plug, Right Angle | Male | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 7.874" (200.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Brown | - | -40°C ~ 90°C | - | - |
|
CAB434RF-0200-A-1COAX CBL RP-SMA TO MHF5L |
4,965 |
|
Datasheet |
Nautilus | Bag | Active | RP-SMA to I-PEX MHF5L | RP-SMA Jack, Right Angle | Male | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF5L Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 6 GHz | Gray | IP Rated Unmated | -40°C ~ 85°C | - | - |
|
|
CAB574RF-0300-A-1-ECABLE ASSEMBLY I-PEX MHF I TO SM |
3,551 |
|
- |
Nautilus | Bag | Active | I-PEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | - | -40°C ~ 85°C | - | - |
|
|
CT4098-25COAX CBL BNC TO BNC |
1,860 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-223 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | - | 0°C ~ 80°C | - | - |
|
CABLE 379 RF-100-A-1COAX CBL MHF1 TO SMA |
3,800 |
|
Datasheet |
Nautilus | Bag | Active | I-PEX MHF1 to SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | RP-SMA Jack | Male | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 6 GHz | Gray | IP Rated Unmated | -40°C ~ 85°C | - | - |
|
|
0732305993CABNC PLUG TO BNC PLUGRG174LLL=4 |
1,647 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

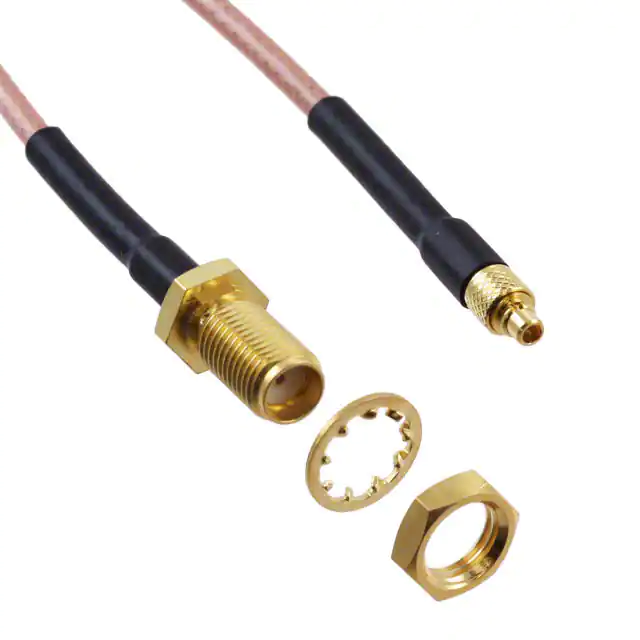

415-0071-MM750COAX CBL SMA TO MMCX |
1,658 |
|
Datasheet |
- | Bulk | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 29.53" (750.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | White | Shielded | - | - | - |
|
|
ASMX010F174S11SMA FEMALE BULKHEAD TO FME FEMAL |
2,349 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CAB442RF-0300-A-1CABLE ASSEMBLY I-PEX MHF TO ISOL |
1,769 |
|
- |
Nautilus | Bag | Active | I-PEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | RG-178 | - | - | 50 Ohms | 6 GHz | Brown | - | -40°C ~ 85°C | - | - |
|

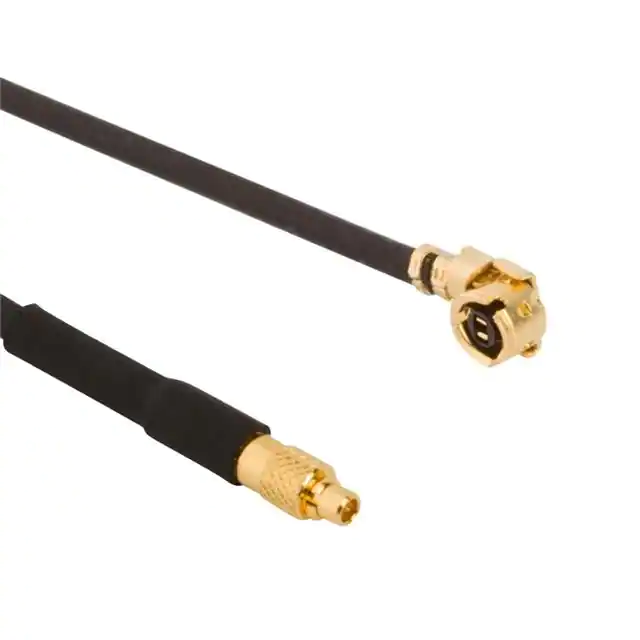

095-900-554-150COAX CBL U.FL AMC TO MMCX |
4,802 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to MMCX | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | MMCX Plug | Male | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
|
CAB444RF-0150-A-1CABLE ASSEMBLY I-PEX MHF TO ISOL |
1,701 |
|
- |
Nautilus | Bag | Active | I-PEX MHF1 to TNC | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | RG-178 | - | - | 50 Ohms | 6 GHz | Brown | - | -40°C ~ 85°C | - | - |
|
|
R302205009PIG MML H2 1.13/50S 2000MM |
1,099 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SR085-SF1-95mmCOAX CBL SMA TO CABLE |
1,324 |
|
Datasheet |
SR085 | Bulk | Active | SMA to Cable | SMA Jack | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 3.740" (95.00mm) | 0.085" Semi-Rigid Cable | - | - | 50 Ohms | 6 GHz | Gray | - | -40°C ~ 125°C | - | - |
|
|
L000869-02COAX CBL SMA TO SMA |
3,393 |
|
- |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Black | - | -30°C ~ 80°C | - | - |
