Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

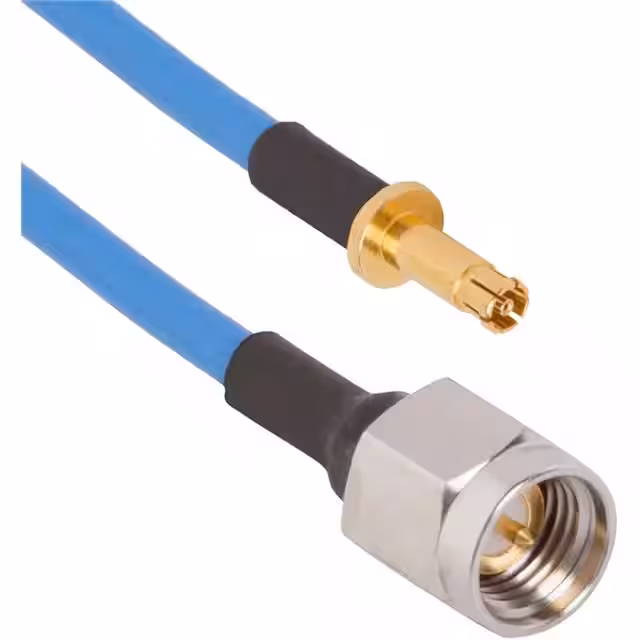

7093-0175COAX CBL SMA TO SMPM |
2,798 |
|
Datasheet |
- | Bulk | Active | SMA to SMPM | SMPM Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
SF104/11N/11N/1000MMCOAX CBL N-TYPE TO N-TYPE |
1,596 |
|
Datasheet |
Sucoflex® 100 | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | - | - | - | 50 Ohms | 18 GHz | Blue | - | -40°C ~ 125°C | - | - |
|
7038-0371COAX CBL SMA TO SMPS |
2,587 |
|
Datasheet |
- | Bag | Active | SMA to SMPS | SMPS Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
|
TM7SSSH28R9MS031CCOAX CBL 2.92MM TO HC2 |
3,146 |
|
Datasheet |
CoreHC | Bag | Active | 2.92mm to HC2 | 2.92mm Plug | Male | Free Hanging (In-Line) | - | HC2 (8) | - | Free Hanging (In-Line) | - | 12.20" (310.00mm) | 2.00mm OD Coaxial Cable | - | - | 50 Ohms | 40 GHz | Teal | - | -65°C ~ 150°C | - | - |
|
|
GC47-1-10-92SP-0305COAX CBL 2.92MM TO SMPM |
4,519 |
|
Datasheet |
GC47 | Bulk | Active | 2.92mm to SMPM | 1.85mm Plug (10) | Male | Free Hanging (In-Line) | - | SMPM Plug (10) | Male | Free Hanging (In-Line) | - | 12.01" (305.00mm) | - | - | - | - | 40 GHz | Violet | - | - | - | - |
|
|
MF53/2X8A_21MXP/21SMA/152COAX CBL SMA TO MXP |
2,969 |
|
Datasheet |
MXP | Bulk | Active | SMA to MXP | MXP Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | Multiflex 53 | - | - | 50 Ohms | 18 GHz | Silver | - | -55°C ~ 85°C | - | - |
|
|
8-23-0116COAX CBL MHF4L TO MHF4L |
4,407 |
|
Datasheet |
MHF® 4L | Bag | Active | I-PEX MHF4L to I-PEX MHF4L | I-PEX MHF4L Plug, Right Angle | Female | Free Hanging (In-Line) | - | I-PEX MHF4L Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 12 GHz | Black | - | -40°C ~ 90°C | - | - |
|
|
UFL-2LPA-068Y2T-A-200COAX CBL U.FL TO U.FL |
4,130 |
|
Datasheet |
U.FL | Bag | Active | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 105°C | - | - |
|
|
UFL-2LPA-088Y2T-A-300COAX CBL U.FL TO U.FL |
4,788 |
|
Datasheet |
U.FL | Bag | Active | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 105°C | - | - |
|
|
UFL-2LPHF6-062N1D-A-100COAX CBL U.FL TO U.FL |
2,429 |
|
Datasheet |
U.FL | Bulk | Active | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 0.95mm OD Coaxial Cable | 50 Ohms | - | - | 6 GHz | Gray | - | -40°C ~ 90°C | - | - |
|

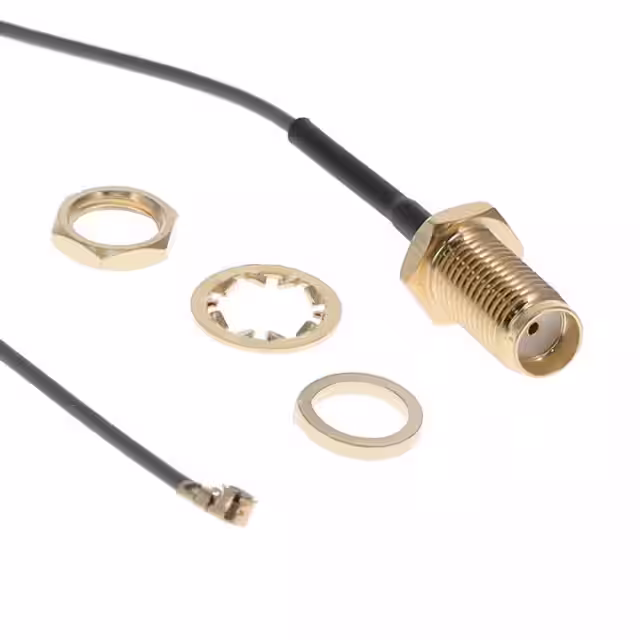

DH-20G50011COAX CBL MHF1 TO SMA |
4,603 |
|
Datasheet |
- | Bag | Active | I-PEX MHF1 to SMA | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | - | - | - | 50 Ohms | - | Gray | - | - | - | - |
|

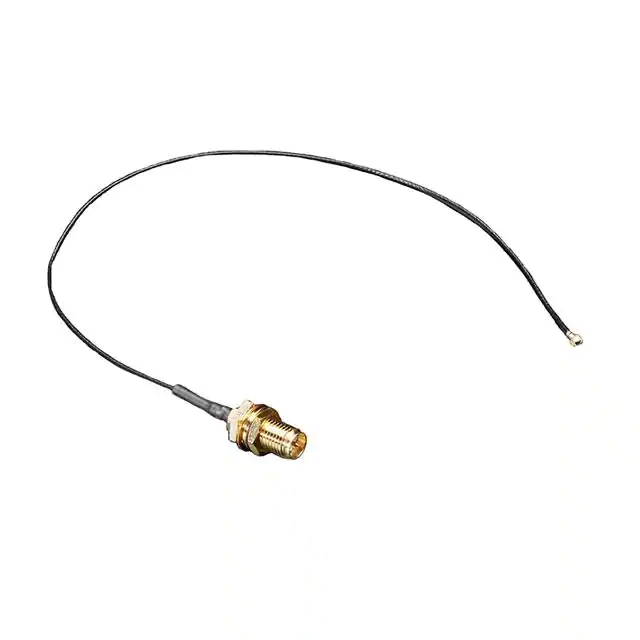

5444COAX CBL RP-SMA TO W.FL MHF3 |
2,757 |
|
- |
- | Bulk | Active | RP-SMA to W.FL, I-PEX MHF3 | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | W.FL, I-PEX MHF3 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | - | - | - | - | - | Black | - | - | - | - |
|
|
CAB-22037COAX CBL RP-SMA TO RP-SMA |
1,498 |
|
Datasheet |
- | Box | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Free Hanging (In-Line) | - | RP-SMA Plug | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-174 | 50 Ohms | - | - | - | Black | - | - | - | - |
|
|
YSAN025BASMA(F) TO IPEX MHF1, 1.13 MICRO |
2,219 |
|
Datasheet |
- | Bulk | Active | - | SMA Plug | Female | Free Hanging (In-Line) | - | I-PEX I | - | Free Hanging (In-Line) | Bulkhead - Front Side Nut | 5.906" (150.00mm) | - | - | - | - | - | - | - | -20°C ~ 85°C | - | - |
|
|
CAB-22035COAX CBL SMA TO SMA |
4,108 |
|
Datasheet |
- | Box | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-174 | 50 Ohms | - | - | - | Black | - | - | - | - |
|
|
CAB-22036COAX CBL RP-SMA TO RP-SMA |
1,600 |
|
Datasheet |
- | Box | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Free Hanging (In-Line) | - | RP-SMA Plug | Female | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-174 | 50 Ohms | - | - | - | Black | - | - | - | - |
|
636201051000COAX CBL U.FL TO U.FL |
3,554 |
|
Datasheet |
WR-UMRF | Bag | Active | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | - | -40°C ~ 90°C | - | - |
|
U.FL-2LPHF6-066N2-A-200COAX CBL U.FL TO U.FL |
1,133 |
|
Datasheet |
U.FL | Bag | Active | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
U.FL-2LPHF6-04N2TV-A-500COAX CBL U.FL TO U.FL |
4,346 |
|
Datasheet |
U.FL | Bag | Active | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 19.69" (500.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
A-2PA-081-050B2COAX CBL AMMC TO AMMC |
3,927 |
|
Datasheet |
- | Bag | Active | AMMC to AMMC | AMMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | AMMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
