Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CCBNS-MM-RG316DS-12COAX CBL BNC TO SMA |
3,260 |
|
Datasheet |
CCBNS | Bulk | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 DS | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | -40°C ~ 85°C | - | - |
|
1300-00023COAX CBL RP-SMA TO MMCX |
1,036 |
|
Datasheet |
- | Bulk | Active | RP-SMA to MMCX | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 7.000" (177.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | 2.5 GHz | Gray | Shielded | -20°C ~ 65°C | - | - |
|
CCSMA-MM-RG316DS-36COAX CBL SMA TO SMA |
2,401 |
|
Datasheet |
CCSMA | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-316 DS | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | -40°C ~ 85°C | - | - |
|
CAB.951COAX CBL SMA TO N-TYPE |
3,897 |
|
Datasheet |
- | Bag | Active | SMA to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Brown | Shielded | 105°C | - | - |
|
141-4SMRSM+COAX CBL SMA TO SMA |
3,281 |
|
Datasheet |
141 SMRSM | Bag | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 4.000" (101.60mm) | Hand Formable .141 | - | - | 50 Ohms | 18 GHz | Blue | - | -55°C ~ 105°C | - | - |
|
415-0205-060COAX CBL SMA TO SMA |
3,715 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | - | - | - |
|
415-0025-048COAX CBL SMA TO SMA |
3,733 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Gray | Shielded | - | - | - |
|
115101-19-60.00COAX CBL BNC TO BNC |
4,673 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
115101-19-72.00COAX CBL BNC TO BNC |
2,522 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
415-0058-012COAX CBL N-TYPE TO N-TYPE |
1,931 |
|
Datasheet |
- | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 11 GHz | Black | Shielded | - | - | - |
|
135110-02-06.00COAX CBL SMA TO SMA |
1,321 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
135101-01-M0.50COAX CBL SMA TO SMA |
4,410 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RG-316 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|
|
135101-01-18.00COAX CBL SMA TO SMA |
4,204 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-316 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|

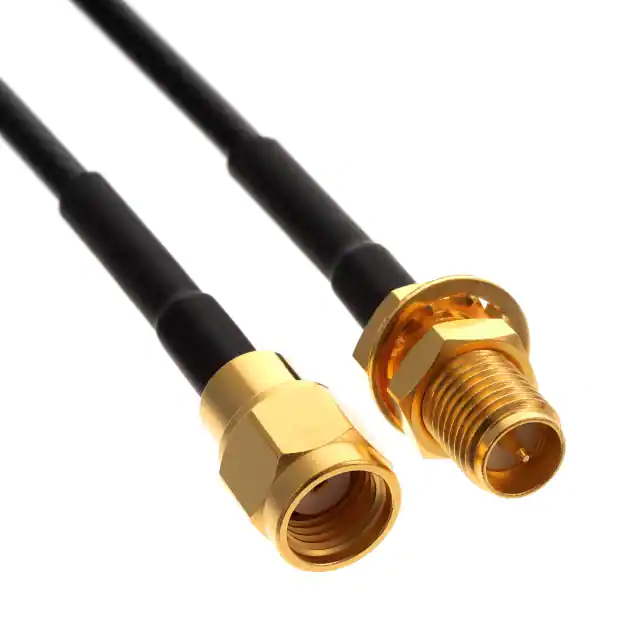

415-0201-060COAX CBL RP-SMA TO RP-SMA |
1,483 |
|
Datasheet |
- | Bag | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | RP-SMA Plug | Female | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | - | Copper | Shielded | - | - | - |
|
095-900-545-024COAX CBL MCX TO MCX |
1,186 |
|
Datasheet |
MCX | Bag | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | - | -40°C ~ 85°C | - | - |
|
265104-08-36.00COAX CBL MMCX TO MMCX |
4,483 |
|
Datasheet |
- | Bag | Active | MMCX to MMCX | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-178 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|
|
135101-01-48.00COAX CBL SMA TO SMA |
1,859 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-316 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|
415-0002-006COAX CBL SMB TO SMB |
2,843 |
|
Datasheet |
- | Bulk | Active | SMB to SMB | SMB Plug | Female | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|
095-820-109-10DCOAX CBL U.FL AMC-FAKRA SMB |
1,999 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to Fakra SMB | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | Fakra SMB Plug | Male | Panel Mount | Bulkhead - Front Side Nut | 3.937" (100.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Locking | -40°C ~ 90°C | - | - |
|
245101-01-48.00COAX CBL BNC TO SMA |
3,642 |
|
Datasheet |
- | Bag | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
