Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

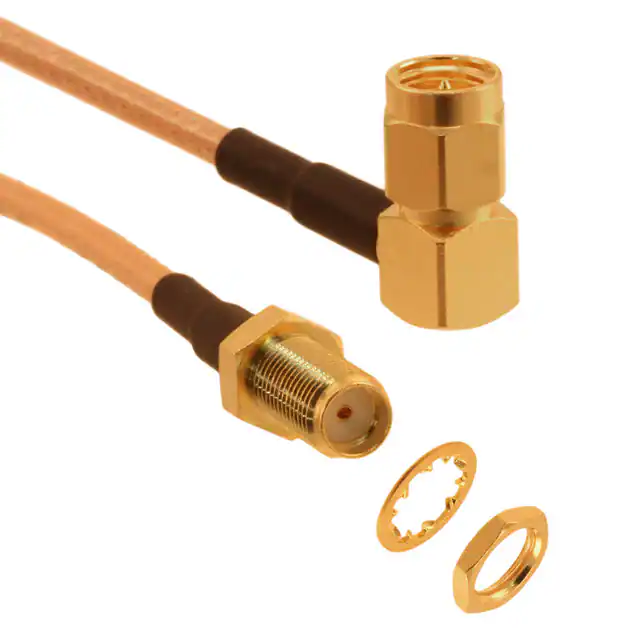

135111-02-M0.50COAX CBL SMA TO SMA |
4,678 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|
095-902-450-004COAX CBL SMA TO SMA |
3,467 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 4.000" (101.60mm) | Hand Formable .141 | - | - | 50 Ohms | 18 GHz | Gray | - | - | - | - |
|
RF179-72SP1-74SP3-1800COAX CBL BNC TO MCX |
2,300 |
|
Datasheet |
RF179 | Bag | Active | BNC to MCX | BNC Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 70.9" (1.8m) 5.9' | RG-179 | 75 Ohms | 75 Ohms | 75 Ohms | 4 GHz | Amber | Shielded | -55°C ~ 165°C | - | - |
|
415-0081-012COAX CBL SMA TO SMA |
4,100 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Hand Formable .086 | - | 50 Ohms | 50 Ohms | 18 GHz | Gray | Shielded | - | - | - |
|
095-902-459-010COAX CBL SMA TO SMP |
4,598 |
|
Datasheet |
- | Bag | Active | SMA to SMP | SMA Plug | Male | Free Hanging (In-Line) | - | SMP Plug | Female | Free Hanging (In-Line) | - | 10.000" (254.00mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | Shielded | - | - | - |
|

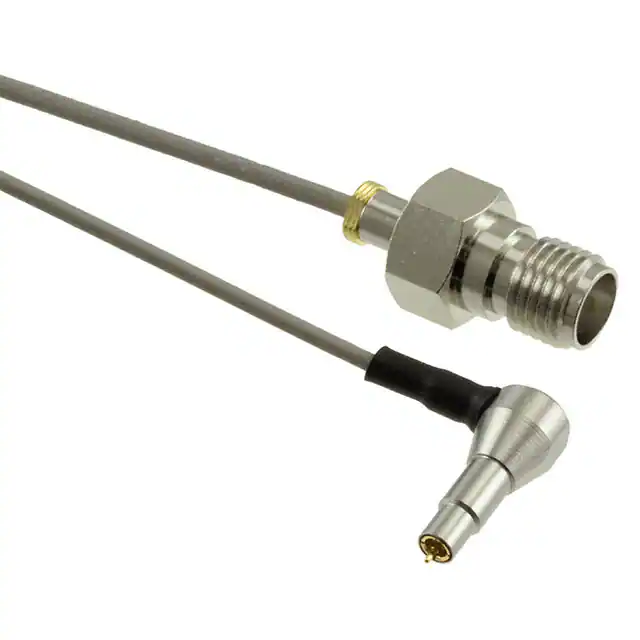

MS156LH1-HRMJ-088V300ACOAX CBL SMA TO MS-156 |
1,694 |
|
Datasheet |
- | Bulk | Active | SMA to MS-156 | SMA Jack | Female | Free Hanging (In-Line) | - | MS-156 Plug | Male | Free Hanging (In-Line) | - | 11.811" (300.00mm) | - | - | - | 50 Ohms | 6 GHz | Gray | - | -30°C ~ 70°C | - | - |
|

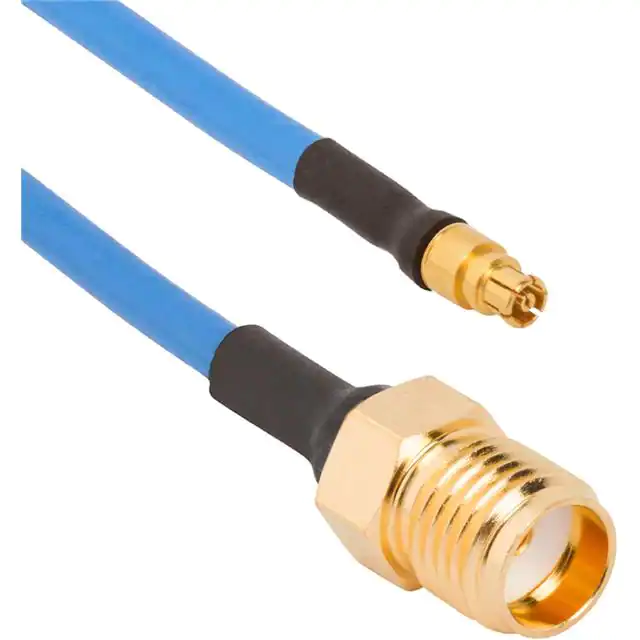

7029-2561COAX CBL SMA TO SMPM |
1,676 |
|
Datasheet |
- | Bulk | Active | SMA to SMPM | SMA Jack | Female | Free Hanging (In-Line) | - | SMPM Jack | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|

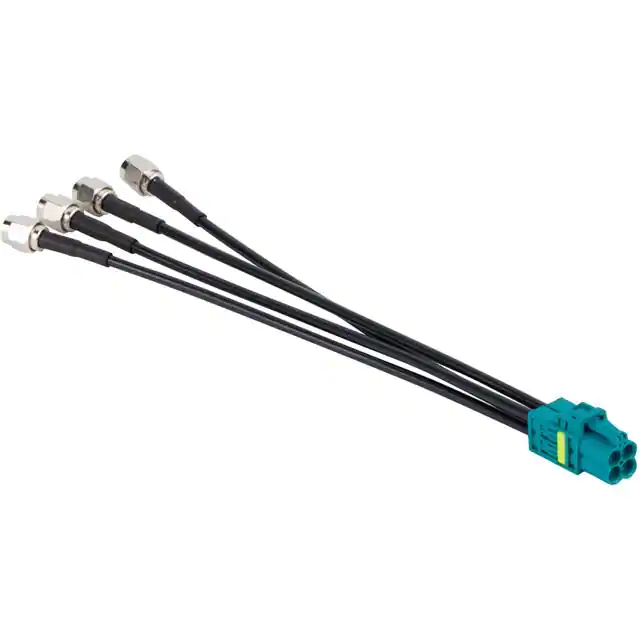

095-820-175-006COAX CBL SMA TO MINI FAKRA |
2,299 |
|
Datasheet |
AUTOMATE™ | Bag | Active | SMA to Mini Fakra | Fakra Mini Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | - | - | - | 50 Ohms | 9 GHz | Black | - | - | - | - |
|
7029-2557COAX CBL SMA TO SMA |
1,468 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
IJ5H-08-0610-S-2-01SP1COAX CBL IJ5H TO SMA |
3,442 |
|
Datasheet |
ISORATE® IJ5H | Bag | Active | IJ5H to SMA | IJ5H Plug | Male | Panel Mount | Latch Lock | SMA Plug (8) | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | 9.5 GHz | Copper | Shielded | -40°C ~ 90°C | - | - |
|
FL086-12KM+COAX CBL 2.92MM TO 2.92MM |
4,387 |
|
Datasheet |
FL086-XXKM+ | Bag | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 0.086" Flexible Cable | - | - | 50 Ohms | 40 GHz | Blue | - | -55°C ~ 105°C | - | - |
|
CCSMA-MM-LL142-36COAX CBL SMA TO SMA |
3,807 |
|
Datasheet |
CCSMA | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | 4.95mm OD Coaxial Cable | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -40°C ~ 85°C | - | - |
|

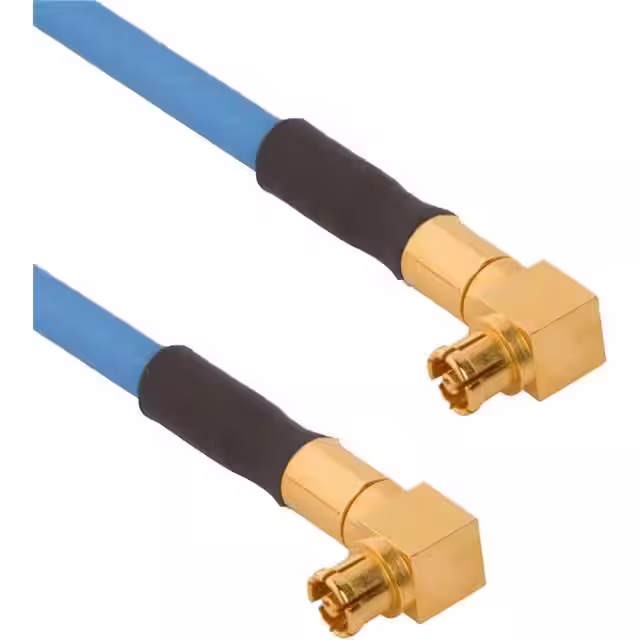

7032-7156COAX CBL SMPM TO SMPM |
3,711 |
|
Datasheet |
- | Bag | Active | SMPM to SMPM | SMPM Jack, Right Angle | Female | Free Hanging (In-Line) | - | SMPM Jack, Right Angle | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | TFlex-405 | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|

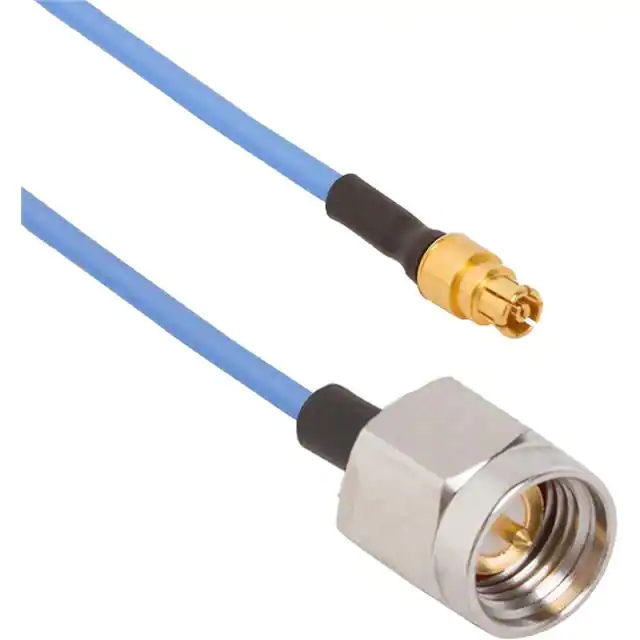

7032-7525COAX CBL SMA TO SMPM |
2,134 |
|
Datasheet |
- | Bulk | Active | SMA to SMPM | SMPM Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
|
MINIBEND KR-6COAX CBL 2.92MM TO 2.92MM |
2,537 |
|
Datasheet |
MINIBEND | Bulk | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.98mm OD Coaxial Cable | - | - | 50 Ohms | 40 GHz | Blue | - | -55°C ~ 125°C | - | - |
|
7012-0802COAX CBL SMP TO SMP |
1,283 |
|
Datasheet |
- | Bulk | Active | SMP to SMP | SMP Jack, Right Angle | Female | Free Hanging (In-Line) | - | SMP Jack, Right Angle | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 26.5 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
|
086-24KM+COAX CBL 2.92MM TO 2.92MM |
1,805 |
|
Datasheet |
086 KM | Bag | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | Hand Formable .086 | - | - | 50 Ohms | 40 GHz | Blue | - | -55°C ~ 85°C | - | - |
|

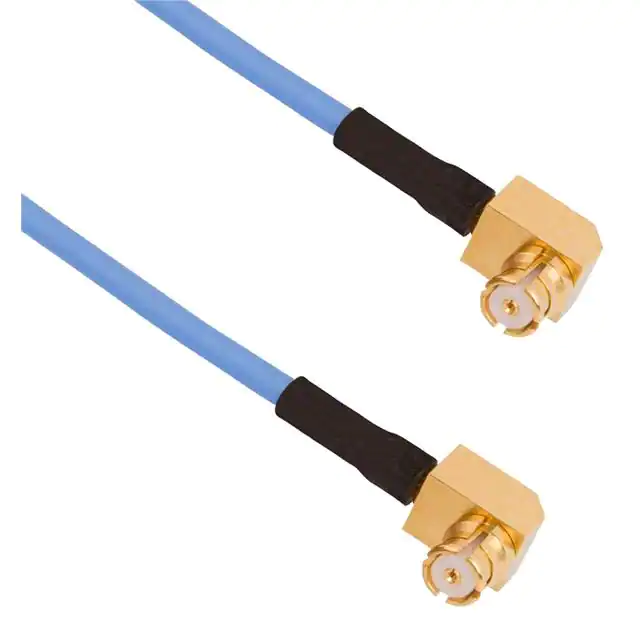

7012-0804COAX CBL SMP TO SMP |
4,176 |
|
Datasheet |
- | Bulk | Active | SMP to SMP | SMP Jack, Right Angle | Female | Free Hanging (In-Line) | - | SMP Jack, Right Angle | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 26.5 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
7093-0174COAX CBL SMA TO SMPM |
2,465 |
|
Datasheet |
- | Bulk | Active | SMA to SMPM | SMPM Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|

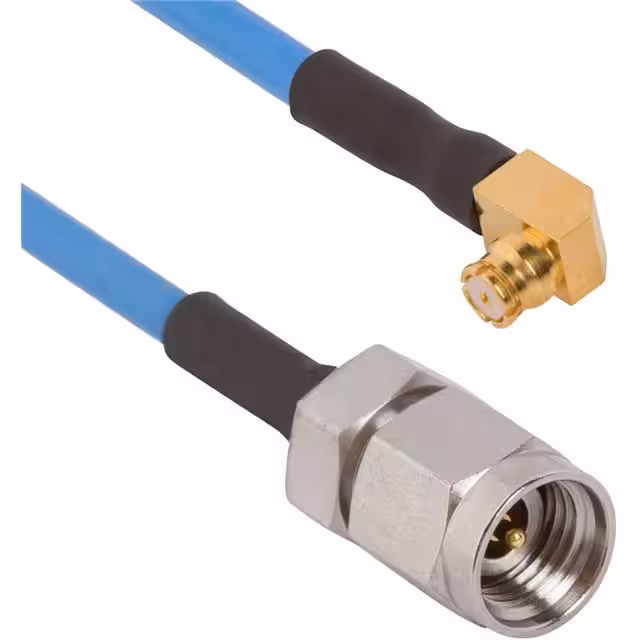

7012-1288COAX CBL SMP TO 2.92MM |
2,936 |
|
Datasheet |
- | Bag | Active | SMP to 2.92mm | SMP Jack, Right Angle | Female | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | TFlex-405 | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
