Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

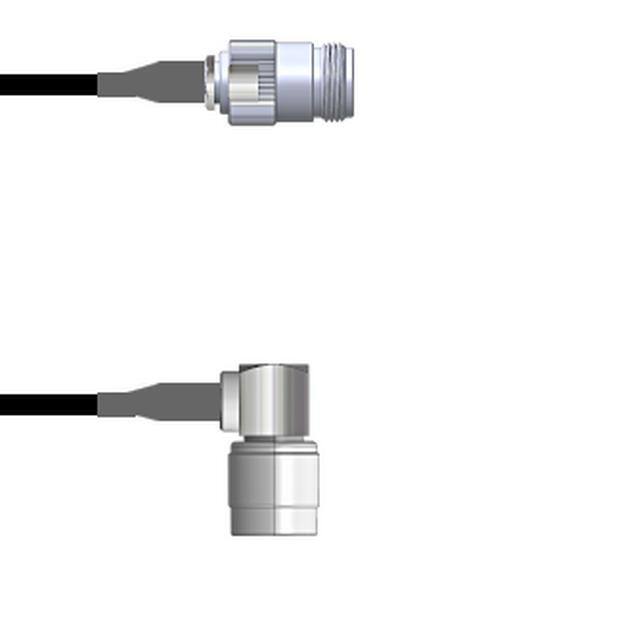

Q-2004T0003003iCOAX CBL N-TYPE TO TNC |
100 |
|
Datasheet |
- | Bag | Active | N-Type to TNC | N-Type Jack | Female | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 3.000" (76.20mm) | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - | - | - |
|
PE3C8817/RD-72COAX CBL 1.0/2.3 TO HD-BNC |
1,971 |
|
Datasheet |
- | Tape & Box (TB) | Active | 1.0/2.3 to HD-BNC | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Red | - | -20°C ~ 75°C | - | - |
|
|
PE3C8817/YW-72COAX CBL 1.0/2.3 TO HD-BNC |
2,579 |
|
Datasheet |
- | Tape & Box (TB) | Active | 1.0/2.3 to HD-BNC | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Yellow | - | -20°C ~ 75°C | - | - |
|
|
PE3C8817/VL-72COAX CBL 1.0/2.3 TO HD-BNC |
1,983 |
|
Datasheet |
- | Tape & Box (TB) | Active | 1.0/2.3 to HD-BNC | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Violet | - | -20°C ~ 75°C | - | - |
|
|
PE3C8817/WH-72COAX CBL 1.0/2.3 TO HD-BNC |
1,176 |
|
Datasheet |
- | Tape & Box (TB) | Active | 1.0/2.3 to HD-BNC | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | White | - | -20°C ~ 75°C | - | - |
|
|
PE3C8817/GR-72COAX CBL 1.0/2.3 TO HD-BNC |
2,935 |
|
Datasheet |
- | Tape & Box (TB) | Active | 1.0/2.3 to HD-BNC | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Green | - | -20°C ~ 75°C | - | - |
|
|
PE3C8817/GY-72COAX CBL 1.0/2.3 TO HD-BNC |
2,144 |
|
Datasheet |
- | Tape & Box (TB) | Active | 1.0/2.3 to HD-BNC | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Gray | - | -20°C ~ 75°C | - | - |
|
|
PE3C8817/BK-72COAX CBL 1.0/2.3 TO HD-BNC |
4,919 |
|
Datasheet |
- | Tape & Box (TB) | Active | 1.0/2.3 to HD-BNC | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Black | - | -20°C ~ 75°C | - | - |
|
|
PE3C8817/BL-72COAX CBL 1.0/2.3 TO HD-BNC |
1,160 |
|
Datasheet |
- | Tape & Box (TB) | Active | 1.0/2.3 to HD-BNC | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Blue | - | -20°C ~ 75°C | - | - |
|
|
PE3C8817/OR-72COAX CBL 1.0/2.3 TO HD-BNC |
2,045 |
|
Datasheet |
- | Tape & Box (TB) | Active | 1.0/2.3 to HD-BNC | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Orange | - | -20°C ~ 75°C | - | - |
|
|
PE3C8817/BR-72COAX CBL 1.0/2.3 TO HD-BNC |
1,744 |
|
Datasheet |
- | Tape & Box (TB) | Active | 1.0/2.3 to HD-BNC | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Brown | - | -20°C ~ 75°C | - | - |
|

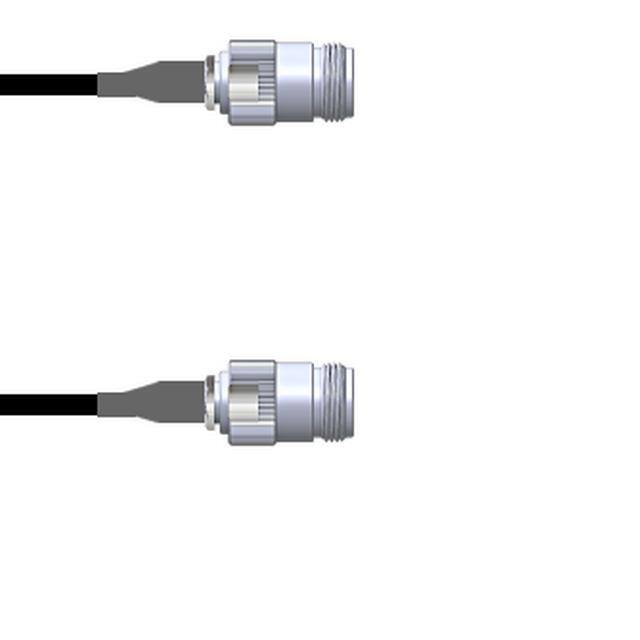

Q-2002000031.5MCOAX CBL N-TYPE TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - | - | - |
|

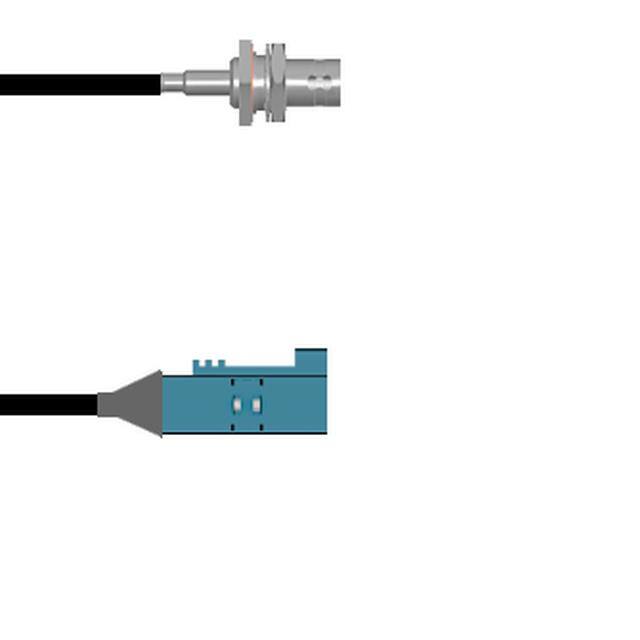

Q-0405E0003024iCOAX CBL BNC TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | BNC to Fakra | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Fakra Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-174 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
|
Q-0404F0005009iCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 9.000" (228.60mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|

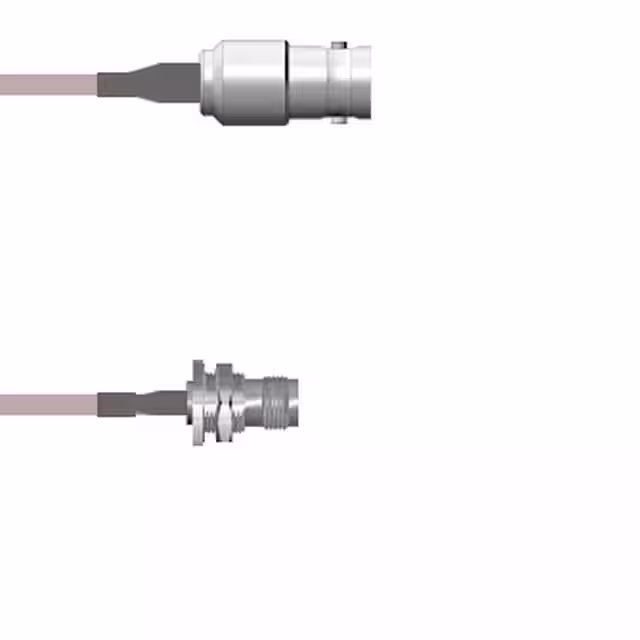

Q-0204C0001003iCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 3.000" (76.20mm) | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|
Q-0301A0003012iCOAX CBL BNC TO MCX |
100 |
|
Datasheet |
- | Bag | Active | BNC to MCX | BNC Jack | Female | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|

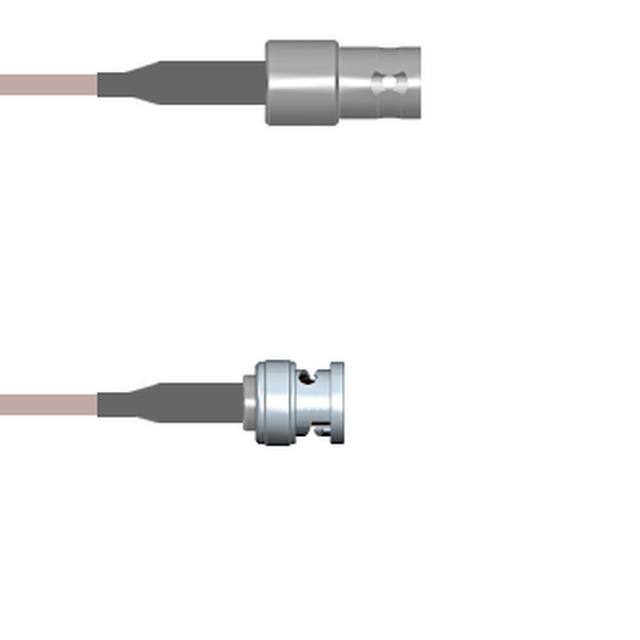

Q-0500O000S003iCOAX CBL BNC TO BNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 3.000" (76.20mm) | RG-179 | - | - | 75 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|

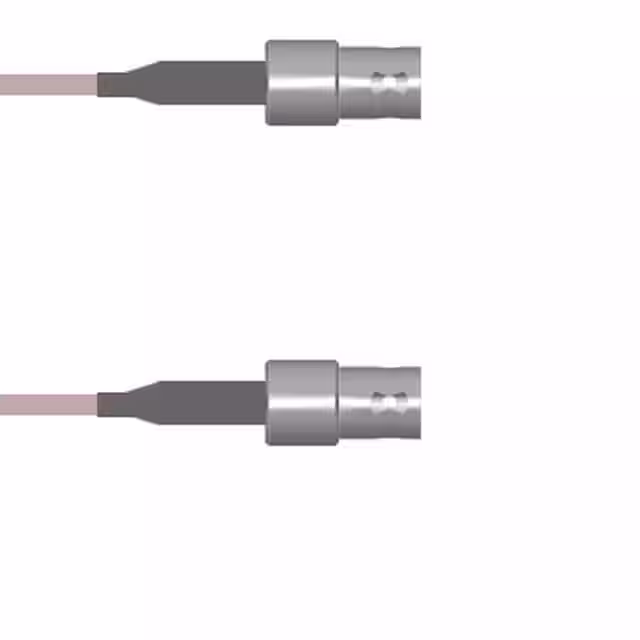

Q-05005000S003iCOAX CBL BNC TO BNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Jack | Female | Free Hanging (In-Line) | - | 3.000" (76.20mm) | RG-179 | - | - | 75 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|

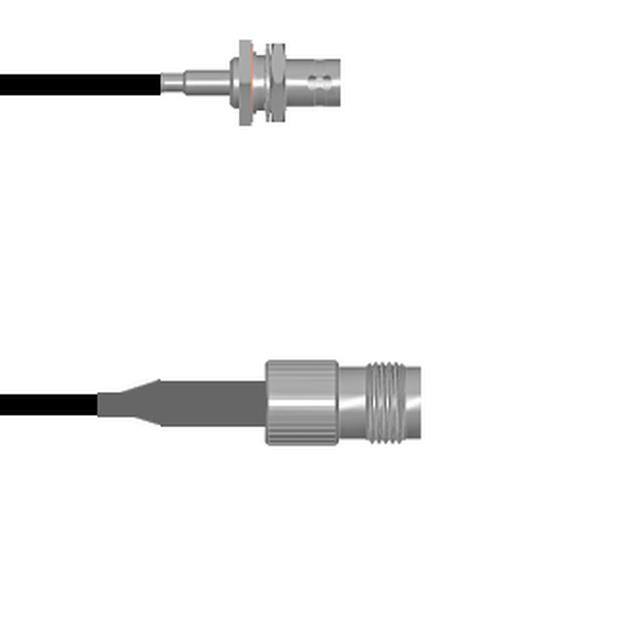

Q-0404G0003024iCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
Q-0305A0003072iCOAX CBL BNC TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | BNC to Fakra | BNC Jack | Female | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-174 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - | - | - |
