Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Q-2001A0003018iCOAX CBL MCX TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | MCX to N-Type | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-174 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|

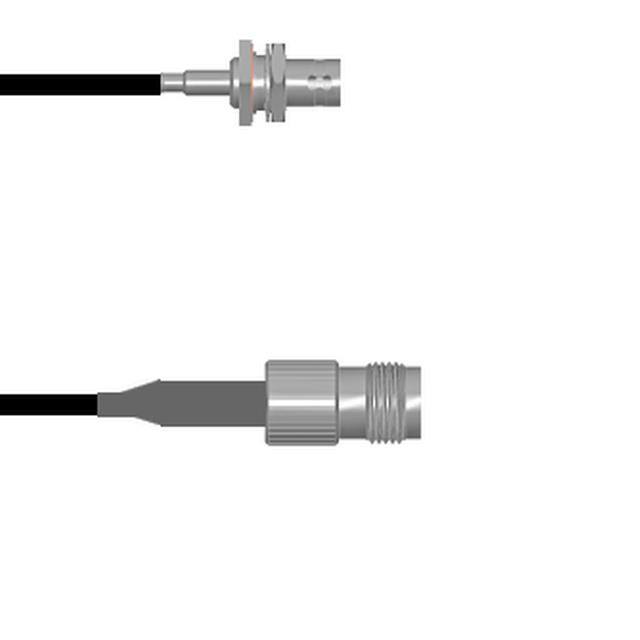

Q-0404G00031.5MCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|

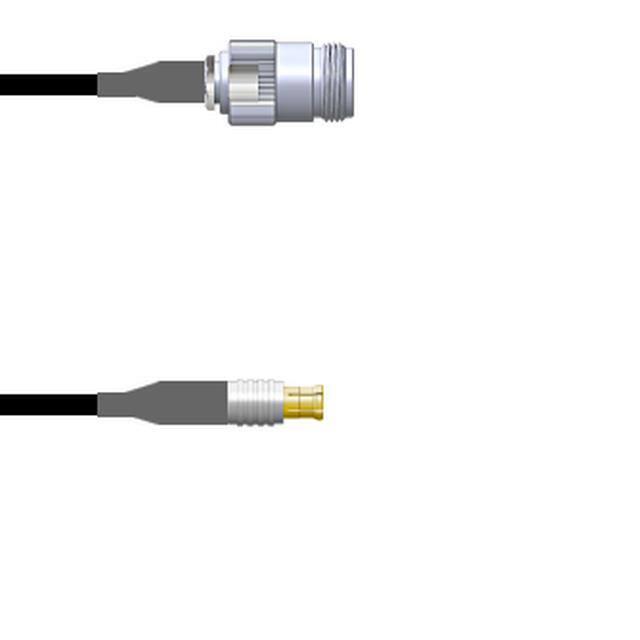

Q-2001F00032.5MCOAX CBL MCX TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | MCX to N-Type | MCX Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 98.4" (2.5m) 8.2' | RG-174 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
|
PE3W05364-48Snap-On QMA Male to Snap-On QMA |
3,966 |
|
Datasheet |
- | Retail Package | Active | QMA to QMA | QMA Plug | Male | Free Hanging (In-Line) | - | QMA Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | LMR 200 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 80°C | - | - |
|
|
PE38757H-12COAX CBL FAKRA TO FAKRA |
4,606 |
|
Datasheet |
- | Retail Package | Active | Fakra to Fakra | Fakra Jack, Right Angle | Female | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Tan | - | - | - | - |
|
|
PE38757D-12Bordeaux FAKRA Plug to FAKRA Jac |
3,141 |
|
Datasheet |
- | Retail Package | Active | Fakra to Fakra | Fakra Jack, Right Angle | Female | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | 50 Ohms | - | - | Copper | - | - | - | - |
|
|
PE3C8490-12COAX CBL 7/16 DIN TO N-TYPE |
3,448 |
|
Datasheet |
- | Retail Package | Active | 7/16 DIN to N-Type | 7/16 Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | SPF-250 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | - | - | - |
|
Q-0904J0008006iCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
Q-0404F00031.5MCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 59.1" (1.5m) 4.9' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
|
Q-0301A0003009iCOAX CBL BNC TO MCX |
100 |
|
Datasheet |
- | Bag | Active | BNC to MCX | BNC Jack | Female | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 9.000" (228.60mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|

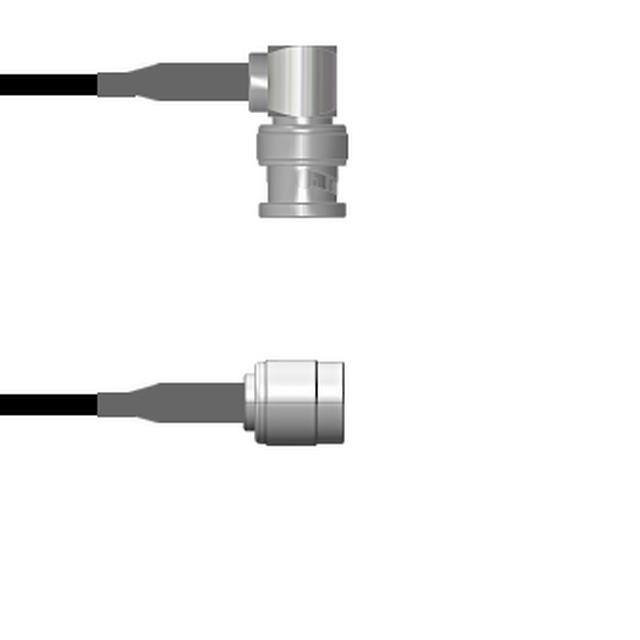

Q-0D0520003009iCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 9.000" (228.60mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|

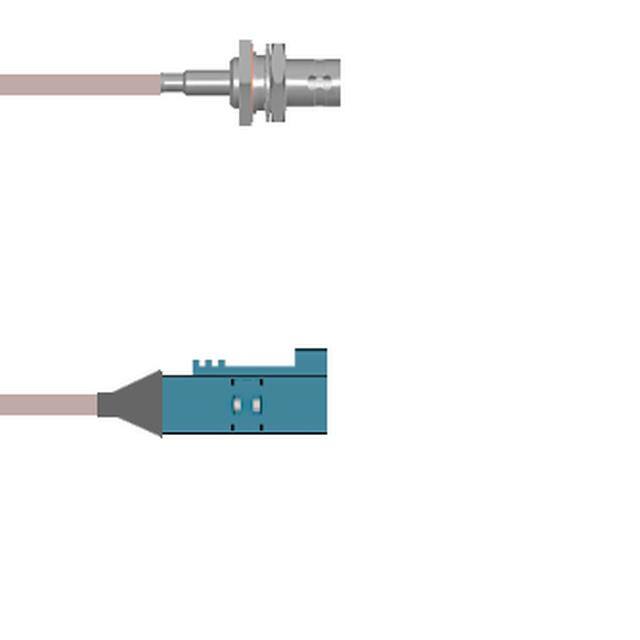

Q-0405E0005006iCOAX CBL BNC TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | BNC to Fakra | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Fakra Jack | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | - | - | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|

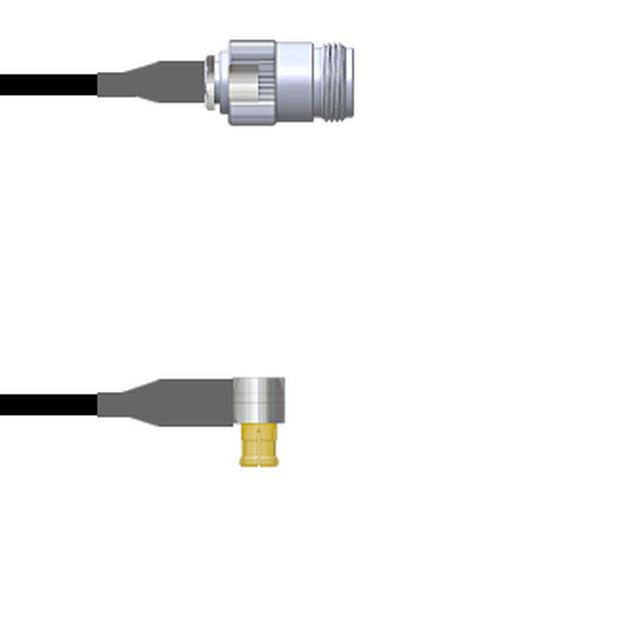

Q-2001A00031.5MCOAX CBL MCX TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | MCX to N-Type | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | RG-174 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
Q-2001A00030.5MCOAX CBL MCX TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | MCX to N-Type | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RG-174 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|

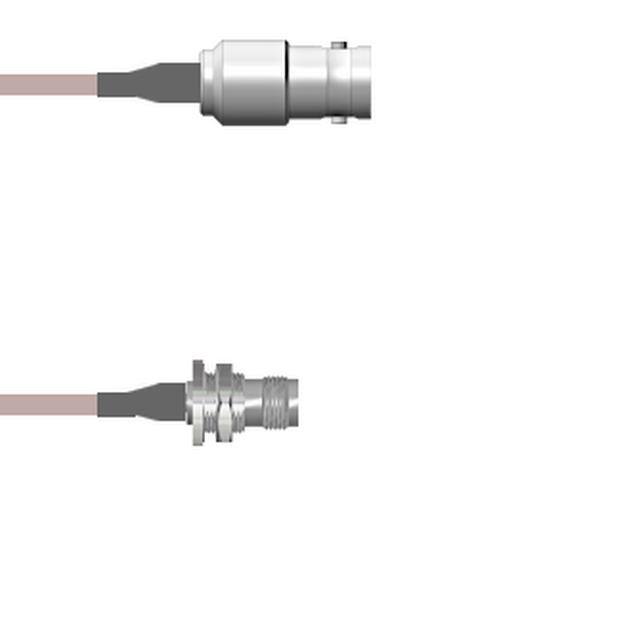

Q-0204D00011.5MCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 59.1" (1.5m) 4.9' | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|
Q-0404G0005006iCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|
|
Q-200200003003iCOAX CBL N-TYPE TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 3.000" (76.20mm) | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - | - | - |
|
Q-0N00N001A018iCOAX CBL BNC TO BNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-59 | - | - | 75 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
|
PE3C9818-12COAX CBL TNC TO TNC |
3,974 |
|
Datasheet |
- | Retail Package | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
Q-0404F0003.75MCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 29.53" (750.00mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
