Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE3C7228-48UHF Male to Straight Cut Lead Lo |
2,653 |
|
Datasheet |
- | Retail Package | Active | UHF to Cable | UHF Plug | Male | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 48.0" (1.2m) 4.0' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|

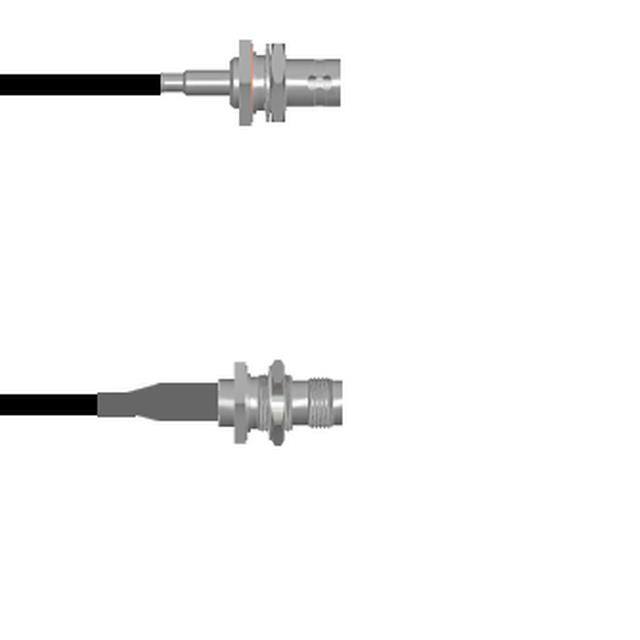

Q-0404F0003036iCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 36.00" (914.40mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
|
Q-200200003.25MCOAX CBL N-TYPE TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - | - | - |
|

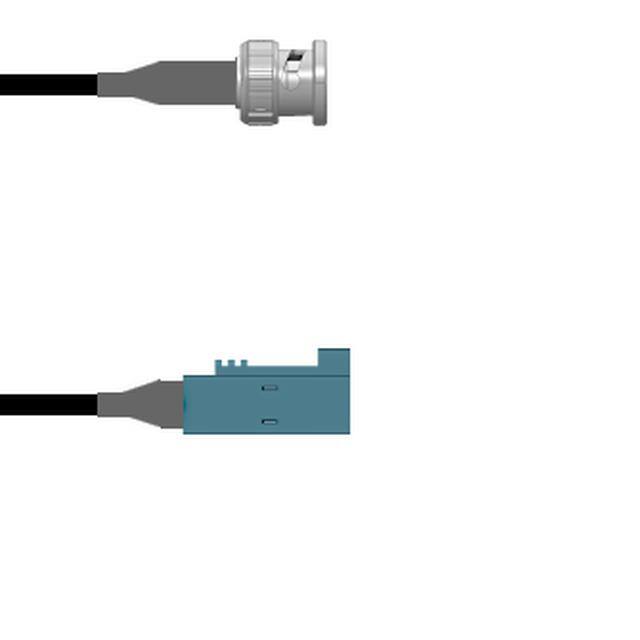

Q-0L05F0008009iCOAX CBL BNC TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | BNC to Fakra | BNC Plug | Male | Free Hanging (In-Line) | - | Fakra Jack | Female | Free Hanging (In-Line) | - | 9.000" (228.60mm) | RG-58 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
|
PE35729-24COAX CBL BNC TO BNC |
4,035 |
|
Datasheet |
- | Retail Package | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|
|
PE38757K-48COAX CBL FAKRA TO FAKRA |
1,382 |
|
Datasheet |
- | Retail Package | Active | Fakra to Fakra | Fakra Jack, Right Angle | Female | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|
|
PE3W05863/HS-12COAX CBL MCX TO MMCX |
1,108 |
|
Datasheet |
- | Retail Package | Active | SMA to MMBX | MMBX Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Black | - | -55°C ~ 125°C | - | - |
|
|
PE3C4066-24COAX CBL SMA TO MMBX |
2,651 |
|
Datasheet |
- | Retail Package | Active | SMA to MMBX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMBX Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | 0.086" Semi-Rigid Cable | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Black | - | - | - | - |
|
|
PE34235LF-12COAX CBL SMA TO SMA |
1,703 |
|
Datasheet |
- | Retail Package | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Gray | - | - | - | - |
|
|
PE3210-72COAX CBL SMA TO SMC |
1,654 |
|
Datasheet |
- | Retail Package | Active | SMA to SMC | SMA Plug | Male | Free Hanging (In-Line) | - | SMC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
PE34687-12COAX CBL SMB MINI-SMB MINI |
1,982 |
|
Datasheet |
- | Retail Package | Active | SMB Mini to SMB Mini | SMB Mini Plug | Male | Free Hanging (In-Line) | - | SMB Mini Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-59B | 75 Ohms | 75 Ohms | 75 Ohms | - | - | - | - | - | - |
|
|
PE3635-24COAX CBL UHF TO UHF |
2,876 |
|
Datasheet |
- | Retail Package | Active | UHF to UHF | UHF Plug | Male | Free Hanging (In-Line) | - | UHF Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-213 | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|
|
PE3635LF-48UHF Male to UHF Male Cable 48 In |
1,928 |
|
Datasheet |
- | Retail Package | Active | UHF to UHF | UHF Plug | Male | Free Hanging (In-Line) | - | UHF Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-213 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
PE3C3985-4COAX CBL MMBX TO MMBX |
2,492 |
|
Datasheet |
- | Retail Package | Active | MMBX to MMBX | MMBX Plug | Male | Free Hanging (In-Line) | - | MMBX Plug | Male | Free Hanging (In-Line) | - | 4.000" (101.60mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Tan | - | - | - | - |
|
|
PE3C8502-48COAX CBL 7/16 DIN TO N-TYPE |
1,369 |
|
Datasheet |
- | Retail Package | Active | 7/16 DIN to N-Type | 7/16 Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | SPO-250 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | - | - | - |
|
|
PE3C8508-60COAX CBL N-TYPE TO N-TYPE |
1,579 |
|
Datasheet |
- | Retail Package | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | SPO-250 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | - | - | - |
|
|
PE3C8485-36COAX CBL 7/16 DIN TO N-TYPE |
2,789 |
|
Datasheet |
- | Retail Package | Active | 7/16 DIN to N-Type | 7/16 Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 36.00" (914.40mm) | SPF-250 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | - | - | - |
|
|
PE3C8502-150CMCOAX CBL 7/16 DIN TO N-TYPE |
4,208 |
|
Datasheet |
- | Retail Package | Active | 7/16 DIN to N-Type | 7/16 Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | SPO-250 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | - | - | - |
|
|
PE3C7870-48COAX CBL QMA TO QMA |
1,766 |
|
Datasheet |
- | Retail Package | Active | QMA to QMA | QMA Plug | Male | Free Hanging (In-Line) | - | QMA Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
PE39344H-48COAX CBL SMA TO FAKRA |
3,565 |
|
Datasheet |
- | Retail Package | Active | SMA to Fakra | SMA Jack | Female | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | - | - | - | - |
