Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C75NMFM.2COAX CBL N-TYPE TO F-TYPE |
1,244 |
|
Datasheet |
- | Box | Active | N-Type to F-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | F-Type Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | 75 Ohms | 75 Ohms | 75 Ohms | - | Black | - | - | - | - |
|
FMHR0087-16COAX CBL BNC TO SMA |
3,127 |
|
- |
- | Bag | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 16.00" (406.40mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Tan | - | -55°C ~ 165°C | - | - |
|
|
PE3C9493-48COAX CBL SHV TO SHV |
3,675 |
|
Datasheet |
- | Retail Package | Active | SHV to SHV | SHV Plug, Right Angle | Male | Free Hanging (In-Line) | - | SHV Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-59 | 75 Ohms | 50 Ohms | 50 Ohms | 300 MHz | Black | - | - | - | - |
|
|
32061SE-29171M16CR-29171M16CR-8COAX CBL SMPS TO SMPS |
4,452 |
|
Datasheet |
NANOBEND | Bulk | Active | SMPS to SMPS | SMPS Jack | Female | - | - | SMPS Jack | Female | - | - | 8.000" (203.20mm) | 1.60mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 110 GHz | Silver | - | -55°C ~ 200°C | - | - |
|
|
PE3C9493-60COAX CBL SHV TO SHV |
2,236 |
|
Datasheet |
- | Retail Package | Active | SHV to SHV | SHV Plug, Right Angle | Male | Free Hanging (In-Line) | - | SHV Plug, Right Angle | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-59 | 75 Ohms | 50 Ohms | 50 Ohms | 300 MHz | Black | - | - | - | - |
|
|
PE3C9954-12COAX CBL 2.92MM TO SMPS |
4,936 |
|
Datasheet |
- | Retail Package | Active | 2.92mm to SMPS | SMPS Jack | Female | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 40 GHz | Blue | - | -55°C ~ 165°C | - | - |
|
|
PE356-24COAX CBL SMA TO N-TYPE |
2,440 |
|
Datasheet |
- | Retail Package | Active | SMA to N-Type | SMA Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | - | - | -55°C ~ 125°C | - | - |
|
|
PE3MSA00490-36Lead Free TRS Subminiature Plug |
3,188 |
|
Datasheet |
- | Retail Package | Active | TRB to TRS | TRS Plug | Male | Free Hanging (In-Line) | - | TRB Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | - | 78 Ohms | 78 Ohms | 78 Ohms | 500 MHz | Blue | - | -20°C ~ 75°C | - | - |
|
|
NANOBEND 2SR-10CBL ASSY |
4,111 |
|
- |
NANOBEND | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NANOBEND 2MR-8CBL ASSY |
2,174 |
|
- |
NANOBEND | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PE3C9954-18COAX CBL 2.92MM TO SMPS |
4,138 |
|
Datasheet |
- | Retail Package | Active | 2.92mm to SMPS | SMPS Jack | Female | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 40 GHz | Blue | - | -55°C ~ 165°C | - | - |
|
|
32061SE-29981SVCR3-29981SVCR3-6COAX CBL SMPM TO SMPM |
4,827 |
|
Datasheet |
NANOBEND | Bulk | Active | SMPM to SMPM | SMPM Jack | Female | - | - | SMPM Jack | Female | - | - | 6.000" (152.40mm) | 1.60mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 110 GHz | Silver | - | -55°C ~ 200°C | - | - |
|
W103-KM1KM1-36INCHCOAX CBL 2.92MM TO 2.92MM |
1,536 |
|
Datasheet |
W1 | Bag | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | 2.48mm OD Coaxial Cable | - | - | 50 Ohms | 40 GHz | Gray | - | -55°C ~ 165°C | - | - |
|
|
NANOBEND 2MR-12CBL ASSY |
4,159 |
|
- |
NANOBEND | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NANOBEND 2MR-10CBL ASSY |
3,189 |
|
- |
NANOBEND | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

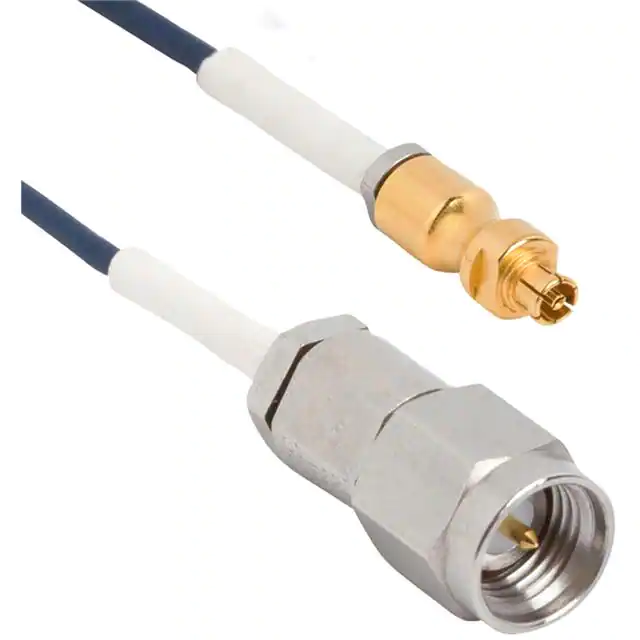

7032-7821COAX CBL SMA TO SMPM |
2,087 |
|
Datasheet |
- | Bag | Active | SMA to SMPM | SMPM Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 26.5 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
C75NMNM.4COAX CBL N-TYPE TO N-TYPE |
4,426 |
|
Datasheet |
- | Box | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | - | 75 Ohms | 75 Ohms | 75 Ohms | - | Black | - | - | - | - |
|
W100-KM1KM1-24INCHCOAX CBL 2.92MM TO 2.92MM |
2,470 |
|
Datasheet |
W1 | Bag | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | 3.60mm OD Coaxial Cable | - | - | 50 Ohms | 40 GHz | Gray | - | -55°C ~ 165°C | - | - |
|
|
32061SE-29171M16CR-29174M16CR-10COAX CBL SMPS TO SMPS |
2,649 |
|
Datasheet |
NANOBEND | Bulk | Active | SMPS to SMPS | SMPS Jack | Female | - | - | SMPS Jack | Female | - | - | 10.000" (254.00mm) | 1.60mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 110 GHz | Silver | - | -55°C ~ 200°C | - | - |
|
|
32061SE-29171M16CR-29174M16CR-4COAX CBL SMPS TO SMPS |
2,969 |
|
Datasheet |
NANOBEND | Bulk | Active | SMPS to SMPS | SMPS Jack | Female | - | - | SMPS Jack | Female | - | - | 4.000" (101.60mm) | 1.60mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 110 GHz | Silver | - | -55°C ~ 200°C | - | - |
