Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QCCAB.003FAKRA QUAD MINI C PLUG TO 3M RG- |
3,656 |
|
Datasheet |
- | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
QZCAB.011FAKRA QUAD MINI Z PLUG TO 3M RG- |
2,600 |
|
Datasheet |
- | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
QECAB.004FAKRA QUAD MINI E PLUG TO 3M RG- |
1,035 |
|
Datasheet |
- | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
QACAB.003FAKRA QUAD MINI A PLUG TO 3M RG- |
4,373 |
|
Datasheet |
- | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
095-725-111-080COAX CBL SMPM TO SMPM |
4,990 |
|
Datasheet |
- | Bulk | Active | SMPM to SMPM | SMPM Plug | Female | Free Hanging (In-Line) | - | SMPM Plug | Female | Free Hanging (In-Line) | - | 8.000" (203.20mm) | 0.085" Semi-Rigid Cable | - | - | 50 Ohms | 18 GHz | Gray | - | -20°C ~ 75°C | - | - |
|
|
095-725-111-090COAX CBL SMPM TO SMPM |
4,101 |
|
Datasheet |
- | Bulk | Active | SMPM to SMPM | SMPM Plug | Female | Free Hanging (In-Line) | - | SMPM Plug | Female | Free Hanging (In-Line) | - | 9.000" (228.60mm) | 0.085" Semi-Rigid Cable | - | - | 50 Ohms | 18 GHz | Gray | - | -20°C ~ 75°C | - | - |
|
095-850-222M100COAX CBL TNC TO TNC |
4,534 |
|
Datasheet |
ARC | Bulk | Active | TNC to TNC | TNC Jack | Female | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Panel Mount | Bulkhead - Front Side Nut | 39.4" (1.0m) 3.3' | LMR 200 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
095-850-215M150COAX CBL BNC TO HD-BNC |
1,367 |
|
Datasheet |
- | Bulk | Active | BNC to HD-BNC | BNC Jack | Female | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | Belden 4505R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - | - | - |
|
P1CA-29M29M-ST085-36COAX CBL 2.92MM TO 2.92MM |
3,318 |
|
Datasheet |
P1CA | Box | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | ST085 | - | - | - | 40 GHz | Blue | - | -55°C ~ 125°C | - | - |
|
PE3C5870-24COAX CBL SMA TO QMA |
3,965 |
|
Datasheet |
- | Bag | Active | SMA to QMA | SMA Plug | Male | Free Hanging (In-Line) | - | QMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 165°C | - | - |
|
|
PE3W03661LF-48COAX CBL SMA TO SMA |
4,453 |
|
Datasheet |
- | Retail Package | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Black | - | -65°C ~ 150°C | - | - |
|
095-850-192-036COAX CBL BNC TO HD-BNC |
4,235 |
|
Datasheet |
- | Bulk | Active | BNC to HD-BNC | BNC Jack | Female | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | Belden 4794R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - | - | - |
|
095-850-192M100COAX CBL BNC TO HD-BNC |
4,075 |
|
Datasheet |
- | Bulk | Active | BNC to HD-BNC | BNC Jack | Female | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | Belden 4794R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - | - | - |
|
|
095-850-215-072COAX CBL BNC TO HD-BNC |
2,671 |
|
Datasheet |
- | Bulk | Active | BNC to HD-BNC | BNC Jack | Female | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 4505R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - | - | - |
|
175101-R2-M0.50COAX CBL N-TYPE TO N-TYPE |
4,131 |
|
Datasheet |
- | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | Hand Formable .141 | - | - | 50 Ohms | - | Gray | - | - | - | - |
|
095-909-175M100COAX CBL N-TYPE TO N-TYPE |
1,001 |
|
Datasheet |
ARC | Bulk | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | LMR 400 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
PE3C5869-36COAX CBL QMA TO QMA |
2,633 |
|
Datasheet |
- | Bag | Active | QMA to QMA | QMA Plug | Male | Free Hanging (In-Line) | - | QMA Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 165°C | - | - |
|
PE3C5869-12COAX CBL QMA TO QMA |
2,668 |
|
Datasheet |
- | Bag | Active | QMA to QMA | QMA Plug | Male | Free Hanging (In-Line) | - | QMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 165°C | - | - |
|
PE3C5870-36COAX CBL SMA TO QMA |
3,435 |
|
Datasheet |
- | Bag | Active | SMA to QMA | SMA Plug | Male | Free Hanging (In-Line) | - | QMA Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 165°C | - | - |
|

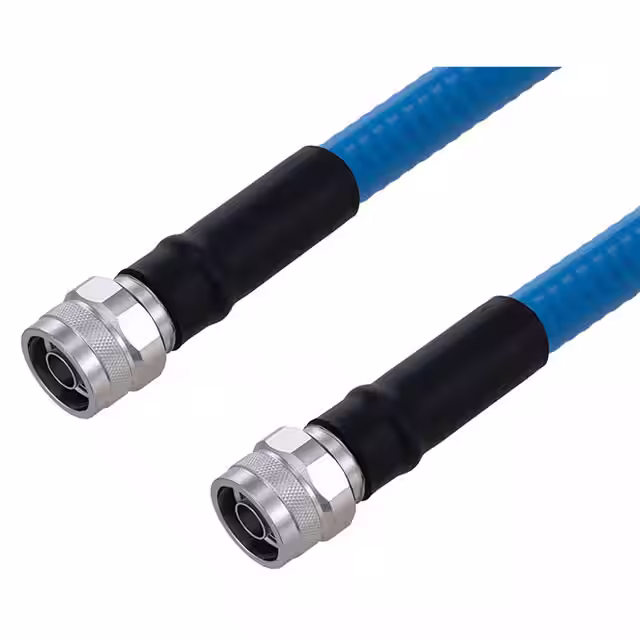

PE3C6370-200CMCOAX CBL N-TYPE TO N-TYPE |
1,217 |
|
Datasheet |
- | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 200°C | - | - |
